I found one on ebay in black (probably not as good looking as those audio note ones!) that was only about 8 bucks. Shipping worries me, estimate is currently...July. I'll just have a non-fitting knob till then :).

     Share This Post
  • Like
Reactions: MRphotography
post-15631414
Post #10,007 of 10,019

Paladin79

Member of the Trade: Cables For Less
Joined
Jun 1, 2016
Messages
5,294
Reaction score
8,691
Location
Indiana
Joined
Jun 1, 2016
Location
Indiana
Posts
5,294
Likes
8,691

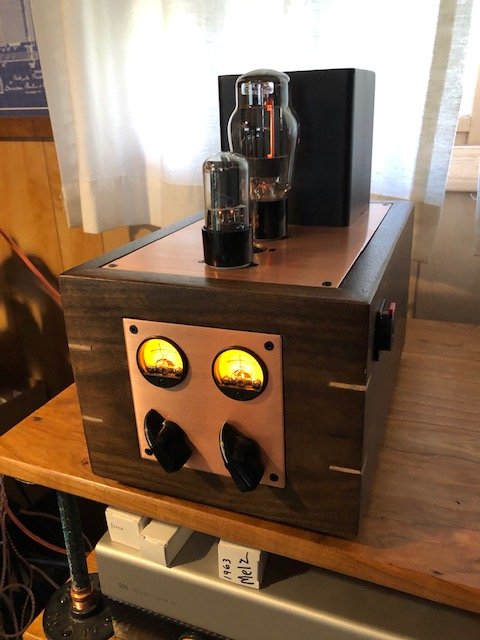

My build might give a few of you ideas on cabinet choices. This is walnut with maple splines and solid brushed copper. amp completed.jpgcopper front plate.jpg

post-15631762
Post #10,008 of 10,019

Toad_of_Toad_Hall

Head-Fier
Joined
May 25, 2017
Messages
76
Reaction score
31
Joined
May 25, 2017
Posts
76
Likes
31
My build might give a few of you ideas on cabinet choices. This is walnut with maple splines and solid brushed copper. amp completed.jpgcopper front plate.jpg
The VU meters look great! Do they add any noise to the circuit? How do you hook them up?

     Share This Post
  • Like
Reactions: MRphotography
post-15631801
Post #10,009 of 10,019

Paladin79

Member of the Trade: Cables For Less
Joined
Jun 1, 2016
Messages
5,294
Reaction score
8,691
Location
Indiana
Joined
Jun 1, 2016
Location
Indiana
Posts
5,294
Likes
8,691
The VU meters look great! Do they add any noise to the circuit? How do you hook them up?
No noise that I can measure or hear. They go on the output stage, use a 12 v supply that I ran separately. Dual volume pots that are simple enough to install. I did another version that is outboard, uses a pre-amp out, tulip poplar with ebony inlays and splines.7B8F81E6-4088-4CC6-A3B1-51B7CBEA8D47.jpeg

post-15631828
Post #10,010 of 10,019

Paladin79

Member of the Trade: Cables For Less
Joined
Jun 1, 2016
Messages
5,294
Reaction score
8,691
Location
Indiana
Joined
Jun 1, 2016
Location
Indiana
Posts
5,294
Likes
8,691
Those amps are for friends. My next venture will be a honey locust cabinet with copper and maybe holly splines.573B3F0A-2E0F-458C-8F08-D2C1DDC563E9.jpeg

post-15631864
Post #10,011 of 10,019

Toad_of_Toad_Hall

Head-Fier
Joined
May 25, 2017
Messages
76
Reaction score
31
Joined
May 25, 2017
Posts
76
Likes
31
No noise that I can measure or hear. They go on the output stage, use a 12 v supply that I ran separately. Dual volume pots that are simple enough to install. I did another version that is outboard, uses a pre-amp out, tulip poplar with ebony inlays and splines.7B8F81E6-4088-4CC6-A3B1-51B7CBEA8D47.jpeg
Source for the meters?

     Share This Post
  • Like
Reactions: MRphotography
post-15631894
Post #10,012 of 10,019

DenverW

100+ Head-Fier
Joined
May 22, 2019
Messages
491
Reaction score
278
Location
San diego
Joined
May 22, 2019
Location
San diego
Posts
491
Likes
278
Those amps are for friends. My next venture will be a honey locust cabinet with copper and maybe holly splines.573B3F0A-2E0F-458C-8F08-D2C1DDC563E9.jpeg
Clearly I need better friends :).

post-15632321
Post #10,013 of 10,019

Paladin79

Member of the Trade: Cables For Less
Joined
Jun 1, 2016
Messages
5,294
Reaction score
8,691
Location
Indiana
Joined
Jun 1, 2016
Location
Indiana
Posts
5,294
Likes
8,691
Source for the meters?
Amazon or Ebay, they are not expensive but they can take a while to receive. I just noticed this seller and the price is very good.

https://usa.banggood.com/2-Pcs-VU-M...LMmHZ2G1UsvcJphoCZ1AQAvD_BwE&cur_warehouse=CN

It took me a while to find a hole cutter the perfect size but I have used these meters a lot and will continue to do so. I compare different headphone amps a lot and the meters are quick reference for me on signal level. IMG_1539.jpg




Last edited:
     Share This Post
post-15632618
Post #10,015 of 10,019

Paladin79

Member of the Trade: Cables For Less
Joined
Jun 1, 2016
Messages
5,294
Reaction score
8,691
Location
Indiana
Joined
Jun 1, 2016
Location
Indiana
Posts
5,294
Likes
8,691
A classy amp ...
Brushed copper can be time consuming but I love the effect. This is the start of a top plate for my own amp.



thanksbrushed copper.jpg

Last edited:
     Share This Post
post-15637477
Post #10,016 of 10,019

MRphotography

New Head-Fier
Joined
Mar 12, 2020
Messages
21
Reaction score
20
Location
Nevada
Joined
Mar 12, 2020
Location
Nevada
Posts
21
Likes
20
Website
www.marcellorostagni.com
Hey Friends!! Check it out...a quick video I did with a fun montage unboxing of the Bottlehead Crack OTL 1.1 Headphone Amplifier! I hope you dig it, I will post up more audio gear videos to the channel soon. Please consider subscribing to the channel and drop me a like on the YouTube video if you don't mind and let me know if you want to see part 2 and 3 of this video series in the comments! Have a safe and great start to your week.

MR


post-15637578
Post #10,017 of 10,019

wwmhf

1000+ Head-Fier
Joined
Jan 8, 2004
Messages
1,216
Reaction score
192
Joined
Jan 8, 2004
Posts
1,216
Likes
192
It should be continued ... until music comes out it ...

     Share This Post
post-15638321
Post #10,018 of 10,019

Wes S

Headphoneus Supremus
Joined
Oct 11, 2016
Messages
2,726
Reaction score
2,967
Location
Plano, TX
Joined
Oct 11, 2016
Location
Plano, TX
Posts
2,726
Likes
2,967
Age
41
Hey Friends!! Check it out...a quick video I did with a fun montage unboxing of the Bottlehead Crack OTL 1.1 Headphone Amplifier! I hope you dig it, I will post up more audio gear videos to the channel soon. Please consider subscribing to the channel and drop me a like on the YouTube video if you don't mind and let me know if you want to see part 2 and 3 of this video series in the comments! Have a safe and great start to your week.

MR

Hey man! Nice to see you over hear!

     Share This Post
post-15638417
Post #10,019 of 10,019

chrisdrop

500+ Head-Fier
Joined
Jun 22, 2019
Messages
620
Reaction score
939
Location
London, United Kingdom
Joined
Jun 22, 2019
Location
London, United Kingdom
Posts
620
Likes
939
I am quite well equipped in the headphone amp department, but, I also want to learn to build 'em. So, I'll build a Crack+Speedball to start that journey.

In terms of parts/ performance upgrades, I think we have:
  • Potentiometer - a good stepped attenuator can cost as much as the Crack, but an Alps pot seems a good balanced upgrade?
  • Resistors - Looking for thoughts here. Looks like sometimes a choke is used in place of one resistor post power-supply to reduce power noise too. Hammond? Wire-wound replacements - Mills?
  • Caps - You can spend quite a bit here. Some can also be huge. Looking for thoughts here.
  • Anything else?
Question:
I assume it is best to build it to manual spec first (no changed parts), then make changes? Is that the case? Anything worth just doing during the initial build?

     Share This Post
