NEW Sony 4.4mm Pentaconn Balanced Connector
post-13210967
Thread Starter
Post #1 of 26
Joined
Feb 1, 2011
Messages
671
Reaction score
75
Joined
Feb 1, 2011
Posts
671
Likes
75
Website
www.moon-audio.com
 ​
 ​
4.4mm Pentaconn balanced connector for Sony
 ​
NEW Amplifier Connection Options - Sony Pentaconn 4.4mm Balanced Connector Option ​
 ​
 ​
 ​
More and more connection types are becoming prevalent, which makes our Silver Dragon Headphone Adapter Cable V3 & Black Dragon Headphone Adapter Cable V2 adapter cables a great solution for flexible headphone listening​
 ​
 ​

 ​
 ​
 ​
 ​



 ​
 ​


Thank You.​
Drew Baird
Moon Audio
106 Brady Court
Cary, NC 27511
919-649-5018
Drew@moon-audio.com

Follow us Today!​


Moon Audio Stay updated on Moon Audio at their sponsor page on Head-Fi.

https://www.facebook.com/MoonAudio/ https://twitter.com/MoonAudio https://instagram.com/moonaudio https://www.moon-audio.com/
     Share This Post
post-13460683
Post #2 of 26

bosiemoncrieff

Headphoneus Supremus
Joined
Mar 21, 2015
Messages
2,835
Reaction score
2,070
Location
San Francisco
Joined
Mar 21, 2015
Location
San Francisco
Posts
2,835
Likes
2,070
Is this new balanced plug an open standard or proprietary? If the latter, what are the licensing fees?

     Share This Post
post-13461499
Post #3 of 26

Whitigir

Headphoneus Supremus
Joined
Oct 14, 2013
Messages
19,234
Reaction score
14,081
Joined
Oct 14, 2013
Posts
19,234
Likes
14,081
Open standard by Jeita

     Share This Post
  • Like
Reactions: dabotsonline
post-13814408
Post #5 of 26

davidmthekidd

100+ Head-Fier
Joined
Nov 14, 2015
Messages
266
Reaction score
93
Joined
Nov 14, 2015
Posts
266
Likes
93
no adapter available for 4.4mm to 4 Pin XLR?

     Share This Post
  • Like
Reactions: dabotsonline
post-13830001
Post #6 of 26

amham

100+ Head-Fier
Joined
Jul 27, 2008
Messages
297
Reaction score
54
Joined
Jul 27, 2008
Posts
297
Likes
54
I need a 4.4 mm FEMALE to 4 pin Male XLR. Moon, do you have this?

     Share This Post
  • Like
Reactions: dabotsonline
post-13987198
Post #7 of 26

DJ The Rocket

500+ Head-Fier
Joined
Jul 15, 2016
Messages
817
Reaction score
235
Location
Colorado Springs
Joined
Jul 15, 2016
Location
Colorado Springs
Posts
817
Likes
235
What is the advantage of this new standard? I.e. why bother inventing it? Does it even solve the short problem standard 2.5/3.5/6.3mm connectors have?

It's unbelievable that I can't find an answer anywhere on the internet. It's almost as if it doesn't even have any advantages over the existing standard, other than being newer. And in that case, again, why does this need to exist?

If we really need a new standard for some reason, I've always thought the Hifiman/LH Labs 3.5mm TRRS is the best. This one TRRS cable is universally compatible with both balanced and single ended jacks...at least, it is when the jack on your device shorts the R and S poles internally, like they all should. I have amps that do, and amps that don't.

     Share This Post
  • Like
Reactions: jaxtrauma
post-14039002
Post #9 of 26
Joined
Feb 1, 2011
Messages
671
Reaction score
75
Joined
Feb 1, 2011
Posts
671
Likes
75
Website
www.moon-audio.com
What is the advantage of this new standard? I.e. why bother inventing it? Does it even solve the short problem standard 2.5/3.5/6.3mm connectors have?

It's unbelievable that I can't find an answer anywhere on the internet. It's almost as if it doesn't even have any advantages over the existing standard, other than being newer. And in that case, again, why does this need to exist?

If we really need a new standard for some reason, I've always thought the Hifiman/LH Labs 3.5mm TRRS is the best. This one TRRS cable is universally compatible with both balanced and single ended jacks...at least, it is when the jack on your device shorts the R and S poles internally, like they all should. I have amps that do, and amps that don't.
The problem with the 2.5mm and 3.5mm TRRS connections is that there is no grounding connection. Thus when you try to tie a balanced output from a portable DC powered device to an AC based home piece where there is a true earth ground associated with it, there can be a ground loop issue.

This can introduce hum into the signal path thus the reason Astell & Kern developed their dual connector (3.5mm and 2.5mm) block for connecting their portable players to home systems. The 3.5mm acts as the ground connection. The 4.4mm TRRRS is a brilliant connection choice in my opinion as it is smaller than 1/4", 4 pin XLR or dual 3 pin XLRs. I hope more companies adopt it. It is more robust than the 3.5mm and 2.5mm. The tabs in the 4.4mm female jack are also large enough to help retain a good contact force over the male plug. The 2.5mm is terrible at this and even 3.5mm jacks get loose over time.

I hope this helps clarify it a bit more. Please let me know if you have any additional questions.

Thank You.

Drew Baird, P.E., CEO
Moon Audio

106 Brady Court

Cary, NC 27511
919-649-5018
drew@moon-audio.com

http://www.moon-audio.com



Follow us Today!


Moon Audio Stay updated on Moon Audio at their sponsor page on Head-Fi.

https://www.facebook.com/MoonAudio/ https://twitter.com/MoonAudio https://instagram.com/moonaudio https://www.moon-audio.com/
post-14312855
Post #11 of 26
Joined
Feb 1, 2011
Messages
671
Reaction score
75
Joined
Feb 1, 2011
Posts
671
Likes
75
Website
www.moon-audio.com
Moon Audio Stay updated on Moon Audio at their sponsor page on Head-Fi.

https://www.facebook.com/MoonAudio/ https://twitter.com/MoonAudio https://instagram.com/moonaudio https://www.moon-audio.com/
     Share This Post
  • Like
Reactions: dabotsonline
post-14393843
Post #14 of 26

bden59

100+ Head-Fier
Joined
Aug 4, 2017
Messages
253
Reaction score
80
Location
Moldova
Joined
Aug 4, 2017
Location
Moldova
Posts
253
Likes
80

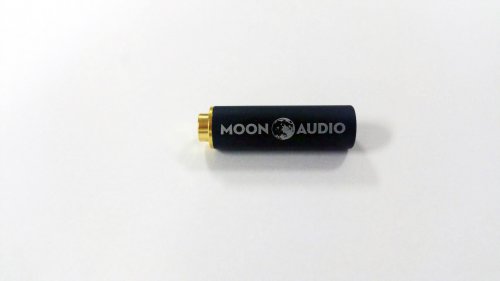

Is it just 4.4mm female plug? 4.4mm female to 6.3mm male adapter will be with short cable?

     Share This Post
post-14393848
Post #15 of 26

drubrew

Sponsor: Moon Audio
Joined
Mar 29, 2003
Messages
1,382
Reaction score
83
Joined
Mar 29, 2003
Posts
1,382
Likes
83
Moon Audio Stay updated on Moon Audio at their sponsor page on Head-Fi.

https://www.facebook.com/MoonAudio/ https://twitter.com/MoonAudio https://instagram.com/moonaudio https://www.moon-audio.com/
     Share This Post
