Kinera BD005 Pro

JQuB3

New Head-Fier
Warm and budget friendly delight
Pros: Very good fit and comfort.
3D printed shell gives it a premium look.
Warm / Non-fatiguing sound.
Cons: Lack of treble extensions.
Stock tips not large enough for a good seal.
Disclaimer:

The Kinera BD005 Pro was provided to me by HiFiGo for the purpose of this review only. All views and impressions in this review are based on my own experience with the pair over a week of evaluation. I am not paid by anyone to write anything positive or negative about the pair.

You can buy Kinera BD005 Pro from HiFiGO from the link below.

https://hifigo.com/products/kinera-...d-in-ear-earphone?_pos=4&_sid=ae7e0e394&_ss=r





The Kinera BD005 Pro is a cute-looking IEM that has an eye-catching 3D printed shell which gives it a premium look that appears a lot more expensive than its suggested retail price of 49 USD. It is very comfortable in terms of fit and the warm sound makes it an excellent choice for anyone who is looking for a budget IEM that can be used for hours together without any kind of fatigue or discomfort.

The IEM has a hybrid configuration that includes a 9.2mm dynamic driver (with beryllium coating) and a balanced armature (30095 Custom BA). The BD005 Pro is very easy to drive thanks to its 108 db/mw sensitivity and low impedance of just 16 ohms. The IEM uses a 0.78mm 2-pin connector which means it is easy to swap cables. The cable included in the package is a 4 core 4N high purity Oxygen Free Copper cable with a 3.5mm SE termination. For the purpose of this review, however, I had used a TRN T3 2.5mm balanced cable and the FiiO UTWS-3 (TWS adapter).





Sound

Bass


The BD005 Pro provides adequate bass in the sub-bass and mid-bass regions with sufficient punchiness and boom. I was unable to get a proper seal with the stock tips as my ears are rather large, hence I tried a variety of tips and found the SpinFit CP220 M2 (silicon) and Flare Audio Universal Foam tips (memory foam) to be good for these. The flare audio tips especially provided a good seal and punchy bass. At the given price point, it is hard to complain about the bass, both in terms of quantity and quality. The BD005 Pro is not an IEM that would please bass heads.



Mids

The BD005 Pro is slightly V-shaped in terms of the sound signature. The mids are rather neutral, though they tend to be pushed back as compared to the bass and treble. The lower mids tend to thaw into the mid-bass region. This in my opinion is not due to "bass bleed", but simply because of the V-shaped tuning that tends to emphasize the bass over the mids. That being said, the notes have sufficient weight and don’t sound thin or suppressed. In terms of female vocals, I was pleasantly surprised by the BD005 Pro, since it wasn’t shouty or sibilant as several budget Chi-Fi options tend to be.

Treble

Probably the only area where the BD005 Pro could use some improvement is the treble. There’s a noticeable loss in this region with treble extensions being virtually non-existent. Although, this is not uncommon at this price point.

Psycho-acoustics

The soundstage is mediocre and the separation is average at best. This, however, is expected from an IEM in this price range. In terms of details, the treble is considerably rolled off, therefore, making it more suitable for mainstream users.




Conclusion

All in all, the Kinera BD005 Pro has a lot going in its favour, thanks to its low price, great fit, very comfortable and a non-fatiguing sound signature. I’d definitely recommend these to anyone who is interested in purchasing a fun-sounding budget IEM that can be used for hours together without any kind of fatigue or discomfort.

chinerino

100+ Head-Fier
Kinera Bd005 Pro Review
Pros: Good bass, fatigue-free, design and fit, price to performance Ratio
Cons: Hoped that it could be more technical, rolled off highs, too relaxed sometimes
For more reviews, check us out at: www.perrivanaudio.com
Driver Setup: 1 Dynamic Driver + 1 Balanced Armature
Price: 33 USD

Intro


Disclaimer: Disclaimer: This review set was graciously lent to me by a friend and the review is written of my own accord.

While most of you might know, Kinera Audio launched QoA in December 2020 and we managed to get our hands on the Vesper, which was the last hybrid set we reviewed. Now with Kinera themselves launching a new hybrid model that was priced at a much more competitive point, how will the BD005 Pro perform? Let us take a look!

Accessories and Build Quality (Score: 5.5/10)



The Kinera BD005 Pro comes in a hexagonal box and the package comes with a set of ear tips, the IEM itself, a carrying case, and a detachable mic cable. Although nothing fancy, they covered all the necessities for a decent package. I do feel that the ear tips were not what I would expect, it is rather small like what you see with most TWS earphones. It is nothing big, but based on my experience with the BD005 Pro, I would prefer a more conventional design of the ear tips. The cable design is very common in the world of chi-fi as if they are all using the same OEM manufacturer with minor tunings in design to brand themselves.

Fit (Score: 8.0/10)



Fit wise, the BD005 Pro excels and it was really comfortable when wearing them over longer periods and I did not felt that my ears were stretched out or tired. The relatively ergonomic design did smooth out most of the contact points with my ears which is probably why I felt really comfortable with them attached to my ears. Seal wise, I felt that the ear tips had something to do with it where I couldn't get that perfect seal sometimes but I guess it is due to the ear tips being smaller.

Sound (Overall Score: 7/10)

I would describe the sound to be rather warm with less aggressive highs as compared to other conventional V-shaped offerings. We were unable to graph the frequency response of the BD005 Pro, my apologies.

Sources used
  • Ibasso DX120
  • iPhone XR
  • Atom DAC and AMP
Music and Albums listened with
  • Alan Walker
  • Billie Eilish – When we all fall asleep, where do we go?
  • Tchaikovsky 1812 Overture
  • Cigarettes After Sex
  • One Republic – Dreaming Out Loud
  • Keane – Fears and Hopes
  • Nino Rota – The Godfather OST
  • Fedde Le Grand – Cinematic
  • ARTY
  • Halo 1 & 2 OST
  • Czardas
  • Lauv
  • Scary Pockets
  • Hans Zimmer
  • Aladdin OST
Bass (Score: 8.0/10)
The midbass has a good punch to it as well as being impactful when listening to modern pop works. Similarly, its sub-bass lines are clear and steer clear from being muddy or mashed up while providing good meaty response and that is the best part about the BD005 Pro in my opinion. Although the overall response is quite authoritative with some texture and depth, its separation and layering are not as defined as what one would describe as perfect bass.
It is definitely one of those IEMs that have above-average bass qualities in the price bracket where it is quite emphasised but in a positive way that satisfies most listeners and put them in delight.

Mids (Score: 6.0/10)
I find the lower mids to be taking a somewhat backstage here which makes male voices underpowered when compared to its bass response. However, its upper mids have that boost to give that sense of energy and clarity but it causes female vocals to sometimes get shouty which isn’t a huge bummer to me but felt that it could be tamed a little more. I felt that the mids on this unit was rather boring but it still manages to tiptoe along the thin line of sounding wonky and off which is a good sign and something that any make and model should achieve.

Treble (Score: 6.5/10)
The treble on the BD005 Pro sounds rather rolled-off with cymbals and percussive sparkles dimmed. It also does not have much "airiness" which is part and parcel of the overall tuning stance with the BD005 Pro. Although sometimes it sounds slightly unrefined and splashy which is hard to avoid as seen in many budget offerings, it does not cause any fatigue at all. A very good track to showcase that trait was me listening to percussive heavy intros such as "Friend like me" from Aladdin which I do not experience fatigue at all.
Although the experience was rather okay, do not expect a resolving and shimmery response with the BD005 Pro but on the other hand, the unit is fatigue-free which might be suitable for those sensitive to treble.

Overall
Its layering and separation capabilities are somewhat average with its soundstage sounding rather closed. Its imaging is decent as I was able to discern between instruments and placements rather easily. Its overall tuning was set to be rather warm with less aggressive highs which may appeal to the typical consumer but not for those who are looking for that sparkle and energy. I just want to conclude its sound with the point that technical abilities aren't the BD005 Pro's forte but its tuning should be its main selling point.

Conclusion



The BD005 Pro is a good bassy and non-aggressive budget hybrid pick that has my attention due to its fit and design. It has a pretty sick value proposition which includes nice design choice, fit, and a safe-yet-fun tuning that can give you that bass boost that satisfies your cravings. To conclude this review, I can describe the BD005 Pro as "tastefully emphasised bass with fatigue-free experience that you can relax with".

machinegod

New Head-Fier
Pros: Imaging and Soundstage
Bass punch and decay, overall bass quality.
Non fatiguing and safe tuning.
Cons: Might be too dark for some people.
Mids are a bit muted.
Overall tuning could improve.
Build & Fit
It would be a surprise if a Kinera IEM wasn't the looker. The Bd005 Pro is quite the looker if I am honest. The 3d Printed shell is similar to a semi custom fit, which translates to it fitting like a glove in my ear. Blissful comfort for me.
The faceplate has a "glassy" glossy finish to it, and indeed for the 49$ you pay for this, you are surely getting more than your worth at least when it comes to looks.
The cable is of the generic kind, which isn't to say that it is bad, just that there are better cables coming in stock form with other IEMs, but surely none of them are eyecandy like the BD005 Pro.
A feature to note is that the stock tips are quite shallow, even the largest size, which might pose some seal issues with big ears.
Finally, the best feature of all has to be the mic in the cable. THANK YOU! Why don't brands offer mic cables? It's basically a necessity. The mic cable means it's a dream to use it outside on the streets. I do wish it had volume controls as well,
but I guess I am getting ahead of myself in a world where mic cables are probably rarer than a hen's tooth.



Amp Needs
16 ohm @ 108dB/mW, i.e, no portable amp needed. Plug them in your phone and enjoy. These are extremely easy to drive. But 108dB/mW is quite sensitive as well. So do not plug this into noisy sources as it will surely pick up noise.



Sound

Lows

The bass is surprisingly clean and punchy, and more noticeably it decays fast! Never thought I'd find good bass in such a budget offering.
In it's price point, bass information is fine and not worth complaining. Impact is controlled, and it is slightly forward in comparison. You buy these for their bass performance on the budget.



Mids
The presentation of the mids are not exactly to my personal preference. The lower mids tend to get overshadowed by the bass. I find the entire midrange to sound a bit closed off and muted, but at it's price point
this isn't much of a concern. Vocal performance is good for the price range, but not the best I have heard. They appear slightly darker than they should be although with enough surface detail retained. That slight dark tilt is more noticeable on female vocals.
On the plus side this tuning can work well with genres that are badly recorded or compressed, avoiding the shoutiness in the mids that come with them.



Highs
There is a substantial roll off in the highs which result in an overall warm and dark tone. Good for treble sensitive people. For my tastes, it is a bit too dark. There isn't much detail and information to be extracted off this region due to it's tuning but
you get a very laid back experience that doesn't even come close to being fatiguing. Sibilance control is good for the price. The mid-treble region has just south of "just enough" presence in my opinion.
I can see this type of tuning work out for certain genres that don't take advantage of active treble.



Soundstage, Imaging and Dynamics.
Soundstage and Imaging is quite good actually. It is noticeably better than the Blon BL03 and the Tin T2. The imaging is very precise for a 49$ IEM. The stage has more width than depth but it is also above average, wider than most of the popular IEMs in this price class.
Dynamics are a bit lacking due to the laid back tuning.

Detail Retrieval and Resolution
These aren't the most resolving IEMs because of the slight closed off nature in the midrange, you don't get much spatial information in the music. When it comes to detail retrieval, these do a good job when it comes to surface level detail.



Conclusion
At 49$ this is the new kid in town, but there is serious competition to face from the likes of Tin T2/T2+, Blon BL03, Sony MH755. The BD005 Pro handily beats them in the soundstage and imaging department while the BD005 Pro has a considerably warmer and darker tonality than them. This type of tuning will appeal to a subset of the audience and complement genres that take advantage of bass.
Last edited:
  • Like
Reactions: Vasarely

ngoshawk

Headphoneus Supremus
Kinera BD 005 Pro: Well, what do we have here?
Pros: Gorgeous looks
Mellow sound (as opposed to competitors)
Better bass than other Kinera
Excellent build
A case! A case!
Cons: May be too laid back for some who like the higher intensity wrought from many ChiFi in this segment
Cable is good, but not excellent (tangles a bit)
Not airy enough?
Treble might not fit some genre
Treble might be too off for those seeking an energetic sound.
Kinera BD 005 Pro ($49): Well, what do we have here?

3.75 stars overall




BD005

HiFiGo BD005 Pro link


I was contacted by Nappoler at HiFiGo to see if I was interested in reviewing the Kinera BD005 Pro. I have reviewed several Kinera IEM’s in the past a appreciate the company’s willingness to tinker with a model until it works the way they see fit. In addition to this, the looks often are among the best out there. So, knowing all of this I accepted his gracious offering. As per all, the Kinera is known to be a review unit and I have (nor have I made) any financial gain in the review or from the unscrupulous selling of the unit, which to this day is still really uncool. All that is asked is an open, honest review and it is understood that the unit may be asked back for or to send on to another reviewer. Until then, the BD005 Pro is mine to keep.



Specs:

  • 3D Printed Earpieces.
  • 9.2mm Beryllium Diaphragm Dynamic Driver Unit.
  • Custom tuned 30095 series high-frequency BA driver.
  • 2-Pin 0.78mm Connectors.
  • Impedance: 26Ω.
  • Frequency Response Range: 20Hz-20kHz.
  • Sensitivity: 108±2dB.
  • Termination Plug: 3.5mm.

Features:-

>3D Printed Earpieces.
>9.2mm Beryllium Diaphragm Dynamic Driver Unit.
>Custom tuned 30095 series high-frequency BA driver.
>2-Pin 0.78mm Connectors.
>Impedance: 26Ω.
>Frequency Response Range: 20Hz-20kHz.
>Sensitivity: 108±2dB.
>Termination Plug: 3.5mm.


In the Box:

Kinera BD005 Pro
4-core 2-pin (0.78mm) cable
3 sets of silicon tips (s, m, l)
Round zippered case
Community card
Contact card




Gear used/tested:


CCA C10 Pro ($49)
CCA C10

Shanling M0
HiBy R3 Pro Saber
HiBy R5s



Songlist:

Joey Alexander-Warna album and others
Mark Knopfler-Laughs And Jokes And Drinks And Smokes
Santana w/ Mana- Corazon Espinado
twenty one pilots album, Trench
Tedeschi Trucks Band
Big Head Todd & The Monsters-Beautiful World
Mark Knopfler-Down The Road Wherever
Elton John-yep, still good, still cool
Tidal MQA



Unboxing:


Kinera moved to a sextagonal-shaped box some time ago. Smaller in design and with very nice graphics, the environmentalist in me approves. Laden with all three of the three possible colors options on the front, and their familiar cursive font you are drawn to explore the top from edge to edge. The back has the ubiquitous specifications, a graph and product information as well as pictures of the three choices side by side. Tastefully done overall and much appreciated that none of the graphics scream at you in technicolor yawn (look it up).

Taking the lid off you are presented with the round zippered case tucked nicely into a form fitting soft foam blanket. On top of that are the two cards mentioned above. Unzipping the case, you are met with the BD005 Pro and the tips. Simple, straightforward and much appreciated again in the subtlety. The color that arrived is called Murky Blue and of the three, I like it the most.



Internals:

Over the years Kinera has tried many variations on driver configuration running the gamut from a single Dd to many BA’s. The BF005 Pro comes with a single 9.2mm Beryllium coated dynamic driver and a single 30095 Knowles balanced armature. I will not debate whether the dd is coated or not. It does not really matter to me as long as the sound is good. With a 3D printed shell as well to optimize the sound chamber, the quality is good and on par with other Kinera offerings.

Combined with the 108-dB sensitivity and a 16-ohm rating, the BDP is easy to drive no matter the source.


Build/Fit/Finish:

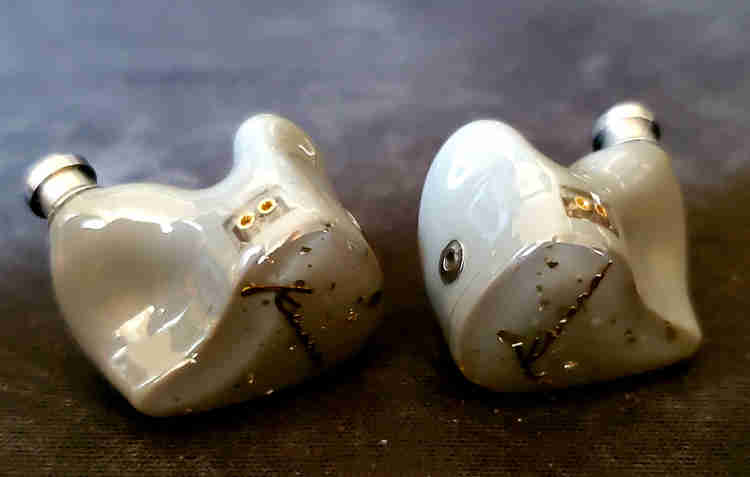

With a 3D printed shell, a choice of three colors for the faceplate (to match the shell), and a small, short silver nozzle the BD005 Pro has a somewhat customized look to it. Add in the “fin,” which helps hold the unit in place and one could easily be forgiven for mistaking this to be a custom unit. The Murky Blue looks quite stunning in the right light, with an almost midnight blue look to it, and the flakes of gold look like stars in the night as a result.

With a vent hole in the back of silver insert-type, the look is broken only by said vent hole and the short nozzle. This is just about if not the shortest nozzle I have seen on an IEM, and as a result the included tips are extremely shallow as a result. I am not happy with them, but when using other tips, the chamber is pulled too far from my ear canal and as a result, sound suffers. I am still working through tips to find the best fit/sound. Finding something with as wide of a bore, which does not hinder the sound has been a challenge. Settling on the large Final Type-E tips (yes even though they moved the sound a bit further out) gave me the best response. My suggestion is to throw the existing tips away.

The cable is a tightly wound silver-plated copper wired cable shod in black plastic. It lays nicely and does not tangle. With a right-angled jack the cable does look like any you would find from a Smartphone given or similarly priced IEM. The over ear guide sheath of clear plastic is supple and not stiff, and also lays nicely. This is a very good fitting cable, and you could easily change to another cable if needed.

The construction for this price is very good, and quality of the materials is very good as well.



Sound:

At this price you consider pretty much two things: 1. The competition, and 2. Whether you are spending too much/not enough. Going with #1 first, there are literally a ton of options at this price. I have another at the exact same price (compared below); and that is simply two of the plethora available. To say the market is flooded or full would be the proverbial understatement. #2 is more of a personal decision. On some of the forums, there seems to be a price point or rather a stigma against items above $25usd. Everyone loves a bargain, true; but what of those who have fulfilled their obligations at that price and want to move up market? I myself am guilty of this upon re-entering the portable audio world some years ago. I found the $50usd price as my first “benchmark,” but then quickly moved to $100 after reading some reviews. I enjoyed both levels, and (unfortunately for my bank account) moved WELL beyond that price into the stratosphere. Some will never do that for reasons I won’t get into other than personal choice or other. I would never fault anyone for stopping and honestly am jealous of those with such restraint. So, at the $50usd price point, you have options, and can certainly fulfill your needs and desires to the taste of your flavor.

The BD005 Pro (BDP, henceforth) is another iteration of a Kinera at a reasonable price. Above this and you get into the lower end of mid-fi so to compete here it must be good. And I would state that overall the BDP is good for the price, and as such a worthy consideration for those who prefer a slightly richer, and warmer signature. The combination of the dual driver technology may seem to limit the appeal and what can be heard, but not here. When you consider that some manufacturers are using single DD’s in their flagships, the combination here is much appreciated. I do like the sound quality emanating from the BDP and do consider it worthy of the range.

The bass qualities while not mind boggling are a worthy addition to the signature with a broad depth and a richness, which is quite fitting at the price. Quick of note as well, the signature while not bone crunching provides a solid foundation from which to move upward. There is a desire for more depth or a more impactful bass to me, but that should not be taken as a slight of what the BDP provides, but rather my personal tastes. Solid but unspectacular would be a good description.



With a V-shaped signature to me one might think that the mids are withdrawn or moved to the back. I would say that is not the case, but rather they are a bit subdued and not wanting to intrude. Guitar work comes across as succinct and present. Not spectacular or vibrant beyond your dreams or price, but rather present and pleasing, while not wanting to intrude upon the overall character. Decent would be close to an apt descriptor, but that might be an insult. Amiable would better describe it to me. And of character I do like as well. Playing Damian Marley’s Here We Go, which can become a grating song on the wrong listening devices, the sound is almost strident up top. Almost. But that is the nature of his work, there is a push up top, which can interfere with the mids to me. Add in a slight bleed from the upper bass area into the lower-mids and the sound seems to be a bit behind. This does not mean it is bad, but a good description would be smooth. Male vocals are present in good detail, but not like some such as the comparison below. Not bad mind you, but they seem to be a bit behind the overall character.

Using the above-mentioned song, to me treble can become a bit grating. Not overly pungent or overly shadowing the other aspects, but I do have to be careful with the volume. Moving on to the next song Nail Pon Cross, I find the treble good, with good weight and volume, again seemingly smoother with a bit of roll off. Volume has to be cared for again, but less so than the song before. This makes the uppers to me song dependent and with a roll off that I find not offensive. Those who value succinct and staccato-like treble may need to look elsewhere. This is not unpleasant, just not as detailed and oriented towards that smooth character instead. Personally, I prefer smooth over strident.



Soundstage/Imaging/Layering:

Wider than deep, there seems to be a loss of depth from the soundstage as a result. Moving to me towards the more intimate, this isn’t all bad and on Hotel California you get that sense of intimacy and a personal song sung into your ear by Don Henley. I like this sense of placement and sometimes prefer this to cavernous. Music dependent, this may not be the best for orchestral movements. It works for guitar work and rock, though.

Imaging is good, with an easily discernible placement of instruments. Not the most distinct but based upon the tuning not meant to me. Again, this bodes towards an overall smoothing of the texture. As a result, layering comes across like that layer cake where each layer bleeds into the next. It still tastes fine, but the distinctness of each layer is harder to come by. Moving on to the New Kid In Town, and the combination of the above “tactics” works to provide me with a smooth textured laid-back presentation. This can still rock, but in a more subdued manner. Here this combination works with the song seamlessly. I find this song particularly suiting to the tuning of the BDP. What this does for the segment is present a fairly detailed signature that happens to be of laid-back smoother textured nature, which seemingly goes against many at this price. I applaud the updating of this according to other reviews of the original I read in advance.


Comparison:

Kinera BD005 Pro ($49) v CCA C10 Pro ($49):

The other at this price of which I mentioned above, the C10P makes abundantly clear it does NOT favor a laid-back signature. More in tune with ChiFi of old and a more in-your-face sound signature instead, it presents itself as the dance queen of the party compared to the dude sitting on the couch pleasantly drinking instead. On Life In The Fast Lane, the song comes across as punchy and forward compared to the Kinera. This song is meant to rock, and in the C10P it does just that. Without the bass punch of the BDP though, you are left with a bit of desire to the overall character. Detail retrieval is better in the CCA as well. But that is to be expected due to the smoothed nature of the Kinera.

It would be silly to choose one as a favorite they vary so much in character. You could easily justify both, using the CCA to drive you up on your commute in the morning, and the Kinera to settle you down on that train ride home, such are the differences. Need a pick me up? CCA. Need to chill? Kinera.


Kinera BD005 Pro ($49) v CCA C10:

Thrown in more to see how far the CCA had come, while I find the original C10 pleasant, it sits more in tune with the KZ mode of loud and almost obnoxious, which some do prefer. The C10P almost bridges that gap, making you realize why you like the CCA brand in the first place. Why? Because it comes across as a mature KZ/TRN tuning and I prefer that to either of the other two. This is more an exercise in how far tuning has come in the last 2-3 years, and the trials in which Kinera has pained itself trying to find a niche while pleasing its fan base.



Finale:

Finishing my Eagles-tour reunion, I play Wasted Time. I do not find my time wasted though, as the song provides what I like about the BDP. Mellow in tune the song is, and the Kinera provides for that with aplomb. Not the best. Not the worst, but present and accounted for with enough to like that it should be a choice in the $50usd price range. A fellow reviewer commented how the Pro was a maturity of the original BD005. Not hearing the original, I will take his word for it. And I do trust his judgement.

The BD005 Pro is indeed mature compared to others in this segment, and if you are tired of those in this price, which seem to scream at you like those annoying Vroom commercials; then consider the BD005 Pro the alternative to buying a car at the lot. The self-centered enjoyable, laid back method to pleasing your purchase and it is worth it to me.

I thank Nappoler and HiFiGo for the review sample, the Kinera BD005 Pro is indeed an adulthood of the original.

  • Like
Reactions: baskingshark

IryxBRO

500+ Head-Fier
Kinera BD005 Pro – emotional appeal of a hybrid nature
Pros: design, fit, look, crafting, treble clarity and extension, bass texturing, midbass power
Cons: susceptibility to hisses
Kinera DB005 Pro is not our first encounter with IEMs of this brand. Couple of years ago we were reviewing Seed and Idun models that have scored high in our ranking, although not without some nuances. Since than Kinera has released a number of IEMs, mostly hybrid type, but as we have noticed – done it selectively, less than a dozen, whereas each of the models was thoroughly tested prior to launch and given enough time to settle on the market afterwards. This can be seen from the posts by official Kinera Facebook page – how product information appear prior to the beginning of sales, than it launches and Kinera starts to collect customer feedback in direct and indirect communication and finally followed by the next product according to the current market expectations. The point is that, in contrary to some brands that stamp millions of IEMs, Kinera takes time to come up with another product and also takes user feedback and expectations into account.



BD005 Pro is not new to the market either. Its roots go back to 2017 when initial BD005 IEMs were released and became popular mostly in Asian region. Predecessor was also based on a combination of single DD and BA drivers but was less versatile by its fit. Pro version utilizes much more comfortable shape, retains the structure and replaces older model on sales.

Kinera BD005 Pro specs:
  • Dynamic driver: 9.2mm beryllium diaphragm
  • Balanced armature driver: 30095 series
  • Sensitivity: 108±2dB
  • Impedance: 26Ω
  • Frequency response: 20Hz-20kHz
  • Jack: 3.5mm
  • Cable connectors: 2pin,0.78mm
  • Cable: 4-wires with mic and inline remote
  • Cable length: 1.2m


Packaging and design:

Kinera BD005 Pro comes in small pentagon-shaped box which is common across most of Kinera IEMs. Box is pretty small but carries all necessary information – product picture and specifications, brand name and logos, company information and even AFR graph. Box also shows all available color options and clearly states which one is inside.



Inner box compartment is occupied by special foam insert that holds storage case at place. IEMs and its accessories are all located inside this case. Good way to protect all items during transportation and save some space and cost on logistics.



The full set is as following:
  • Kinera BD005 Pro IEMs
  • Audio cable
  • 3 pairs of silicone ear tips
  • storage case
  • warranty and manual papers


IEM shells look to be made of plastic with resin coating over it that adds a lot to overall look and soft compound feel. Beautiful top cover with Kinera name and particles in gold has also been covered with a layer of resin which would ensure the protection from scratches.



Despite that there is a cover and thanks to such coating – BD005 Pro construction feels unibody and rigid. Shells are semi-transaprent but with our color option (Murky Blue) we can barely see the insides.



Large compensational openings are located on the back edges and additionally protected by aluminum grills. 2pin connector bases are slightly recessed into the shells to add some anti-bending protection. Sound output nozzles are made of aluminum and covered with aluminum filters.



Stock cable has 3.5mm TRRS jack since it is also equipped with mic and one control button. Such cable is good for the everyday use with a smartphone but doesn’t seems to be a proper option when we talk about maximum sound quality and good source equipment. It is better to be replaced with 3.5mm high-quality cable or some balanced options. Although, since BD005 Pro are inexpensive IEMs – looks like Kinera positions it for everyday activities and general user, rather than audiophile listening…



Fit: excellent. We consider such “custom”-like shape to be the best and most universal among all mass production IEMs. DB005 Pro would be comfortable for most of the people and during different activities.

Sound quality:

Tested with: Hidizs AP80 DAP -> xDuoo XD05 Plus DAC/AMP



Lows:

Kinera BD005 Pro dynamic unit is capable of delivering deep bass and punchy midbass with good extension and more than average texturing on of lower end. Bass presence is full and well-contoured but the amount is not astonishing or excessive. Lows can go as deep to make you feel it instead of hearing in bass rich tracks. But we still wouldn’t call DB005 Pro as IEMs for “bassheads” – it is more about extension and slight accentuation rather than huge amount. Midbass in its turn is rich and punchy, recreates drums with excellent expression and articulation. Good overall speed and control and doesn’t sound too bright or harsh.



Mids:

Lower mids are a bit recessed whereas upper mids are slightly accented. Male vocals would sometimes sound thin and distant. Female vocals are brought to front, sound very natural, transparent and emotional. Resolution on mids is decent, amount of details is high. The tonality is on the brighter side as a result of BA unit influence at upper mids range. The result is lively and detailed performance but a bit prone to lisping on female vocals, consequently. Bright instruments would also have this effect, compensated by good level of separation and high clarity of each sound.



Treble:

DB005 Pro treble is sparky and accented. Full of micro details and articulation with airy and transparent feel to it which forms the bright essence of the tonality. It might become too much at highest volume but stays balanced by other ranges at normal or lower levels. This is probably why warm sources would be more suitable — amount and extension would stay high while the excess of brightness would be eliminated by the source. Anyway, BD005 Pro treble is decent and not so overly emphasized as in some other hybrid models.



Soundstage:

Special demo recordings with precise instrument locations show moderate distance from the center. Stage feels neither too tight, nor too wide. Slower music genres sound good, leaving enough space for each instrument. No revelations here – just a moderate performer.



Sound in overall:

Kinera BD005 Pro sound can be described as V-shaped, tend to brighter and colder side of the tonality, with extended and detailed lower and higher ends, powerful midbass and slightly recessed but emotional mids. Stage size os moderate. Suitable for most of the genres but best to be used with some warmer sources.



Compared to Moondrop SSP:

SSP and DB005 Pro are similarly V-shaped IEMs but the nature of sound derives from the structure… SSPs are dynamic driver-based and adds more body to mids but lack in treble clarity and extension. DB005 Pro, on its turn, handles treble much more delicately, adding much more details but might feel too emotional on mids.



Compared to Kinera Seed:

Seed by Kinera feel much more neutral in signature with no obvious accents or peaks. It is even hard to tell that Seed IEMs are based on BA + DD units. Feels more like linear and less appealing sound of single DD driver or pure BA drivers tuned for monitor use. Consequently, the perception of sharpness, amount of details and textures is also less impressive.



Conclusion:

Kinera BD005 Pro joins very limited squad of inexpensive V-shaped hybrid IEMs with engaging, fatigue-free sound as a result of accurate tuning during conscious development process. The fact that BD005 Pro is a successor to a popular initial model also helped a lot to achieve the maturity and round all edges. Sound is engaging, detailed and bright with all possible disturbing outcomes brought to the minimum. Gorgeous look, decent build quality and nearly perfect shape also add to BD005 Pro overall high score among the competitors. We highly recommend this model for BA signature fans and for those with warm HiRes audio sources who search for the extra clarity and expression on a budget.

Kinera BD005 Pro available at HiFiGO store: LINK
  • Like
Reactions: Vasarely

Wretched Stare

Head-Fier
Kinera BD005 Pro Elegant and Fun
Pros: The IEM is quite stunning in design. Sound is pleasant and doesn't disappoint, ergonomics are very good as is isolation. Good accessories are included as well.
Cons: Polite treble may not be pleasing to all and resolution not as defined as some but still a fun listen.

My thanks to HiFiGo for the sample to test.

https://hifigo.com/products/kinera-bd005-pro-3d-printed-hybrid-in-ear-earphone


The Bd005 pro is in that familiar Kinera hexagon shape box and comes with a case similar to the Sif, inside I found some different size tips and a cable with a microphone, great for taking a call in the middle of use but I generally change the cable after the testing is done and began experimenting with cable and tip rolling. The accessories are of good quality and should make most people happy considering this is such a beautiful budget IEM.



I liked that the shell was protected in travel by plastic covers its a nice touch especially on something this price.
Comfort was way above average , to my ears they fit well with the medium tips put on, I found the default was a little small for me. The shape of the shell allows for a long listening session as does the tuning.

Sound:
Simply put the Bd005 is a Vshape signature made for a fun listen but it still has some good details to it.
Bass has a good punchiness to it Mid Bass is speedy and clear Sub-Bass can get deep depending on the recording and sources your using, the DD performs as would be expected providing a good balanced Sub-Bass and punchy Mid-Bass with control.

Mids are warm and robust with clarity vocals seem forward but the mids in general have that typical recession Vshapes have to a certain degree. Upper Mids are slightly boosted but this is only more noticed with bad recordings, for the most part Mids are good for a fun listen.

Treble: Is polite but its not without some sparkle at the top just not a whole bunch, the lower end seems a bit more boosted combined with the upper Mids it can seem bright at times but Bass is there to remind me its more twords the V signature than anything else.
Soundstage and imaging was above average but not overly wide compared to other IEMs in this price, I would consider it good and nature sounding with enough details.
Conclusion: The Kinera Bd005 is a interesting and safe tuned Vshape with compatibility for many different types of music, The shell is both beautiful and comfortable. I think it will be a hit with most people as a all a rounder IEM.

baskingshark

Headphoneus Supremus
Kinera BD005 Pro Review – Sleepy Beauty
Pros: Beautiful shells, light and well fitting.
Good isolation.
Safe non fatiguing tuning, coherent V shape set.
Easy to drive.
2 pin connector – generally better lifespan than MMCX.
Cons: Notes may have a lack of bite/edge definition (may be pro or con depending on personal taste).
Technicalities not class leading.
Roll off at higher treble may not appeal to trebleheads, but this is not that fatiguing as such.
Kinera 2 (1).jpg


DISCLAIMER

I would like to thank the Yaotiger HIFI Audio Store for providing this review set at a discount. The Kinera BD005 Pro can be gotten here: https://www.aliexpress.com/item/1005001870377067.html


EXECUTIVE SUMMARY

The Kinera BD005 Pro is a beautiful jack of all trades, sporting a rather coherent warmish V shaped tuning that is safe for the upper frequencies (compared to the usual CHIFI tuning). Other than looks, it scores above average points in most areas, but doesn’t have a particular department that it truly excels at to stand out in the ultra cut throat budget CHIFI market segment.


SPECIFICATIONS
  • Driver configuration: 1 DD (9.2 mm) + 1 BA
  • Frequency response: 20Hz – 20kHz
  • Impedance: 16 Ohms
  • Sensitivity: 108 ± 2 dB
  • Cable: 2 pin 0.78 mm
  • Tested at $49 USD

ACCESSORIES

Kinera 1 (1).jpg


Other than the IEM, the Kinera BD005 packaging comes with:
  • 4 core 4 N High purity oxygen free copper cable (in built mic) – seems there isn’t a choice for a non mic cable. I generally don’t really like mics in the cable as they may be a potential source of failure down the line, not to mention sometimes they may add resistance, but I appreciate that some may like the mic for calls and meetings. The cable doesn’t have a chin cinch though, but is quite usable sonically, and is leagues better than the usual TRN or KZ stock cables.
  • Eartips (S/M/L) – the stock silicone eartips come in a short nozzle config, so you might wanna tip roll to aftermarket tips depending on fit.
  • Semi rigid carrying case.
For the purposes of this review, the stock cable and tips were used.


BUILD/COMFORT

Kinera gear are generally well known for having beautiful shells/designs and nice packaging, and the Kinera BD005 Pro is no exception. The resin shells are indeed very beautiful. In terms of ergonomics, they are very light, comfortable and well fitting. They actually look and feel like semi customs. The shells are on the larger side in terms of size, but I have used them for hours with no discomfort.

I didn’t find any driver flex for myself (but YMMV as this is somewhat dependent on ear anatomy and types of ear tips used). I liked that the Kinera BD005 Pro came with a 2 pin connector as they generally have better life span than MMCX types, for those who do frequent cable rolling.


ISOLATION

The Kinera BD005 Pro has good isolation, I quite like it as a transit IEM as such, though it won’t beat pure BA unvented types in this department.


DRIVABILITY

I tested the Kinera BD005 Pro with a Khadas Tone Board -> Topping L30 amp (thankfully the L30 didn’t blow up for this review LOL), smartphone, Shanling Q1 DAP, Tempotec Sonata HD Pro, ESS ES9280C PRO DAC/AMP, and a Khadas Tone Board -> Fiio A3 Amp. The Kinera BD 005 Pro is relatively easy to drive, and amping is not generally required. Though amping can increase dynamics, soundstage and perhaps microdetails a tinge.


SOUND & TECHNICALITIES

The Kinera BD005 Pro sports a rather balanced warmish V shaped tuning that is safe for the upper frequencies (compared to the usual CHIFI tuning). I’ve owned a few Kinera gear in the past and the general consensus in audio forums is that for the Kinera house sound, they are on the brighter (and more fatiguing) side, so this Kinera BD005 Pro’s tuning is rather atypical for a Kinera.

Technically, the Kinera BD005 Pro has above average details and imaging. Clarity and instrument separation are about average. Note weight is on the thicker side, and the notes do have a lack of edge definition/bite, so this might be a pro or con depending on personal preference. It results in a smoother and less fatiguing presentation, but those that want some crunch/bite in vocals and guitars might need to look elsewhere. Soundstage is above average in width/height, but not too deep, music can at times get congested with complex riffs or competing instrumentation. So to summarize, the technical performance of the Kinera BD005 Pro is above average at this price range, but not classleading in this aspect.

Timbre of acoustic instruments does have a slight BA timbre, so it won’t beat a well tuned pure DD setup in the timbre department for acoustic instrument realism. But I would say the Kinera BD005 Pro still has better instrumental timbre than most garden variety TRN and KZ hybrids, and it should be an all rounder for most genres of music.


Bass:
Midbass of the Kinera BD005 Pro is of more quantity than subbass, with midbass north of neutral, but not at basshead levels. Bass is a tinge on the slower side, with a mild midbass bleed and average texturing/details. The note weight is a bit thick and nebulous. Some folks may not like the midbass quality as such, but I liked that it added some warmth to the lower mids. The bass may smear in some fast bass movements and hence bass quality isn’t the tightest compared to comparatively priced competitors in the same price bracket. The subbass rumble is quite good like in well tuned DD sets, though subbass extension is not the absolute deepest, but will definitely not be absent from subbass focused tracks.


Mids:
Lower mids are mildly recessed, but are thick and coloured. As per the mid bass, some may not like the fuller lower mids, so YMMV. Mids details and texture are average but not class leading. Upper mids are boosted but are not as harsh as some CHIFI counterparts, so this is quite an atypical Kinera tuning per se. As per the Fletcher Munson curve, the upper mids can get hot if the volume is pumped up a lot, or on poorly recorded material, but by and large, it is a very safe upper mids. Notes have a lack of bite/edge definition in the mids, so this can be a love it or hate it kind of thing especially when it comes to guitar crunch and vocal bites.


Treble:
Lower treble is boosted as per the upper mids. There’s a dip around the 6 kHz area, and thereafter the upper treble extends once again (though upper treble extension is not the greatest). For me, this is a rather safe upper treble, but trebleheads will probably want a bit more air and sparkle. Sibilance is mild. Cymbals are not as splashy as some budget CHIFI. As per the mids, notes have a lack of bite/edge definition, and whether one likes this is down to your personal preference.


COMPARISONS

As per comparing oranges to oranges, I left out single DD types as they have different pros and cons among the transducer types:


KBEAR Lark (1BA + 1 DD; $29 USD)
The KBEAR Lark we will discuss here is the newer retuned version (not the 4 kHz boosted older version). The KBEAR Lark has a neutralish bright tuning and is not as warm as the Kinera BD005 Pro in terms of tuning. The upper treble on the KBEAR Lark extends more and is brighter and airier but can be more fatiguing and sibliant. Note weight is noticeably thinner on the KBEAR Lark and acoustic instrumental timbre is a tinge poorer on the KBEAR Lark.

Bass is tighter on the KBEAR Lark, and the KBEAR Lark has a bigger soundstage and better clarity.

The KBEAR Lark has poorer isolation.

I would consider these 2 sets to be complimentary sidegrades, it depends if you want a thicker and warmer sound (Kinera BD005 Pro), versus a more neutralish bright and thinner sound (KBEAR Lark). Both sets are very well accessorized and look beautiful externally, hence they will make good gifts for beginners to this hobby.


KZ ZS10 Pro (4 BA + 1 DD; $35 USD)
The venerable KZ ZS10 Pro is more V shaped, with hotter upper mids and more midbass thump (quantity). The KZ ZS10 Pro has poorer isolation, poorer accessories and poorer instrumental timbre.

In terms of technicalities, the KZ ZS10 Pro is slightly better in soundstage, details, instrument separation, clarity and details, but this hotter upper mids/lower treble area can make it more fatiguing for treble sensitive folks, compared to the smoother Kinera BD005 Pro.


TRN V90S (5 BA + 1 DD; $43 USD)
The TRN V90S is also V shaped, and has a tighter bass than the Kinera BD005 Pro. The upper mids on the TRN V90S are also smooth when compared to the Kinera BD005 Pro, however, the TRN V90S has greater treble extension and can be more sibilant and fatiguing in the higher treble. Note weight is thinner and tonality is more analytical on the TRN V90S.

The TRN V90S has poorer isolation, poorer accessories and poorer instrumental timbre. Technicalities are slightly better on the TRN V90S.


CONCLUSIONS

The Kinera BD005 Pro is a beautiful jack of all trades, sporting a rather balanced warmish V shaped tuning that is safe for the upper frequencies (compared to the usual CHIFI tuning). For a budget hybrid, other than looks, it scores above average points in most areas (eg timbre, technicalities, tonality), but doesn’t have a particular area that it truly excels at. And at this cut throat budget price bracket, that makes it quite hard to stand out from the extremely stiff competition (eg there are some sets that excel at timbre, though at the expense of technicalities, and vice versa).

Nevertheless, the Kinera BD005 Pro would be an all rounder for most genres, and the note weight is thick and tonality is generally quite good and non fatiguing. Coupled with the beautiful shells and packaging, it would make a good introductory set to those who are new to this hobby (though recalcitrant CHIFI addicts will probably have something better in their inventory).
baskingshark
baskingshark
Hi @chifihead definitely aftermarket tips will change the sound signature, but it's a YMMV thing as we have different ear anatomies. Unfortunately I don't have any sedna shorts on hand. FWIW, I wrote this review using only stock tips and stock cables so as to try to give a fair baseline of what the average consumer will encounter out of the box, different tips will probably give a different review actually. But as you pointed out, definitely tip rolling is a very important aspect of this hobby.
C
chifihead
Thanks! I've been curious about this pair but lack of definition has always been my pet peeve..I was hoping a different tip might help :)
baskingshark
baskingshark
I think as a baseline, the BD005 Pro isn't a class leader in technicalities, so even if you do factor in aftermarket tips into the equation, these tips ain't gonna suddenly make it a technical tour de force overnight. My 2 cents is that it might be best to consider an alternative IEM if definition and technicalities are of more importance to you, there are quite a few budget hybrids/multi BA types that can probably do a better job in this department.
Top
