Moondrop in-ear monitors Impressions Thread
post-15993957
Post #6,676 of 7,040

Poganin

500+ Head-Fier
Joined
Aug 1, 2018
Messages
522
Reaction score
535
Location
Poland
Joined
Aug 1, 2018
Location
Poland
Posts
522
Likes
535
The moondrop "filters" are just nozzle protectors to prevent wax and dust from getting inside. I don't think they have any sound-changing properties.

     Share This Post
post-15993962
Post #6,677 of 7,040

Makahl

500+ Head-Fier
Joined
Jun 13, 2016
Messages
743
Reaction score
1,026
Location
São Paulo
Joined
Jun 13, 2016
Location
São Paulo
Posts
743
Likes
1,026
The moondrop "filters" are just nozzle protectors to prevent wax and dust from getting inside. I don't think they have any sound-changing properties.
The S8/B2 filters, yes, while the Starfield/KXXS/SSR/SSP filters have a cloth layer to smooth the mids/treble peaks.

post-15993964
Post #6,678 of 7,040

koudairanger

Member of the Trade: Moondrop
Joined
Aug 26, 2014
Messages
618
Reaction score
109
Joined
Aug 26, 2014
Posts
618
Likes
109
The moondrop "filters" are just nozzle protectors to prevent wax and dust from getting inside. I don't think they have any sound-changing properties.
The KXXS ones do have tuning built-in, the S8/Solis/blessing 2 do not.

     Share This Post
  • Like
Reactions: Poganin and IEMusic
post-15993997
Post #6,679 of 7,040

IEMusic

Headphoneus Supremus
Joined
Mar 11, 2020
Messages
4,548
Reaction score
6,828
Location
Florida
Joined
Mar 11, 2020
Location
Florida
Posts
4,548
Likes
6,828
     Share This Post
post-15994063
Post #6,680 of 7,040

PopZeus

Headphoneus Supremus
Joined
Jul 30, 2015
Messages
1,555
Reaction score
938
Joined
Jul 30, 2015
Posts
1,555
Likes
938
So much to appreciate about Moondrop's IEMs. Except for their nozzles. There's no ridge to keep the tips from slipping off during removal. Most of the posters in this thread probably don't have a problem with their nozzles, but it's such a basic, simple fix. Baffling they haven't bothered to address it. Like, at all.

     Share This Post
post-15994211
Post #6,681 of 7,040

Poganin

500+ Head-Fier
Joined
Aug 1, 2018
Messages
522
Reaction score
535
Location
Poland
Joined
Aug 1, 2018
Location
Poland
Posts
522
Likes
535
So much to appreciate about Moondrop's IEMs. Except for their nozzles. There's no ridge to keep the tips from slipping off during removal. Most of the posters in this thread probably don't have a problem with their nozzles, but it's such a basic, simple fix. Baffling they haven't bothered to address it. Like, at all.
If you experience the issue of the tips sliding off the nozzles, then there must be some buildup of oil. Take the tips off, wash them with soap (if using silicones), and clean the IEM nozzles themselves with wiping alcohol to remove any residues from the nozzles. I've never experienced the eartip sliding off the nozzle when pulling the IEM out of my ear. And I have several different models, with and without a ridge on the nozzle.

     Share This Post
post-15994471
Post #6,682 of 7,040

MOONDROP

Member of the Trade: Moondrop
Joined
Aug 21, 2019
Messages
226
Reaction score
542
Location
Chengdu,China
post-15994478
Post #6,683 of 7,040

MOONDROP

Member of the Trade: Moondrop
Joined
Aug 21, 2019
Messages
226
Reaction score
542
Location
Chengdu,China
Joined
Aug 21, 2019
Location
Chengdu,China
Posts
226
Likes
542
Website
www.moondroplab.com
So much to appreciate about Moondrop's IEMs. Except for their nozzles. There's no ridge to keep the tips from slipping off during removal. Most of the posters in this thread probably don't have a problem with their nozzles, but it's such a basic, simple fix. Baffling they haven't bothered to address it. Like, at all.
yeah maybe for next generation we'll try to shrink the nozzle back a little to keep the ridge
Our products in this generation mostly got a large nozzle for more air inside the sound chamber, it turned out okay in prototyping so we never expect the tips to become slippery in some users hands...:deadhorse:

post-15994682
Post #6,684 of 7,040

Banbeucmas

100+ Head-Fier
Joined
Sep 22, 2019
Messages
204
Reaction score
359
Location
Hanoi, Vietnam
Joined
Sep 22, 2019
Location
Hanoi, Vietnam
Posts
204
Likes
359
Website
banbeu.com
post-15995096
Post #6,685 of 7,040

IEMusic

Headphoneus Supremus
Joined
Mar 11, 2020
Messages
4,548
Reaction score
6,828
Location
Florida
Joined
Mar 11, 2020
Location
Florida
Posts
4,548
Likes
6,828
     Share This Post
post-15997118
Post #6,686 of 7,040

durwood

100+ Head-Fier
Joined
Jan 20, 2007
Messages
296
Reaction score
478
Location
Chicagoland
Joined
Jan 20, 2007
Location
Chicagoland
Posts
296
Likes
478
The moondrop "filters" are just nozzle protectors to prevent wax and dust from getting inside. I don't think they have any sound-changing properties.
The S8/B2 filters, yes, while the Starfield/KXXS/SSR/SSP filters have a cloth layer to smooth the mids/treble peaks.
Wow, that’s a strong peak smoothing effect the filter has.

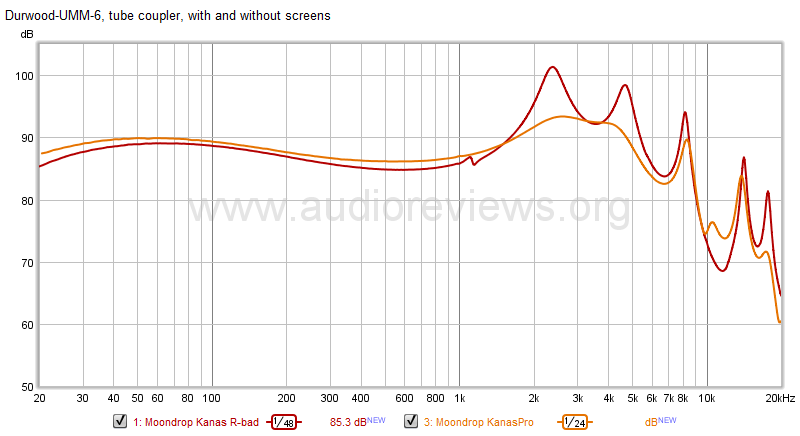

I was going to say I definitely noticed a difference the filters had. See my measurements on a set I thought was ruined before the replacement filters became available. A lot of the screens do impact sound, so when people remove the mesh screens and claim a "veil" has been lifted is normally because now the fitlered peaks are present. :beyersmile: The Kanas Pro filter seems to be centered at around ~2.4Khz, which also affects the 2nd harmonic at the ~4.8khz mark.


Last edited:
post-15997506
Post #6,687 of 7,040

ishmeister

New Head-Fier
Joined
Apr 3, 2018
Messages
15
Reaction score
5
Location
Europe
Joined
Apr 3, 2018
Location
Europe
Posts
15
Likes
5
I'm considering taking advantage of the current 15% discount offer on the Blessing 2. I currently only have one IEM (ER4XR), that I use with an EQ app called Wavelet on my LG V30. This improves the ER4XR tonality quite a bit. Can I expect much of an upgrade from the B2? Wider stage, better imaging and ideally better detail would be great. Tonality is not such a big deal, since I can EQ effectively.

     Share This Post
post-15997523
Post #6,688 of 7,040

IEMusic

Headphoneus Supremus
Joined
Mar 11, 2020
Messages
4,548
Reaction score
6,828
Location
Florida
Joined
Mar 11, 2020
Location
Florida
Posts
4,548
Likes
6,828
Not really
https://banbeu.com/graph/iem/moondrop-starfield/

Haven't seen B2, but this is the Starfield one
I was going to say I definitely noticed a difference the filters had. See my measurements on a set I thought was ruined before the replacement filters became available. A lot of the screens do impact sound, so when people remove the mesh screens and claim a "veil" has been lifted is normally because now the fitlered peaks are present. :beyersmile: The Kanas Pro filter seems to be centered at around ~2.4Khz, which also affects the 2nd harmonic at the ~4.8khz mark.

Thanks a lot for the information and graphs! Now to figure out which screens to buy. I wonder if the different screens are “tuned” differently, or are just of different diameters.

     Share This Post
post-15997615
Post #6,689 of 7,040

Banbeucmas

100+ Head-Fier
Joined
Sep 22, 2019
Messages
204
Reaction score
359
Location
Hanoi, Vietnam
Joined
Sep 22, 2019
Location
Hanoi, Vietnam
Posts
204
Likes
359
Website
banbeu.com
     Share This Post
  • Like
Reactions: IEMusic
post-15997723
Post #6,690 of 7,040

PopZeus

Headphoneus Supremus
Joined
Jul 30, 2015
Messages
1,555
Reaction score
938
Joined
Jul 30, 2015
Posts
1,555
Likes
938
yeah maybe for next generation we'll try to shrink the nozzle back a little to keep the ridge
Our products in this generation mostly got a large nozzle for more air inside the sound chamber, it turned out okay in prototyping so we never expect the tips to become slippery in some users hands...:deadhorse:
Knowing that you did it for acoustic reasons makes me feel better about why you made the design choice. But who says you can't keep the nozzle the same diameter and also add a ridge? Would that just destroy the delicate balance between tip and nozzle? :smile:

     Share This Post
