REVIEW: Firestone Audio Fireye HDB - New Balance
post-10546333
Thread Starter
Post #1 of 39

Zelda

Headphoneus Supremus
Joined
Jul 12, 2012
Messages
1,988
Reaction score
1,141
Joined
Jul 12, 2012
Posts
1,988
Likes
1,141
REVIEW: Firestone Audio Fireye HDB - (feat. Panda Audio Amp-S and Hifiman HM-700)




Specs:
(From Firestone Audio site)

* Power Structure: Built-in 4-Serial Li-polymer battery power supply
* Amplifier Structure: Class-AB amplifier
* Headphone Impedance: 16 ohm to 600 ohm
* Circuit Protection: Output short / temperature protection
* High / Medium / Low Gain
* Duration: Continuous using for more than 8hrs when fully charged
* Way of Charge: To charge via External Adaptor
* Charging Time: 2.5 Hours

Audio Performance (Output 2Vrms , Balance in, Balance out):
* Frequency Response (20Hz ~ 20kHz): +0.02dB ~ -0.3dB
* Noise Level: -112.0dB
* Dynamic Range: 111.3dB
* THD: 0.0004%
* Stereo Crosstalk: -110.2dB

Chips:
* Differential OPAmp: TI – LME49724
* Main OPAmp: TI - TPA6120

Connectivity:
* Charge Input: 2.0mm DC jack (24V/0.5A) *1
* Line Input: 3.5mm phone jack *1, Mini 4Pin phone jack *1
* Line Output: 3.5mm phone jack *1, Mini 4Pin phone jack *1

Weight/Size:
* Weight: 302g
* Net Weight: 194g
* Size (H*W*D): 171mm * 112mm * 80mm
* Net Size: 122mm * 62mm * 19mm

MSRP: ~$300.

Availability: Only from some Chinese online stores.

Warranty: 2 years

Official product page:
http://www.firestone-audio.com/fireyehdb.html

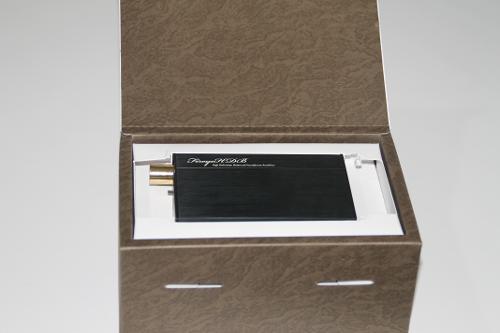

Packing & Accessories:
Not much to say here. The new HDB comes in just a nice paper box. Inside you'll find a 4-pin to 3.5mm single-ended short cable, a DC 24V/0.5A adaptor and 3 extra DIY 4-pin plugs. The short cable is of excellent quality as expected from FSA cables. It would've been nicer if there was also a single-to-single cable as well, and at least a carrying pouch or case.











Build & Design:
Build quality is simply perfect. The whole amplifier is made of aluminum, rather thick and feels very sturdy. The gold painted volume knob is plastic and so are the 3 switches. In the front side we will find the Gain switch along with the volume knob and the two different headphone line outputs, single 3.5mm and 4-pin balanced ended. The single output can accept both TRS single and TRRS balanced plugs (such as Hifiman's in-ear models). At the rear side, the Power switch, the charge input and the both line inputs, 4-pin balanced and single 3.5mm, with a switch to change between the inputs, and the charging indicator LED. As for the 3 switches, they might be rather small, but not fragile. The Gain switch goes from Low (middle position) to Med (up) and Hi (down). Personally, I think it'd be more logical to put them in order rather than having the Low in the middle.
As for aesthetics, my credits to FSA for the simple yet elegant and beautiful design. Not the lightest weight unit, but easy to carry on the go nevertheless.









Gain and Hiss:
While there's no EQ/Bass Gain option switch like the one featured in the previous HD (non-balanced) model, instead of that, the HDB features a 3 level Gain option. The low gain is powerful enough for most sensitive earphones/headphones, while the High gain should be needed for really demanding ones.
Hiss was slightly noticed and only with very sensitive IEMs.
There's also a noticeable clicking sound when both starting and shutting the power switch. It could be annoying depending of the headphone in use, so it's recommended to start the amp before wearing the ear/headphones.



Sound:
So far everything looks good for the asking price, great and solid built quality and sleek design, with the necessary accessories pack (ok, it'd be better). But it'd be worthless if the sound quality didn't match the ~$300 price tag. Fortunately, I can confirm that FSA's new HDB balanced amp offers a beautiful and enjoyable full sound performance. Let's get into more details.

Gear used for the testing/reviewing process:

Input source (DAP):
SanDisk Clip+ (mainly), iPod Shuffle, Hifiman HM700

Interconnector cable:
Included balance-to-single input cable

Output:
IEMs:
Ostry KC06 (Silver), Hifiman RE-400 (Single version), Dunu DN-1000, Rock-It Sounds R-50M, Moe Audio SS01, Xiaomi Piston 2.0, and more.
Being a balanced amplifier, the HDB doesn't only supports 4-pin connections, but also Balanced TRRS 3.5mm ones, and so both Hifiman RE600(B) and RE400(B) were tested as well on their 'balanced' mode.

Earbuds and headphones:
SoundMagic HP200, Ubiquo ES703, ES903, Rock-it R-Lite and R-DJ (64Ohm).

The Panda Audio Amp-S as a reference amp (with stock LME49860 op-amp chip) and Hifiman HM700 were used for comparison as well.

Part 1: Single Output
The HDB presents a warm and very rich signature. A full and very deep sound, which is very enjoyable and truly immersive. It's not what you'd call a flat and linear reference or analytical amp for sure (that's something for the Amp-S or JDS O2, for example), but rather smooth and engaging, giving higher priority to great dynamics with a noticeable added fun factor. Simply put, it's just 'Musical'.

The bass is probably the first thing to be noticed. In short, it's perfect. It's very full and deep with incredible extension and excellent rumble. It doesn't offer a heavy-bass low-end, and in fact it's missing the Bass gain option that the previous HD model had; not a bad thing per se, but would've been nice to have. Despite the slight extra coloration, the quality is great, very tight with good speed (although slower when compared to the Amp-S).
As for the quantity, well, it'd depend on the output. It won't make warmer/bassier phones sound as a bass monster, instead will give them better control, speed and decay. The HDB tends to have a better synergy when paired with more mid-centered to brighter phones, as it adds the low end they can be missing.

The midrange is very rich and well textured. Neither more forward nor recessed, but it's given an extra thickness and sweetness that makes it much more enjoyable. Vocals, as well, may remain in a neutral position in the whole presentation, but come out much more natural and articulated; very catching and with much deeper emotion. Still, the mids are not the most open and effortless, again when compared to more analytical and brighter Amp-S. Yet, the HDB has the upper hand in terms of texture and 'musicality'.

As expected from a smooth and warmer amp, the highs aren't the highlight of the show. They are very well extended, but to a lesser degree when compared to the lows extension. Quantity wise the treble is not lacking but definitely smoothed down; which is not necessarily a bad characteristic. In fact, the HDB does a great job to tame down some of the extra harshness that trebly/brighter sets may have. It works great with the SoundMagic full size HP200 (which sounded quite edgy and aggressive through the Amp-S), or the TWFK based IEMs like the R-50 and DN-1000.

While not being a detail oriented amplifier, the HDB detail retrieval is nothing short of impressive. Instead of being thrown to the front, they are presented in a more dynamic and natural way. The stage is more than big; it's huge, very wide with amazing depth. Not just that, the depth this FSA new product offers is without a doubt of the best I've heard. Dynamics are excellent and both instrument and vocal well separated. Imaging is pretty good; not the best yet, but everything sounds well-positioned for a warmish signature.

HM700 + HDB:
As mentioned above, the HDB gave great results when paired with the Sandisk Clip+, as it's a very colorless DAP that shows no personal character. That's not the same case with the HM700. The new Hifiman DAP is already powerful enough and doesn't benefit from extra amping, and already has some very slight sense of warmth (just the typical from Hifiman's house). Not real improvement was found, aside of a bit of extra speed and depth.
This leads to...

HDB (w/Clip+) VS HM700:
Now, this is more interesting. While the HM700 has quite enough power to drive most my current gear, it's obvious that the HDB is the much more powerful as with the 3 levels of gain is meant to drive even 600ohm headphones. That aside, when it comes to sound signature, the HDB is noticeable warmer and stronger towards the low freq. with a much fuller and wider sound, giving a more "out-of-head" feeling. The HM700 in contrast, has a softer impact and leaner/thinner midrange but also more forward when no EQ is used. Vocals are more frontal and intimate on the HM700, while more even on the HDB. Even though, the Hifiman's EQ works as wonder and can achieve similar effect as the HDB. Still, the HDB will sound more spacious and much bigger with greater dynamic range; it can also be more aggressive (not in an offensive/annoying way). In the treble dept. the HM700 is brighter and more sparkly against the smoother and more rounded FSA HDB.

HDB VS Amp-S: AMP VS AMP
The two similar priced amplifiers are the contrast to each other.
In either Mode 1 or 2, the Amp-S offers incredible speed and clarity. Clarity and airiness are the strength of the Panda amplifier together with very tight bass, yet deep sub-bass. Obviously, it's much brighter on the upper end and less forgiving. Quite the opposite in both bass and treble dept. As for the midrange they perform great but also very different. While the Amp-S sounds more open, airy and effortless, the HDB wins in sweetness and emotion. In the end, it comes to personal tastes as always.







Best/Favorite Synergy:

IEMs:
Rock-it Sounds R-50M:
Being a TWFK based earphone, the R-50M is obviously a very bright and clear set with a rather soft bass impact. When fed through the warm and smooth HDB, the results are quite nice. It tends to control the extra harshness these TWFK can have and add it a beautiful bass response. While it won't transform it in a bassy phone by any means, R-50M does sound more dynamic and richer through the midrange with a fuller overall tone.





Ostry KC06: (link)
So, how the well regarded great sounding KC06 matches together with the HDB.  Well, to be honest is simply...
.....WOW!!! Yes, despite being the easiest to drive earphone I ever owned, the KC06 benefits a LOT from amping and the FSA HDB is no exception. These little and quite affordable in-ear set is taken to different and highest level (or should I say levels). First thing first, the bass is now REAL. The HM700 already improved the KC06 sound in this aspect, but the HDB makes a noticeable difference. While a un-amped Ostry has great bass control the quantities probably weren't enough. When plugged to this FSA, it's like listening to different and better beast. The mids as well sound much fuller and the whole sound is bigger, very spacious and incredible deep. And, the soundstage is rather huge with great dimensions. A perfect match indeed, regardless the HDB's retail price.




Hifiman RE-600:
Fortunately, the HDB is able to drive both single and balanced TRRS 3.5 ended earphones. Personally, I do think that RE-600 is needed to be driven in a 'balanced' configuration to show its true form. With the HM700 the RE-600 offers a perfect balance from low to highs with great extension in both ends. Like with the KC06, a similar result is achieved with the HDB. While, the RE-600 is the least light in bass from the Hifiman in-ear line, is more than amazing when listened with the HDB. The low end is substantially more convincing with very good rumble and deeper sub-bass reach. The midrange might show huge improvement in texture, but that's because the RE-600 is already perfect in this area; yet, the mids can be more enjoyable. The soundstage also feels wider.





Earbuds:
Ubiquo ES703: (link)
This is a pair of earbuds that I got to like a lot, usually used at home and quieter places. With the Sansa Clip+ alone the ES703 are already very enjoyable, but still are like earbuds. When used together with the HDB the results are more than impressive for just a ~$40-50 earbud. The ES703 start to sound similar to open cans, reminding me in a way to one of my favorites earbuds, the well known Yuin PK1.





Full size - Open cans:
SoundMagic HP200: (link)
This was probably my real test for the FSA HDB amplifier. The HP200 are a pair of headphones that I rarely use without amplification, not because being hard to drive, but simply they benefit a lot from a better source. With the HDB, the HP200's extra brightness is taken under control and don't show that certain edginess, even at the brightest tracks. I never found the bass to be light or missing in the HP200, and the HDB adds some extra power and rumble to low sub-bass. Mids are very good, smooth and rich, but not as open, clear or forward as with the Amp-S, especially on Mode-2 (flatter response of the amp).




Conclusion (so far for Part 1):
For their first balanced amplifier, Firestone Audio made a great product. A mix of excellent build quality, sleek design, and most importantly, superb sound, which is simply musically engaging. It has more than enough power, and the different balanced in/outputs make it a very versatile product. $300 is no little money, but a well worth buy, indeed. With the right matching equipment the HDB might take the music to another level.






     Share This Post
  • Like
Reactions: carliber1
post-10546721
Post #2 of 39

twister6

twister6 Reviews
Headphoneus Supremus
Joined
Oct 6, 2013
Messages
11,957
Reaction score
29,687
Joined
Oct 6, 2013
Posts
11,957
Likes
29,687
Website
twister6.com
You mentioned HM700 and KC06.  Are you driving these directly from balanced jack or through an adapter (balanced to regular)?  I do enjoy HM700 + RE400B a lot!!!, but that adapter is a real PITA and too flimsy.  I tried driving my other IEMs directly, but I hear hissing which also adds to a noise floor.  Curious because I'm waiting for KC06 and will be getting KC06A as well.  It's not an issue to use it with my X5, but slick portable factor of HM700 always draws me in, especially with included armband :)

     Share This Post
post-10546805
Post #3 of 39

DannyBai

Headphoneus Supremus
Joined
Nov 21, 2010
Messages
3,446
Reaction score
576
Joined
Nov 21, 2010
Posts
3,446
Likes
576
Very comprehensive review Zelda. Thanks for bringing this amp to the communities attention. For $300, this thing packs some great features.

     Share This Post
post-10548254
Post #4 of 39

Mshenay

Headphoneus Supremus
Joined
Mar 30, 2012
Messages
15,533
Reaction score
1,561
Joined
Mar 30, 2012
Posts
15,533
Likes
1,561
Website
oakforestaudio.blogspot.com

REVIEW: Firestone Audio Fireye HDB - (feat. Panda Audio Amp-S and Hifiman HM-700)



Specs:
(From Firestone Audio site)

* Power Structure: Built-in 4-Serial Li-polymer battery power supply
* Amplifier Structure: Class-AB amplifier
* Headphone Impedance: 16 ohm to 600 ohm
* Circuit Protection: Output short / temperature protection
* High / Medium / Low Gain
* Duration: Continuous using for more than 8hrs when fully charged
* Way of Charge: To charge via External Adaptor
* Charging Time: 2.5 Hours

Audio Performance (Output 2Vrms , Balance in, Balance out):
* Frequency Response (20Hz ~ 20kHz): +0.02dB ~ -0.3dB
* Noise Level: -112.0dB
* Dynamic Range: 111.3dB
* THD: 0.0004%
* Stereo Crosstalk: -110.2dB

Chips:
* Differential OPAmp: TI – LME49724
* Main OPAmp: TI - TPA6120

Connectivity:
* Charge Input: 2.0mm DC jack (24V/0.5A) *1
* Line Input: 3.5mm phone jack *1, Mini 4Pin phone jack *1
* Line Output: 3.5mm phone jack *1, Mini 4Pin phone jack *1

Weight/Size:
* Weight: 302g
* Net Weight: 194g
* Size (H*W*D): 171mm * 112mm * 80mm
* Net Size: 122mm * 62mm * 19mm

MSRP: ~$300. (To be confirmed)

Availability: (To be confirmed)
Only found it in some Chinese online stores, but can't say about being authorized sellers.

Warranty: 2 years

Official product page:
http://www.firestone-audio.com/fireyehdb.html










Packing & Accessories:
Not much to say here. The new HDB comes in just a nice paper box. Inside you'll find a 4-pin to 3.5mm single-ended short cable, a DC 24V/0.5A adaptor and 3 extra DIY 4-pin plugs. The short cable is of excellent quality as expected from FSA cables. It would've been nicer if there was also a single-to-single cable as well, and at least a carrying pouch or case.











Build & Design:
Build quality is simply perfect. The whole amplifier is made of aluminum, rather thick and feels very sturdy. The gold painted volume knob is plastic and so are the 3 switches. In the front side we will find the Gain switch along with the volume knob and the two different headphone line outputs, single 3.5mm and 4-pin balanced ended. The single output can accept both TRS single and TRRS balanced plugs (such as Hifiman's in-ear models). At the rear side, the Power switch, the charge input and the both line inputs, 4-pin balanced and single 3.5mm, with a switch to change between the inputs, and the charging indicator LED. As for the 3 switches, they might be rather small, but not fragile. The Gain switch goes from Low (middle position) to Med (up) and Hi (down). Personally, I think it'd be more logical to put them in order rather than having the Low in the middle.
As for aesthetics, my credits to FSA for the simple yet elegant and beautiful design. Not the lightest weight unit, but easy to carry on the go nevertheless.









Gain and Hiss:
While there's no EQ/Bass Gain option switch like the one featured in the previous HD (non-balanced) model, instead of that, the HDB features a 3 level Gain option. The low gain is powerful enough for most sensitive earphones/headphones, while the High gain should be needed for really demanding ones.
Hiss was slightly noticed and only with very sensitive IEMs.
There's also a noticeable clicking sound when both starting and shutting the power switch. It could be annoying depending of the headphone in use, so it's recommended to start the amp before wearing the ear/headphones.



Sound:
So far everything looks good for the asking price, great and solid built quality and sleek design, with the necessary accessories pack (ok, it'd be better). But it'd be worthless if the sound quality didn't match the ~$300 price tag. Fortunately, I can confirm that FSA's new HDB balanced amp offers a beautiful and enjoyable full sound performance. Let's get into more details.

Gear used for the testing/reviewing process:

Input source (DAP):
SanDisk Clip+ (mainly), iPod Shuffle, Hifiman HM700

Interconnector cable:
Included balance-to-single input cable

Output:
IEMs:
Ostry KC06 (Silver), Hifiman RE-400 (Single version), Dunu DN-1000, Rock-It Sounds R-50M, Moe Audio SS01, Xiaomi Piston 2.0, and more.
Being a balanced amplifier, the HDB doesn't only supports 4-pin connections, but also Balanced TRRS 3.5mm ones, and so both Hifiman RE600(B) and RE400(B) were tested as well on their 'balanced' mode.

Earbuds and headphones:
SoundMagic HP200, Ubiquo ES703, ES903, Rock-it R-Lite and R-DJ (64Ohm).

The Panda Audio Amp-S as a reference amp (with stock LME49860 op-amp chip) and Hifiman HM700 were used for comparison as well.

Part 1: Single Output
The HDB presents a warm and very rich signature. A full and very deep sound, which is very enjoyable and truly immersive. It's not what you'd call a flat and linear reference or analytical amp for sure (that's something for the Amp-S or JDS O2, for example), but rather smooth and engaging, giving higher priority to great dynamics with a noticeable added fun factor. Simply put, it's just 'Musical'.

The bass is probably the first thing to be noticed. In short, it's perfect. It's very full and deep with incredible extension and excellent rumble. It doesn't offer a heavy-bass low-end, and in fact it's missing the Bass gain option that the previous HD model had; not a bad thing per se, but would've been nice to have. Despite the slight extra coloration, the quality is great, very tight with good speed (although slower when compared to the Amp-S).
As for the quantity, well, it'd depend on the output. It won't make warmer/bassier phones sound as a bass monster, instead will give them better control, speed and decay. The HDB tends to have a better synergy when paired with more mid-centered to brighter phones, as it adds the low end they can be missing.

The midrange is very rich and well textured. Neither more forward nor recessed, but it's given an extra thickness and sweetness that makes it much more enjoyable. Vocals, as well, may remain in a neutral position in the whole presentation, but come out much more natural and articulated; very catching and with much deeper emotion. Still, the mids are not the most open and effortless, again when compared to more analytical and brighter Amp-S. Yet, the HDB has the upper hand in terms of texture and 'musicality'.

As expected from a smooth and warmer amp, the highs aren't the highlight of the show. They are very well extended, but to a lesser degree when compared to the lows extension. Quantity wise the treble is not lacking but definitely smoothed down; which is not necessarily a bad characteristic. In fact, the HDB does a great job to tame down some of the extra harshness that trebly/brighter sets may have. It works great with the SoundMagic full size HP200 (which sounded quite edgy and aggressive through the Amp-S), or the TWFK based IEMs like the R-50 and DN-1000.

While not being a detail oriented amplifier, the HDB detail retrieval is nothing short of impressive. Instead of being thrown to the front, they are presented in a more dynamic and natural way. The stage is more than big; it's huge, very wide with amazing depth. Not just that, the depth this FSA new product offers is without a doubt of the best I've heard. Dynamics are excellent and both instrument and vocal well separated. Imaging is pretty good; not the best yet, but everything sounds well-positioned for a warmish signature.

HM700 + HDB:
As mentioned above, the HDB gave great results when paired with the Sandisk Clip+, as it's a very colorless DAP that shows no personal character. That's not the same case with the HM700. The new Hifiman DAP is already powerful enough and doesn't benefit from extra amping, and already has some very slight sense of warmth (just the typical from Hifiman's house). Not real improvement was found, aside of a bit of extra speed and depth.
This leads to...

HDB (w/Clip+) VS HM700:
Now, this is more interesting. While the HM700 has quite enough power to drive most my current gear, it's obvious that the HDB is the much more powerful as with the 3 levels of gain is meant to drive even 600ohm headphones. That aside, when it comes to sound signature, the HDB is noticeable warmer and stronger towards the low freq. with a much fuller and wider sound, giving a more "out-of-head" feeling. The HM700 in contrast, has a softer impact and leaner/thinner midrange but also more forward when no EQ is used. Vocals are more frontal and intimate on the HM700, while more even on the HDB. Even though, the Hifiman's EQ works as wonder and can achieve similar effect as the HDB. Still, the HDB will sound more spacious and much bigger with greater dynamic range; it can also be more aggressive (not in an offensive/annoying way). In the treble dept. the HM700 is brighter and more sparkly against the smoother and more rounded FSA HDB.

HDB VS Amp-S: AMP VS AMP
The two similar priced amplifiers are the contrast to each other.
In either Mode 1 or 2, the Amp-S offers incredible speed and clarity. Clarity and airiness are the strength of the Panda amplifier together with very tight bass, yet deep sub-bass. Obviously, it's much brighter on the upper end and less forgiving. Quite the opposite in both bass and treble dept. As for the midrange they perform great but also very different. While the Amp-S sounds more open, airy and effortless, the HDB wins in sweetness and emotion. In the end, it comes to personal tastes as always.







Best/Favorite Synergy:

IEMs:
Rock-it Sounds R-50M:
Being a TWFK based earphone, the R-50M is obviously a very bright and clear set with a rather soft bass impact. When fed through the warm and smooth HDB, the results are quite nice. It tends to control the extra harshness these TWFK can have and add it a beautiful bass response. While it won't transform it in a bassy phone by any means, R-50M does sound more dynamic and richer through the midrange with a fuller overall tone.





Ostry KC06: (link)
So, how the well regarded great sounding KC06 matches together with the HDB.  Well, to be honest is simply... (grin smileys).....WOW!!! Yes, despite being the easiest to drive earphone I ever owned, the KC06 benefits a LOT from amping and the FSA HDB is no exception. These little and quite affordable in-ear set is taken to different and highest level (or should I say levels). First thing first, the bass is now REAL. The HM700 already improved the KC06 sound in this aspect, but the HDB makes a noticeable difference. While a un-amped Ostry has great bass control the quantities probably weren't enough. When plugged to this FSA, it's like listening to different and better beast. The mids as well sound much fuller and the whole sound is bigger, very spacious and incredible deep. And, the soundstage is rather huge with great dimensions. A perfect match indeed, regardless the HDB's retail price.




Hifiman RE-600:
Fortunately, the HDB is able to drive both single and balanced TRRS 3.5 ended earphones. Personally, I do think that RE-600 is needed to be driven in a 'balanced' configuration to show its true form. With the HM700 the RE-600 offers a perfect balance from low to highs with great extension in both ends. Like with the KC06, a similar result is achieved with the HDB. While, the RE-600 is the least light in bass from the Hifiman in-ear line, is more than amazing when listened with the HDB. The low end is substantially more convincing with very good rumble and deeper sub-bass reach. The midrange might show huge improvement in texture, but that's because the RE-600 is already perfect in this area; yet, the mids can be more enjoyable. The soundstage also feels wider.




Hifiman RE-400 and RE-400-B: (In progress)

Earbuds:
Ubiquo ES703: (link)
This is a pair of earbuds that I got to like a lot, usually used at home and quieter places. With the Sansa Clip+ alone the ES703 are already very enjoyable, but still are like earbuds. When used together with the HDB the results are more than impressive for just a ~$40-50 earbud. The ES703 start to sound similar to open cans, reminding me in a way to one of my favorites earbuds, the well known Yuin PK1.





Full size - Open cans:
SoundMagic HP200: (link)
This was probably my real test for the FSA HDB amplifier. The HP200 are a pair of headphones that I rarely use without amplification, not because being hard to drive, but simply they benefit a lot from a better source. With the HDB, the HP200's extra brightness is taken under control and don't show that certain edginess, even at the brightest tracks. I never found the bass to be light or missing in the HP200, and the HDB adds some extra power and rumble to low sub-bass. Mids are very good, smooth and rich, but not as open, clear or forward as with the Amp-S, especially on Mode-2 (flatter response of the amp).




Conclusion (so far for Part 1):
For their first balanced amplifier, Firestone Audio made a great product. A mix of excellent build quality, sleek design, and most importantly, superb sound, which is simply musically engaging. It has more than enough power, and the different balanced in/outputs make it a very versatile product. $300 is no little money, but a well worth buy, indeed. With the right matching equipment the HDB might take the music to another level.




Part 2: 4-Pin Balanced Output (Soon)

WHoa, nice a warm balanced amp in the $300 price range, looks like ibasso has some compietition!

     Share This Post
post-10548446
Post #5 of 39

Zelda

Headphoneus Supremus
Joined
Jul 12, 2012
Messages
1,988
Reaction score
1,141
Joined
Jul 12, 2012
Posts
1,988
Likes
1,141
  You mentioned HM700 and KC06.  Are you driving these directly from balanced jack or through an adapter (balanced to regular)?  I do enjoy HM700 + RE400B a lot!!!, but that adapter is a real PITA and too flimsy.  I tried driving my other IEMs directly, but I hear hissing which also adds to a noise floor.  Curious because I'm waiting for KC06 and will be getting KC06A as well.  It's not an issue to use it with my X5, but slick portable factor of HM700 always draws me in, especially with included armband :)
Usually i use the KC06 directly through the balanced jack output (or with the balanced to regular, which works just as an extension for the kc06). Yes, there's some hiss. but again, the KC06 is very, very sensitive. sometimes i use it with the USB+Balanced adapter, which helps with hiss. although the volume needs a couple of steps more. the adapter itself doesn't bother me, as i just use the ostry at home for their lack of isolation.
maybe you could get some impedance cable.


Very comprehensive review Zelda. Thanks for bringing this amp to the communities attention. For $300, this thing packs some great features.


     Share This Post
post-10548652
Post #6 of 39

tomscy2000

Headphoneus Supremus
Joined
Mar 11, 2010
Messages
5,905
Reaction score
2,220
Location
On Hiatus
Joined
Mar 11, 2010
Location
On Hiatus
Posts
5,905
Likes
2,220
FYI, they're also releasing a Fireye DAB, which is an USB PC/OTG input DAC/amp that does 24/192 and DSD. Last I heard, they were going with the WM8741 for D/A conversion. Not sure about the analog stage. I can ask again where they're headed with it. Lately, they've been working on their USB power supply and Raspberry Pi-based wireless streaming dongle, so the DAB might come further down the line.

I posted this a while ago here, but here's the schematic:



The LME49724 allows for a fully differential design all the way through to the end, so this is a true balanced amp. Supposedly, they began this project because one of the FSA people who collected RSA amps opened up one of them (not sure which model) and discovered that it wasn't a truly balanced design, and so they set out to design their own.

Anyway, you guys can see some high-quality components there: (Vishay?) MELF resistors, WIMA caps, and apparently even the Li-ion battery connection to the power supply uses thick gauge OCC wire to prevent unnecessary voltage loss.

Specifically regarding IEMs, even though it's a very high-performance part, I'm not thrilled that they went with the TPA6120A2 because they tend to follow the reference recommendation of using 10 ohm output resistors, but if you don't mind the change to your earphone's FR, this amp is very high performance. Just for the HDB (and I assume the DAB), they've also begun selling balanced IEM cables (braid is UE-style --- the twisted-twisted pair pattern with a texture like the UE900's cable, and the connectors are proprietary overmolds) but I have no idea if they're planning to sell these cables overseas.

     Share This Post
post-10549396
Post #7 of 39

SDBiotek

1000+ Head-Fier
Joined
May 20, 2011
Messages
1,069
Reaction score
249
Joined
May 20, 2011
Posts
1,069
Likes
249
It looks like yet another knock-off copy of a Ray Samuels Audio headphone amp. This time it may be the SR-71B Blackbird, but in a larger case and without the 3 levels of gain. I wonder how this one would sound in comparison.

     Share This Post
post-10549456
Post #8 of 39

Zelda

Headphoneus Supremus
Joined
Jul 12, 2012
Messages
1,988
Reaction score
1,141
Joined
Jul 12, 2012
Posts
1,988
Likes
1,141
  It looks like yet another knock-off copy of a Ray Samuels Audio headphone amp. This time it may be the SR-71B Blackbird, but in a larger case and without the 3 levels of gain. I wonder how this one would sound in comparison.
you mean the HDB? it does have 3 levels

     Share This Post
post-10549537
Post #9 of 39

tomscy2000

Headphoneus Supremus
Joined
Mar 11, 2010
Messages
5,905
Reaction score
2,220
Location
On Hiatus
Joined
Mar 11, 2010
Location
On Hiatus
Posts
5,905
Likes
2,220
  It looks like yet another knock-off copy of a Ray Samuels Audio headphone amp. This time it may be the SR-71B Blackbird, but in a larger case and without the 3 levels of gain. I wonder how this one would sound in comparison.

The topology is quite different from the SR-71B. The 71B uses separate opamp chains for voltage gain and current buffering. The HDB uses an integrated IC for both purposes. The only similarity is that they both have a differential gain input, but I believe the differential opamps used are different.

So knock-off? No. Would you call all those ALO amps knock-offs of RSA amps as well, then?

     Share This Post
post-10549628
Post #10 of 39

SDBiotek

1000+ Head-Fier
Joined
May 20, 2011
Messages
1,069
Reaction score
249
Joined
May 20, 2011
Posts
1,069
Likes
249

The topology is quite different from the SR-71B. The 71B uses separate opamp chains for voltage gain and current buffering. The HDB uses an integrated IC for both purposes. The only similarity is that they both have a differential gain input, but I believe the differential opamps used are different.

So knock-off? No. Would you call all those ALO amps knock-offs of RSA amps as well, then?


  you mean the HDB? it does have 3 levels
Sorry about that, you did mention the gain levels. I didn't notice the chassis markings until I pulled up your review from my computer (I originally read it on my phone).

The topology is quite different from the SR-71B. The 71B uses separate opamp chains for voltage gain and current buffering. The HDB uses an integrated IC for both purposes. The only similarity is that they both have a differential gain input, but I believe the differential opamps used are different.

So knock-off? No. Would you call all those ALO amps knock-offs of RSA amps as well, then?
I wasn't referring at any other amps, only this one, but I appreciate you taking the time to explain the topology differences.

     Share This Post
post-10553688
Post #11 of 39

wahsmoh

1000+ Head-Fier
Joined
Jan 31, 2013
Messages
1,460
Reaction score
322
Joined
Jan 31, 2013
Posts
1,460
Likes
322


WHoa, nice a warm balanced amp in the $300 price range, looks like ibasso has some compietition!
I know!! I am subbed now. I have been looking for a badass portable amp for my Alpha Dogs so the next airplane flight won't be so boring : ]

     Share This Post
post-10579260
Post #12 of 39

Raidun

New Head-Fier
Joined
Oct 15, 2013
Messages
3
Reaction score
10
Joined
Oct 15, 2013
Posts
3
Likes
10
I am very new to the commune and this is my first post/activity. After reading you review I am inclined on buying this amp and it also fits my budget. A seller has it on sale for $330 on ebay including international shipping. Should I go for it? Or is it possible to get it for a cheaper amount? Help!

     Share This Post
post-10580259
Post #13 of 39

Zelda

Headphoneus Supremus
Joined
Jul 12, 2012
Messages
1,988
Reaction score
1,141
Joined
Jul 12, 2012
Posts
1,988
Likes
1,141
  I am very new to the commune and this is my first post/activity. After reading you review I am inclined on buying this amp and it also fits my budget. A seller has it on sale for $330 on ebay including international shipping. Should I go for it? Or is it possible to get it for a cheaper amount? Help!
I;m waiting for a reply from the seller regarding the price and availability. will update the OP asap

     Share This Post
post-10580392
Post #14 of 39

Raidun

New Head-Fier
Joined
Oct 15, 2013
Messages
3
Reaction score
10
Joined
Oct 15, 2013
Posts
3
Likes
10
  I;m waiting for a reply from the seller regarding the price and availability. will update the OP asap
Also waiting for the next part of your review. Where does it stand against the Rx MK3 B+?

     Share This Post
post-10642831
Post #15 of 39

xxxfbsxxx

100+ Head-Fier
Joined
Sep 26, 2010
Messages
307
Reaction score
36
Joined
Sep 26, 2010
Posts
307
Likes
36
Its now offered for less than $300 and close to $200 on different site
Just wonder is it worth buying at this price
Any one have further impression? Thanks

     Share This Post

Users Who Are Viewing This Thread (Users: 0, Guests: 1)

Top
