iFi audio xCAN - The Official Thread

Tags:
First

Back
5 6 7 8 9 10 11 12 13 14
16 17 18 19 20 21 22 23 24 25
Next

Last
  1. spdtdl
    Close to pulling the trigger on this. 2 questions.

    1) Does this have any issues with iOS devices (iPad Pro 11" & iPhone XS Max) like the xdsd had?

    2) Can I use 660s balanced, if so can anyone suggest a 2.5mm male to 4.4mm Pentaconn female adaptor (UK Based)

    Thank you!

  2. rafaelo
    1) no problem so far with my iPad air

    2) for UK you xan ask @Mavismodz . I am using his balanced cable with 58x and the results are amazing.

  3. HungryPanda
  4. ngoshawk
  5. iFi audio
    iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

    https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
  6. iFi audio
    xCAN - Tech Note 2/2
    Balanced on the go.



    The xCAN offers balanced in/out to take full advantage of the growing availability of balanced sources and headphones. The xCAN uses the W990VST analogue volume control with digital CyberDrive control. For amplification, the OV4627 amplifier chip (4 channel) is used to deliver exceptional sonic performance on-the-go.

    All New 3D+ and XBassII.

    XBassⅡ® (On/Adj/Off) has been implemented in the xCAN for the first time.


    In recent times, new research into headphone frequency response showed that a purely ‘flat’ response is not ‘ideal’ for enjoyable listening. Our long present XBass® fits the profile of the low-frequency correction required. However, it was also shown that a certain amount of lower midrange boost is needed to give many headphones a more ‘natural’ sound. As this lower midrange region is usually also called the ‘presence’ region we have used this term to indicate the lower midrange correction. In the xCAN, XBassⅡ®(or perhaps better HP-EQ) can be selected to have either Bass + Presence correction, only Bass or Presence correction only. Select according to listening preference.

    Tip: DSP with its unavoidable loss of resolution and sound quality is NOT used for XBass® nor 3D+® Matrix systems. They operate purely in the analogue domain and use the highest-quality discrete components. Hence all the clarity and resolution of the original music is retained.

    Cyberdrive. Fly-By-Wire.


    As seen in the recently launched xDSD, the xCAN has the same CyberDrive platform whereby a central rotary and one other button replaces the need for many buttons. The volume control system despite being ‘digital control’ in function remains ‘analogue’ in operation. This means that the full dynamic range and every ‘Bit’ of resolution is preserved to deliver the best sonic performance.

    Features
    Front panel

    · 2.5mm TRRS Balanced output
    · 3.5mm TRS S-Balanced output
    · Stepped attenuator volume control (-95dB...+18dB gain)
    · Analogue Domain 3D Matrix/ XBassⅡ® (on/off)

    Rear panel
    · 2.5mm TRRS Balanced input (Balanced TRRS wiring ONLY)
    · 3.5mm TRS input (compatible with TRS Headphones/IEM)
    · Analogue Domain XBassⅡ® iQ correction (on/off with 3 presets*)
    · USB C charging input port (charging only)

    *based on the Olive/Welti target response for correct natural sound with Headphones and IEM’s

    Last edited: Dec 10, 2018
    iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

    https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
    Dobrescu George and Bansaku like this.
  7. Dobrescu George
    I'm loving the fact you included Type-C with your xCan, I tend to have more spare cables of Type-C nowdays than micro-USB :)

  8. spdtdl
  9. rafaelo
    I have done everything to avoid buying xCan since I had already the xDSD but unfortunately couldn't manage. I even bought the 58x since are more easy to drive but still I vastly prefer xCan.
    So I bought the xCan since I am using that all the time currently.

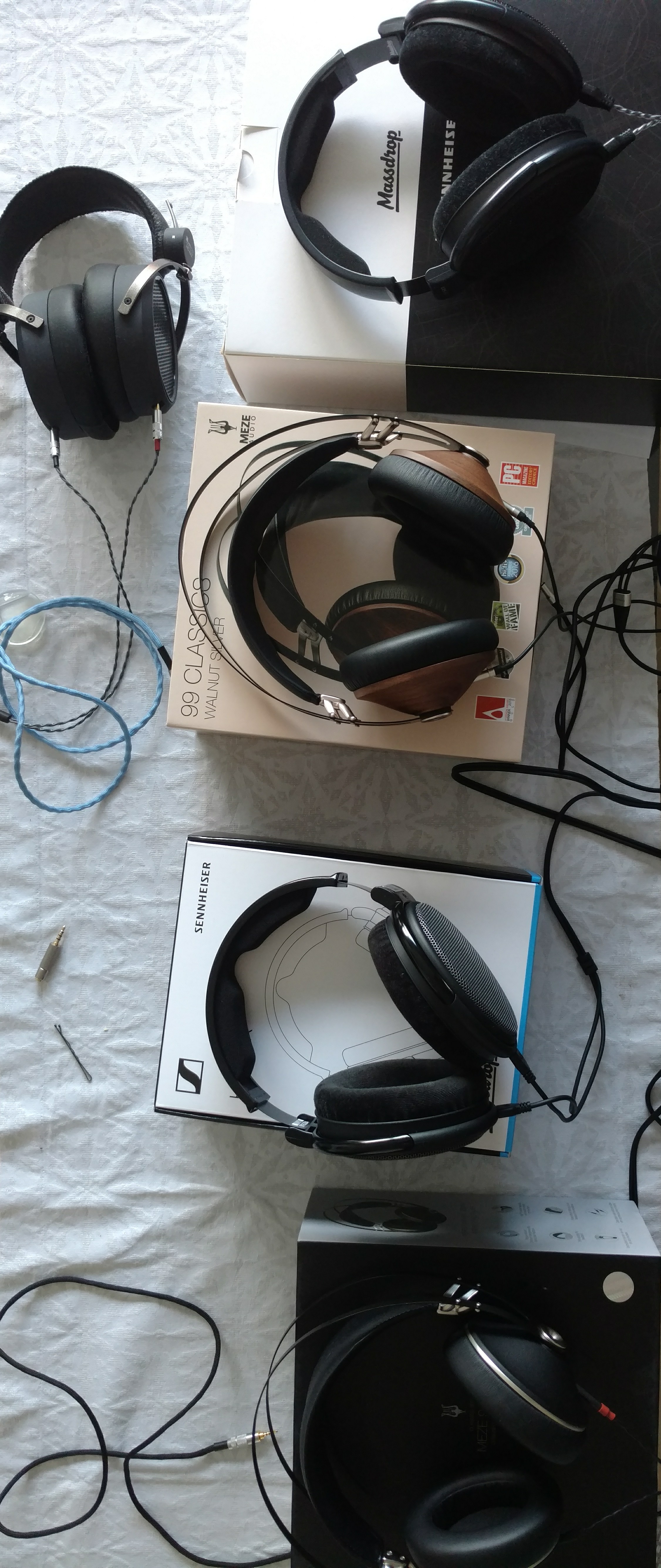

    I will provide more info in my review but as this might arrive after Christmas I just wanted to post in advance my rating which is 5* definitely especially for people considering any presents during this festive period. I also provide below a picture with all the cans I have used during my review.

    Happy holidays everyone!


    Last edited: Dec 13, 2018
    Bansaku, HungryPanda and superuser1 like this.
  10. iFi audio
    Quite the collection! Good work!

    iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

    https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
  11. rafaelo
    The problem is that all of them asking all the time for xCan but for xCan is a bit difficult to make all of them happy...at the same time...

  12. iFi audio
    Now that's a problem indeed.

    iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

    https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
  13. Bansaku
    Then you should be thankful you only have one set of ears. :stuck_out_tongue_winking_eye:

  14. iFi audio
    We all should :ksc75smile:

    iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

    https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
    HungryPanda likes this.
  15. Mightygrey
    I'm thoroughly enjoying this little "pocket dynamite" - I've been happily using it as a to power 300-ohm ZMF's and Senns on my desktop "stacked" with the xDSD as a wired DAC, and doing solo duties on the go via Aptx Bluetooth with my Andromedas.

    I have a 2.5 TRRS cable on the way from Aliexpress to get the most out of the xCAN with my HD580 + HD650, can't wait to hear them all over again via balanced! Full review will be incoming shortly...


    Screen Shot 2018-12-17 at 7.34.29 pm.png Screen Shot 2018-12-17 at 7.34.42 pm.png

    Last edited: Dec 17, 2018
