FiiO M9 , Android based Hi-Res smart DAP with 3.5/2.5 powerful output|AKM4490 X2 |WiFi|aptX/aptX HD/LDAC/HWA(LHDC)|USB DAC|USB AUDIO OUT
post-14532924
Post #181 of 2,395

stenog

1000+ Head-Fier
Joined
Feb 17, 2016
Messages
1,029
Reaction score
573
Location
Denmark
Joined
Feb 17, 2016
Location
Denmark
Posts
1,029
Likes
573
Headphone out specifications 1(3.5mm port)
Output power 1 ≥125mW(16Ω / THD+N<1%) Output impedance <2Ω
Output power 2 ≥170mW(32Ω /THD+N<1%) THD+N <0.002%(1kHz/32Ω)
Output power 3 ≥19mW(300Ω / THD+N<1%) Separation >72dB
Frequency response 5Hz~80 kHz(-3dB) Peak output voltage 6.5Vp-p
SNR ≥118dB (A-weighted) Noise floor <5uV
Headphone out specifications 2(2.5mm port)
Output power 1 ≥125mW(16Ω / THD+N<1%) Output impedance <2Ω
Output power 2 ≥195mW(32Ω /THD+N<1%,balanced turbo off)
≥220mW(32Ω /THD+N<1%,balanced turbo on) THD+N <0.002%(1kHz/32Ω)
Output power 3 ≥24mW(300Ω / THD+N<1%,balanced turbo off)
≥77mW(300Ω / THD+N<1%,balanced turbo on) Separation >98dB
Frequency response 5Hz~80 kHz(-3dB) Peak output voltage 7.07Vp-p
SNR ≥113dB (A-weighted) Noise floor <10uV
If these numbers are correct then power output is more than ok!

Here are the specs for X7II.
http://m.fiio.net/en/products/71/parameters

     Share This Post
post-14532952
Post #182 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
it seems quite low to me, my FiiO X5III pushes more power than M9.

     Share This Post
post-14532964
Post #183 of 2,395

stenog

1000+ Head-Fier
Joined
Feb 17, 2016
Messages
1,029
Reaction score
573
Location
Denmark
Joined
Feb 17, 2016
Location
Denmark
Posts
1,029
Likes
573
it seems quite low to me, my FiiO X5III pushes more power than M9.
What do you need all this power for? If you intend to drive 600 ohm headphones, a "normal" dap is probably not the right device. I can drive both Beyer Amiron and Aeon Open with the X7II in SE and I don't get past 80/120. Not saying that this is the best combination, but it's possible.

M9
Output power 2 ≥170mW(32Ω)

X7II
Output power 2 ≥150 mW(32Ω)

     Share This Post
  • Like
Reactions: trellus
post-14533312
Post #184 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
I'm going to be using the dap mostly for my B&O H6 when outside (they dont require much power so i know they're not the focus here.) what im gonna be using them more for is my DT1990 Pro's and Audeze LCD2C and potentially AKG K712Pro and possibly my friends Hifiman Sundara.

I'm looking at the new Cayin N5iiS and maybe the A&K AK70 MK II, A&norma SR15,or the AK100II.

its hard to find a DAP that can push all thoes headphones mentioned above (minus the B&O H6II) without going over 800$CND.. by a lot..

     Share This Post
post-14533366
Post #185 of 2,395

superuser1

Headphoneus Supremus
Joined
Dec 7, 2016
Messages
4,111
Reaction score
2,693
Location
Sapta Sindhu
Joined
Dec 7, 2016
Location
Sapta Sindhu
Posts
4,111
Likes
2,693
I'm going to be using the dap mostly for my B&O H6 when outside (they dont require much power so i know they're not the focus here.) what im gonna be using them more for is my DT1990 Pro's and Audeze LCD2C and potentially AKG K712Pro and possibly my friends Hifiman Sundara.

I'm looking at the new Cayin N5iiS and maybe the A&K AK70 MK II, A&norma SR15,or the AK100II.

its hard to find a DAP that can push all thoes headphones mentioned above (minus the B&O H6II) without going over 800$CND.. by a lot..
I believe the DX150 can do all those with different amps of course!

     Share This Post
  • Like
Reactions: stenog
post-14534669
Post #186 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
I believe the DX150 can do all those with different amps of course!
I dont want to have to amp swap :p i'd rather have one solid unit.

     Share This Post
  • Like
Reactions: superuser1
post-14534679
Post #187 of 2,395

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Messages
6,695
Reaction score
3,093
Location
Guangzhou,China
Joined
Jul 30, 2008
Location
Guangzhou,China
Posts
6,695
Likes
3,093
Age
13
Website
www.fiio.com
3. FiiO M9 Hi-Res Audio Player丨The Ultimate in Versatility

Inside the M9 is a high-performing A3P030 FPGA, ensuring your music is played back accurately by stabilizing digital clock signals. The FPGA also decodes DSD64/128 in hardware, which the M9 supports in ISO/DFF/DSF formats.

3 (1).jpg
3 (2).jpg
3 (3).jpg

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com
     Share This Post
  • Like
Reactions: trellus
post-14536005
Post #188 of 2,395

thrgk

100+ Head-Fier
Joined
Jan 30, 2015
Messages
169
Reaction score
4
Joined
Jan 30, 2015
Posts
169
Likes
4
Do you know when it will be available in the US and what sellers ?

Looks like a great player

     Share This Post
post-14536843
Post #190 of 2,395

thrgk

100+ Head-Fier
Joined
Jan 30, 2015
Messages
169
Reaction score
4
Joined
Jan 30, 2015
Posts
169
Likes
4
Yeah hopefully Amazon has it in the US like Amazon in the UK does on10/19 :)

I am also curious about a US release date.


3. FiiO M9 Hi-Res Audio Player丨The Ultimate in Versatility

Inside the M9 is a high-performing A3P030 FPGA, ensuring your music is played back accurately by stabilizing digital clock signals. The FPGA also decodes DSD64/128 in hardware, which the M9 supports in ISO/DFF/DSF formats.


     Share This Post
post-14540516
Post #191 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
What do you need all this power for? If you intend to drive 600 ohm headphones, a "normal" dap is probably not the right device. I can drive both Beyer Amiron and Aeon Open with the X7II in SE and I don't get past 80/120. Not saying that this is the best combination, but it's possible.

M9
Output power 2 ≥170mW(32Ω)

X7II
Output power 2 ≥150 mW(32Ω)
Do you know if the M9 can run/drive Hifiman Sundara, AKG K712 Pro, BeyerDynamic DT1990 Pro, Audeze LCD2C(classic) and Fostex th-900 mk2??
if it can, sold! lol i'll buy it asap.

     Share This Post
post-14540725
Post #192 of 2,395

stephanemtl

100+ Head-Fier
Joined
Apr 2, 2014
Messages
179
Reaction score
25
Joined
Apr 2, 2014
Posts
179
Likes
25
Based on the specs, the M9 looks fantastic: small, affordable, and capable of Tidal offline playing.

That being said, my experience with the X7, 1st gen, has taught me to be extremely cautious about initial claims made by Fiio, claims that are never realized even after two years of updates.

I hope the M9 will truly have (1) a reliable wifi, (2) an absence of audible wifi interference/noise when using Tidal online and (3) an absence of stuttering songs when using Tidal offline.

     Share This Post
  • Like
Reactions: trellus
post-14541403
Post #193 of 2,395

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Messages
6,695
Reaction score
3,093
Location
Guangzhou,China
Joined
Jul 30, 2008
Location
Guangzhou,China
Posts
6,695
Likes
3,093
Age
13
Website
www.fiio.com
4. FiiO M9 Portable High-Resolution Audio Player丨The Ultimate in Versatility

The M9 uses Bluetooth 4.2 and supports all Bluetooth formats including the hi-res ones for your ultimate listening pleasure, including: 24bit aptX HD (also backwards compatible with aptX), LDAC, and HWA.
4 (1).jpg
4 (2).jpg
4 (3).jpg

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com
     Share This Post
  • Like
Reactions: trellus
post-14541504
Post #194 of 2,395

seanwee

Headphoneus Supremus
Joined
Jun 9, 2015
Messages
3,668
Reaction score
1,505
Joined
Jun 9, 2015
Posts
3,668
Likes
1,505
Do you know if the M9 can run/drive Hifiman Sundara, AKG K712 Pro, BeyerDynamic DT1990 Pro, Audeze LCD2C(classic) and Fostex th-900 mk2??
if it can, sold! lol i'll buy it asap.
It will drive the Sundara fine. Even the N5ii manages with its 150mw/32ohm output.

     Share This Post
post-14543762
Post #195 of 2,395

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Messages
6,695
Reaction score
3,093
Location
Guangzhou,China
Joined
Jul 30, 2008
Location
Guangzhou,China
Posts
6,695
Likes
3,093
Age
13
Website
www.fiio.com
5. FiiO M9 Hi-Res Audio Player丨The Ultimate in Versatility

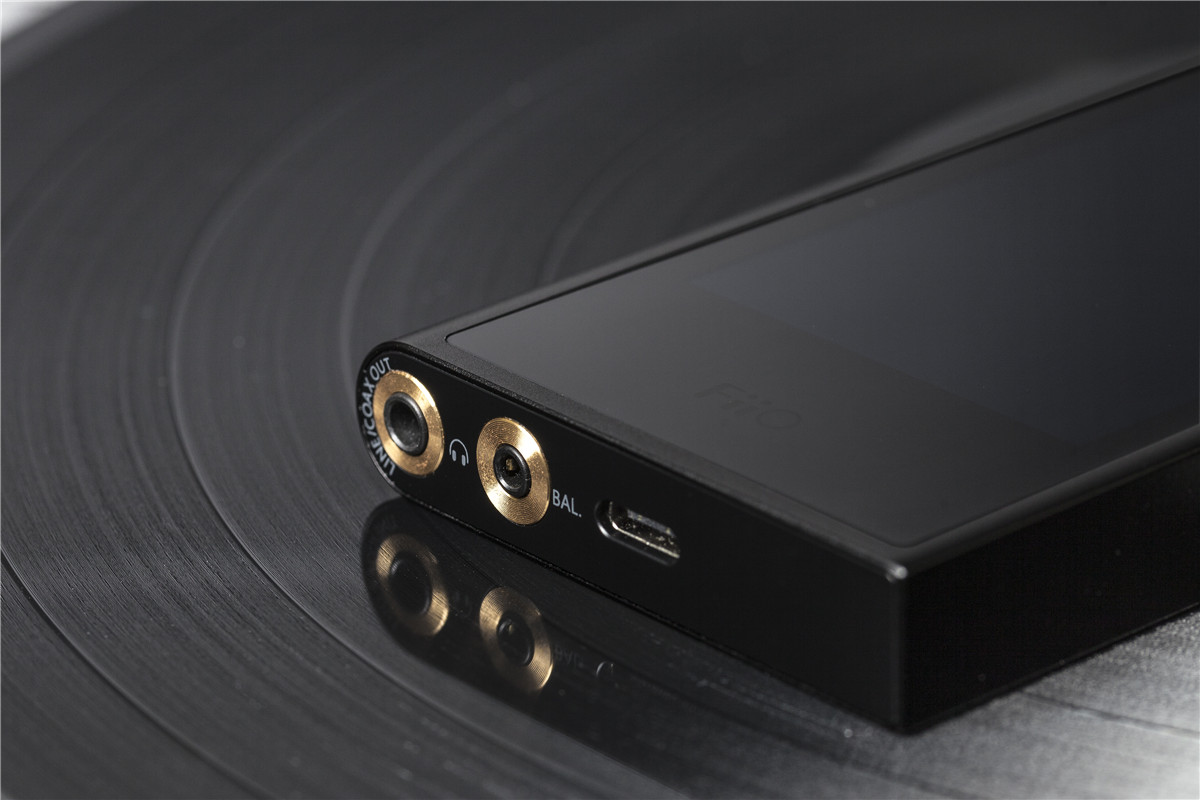

The M9 contains both single-ended 3.5mm and balanced 2.5mm audio jacks. The M9 also supports in-line controls in both CTIA (common with Android headsets) and iOS headsets. (With iOS headsets, only play/pause is supported.)
5 (1).jpg
5 (2).jpg
5 (3).jpg

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com
     Share This Post
  • Like
Reactions: trellus
