FiiO M9 , Android based Hi-Res smart DAP with 3.5/2.5 powerful output|AKM4490 X2 |WiFi|aptX/aptX HD/LDAC/HWA(LHDC)|USB DAC|USB AUDIO OUT
post-14527538
Post #166 of 2,395

kgs51

100+ Head-Fier
Joined
Oct 30, 2015
Messages
226
Reaction score
19
Joined
Oct 30, 2015
Posts
226
Likes
19
In USD how much will the FiiO M9 cost and when will it be available in US. Thanks

     Share This Post
post-14527560
Post #167 of 2,395

Soham Sengupta

100+ Head-Fier
Joined
Oct 17, 2017
Messages
307
Reaction score
99
Location
Kolkata, India
Joined
Oct 17, 2017
Location
Kolkata, India
Posts
307
Likes
99
     Share This Post
post-14527641
Post #168 of 2,395

davidcotton

X-CANs and HDAMs
Joined
Jun 23, 2001
Messages
7,236
Reaction score
1,805
Joined
Jun 23, 2001
Posts
7,236
Likes
1,805
     Share This Post
post-14528441
Post #169 of 2,395

Sven2015

100+ Head-Fier
Joined
Sep 15, 2015
Messages
351
Reaction score
82
Joined
Sep 15, 2015
Posts
351
Likes
82
What is the difference between M7 and M9?
I own a M7, but several things are not good (bad display, crashes, a simple music app with less functions, simple EQ)...
@FiiO
Please tell me the difference between the M7 and M9. Thanks

     Share This Post
post-14530052
Post #170 of 2,395

Music Enthusiast

New Head-Fier
Joined
Feb 26, 2018
Messages
37
Reaction score
9
Location
UK
Joined
Feb 26, 2018
Location
UK
Posts
37
Likes
9
If you really want Bluetooth then get the M9.

Sound wise I do find the DX120 to be a tier up. Its a sound chameleon actually. Aside from 5 digital filters it also has 5 sound modes that can change it from neutral to warm sounding. If I were to go for the DX120 it would mainly be for the superior bass extension.

Either way both would be much better than the X1.
Hi Seanwee. As the Fiio M9 appears to uses the same DACs as the Shanling M3S - I'm curious if you happen to have heard the Shanling M3S and, if so, how it compares sound quality wise?

     Share This Post
post-14530330
Post #171 of 2,395

seanwee

Headphoneus Supremus
Joined
Jun 9, 2015
Messages
3,668
Reaction score
1,505
Joined
Jun 9, 2015
Posts
3,668
Likes
1,505
Hi Seanwee. As the Fiio M9 appears to uses the same DACs as the Shanling M3S - I'm curious if you happen to have heard the Shanling M3S and, if so, how it compares sound quality wise?
It's been a while since I heard the M3S but I do believe that the M9 is better.

The M3S is coloured while the M9 is more neutral. The M3S should also be darker sounding if I'm not mistaken.

     Share This Post
post-14530655
Post #172 of 2,395

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Messages
6,695
Reaction score
3,093
Location
Guangzhou,China
Joined
Jul 30, 2008
Location
Guangzhou,China
Posts
6,695
Likes
3,093
Age
13
Website
www.fiio.com

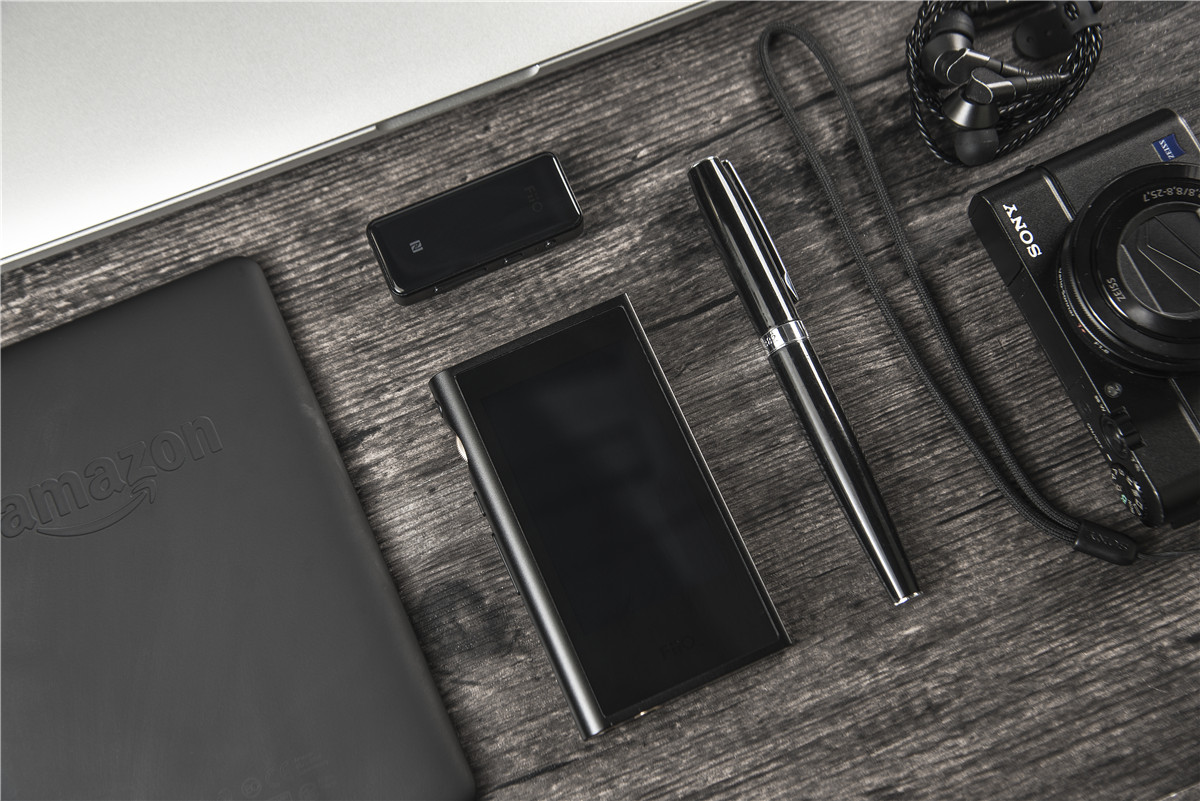

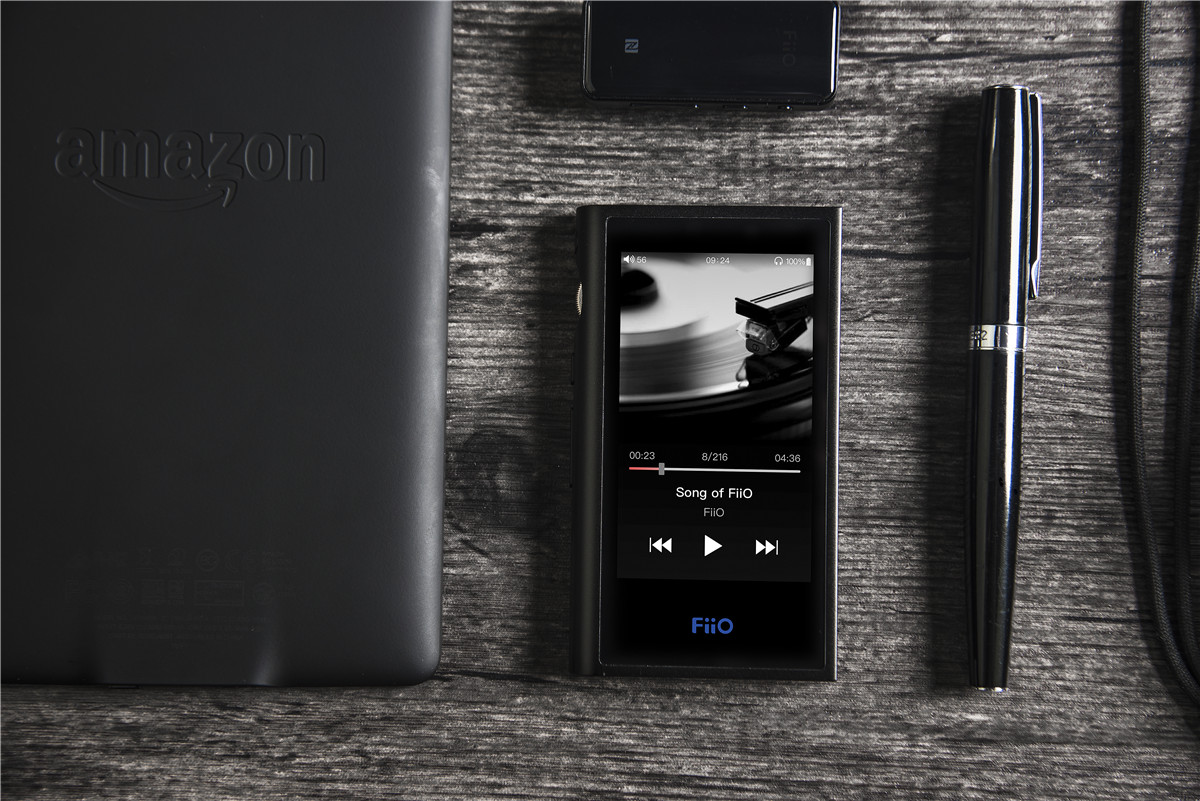

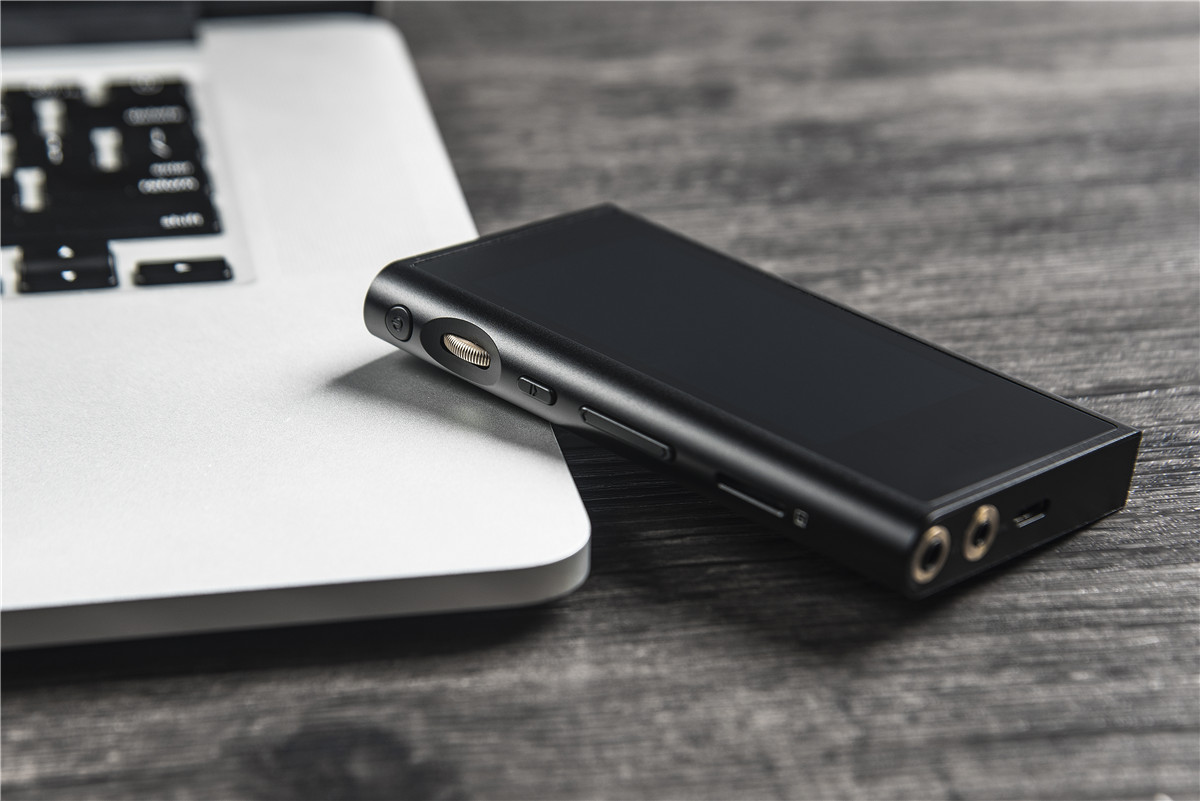

1. FiiO M9 Portable High-Resolution Audio Player丨The Ultimate in Versatility

The two AK4490EN DACs employed in the M9 feature a high signal-to-noise ratio, exceptional dynamic range, and low distortion – making for a precise yet exciting sound signature.
1 (1).jpg
1 (2).jpg
1 (3).jpg

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com
post-14530657
Post #173 of 2,395

seanwee

Headphoneus Supremus
Joined
Jun 9, 2015
Messages
3,668
Reaction score
1,505
Joined
Jun 9, 2015
Posts
3,668
Likes
1,505
1. FiiO M9 Portable High-Resolution Audio Player丨The Ultimate in Versatility

The two AK4490EN DACs employed in the M9 feature a high signal-to-noise ratio, exceptional dynamic range, and low distortion – making for a precise yet exciting sound signature.
It actually looks even better in real life :)

     Share This Post
post-14530693
Post #174 of 2,395

crabdog

Headphoneus Supremus
Joined
Jan 14, 2016
Messages
4,310
Reaction score
6,135
Location
Thailand
Joined
Jan 14, 2016
Location
Thailand
Posts
4,310
Likes
6,135
Website
primeaudio.org
1. FiiO M9 Portable High-Resolution Audio Player丨The Ultimate in Versatility

The two AK4490EN DACs employed in the M9 feature a high signal-to-noise ratio, exceptional dynamic range, and low distortion – making for a precise yet exciting sound signature.
That is one beautiful device.:yum:

     Share This Post
post-14531159
Post #175 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
Its physically very attractive for a DAP, however the specs are less than desired. the power output for both 3.5 and 2.5 are very weak. even my X5 III has more output power than the M9... :frowning2: sad, seems i wont be picking this DAP up after all.

     Share This Post
post-14531183
Post #176 of 2,395

stenog

1000+ Head-Fier
Joined
Feb 17, 2016
Messages
1,029
Reaction score
573
Location
Denmark
Joined
Feb 17, 2016
Location
Denmark
Posts
1,029
Likes
573
Its physically very attractive for a DAP, however the specs are less than desired. the power output for both 3.5 and 2.5 are very weak. even my X5 III has more output power than the M9... :frowning2: sad, seems i wont be picking this DAP up after all.
I am not sure it's fair to look at it that way. The X5 has a lot of power for it's small size, if I don't remember wrong it has more power in SE than the X7II. But power output is not all :).

And i would assume that the M9 is made for iems and easy to drive headphones on the go. And most importantly how is the sound quality? :)

     Share This Post
post-14531283
Post #177 of 2,395

seanwee

Headphoneus Supremus
Joined
Jun 9, 2015
Messages
3,668
Reaction score
1,505
Joined
Jun 9, 2015
Posts
3,668
Likes
1,505
Its physically very attractive for a DAP, however the specs are less than desired. the power output for both 3.5 and 2.5 are very weak. even my X5 III has more output power than the M9... :frowning2: sad, seems i wont be picking this DAP up after all.
If you want lots of driving power you may want to consider the Opus 1S.

     Share This Post
post-14532176
Post #178 of 2,395

Oncisounds

New Head-Fier
Joined
Oct 4, 2018
Messages
15
Reaction score
4
Location
England
Joined
Oct 4, 2018
Location
England
Posts
15
Likes
4
What's the power out of the new Fiio M9 are talking able to drive 150ohm headphones or more like 32ohm? I was looking at comparing this to the Pioneer XDP-300R and which was the better choice?

     Share This Post
post-14532894
Post #179 of 2,395

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Messages
6,695
Reaction score
3,093
Location
Guangzhou,China
Joined
Jul 30, 2008
Location
Guangzhou,China
Posts
6,695
Likes
3,093
Age
13
Website
www.fiio.com
2. FiiO M9 Portable High-Resolution Audio Player丨The Ultimate in Versatility

The TI OPA1612 is used as the LPF, while the TI OPA1622 serves as the BUF. To achieve single-ended and balanced output, there are 2 OPA1622 op-amps used that provide up to 77mW of power @ 300Ω load.

2 (1).jpg
2 (2).jpg
2 (3).jpg

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com
     Share This Post
  • Like
Reactions: trellus
post-14532897
Post #180 of 2,395

Tsukuyomi

1000+ Head-Fier
Joined
Mar 25, 2015
Messages
1,324
Reaction score
385
Location
Canada
Joined
Mar 25, 2015
Location
Canada
Posts
1,324
Likes
385
What's the power out of the new Fiio M9 are talking able to drive 150ohm headphones or more like 32ohm? I was looking at comparing this to the Pioneer XDP-300R and which was the better choice?
Headphone out specifications 1(3.5mm port)
Output power 1 ≥125mW(16Ω / THD+N<1%) Output impedance <2Ω
Output power 2 ≥170mW(32Ω /THD+N<1%) THD+N <0.002%(1kHz/32Ω)
Output power 3 ≥19mW(300Ω / THD+N<1%) Separation >72dB
Frequency response 5Hz~80 kHz(-3dB) Peak output voltage 6.5Vp-p
SNR ≥118dB (A-weighted) Noise floor <5uV
Headphone out specifications 2(2.5mm port)
Output power 1 ≥125mW(16Ω / THD+N<1%) Output impedance <2Ω
Output power 2 ≥195mW(32Ω /THD+N<1%,balanced turbo off)
≥220mW(32Ω /THD+N<1%,balanced turbo on) THD+N <0.002%(1kHz/32Ω)
Output power 3 ≥24mW(300Ω / THD+N<1%,balanced turbo off)
≥77mW(300Ω / THD+N<1%,balanced turbo on) Separation >98dB
Frequency response 5Hz~80 kHz(-3dB) Peak output voltage 7.07Vp-p
SNR ≥113dB (A-weighted) Noise floor <10uV

     Share This Post
  • Like
Reactions: trellus and stenog
