Hi @GoldenSound , it is very interesting to know your expert opinion on how would the performance of internal word clocks in Holo May with a phase noise of -90 db@10Hz compare with some excellent external 10 Mhz clock with a phase noise of -140 db@10Hz that is connected to a DDC like the Audio-GD or LAiV uDDC reclocker?
As far as I understand there will be performance losses in form of additional jitter due to a longer path to the DAC (clock - BNC - DDC - I2S - DAC) as well as not perfect transition of 10Mhz signal to 44.1/48.
As far as I understand there will be performance losses in form of additional jitter due to a longer path to the DAC (clock - BNC - DDC - I2S - DAC) as well as not perfect transition of 10Mhz signal to 44.1/48.
Last edited:
Though well intended this question has the potential to derail this new thread with theoretical discussion and debate, so perhaps best to leave it/continue that discussion over in the Audio-Gd thread to leave space for new owners sharing their impressions here.
If you have a May, I'd strongly suggest just using USB and using the internal clocks, you get essentially perfect jitter performance that way as the May's clocking is extremely good. And whilst the uDDC does have internal galvanic isolation which can definitely be a benefit for a lot of DACs, the May has full isolation on the USB anyway so this isn't needed.
If you use an external DDC and leave PLL on you'll get basically identical performance to just using the internal clocks normally as the May has an extremely effective PLL. If you turn off the PLL the performance is dependent on the connected DDC as you're using the clock from that directly.
The uDDC has pretty excellent jitter performance, it's a very good DDC. And interestingly it is so far the ONLY device I've tested that actually sees an improvement in jitter performance when using an external 10Mhz clock, lowering jitter by about half. But it also seems that it may already be using a fractional PLL/clock synthesizer normally, which could explain why there is an improvement here, as this seems it could be a case of comparing a fractional PLL with the internal clock vs a fractional PLL with a better external clock.
This is a bit of a different situation to what you might have in most devices where you'd be comparing direct audio rate clocks vs a fractional PLL with an external clock.
In the majority of cases using an external 10Mhz clock you do indeed get worse jitter performance due to as you mentioned 10Mhz not being divisible by 48khz or 44.1khz. Gustard DACs for example have quite notably higher jitter when using the 10Mhz input.

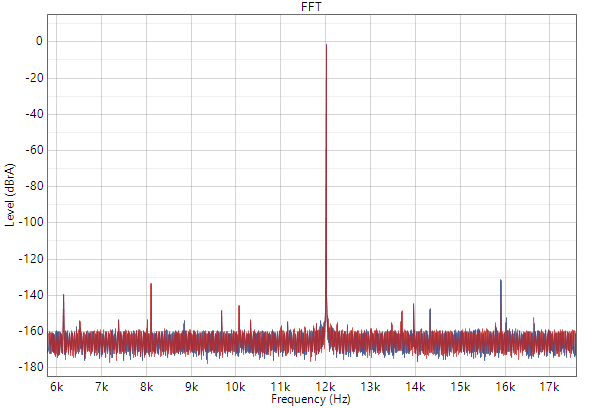

This is the X26 Pro Jitter using normal USB input for example:
And then this is using a 10Mhz clock:
Quite a bit more!
The uDDC does seem to be doing some different stuff internally to most products though, it looks like it's using a 25.00Mhz clock internally so it's probably taking some quite different approaches especially since the device is heavily focused on synchronous inputs.
Measuring jitter directly, the uDDC has approx 2.5x the jitter of the Holo RED, and this drops to about 1.5x the jitter if you use the 10Mhz input.
We can use a clock divider, or in fact using the Cyan 2 as a clock divider since it has no PLL, we can visualise the jitter performance over I2S.
This is the uDDC (USB input) jitter feeding Cyan 2 via I2S:
If we add the 10Mhz clock to the uDDC, high frequency jitter components are removed, but we see a reasonable increase to low frequency phase noise (note the wider bottom of the 'stem' of the fundamental signal)
The uDDC does have quite a bit more jitter if using the synchronous inputs though, so stick to USB input if you can.
If you use the Cyan 2 USB input and internal clocking though you can get lower jitter and phase noise than with any DDC:
I need to do more testing on the uDDC though, only just got it in. I've not yet been able to determine if it's 100% bitperfect as I don't have a way to check this with it only having I2S output. (Managing a synchronous clock from the input AND a separate 10Mhz reference can be tricky without employing ASRC)
The fact that it has AES/SPDIF and even I2S input though is pretty cool, hardly anything else on the market that has that as an option. So as a device to clean up/reclock not so ideal digital sources like maybe some CD transports, TVs, or other stuff with only SPDIF out, it's fantastic.
On many modern DACs though (not just the Holo stuff), USB is often going to be the best option as shown above. This is typically because as you touched on in your message, even if you have a theoretically PERFECT clock source, a 10Mhz clock has to be used in conjunction with a PLL + local clock anyway, so it's not 'replacing' the clock signal in the same way you can with an actual audio rate clock via a dedicated word clock or over I2S. And also even if the clock itself is perfect, the inherent fact that you've got to go via multiple connectors, an external cable etc, means the clock transmission line is never going to be 100% perfect.
The ideal situation would be to have a good clock as physically close to the DAC itself on the PCB as possible in most cases.
If you have a May, I'd strongly suggest just using USB and using the internal clocks, you get essentially perfect jitter performance that way as the May's clocking is extremely good. And whilst the uDDC does have internal galvanic isolation which can definitely be a benefit for a lot of DACs, the May has full isolation on the USB anyway so this isn't needed.
If you use an external DDC and leave PLL on you'll get basically identical performance to just using the internal clocks normally as the May has an extremely effective PLL. If you turn off the PLL the performance is dependent on the connected DDC as you're using the clock from that directly.
The uDDC has pretty excellent jitter performance, it's a very good DDC. And interestingly it is so far the ONLY device I've tested that actually sees an improvement in jitter performance when using an external 10Mhz clock, lowering jitter by about half. But it also seems that it may already be using a fractional PLL/clock synthesizer normally, which could explain why there is an improvement here, as this seems it could be a case of comparing a fractional PLL with the internal clock vs a fractional PLL with a better external clock.
This is a bit of a different situation to what you might have in most devices where you'd be comparing direct audio rate clocks vs a fractional PLL with an external clock.
In the majority of cases using an external 10Mhz clock you do indeed get worse jitter performance due to as you mentioned 10Mhz not being divisible by 48khz or 44.1khz. Gustard DACs for example have quite notably higher jitter when using the 10Mhz input.
This is the X26 Pro Jitter using normal USB input for example:
And then this is using a 10Mhz clock:
Quite a bit more!
The uDDC does seem to be doing some different stuff internally to most products though, it looks like it's using a 25.00Mhz clock internally so it's probably taking some quite different approaches especially since the device is heavily focused on synchronous inputs.
Measuring jitter directly, the uDDC has approx 2.5x the jitter of the Holo RED, and this drops to about 1.5x the jitter if you use the 10Mhz input.
We can use a clock divider, or in fact using the Cyan 2 as a clock divider since it has no PLL, we can visualise the jitter performance over I2S.
This is the uDDC (USB input) jitter feeding Cyan 2 via I2S:
If we add the 10Mhz clock to the uDDC, high frequency jitter components are removed, but we see a reasonable increase to low frequency phase noise (note the wider bottom of the 'stem' of the fundamental signal)
The uDDC does have quite a bit more jitter if using the synchronous inputs though, so stick to USB input if you can.
If you use the Cyan 2 USB input and internal clocking though you can get lower jitter and phase noise than with any DDC:
I need to do more testing on the uDDC though, only just got it in. I've not yet been able to determine if it's 100% bitperfect as I don't have a way to check this with it only having I2S output. (Managing a synchronous clock from the input AND a separate 10Mhz reference can be tricky without employing ASRC)
The fact that it has AES/SPDIF and even I2S input though is pretty cool, hardly anything else on the market that has that as an option. So as a device to clean up/reclock not so ideal digital sources like maybe some CD transports, TVs, or other stuff with only SPDIF out, it's fantastic.
On many modern DACs though (not just the Holo stuff), USB is often going to be the best option as shown above. This is typically because as you touched on in your message, even if you have a theoretically PERFECT clock source, a 10Mhz clock has to be used in conjunction with a PLL + local clock anyway, so it's not 'replacing' the clock signal in the same way you can with an actual audio rate clock via a dedicated word clock or over I2S. And also even if the clock itself is perfect, the inherent fact that you've got to go via multiple connectors, an external cable etc, means the clock transmission line is never going to be 100% perfect.
The ideal situation would be to have a good clock as physically close to the DAC itself on the PCB as possible in most cases.
Thank you so much for your invaluable message, it contains a lot of important information. Allow me to ask you a silly question.
You wrote that "May has full isolation on the USB anyway".
My question is: does this mean that for May there is no difference between:
- The source of the digital signal (whether it is a laptop or, for example, Holo Red)
- The quality of the USB cable (budget or very expensive).
Thank you.
That's correct yep!
With USB there is no Jitter or any audio clock signal from the source at all, so that's not a factor with any dac running USB (unless it's an older one running UAC1.0). It's just dependent on the DACs internal clocking and USB implementation.
But noise can be a factor. Some DACs have filtering or some partial isolation, like using transformer based galvanic isolation, though this can still allow high frequency noise to pass through so isn't always a silver bullet.
The May uses full laser diode isolation on all lines, so no noise is able to pass through at all. In fact the connector doesn't even share a ground with the DAC or chassis (you may notice the usb connection intentionally has a gap around the connector to prevent it touching the chassis).
There is literally no electrical connection between the DAC and the USB source.
This means that it doesn't matter at all what the source is doing or if it's noisy/quiet. As long as the data is all intact the DAC performance is 100% identical
