Elekit TU-8200 DX Headphone/Speaker Amp Review
post-14682625
Post #976 of 1,048

dawktah2

500+ Head-Fier
Joined
Sep 25, 2015
Messages
981
Reaction score
281
Location
Indiana
Joined
Sep 25, 2015
Location
Indiana
Posts
981
Likes
281
I've stopped listening to mine since I have the crackle I don't know how to troubleshoot. It's not a tube since swapping L < > R on all tubes had no effect.

     Share This Post
post-14682630
Post #977 of 1,048

vkung

MOT: VKMusic
Joined
Nov 5, 2005
Messages
291
Reaction score
26
Joined
Nov 5, 2005
Posts
291
Likes
26
there are only reasons
1. bad tube set or
2. bad soldering points

if it is not the issue from tube set, please check all your soldering points

Last edited:
     Share This Post
post-14682790
Post #978 of 1,048

Dimu

100+ Head-Fier
Joined
May 7, 2016
Messages
139
Reaction score
37
Joined
May 7, 2016
Posts
139
Likes
37
TU8200 is amazing. It is compact, it is versatile and it sounds really great! And also it is affordable. The base kit should cost more considering what's included and the quality. Yes, it stops being so affordable when all possible upgrades are applied to it. But it is one amazing amp, which is why I bought two kits for myself. It won't last forever, grab it while you can.

I spent some time with TU8340 with Lundahl transformers that Victor was kind enough to loan me to test it with my new big speakers. Then I hooked up TU8200 in parallel also known as "monoblock configuration" (notice- this is neither supported nor recommended by the manufacturer, so don't try this unless you are prepared to face the consequences on your own). And TU8200 with TT21 tubes sounded definitively better to my ears than TU8340 driving a large floor standing speaker. Yes, my TU8200 is probably the most upgraded unit out there (including larger power transformer), but still it fits in the same compact case. TU8340 is huge and heavy, a really well built amp and those Lundahls are great too. So for TU8200 to sound better while driving massive speaker it is amazing!

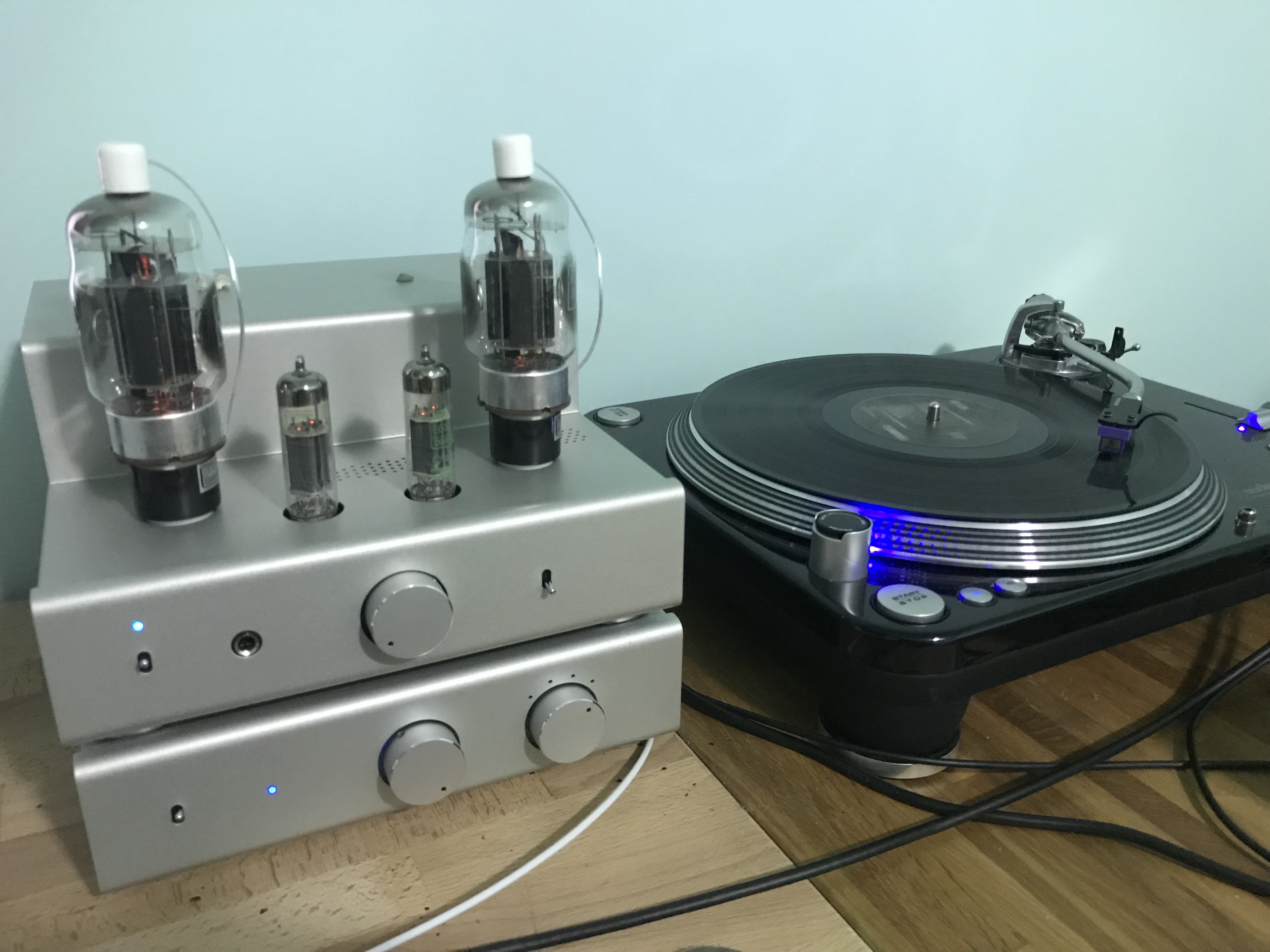

So yes, this is an amazing amp, that does not stop pleasuring my ears. And I built it myself, that gives me pleasure too! I listen to it every day when I get a chance, sometimes for 8+ hours per day. It is great. And so is TU8500 preamp including its phono section. Listening to this combo right now...

Oh and by the way, this thing will still be awesome long after the latest iPhone turns into obsolete garbage...


     Share This Post
post-14683364
Post #979 of 1,048

dawktah2

500+ Head-Fier
Joined
Sep 25, 2015
Messages
981
Reaction score
281
Location
Indiana
Joined
Sep 25, 2015
Location
Indiana
Posts
981
Likes
281
there are only reasons
1. bad tube set or
2. bad soldering points

if it is not the issue from tube set, please check all your soldering points
Not being someone whom has done a lot of critical electronic soldering this check is done how? Am I to just re-flow all the connections?

     Share This Post
post-14683834
Post #980 of 1,048

vkung

MOT: VKMusic
Joined
Nov 5, 2005
Messages
291
Reaction score
26
Joined
Nov 5, 2005
Posts
291
Likes
26
check and re-solderer each connections.

     Share This Post
post-14686781
Post #981 of 1,048

Effusion

100+ Head-Fier
Joined
Jan 24, 2009
Messages
274
Reaction score
167
Joined
Jan 24, 2009
Posts
274
Likes
167
@Dimu, you are a true madman! Absolutely amazing what you have been able to do with your 8200(s) over the years... really a testament to the versatility of this little amplifier and what can be accomplished.

If anyone is concerned about the 8200 not being able to get them where they want to be ultimately, all you have to do is look at all the tweaks @Dimu has done, really shows that almost anything is possible with this amp and the truly great sound that can be achieved!

:beerchug:

     Share This Post
post-14692144
Post #982 of 1,048

dawktah2

500+ Head-Fier
Joined
Sep 25, 2015
Messages
981
Reaction score
281
Location
Indiana
Joined
Sep 25, 2015
Location
Indiana
Posts
981
Likes
281
Spent last two hours fully disassembling the unit, and used my loupes and couldn't visibly see any bad contacts. Re-flowed all the solder and the crackle has gone!

Thanks so much! No clue which one it was...

It's probably my imagination but sounds more powerful, but could be from not listening to it.

     Share This Post
post-14692388
Post #984 of 1,048

Dimu

100+ Head-Fier
Joined
May 7, 2016
Messages
139
Reaction score
37
Joined
May 7, 2016
Posts
139
Likes
37
Just finished before new year
I've got the same caps but I did not figure out how to stick them in. Did not like the idea of long wires to avoid picking up noise.

     Share This Post
post-14692398
Post #985 of 1,048

Dimu

100+ Head-Fier
Joined
May 7, 2016
Messages
139
Reaction score
37
Joined
May 7, 2016
Posts
139
Likes
37
Spent last two hours fully disassembling the unit, and used my loupes and couldn't visibly see any bad contacts. Re-flowed all the solder and the crackle has gone!

Thanks so much! No clue which one it was...
Did you use lead-free solder? That stuff is crappy- high melting point and good chance to get cold joints if you are not careful giving each connection point some extra heat time. And overheating components and traces is not healthy. I always use lead, and for Elekit assembly I used lead with silver alloy.

     Share This Post
post-14692402
Post #987 of 1,048

portlandpsu

New Head-Fier
Joined
Dec 30, 2018
Messages
4
Reaction score
1
Location
Vancouver
Joined
Dec 30, 2018
Location
Vancouver
Posts
4
Likes
1
I used lead free solder which was Oyaide SS47. So I use high temp iron (around 370-390 degrees) to solder the component. It is better to complete soldering the component in 2 seconds.

     Share This Post
post-14694597
Post #988 of 1,048

dawktah2

500+ Head-Fier
Joined
Sep 25, 2015
Messages
981
Reaction score
281
Location
Indiana
Joined
Sep 25, 2015
Location
Indiana
Posts
981
Likes
281
Did you use lead-free solder? That stuff is crappy- high melting point and good chance to get cold joints if you are not careful giving each connection point some extra heat time. And overheating components and traces is not healthy. I always use lead, and for Elekit assembly I used lead with silver alloy.
I used Kester and a Hakko FX888D.

     Share This Post
post-14694803
Post #989 of 1,048

JayKay47

Head-Fier
Joined
Nov 26, 2016
Messages
80
Reaction score
44
Joined
Nov 26, 2016
Posts
80
Likes
44
@vkung Is it true tha the TU-8200 does not have feedback and that the TU-8600 does have a feedback circut?

     Share This Post
post-14694819
Post #990 of 1,048

vkung

MOT: VKMusic
Joined
Nov 5, 2005
Messages
291
Reaction score
26
Joined
Nov 5, 2005
Posts
291
Likes
26
TU-8200 has feedback circuit
Tu-8600’s OPT has the 3rd winding. This 3rd winding allows to reduce the overall NFB

     Share This Post
