General Information

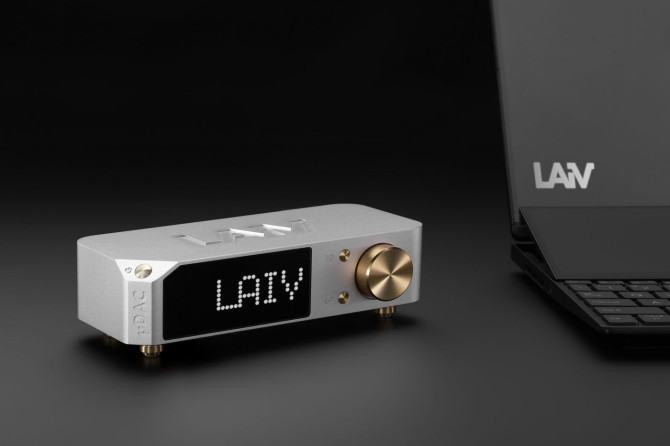

The Laiv Harmony µDAC is the latest addition to the Harmony family and promises to be one of the most affordable and high-performance DACs in the industry. It is based on the design of its bigger brother, the Harmony DAC, and shares its two (virtually identical) ladder banks and class-A output buffers. In keeping with the less-is-more philosophy, the µDAC comes in a compact form factor that is easy to integrate into a desktop setup.
Main features
Clock: Accusilicon AS318-B Ultra-Low Phase Noise FEMTO Oscillator
Digital Inputs:
1 x USB
1 x Optical
1 x Coaxial
1 x I2S
1 x XLR, maximum at 4 Vrms, approx. 82 Ω
Supported Formats:(Input dependent)
USB
PCM: 44.1kHz - 768kHz
DSD: DSD64 - DSD256
Optical
PCM: 44.1kHz - 192kHz
DSD: DSD64 via DoP only
Coaxial
PCM: 44.1kHz - 192kHz
DSD: DSD64 via DoP only
I2S
PCM: 44.1kHz - 768kHz
DSD: DSD64 - DSD256
Frequency Response:
20Hz – 20kHz, within ± 0.25 dB
THD+N:0.006 %
Crosstalk:≤ -120 dB
Signal to Noise Ratio (SNR):
≥ 125 dB
Dynamic Range:
≥ 110 dBFeatures:
Sleek & Compact designNOS / OS Mode
Positive / negative phase
Display brightness, delay dim, and delay off
8 x I2S Mode with Laiv product auto-configured
I2S clock supported
Galvanic isolation for greater signal purity
LAiV Harmony R-2R Ladder Network Architecture
Class A discrete output buffer
Controlli:
Remote controlFront panel
Potenza:
15VDC / 2A, DC 5.5/2.5mm femaleContenuto della confezione:
Welcome Card with Quick Start GuideHarmony μDAC
Power Adapter with Interchangeable Plugs
