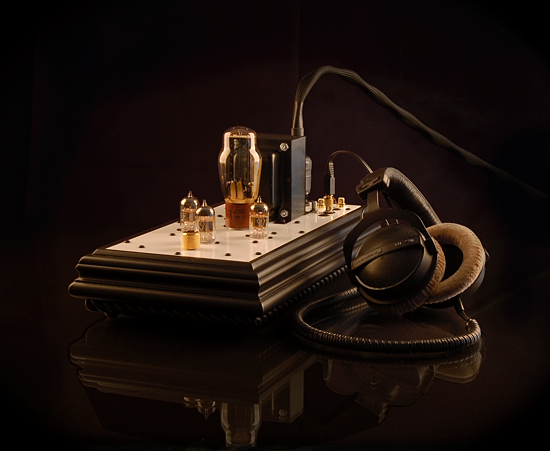

Single Ended Triode Class A1 operation headphone amp with a tube rectified high current power supply. There is a single volume control located at the front of the CSP2. The line level output was designed with low output impedance and an adjustable output level for each channel. The output level can be adjusted between 0 ~ 36 volts!
Inputs, there are two. Both tied directly through a silver toggle switch located by the jacks for the cleanest signal path possible. Of course there ARE NO CIRCUIT BOARDS in the CSP2. Everything is point to point hand built with silver wire and absolute top grade non-Chinese parts.
Outputs are stereo with either a second stereo pair of outputs or a single mono output jack for running subwoofers or center speakers in a 3 speaker stereo array.
The CSP2 is single-ended inputs and outputs and can not be wired for balanced XLR jacks, sorry.
