TWS DIY Battery, Driver, etc replacement Thread!
post-15749133
Thread Starter
Post #1 of 6

actorlife

Headphoneus Supremus
Joined
Feb 10, 2004
Messages
2,082
Reaction score
834
Location
Nowhere I wanna be...
Joined
Feb 10, 2004
Location
Nowhere I wanna be...
Posts
2,082
Likes
834
Post how to pics or videos. Hopefully we can get our favorite mods(Cough, Cough Slater) to join in the fun:




     Share This Post
post-15749156
Post #2 of 6

assassin10000

Headphoneus Supremus
Joined
Jun 14, 2010
Messages
1,706
Reaction score
1,628
Location
CA
Joined
Jun 14, 2010
Location
CA
Posts
1,706
Likes
1,628
Good resource for tear down pictures and info:
52audio.com

It's a chinese site but google translate is your friend.

__________________

Modified my Sabbat X12 Pro's with a regular 14.8mm earbud driver.


Using a razor blade I took the front cover off, it is attached in 4 spots. The circuit board and battery lift right up. Did this to check wire lengths. Glued cover back on with e8000 glue.

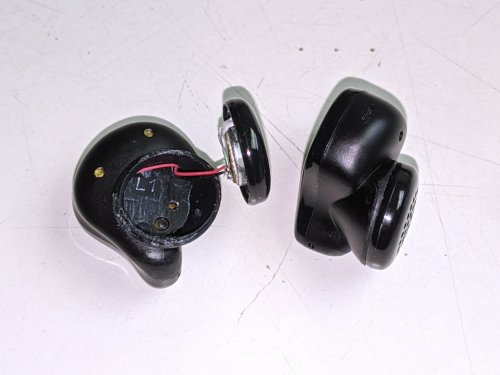

Popped driver off with razor blade. Pulled wires through for ease of soldering. They were pulled through long on the other side, the driver was probably installed first at the factory.

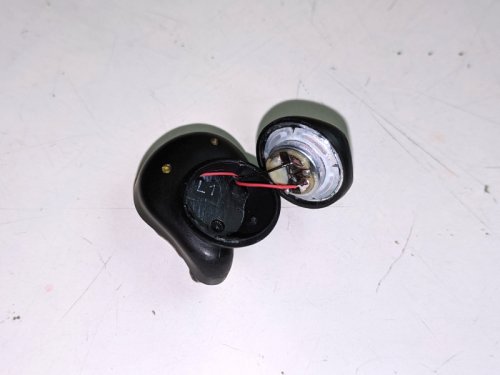

One side done.

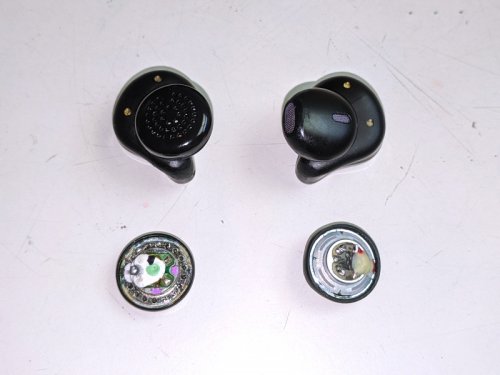

Both done. Driver covers are glued back on with non-hardening and easy to remove 'e8000' glue in 3 spots about 3-4mm long.

An extra 1.0mm hole was drilled by hand for increased venting of the earbud driver. It can be seen at about 1 o'clock from the original vent at the bottom of the opening for the left housing.

Done.


__________________

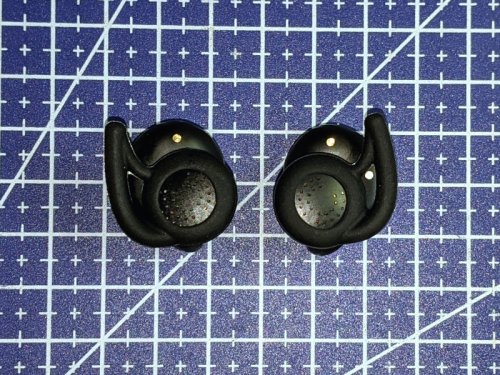

I've since swapped drivers and received these earbud silicone wing covers. They work good for keeping them in my ears but don't sound as good as foam covers for SQ.


Last edited:
     Share This Post
  • Like
Reactions: actorlife
post-15749232
Post #3 of 6

actorlife

Headphoneus Supremus
Joined
Feb 10, 2004
Messages
2,082
Reaction score
834
Location
Nowhere I wanna be...
Joined
Feb 10, 2004
Location
Nowhere I wanna be...
Posts
2,082
Likes
834
Not in English, but self explanatory.

     Share This Post
post-15749244
Post #4 of 6

actorlife

Headphoneus Supremus
Joined
Feb 10, 2004
Messages
2,082
Reaction score
834
Location
Nowhere I wanna be...
Joined
Feb 10, 2004
Location
Nowhere I wanna be...
Posts
2,082
Likes
834
Good resource for tear down pictures and info:
52audio.com

It's a chinese site but google translate is your friend.

__________________

Modified my Sabbat X12 Pro's with a regular 14.8mm earbud driver.


Using a razor blade I took the front cover off, it is attached in 4 spots. The circuit board and battery lift right up. Did this to check wire lengths. Glued cover back on with e8000 glue.


Popped driver off with razor blade. Pulled wires through for ease of soldering. They were pulled through long on the other side, the driver was probably installed first at the factory.

One side done.

Both done. Driver covers are glued back on with non-hardening and easy to remove 'e8000' glue in 3 spots about 3-4mm long.

An extra 1.0mm hole was drilled by hand for increased venting of the earbud driver. It can be seen at about 1 o'clock from the original vent at the bottom of the opening for the left housing.

Done.


__________________


I've since swapped drivers and received these earbud silicone wing covers. They work good for keeping them in my ears but don't sound as good as foam covers for SQ.

That’s awesome great job! Have you seen a Anbes 359 mod there? I really want to be careful it’s my all time fav TWS. My batteries are still good, but one day caput.

     Share This Post
post-15749277
Post #5 of 6

assassin10000

Headphoneus Supremus
Joined
Jun 14, 2010
Messages
1,706
Reaction score
1,628
Location
CA
Joined
Jun 14, 2010
Location
CA
Posts
1,706
Likes
1,628
That’s awesome great job! Have you seen a Anbes 359 mod there? I really want to be careful it’s my all time fav TWS. My batteries are still good, but one day caput.
No, never seen a 359, r18 or other clone teardown.


Edit: also just noticed, but should this thread be moved to the DIY section?

Last edited:
     Share This Post
post-15749311
Post #6 of 6

actorlife

Headphoneus Supremus
Joined
Feb 10, 2004
Messages
2,082
Reaction score
834
Location
Nowhere I wanna be...
Joined
Feb 10, 2004
Location
Nowhere I wanna be...
Posts
2,082
Likes
834
No, never seen a 359, r18 or other clone teardown.


Edit: also just noticed, but should this thread be moved to the DIY section?
Ok well when the time comes I’ll give it a try. I wanted to keep it in the earbud area, but ok if moved there to diy.
