A few my DIY projects

  1. jororaitchev
    A model of my DIY loudspeakers i have served Ti6k- JBL. My first contact with
    them, was in distant 2005.
    I started working with them in 2009 and finished in 2012.
    The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2х 5.5”,Bass-8,5”/ and cross-over parts- "Intertechnik".

    Nominal impedance- 8 OhFreguency Range 30Hz-20kHzCharacterstic Sensitivity(2,83V/1m)- 87db
    Long Term-110W.
    Have are some pictures, if there is interest, i will continue.

    20160311_145334.jpg 20140829_120357.jpg 20141107_140950.jpg хол.jpg
  2. chinsettawong
    Very nice! Please continue.
  3. jororaitchev
    Excuse me for my poor English - I do what I can!
    Thank you for the good evaluation of my work!
    In order to save Your time, I will allow myself a clarification:
    -Everything in this project-idea, design filters the overall workmanship of the cabinets to the last detail was done by my hands. I'll show you how was made the speakers are made, step by step;
    First did this "home-matrix"; m-1.jpg 201.jpg And for the central speaker design;

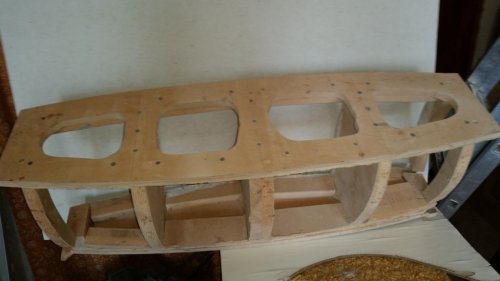

    201-.jpg After, i bended 8 layers / 4mm / MDF; 201.jpg I will continue ...
    chinsettawong likes this.
  4. Radical
    Woodworking skills are exemplary!
    Currawong likes this.
  5. jororaitchev

    I continue with the presentation:
    After assembly, veneering with " Bird's Eye View" 6-.jpg ,there is obtained this : 6-6-6.jpg
    The finish is 35-40 layers of acrylic auto varnish and after each layer- polishing in order to obtain this:

    07.jpg p.jpg
    HiGHFLYiN9 and zacrobmer like this.
  6. jororaitchev
    Latest photos from this project;
    001.jpg 010.jpg 1-0-0.jpg
    Soon I will show you the new projects I'm working on.
  7. jororaitchev
    I want to show you my other work in the initial phase /not used "CNC" machine/;
    J&N-001.jpg идея 1.jpg идея 2.jpg идея 5.jpg идея 3.jpg идея 6.jpg
    HiGHFLYiN9 likes this.
  8. chinsettawong
    Your work is just incredibly beautiful. Thanks for sharing.
  9. Radical
    Holy ****!!!!!
  10. Radical
    I cannot believe the work you are doing! Why do you not start an excotic speaker company and make to order?
  11. jororaitchev
    Thank you for your good rating!
  12. jororaitchev
    Thanks for the evaluation of my work!
    I've been doing this for a long time - the J & N project has been sold and I'm currently working on the back speakers of the customer. Soon I will show you the stages of their work.
  13. jororaitchev
    Rear- speakers project - early stage;

    The loudspeakers are "SEAS"- Excel T25CF002-1", W18EX001- 6,5".
    Sr.jpg rs-kom.jpg rs-k3.jpg rs4.jpg
    rs-6.jpg rs-7.jpg

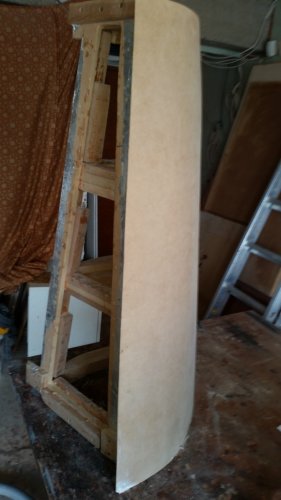

    Side panels / 7 layers x 4 mm plywood / I bend on this "home matrix"...
    The result is this;
    Rs-2-2.jpg Rs-3-3.jpg Rs4-4.jpg
    It has become very long, but this is the beginning of the project,
  14. chinsettawong

    How do you bend the plywood?
  15. jororaitchev
