Disclosures: this is a simple guide for DIY. If you need more informations, please post up. Also, please share with us what other upgrades you have done as well! Enjoy modding !

One of the primary way to improve your Walkman M2 is by upgrading the internal wires. And the 1A M2 will benefits with a better price performances ratio, since the 1A and 1Z have the same internal build but with different chassis and Kimber cables for 1Z. The differences don’t only stop there, the 1Z is using 22Awg Kimber cables, which consist of different strands, different sizes between strands and internal pvc fibers. Anyways, the conductivity surface of the Kimber is actually about 23Awg. In the mean while, the 1A M2 has OFC with 26Awg. Therefore, the differences in technical is very real.

For me, I optEd for 24 AWG ultra pure Gold (not Goldplated) for my 1Z M2. The price is much more expensive than your jewelry grade Gold, which has more impurity. Soldering pure gold is not easy, and if you are not enthusiastic enough, the gold will be vaporized and fuse with your solder to become an alloy instead of staying to be a conductor wires. Therefore, please take your time, pay attentions, control your temperatures if you would like to use pure gold, otherwise, please carry on.

Sony explicitly mentioned about the usage of the newer power supplies reservoirs.


But what if you want even more harmonics ? In the while still be using the responsiveness of the Polymer from Sony ? I would be using an electrolytic for this harmonics. That means it would slightly affect the sound signatures overall. Especially when Sony is using class D amplifications with the voltage as close as the battery can provide as much as possible. The capacitors normally running at 3.6-4V

By adding parallel electrolytic capacitors, I further improve the responsiveness of the reservoirs by lowering ESR. Using basic switching Power supply calculator available from online websites, we have a values of 10-100uF that is available to be playing around with. Different values will have different effects on the overall signatures. So is the brand and the kind of the capacitors. It is all due to the dissipations factors, the tangent parameters and result in co- responsiveness overall. You can not tell the differences until you listen to them for yourself. I recommend wiring DIP sockets to easily plug-in and removing capacitors for testi by trials/errors and what you would like the most. Just make sure you don’t allow anything to short out during these sessions.

Each capacitors will exhibits a solid and stable signatures at about 1-2 hours burn in. So I usually burn in for 2 hours before switching to others, continuing burning in for all 6 different kinds. Listening over and over again. I finally arrived at the Nichicon Audiophile grade UKW 16V/100uF for better upper bass, and upper mid textures fidelity. Hard wired in with Hakugei top of the line Ultra Pure silver / Gold plated Litz wires.

The next problems is that Sony design and built are as always, very neat and tight. But they are very important so, because speaking of class D is speaking of Vibrations, frequencies, switching effects…etc. so, it is at utmost importance to have these components to stay as fixated as possible, dampening vibration and minimizing motions as much as possible.

For all that said, it is best to be using the internal plastic frames and work around for the better fit of the additional component. Carefully running the wires in a way that it stay away from the very sensitive S-Master as far as possible. Also away from other analog components.

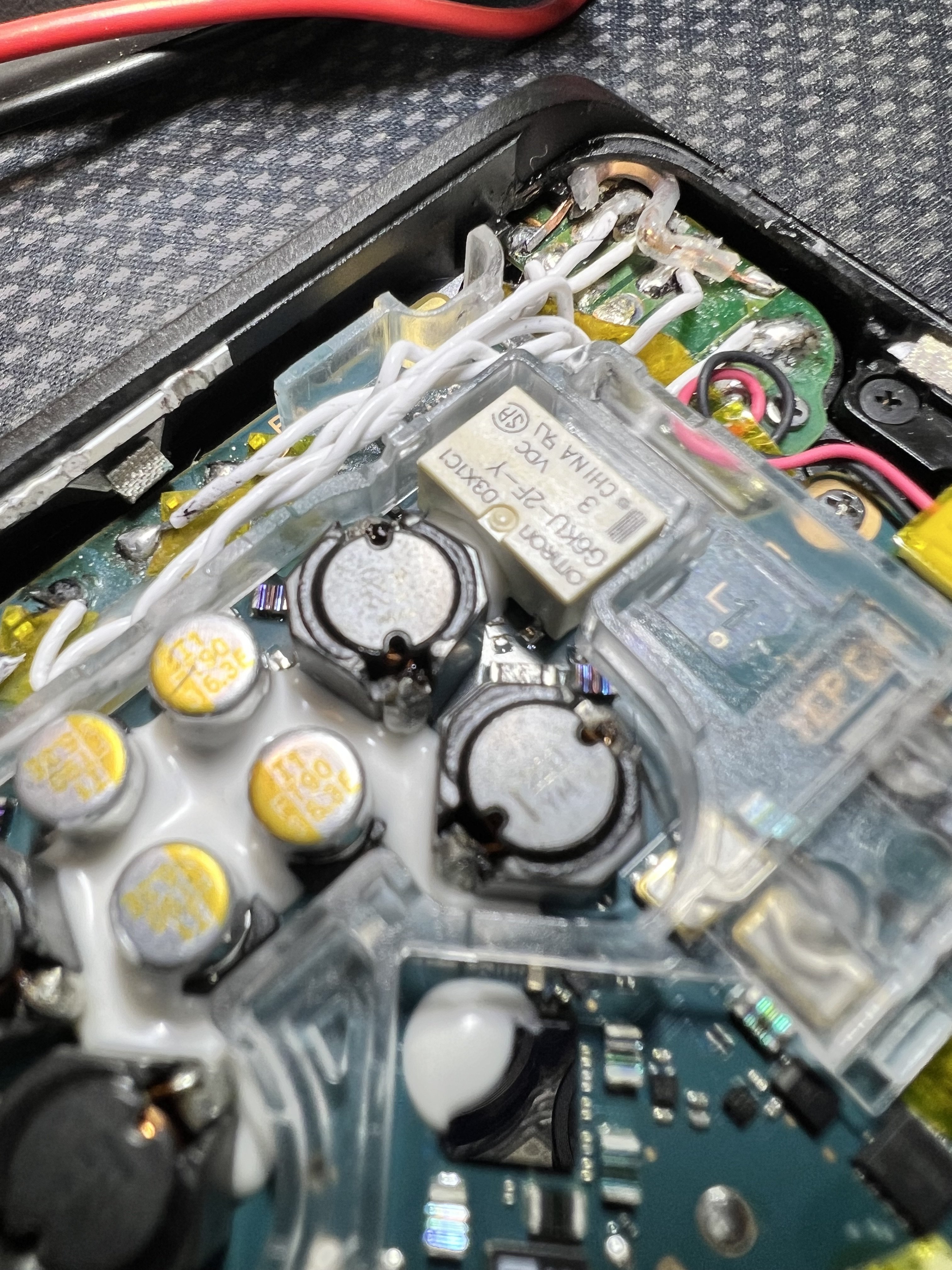

Here it is, the result of it. Also using transparent Electrical liquid tape for insulation and physical dampening properties.

A very simple mod, but with great results and actually a lot of research’s just for it.

To anyone who would love to DIY , I just want to note that these capacitors are polarized. The Negative is on the balanced out side. Please do not short them out during the process.

The improvements: better separations, layering and micro dynamics . The details from upper bass and upper mids are with better expressiveness and more vivid. It also results in a larger and deeper soundstage overall.

Finally, I recommend you to not play around with your unit if you can not take the risks. Your warranty will be voided and all repairs will cost money from Sony. Also, there are no available parts for these players yet.

To anyone who has the balls and capable, cheers! And enjoy your mod! Walkman will hugely improve with internal wires upgrade and this PSU reservoir strengthening.

***also note*** for people who would love to upgrade the internal wires. Symmetrical is very important to class D amplifications. It is also one of the main upgrade point from M1 to M2 and between 1Z to 1A M2. The 1A M2 has one Channel with shorter length than the other in comparison to 1Z M2 which uses Kimber cables and have all 4 wires to be at equal length. The first generation 1A and 1Z both has 1 channel with shorter length than the other. Therefore, please keep in mind when you upgrade your wires, keep them at as equal length as possible . Additionally, please try to have the wires to stay as fixed as possible. You can see my pure gold wires with additional foam spacers to have it stay as fix as possible even when it is solid cores. The better and the more solid they are, the better
