JadeAudio U-Shaped Pipe Extended Bass Earbuds JF11 Is Officially Released!

Dec 9, 2024 at 5:33 AM Thread Starter Post #1 of 18

FiiO

Sponsor: FiiO
Joined
Jul 30, 2008
Posts
12,429
Likes
10,853
Location
Guangzhou,China



14.2mm large dynamic driver
Inside the JadeAudio JF11 is a large 14.2mm dynamic driver with a long-stroke design. This driver allows for a lower resonance frequency, resulting in deeper and more dynamic bass. It provides a solid acoustic foundation for high sound quality and low distortion wrapped in a large soundstage.


Polyester fiber polymer composite diaphragm
The JadeAudio JF11 uses a polyester fiber polymer composite diaphragm for its dynamic driver. This diaphragm is not only lightweight, highly rigid, and low-distortion but is also moderately damped and robust. Thanks to this diaphragm and meticulous tuning by engineers, the JF11 presents a clear and soft sound. Experience sweet, lush vocals with a charming vintage flavor.


U-shaped acoustic pipes for extended bass
In the long history of earbuds, the “U-shaped acoustic pipes for extended bass” is a noteworthy design in terms of both the sound quality produced and its distinctive aesthetics. Such a design was originally featured in the AIWA HP-V14 earbuds from Japan, which became popular worldwide and highly regarded by audiophiles.

The JadeAudio JF11 pays tribute to this classic by also adopting the U-shaped acoustic pipe design and optimizing it for the JF11’s specific design: The pipe’s diameter, length, and angle were chosen to increase the viscosity of air flow within the tube resulting in enhanced sound damping – which in turn lowers the cavity resonance frequency, and thus further improving bass extension.


14.5g weight
The JF11 is a fully integrated design that does not require you to replace the cable. This makes it not only easy to store, but also allows you to easily carry it wherever you go about your days. And with a weight of only 14.5g, the JF11 places zero burden on you when carrying it around.


Design that you can sleep with
The JF11 features a design that allows you to sleep on your side while wearing it. FIIO engineers have minimized the size of the earbuds as much as possible while still ensuring great sound quality, allowing them to not protrude from the ear when worn.


Naturally stylish, two color choices
Choose between two stylish colors - black gold and platinum colors – to get the JadeAudio JF11 to perfectly match your style.




The JF11 comes with both Mic and No Mic versions, of which the Mic version offers at 7.99 USD, and the No Mic version at 4.99 USD. Come to the FiiO Official Store on AliExpress to take it home right away by clicking links below:

* Mic version:
https://www.aliexpress.com/item/1005008217530745.html

* No Mic version:
https://www.aliexpress.com/item/3256808031157546.html

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com support@fiio.com
Dec 10, 2024 at 10:44 PM Post #6 of 18
Says $6.99 for non MiC on ali
Dear friend,

Hi, since the cheaper shipping method is not supported for USA, the shipping to USA is using Aliexpress shipping instead. So the shipping cost is 2USD higher and the total cost is 6.99USD.

Best regards

Last edited:
FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com support@fiio.com
Dec 16, 2024 at 12:17 PM Post #8 of 18
Curious about some cheap buds like these easy going and for long listening of podcasts.

Are there and other good brands similar to this in shape and sound quality?

Looking for cheap ones around 10-20€.

Dec 16, 2024 at 4:45 PM Post #9 of 18
How is it compared to the FiiO FF1? I really like that one, but the mic on the right bud adds a lot of weight compared to the left one and I have to adjust it every now and then so that it doesn't fall. If wish there was a better 3.5mm cable for the FF1 on sale.

Dec 17, 2024 at 10:34 PM Post #10 of 18
How is it compared to the FiiO FF1? I really like that one, but the mic on the right bud adds a lot of weight compared to the left one and I have to adjust it every now and then so that it doesn't fall. If wish there was a better 3.5mm cable for the FF1 on sale.
Dear friend,
Theoretically, the sound quality of FF1 is better. And due to individual preferences, you could read the professional reviews and comparisons, as well as try out by yourself.
Best regards

FiiO Stay updated on FiiO at their sponsor profile on Head-Fi.

https://www.facebook.com/FiiOAUDIO https://twitter.com/FiiO_official https://www.instagram.com/fiioofficial/ https://www.fiio.com support@fiio.com
Dec 20, 2024 at 1:20 AM Post #14 of 18
Which has the most subbass 😁
These don't.

Everything below 50 hz is useless. It doesn't take well to EQ. Any attempts to boost the sub bass negatively impacts the overall tonality without providing any meaningful gains to the sub bass.

Save a couple more $ for something better.

Dec 20, 2024 at 11:45 PM Post #15 of 18
Great soundstage and vocal lover's earbuds. Love.


Attachments

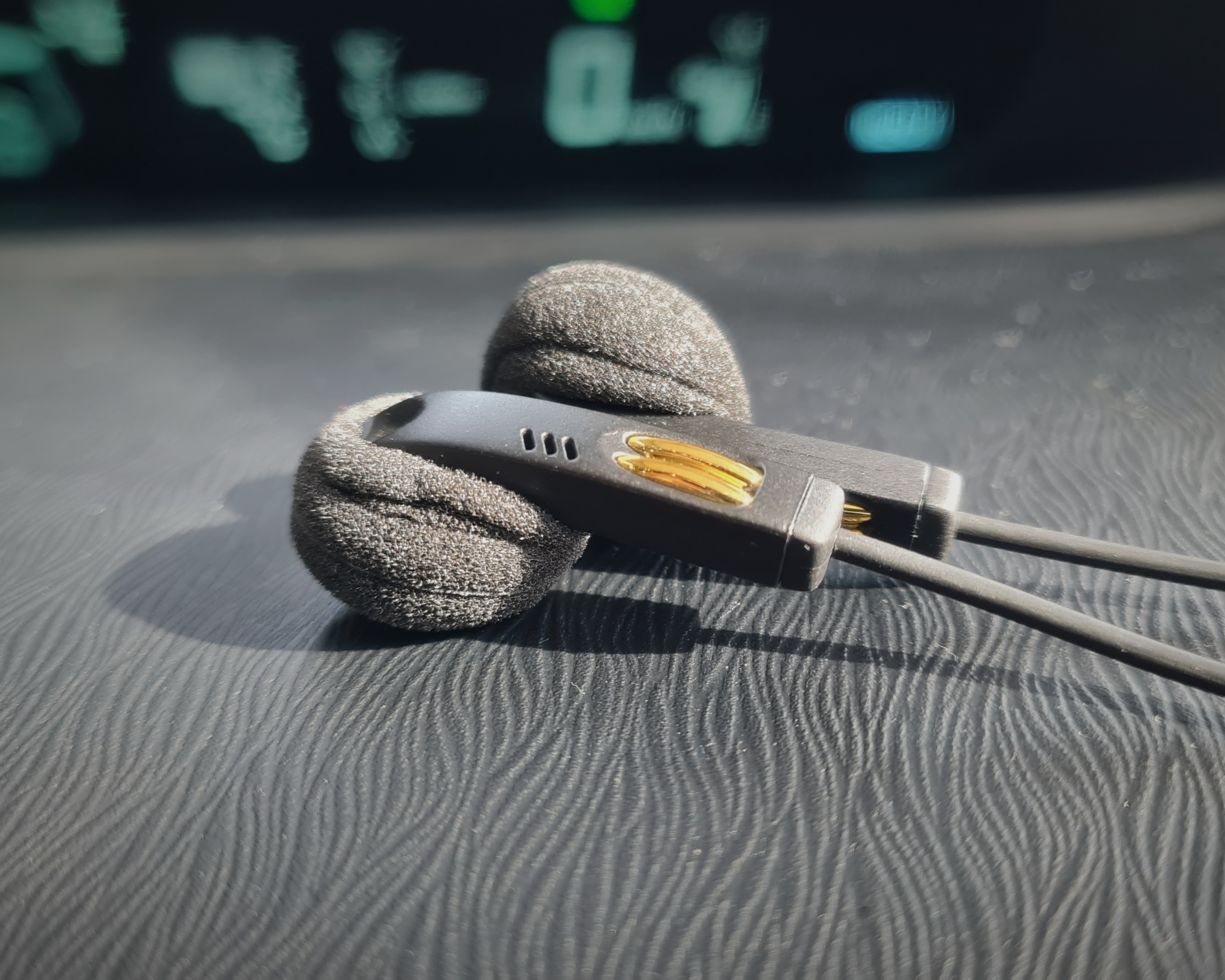

  • 20241220_151434.jpg
    1.1 MB · Views: 0
