Decware ZKit 4 DAC output stage
Dec 7, 2023 at 11:14 PM Thread Starter Post #1 of 1

funch

Headphoneus Supremus
Joined
Jan 14, 2004
Posts
2,122
Likes
472
Location
Au Canyon, AZ
I used two of these: https://www.decware.com/newsite/diy/decware/ZKIT4.html

The unit is driven directly from the DAC chips in a Schiit Gungnir; balanced in/balanced out. It uses two tube regulated power supplies listed in the link.

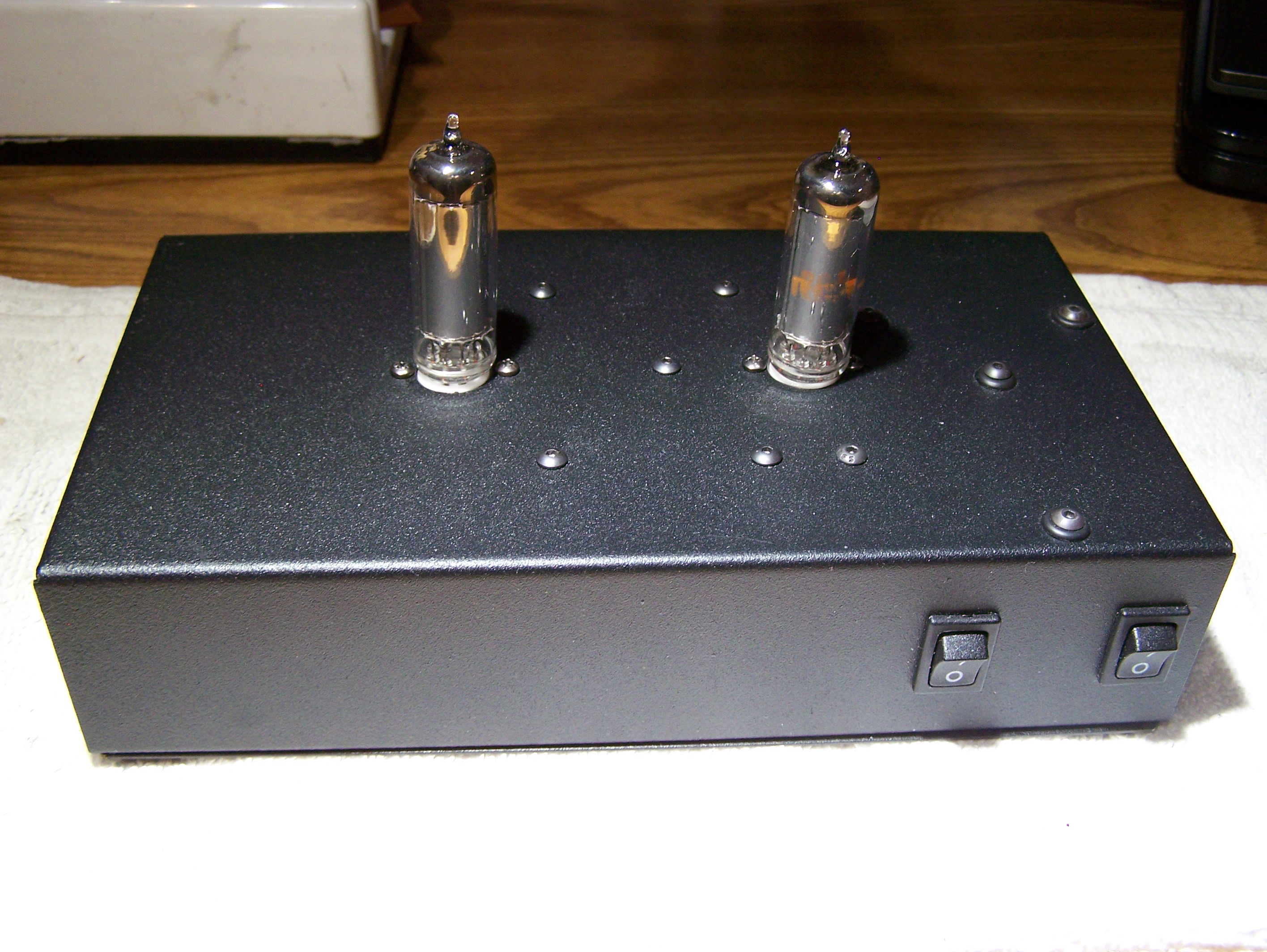

Power supply.
