Cypher Labs new variant : Picollo DAC

[rudi0504]

Hi Head Fi Friends

I would like to share information about Cypher Labs new variant Picollo DAC

Cypher Labs jus announced on their Face book about this new DAC amp

Please read more info below :

https://www.facebook.com/CypherLabs

Here is the link to the AlgoRhythm Picollo DAC on website: http://bit.ly/1vTgt7O

Introducing the ‪#‎AlgoRhythm‬ ‪#‎Picollo‬ ‪#‎DAC‬. This new 16 bit/48.1kHz capable DAC and headphone amplifier is the same

size as the analog-only AlgoRhythm Picollo but with added features. Tell us what you think!

• The Picollo DAC is made for Android devices and computers - no driver or apps are needed

• Any audio that can play on an Android device can play through the Picollo DAC's USB connection

• The Picollo DAC also functions as an analog amplifier, using the 3.5mm input

• Both a USB and analog interconnect are included, as are straps and hard case

• The Picollo DAC uses op amps for the headphone output

• Available in black, silver and gold

• MSRP is $549

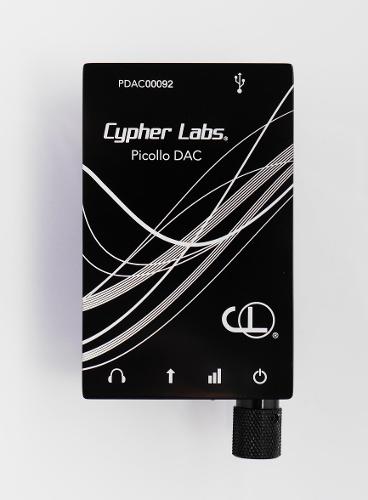

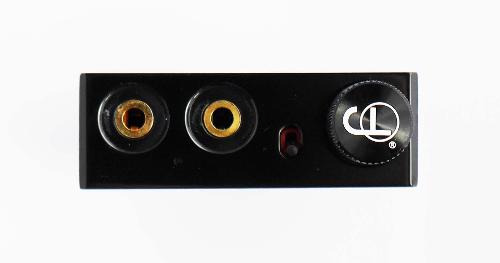

The AlgoRhythm Picollo DAC is a very compact digital USB DAC and analog headphone amplifier. It has a single USB input, an analog 3.5mm input and one headphone output. Charging is micro USB 5v so you can charge from a computer or normal USB charger. The Picollo DAC lasts a very long time on a single charge.

Very large output spread supports ultra sensative IEM’s and large headphones:
low gain -12db, mid gain, high gain +11.5db

CNC machined aluminum enclosure, with laser engraving

Specifications:
The Picollo DAC is a headphone amplifier with USB Audio input from Android devices and computers – no driver or apps are needed
Any audio that can play on an Android device can play through the Picollo DAC’s USB connection (confirm your Android device supports USB audio)
Functions as an analog amplifier, using the 3.5mm input
Uses op amps for the headphone output rather than the discrete design of the Picollo amp
Three colors: Black, Silver or Gold

Size: 55mmm x 85mm x 88mm (100mm with knob)
Weight 5oz / 145grams

Frequency response
20Hz-50kHz ±1dB

Output power
160mW into 32Ω
90mW into 50Ω
60mW into 300Ω
30mW into 600Ω
<1 Ω Output Impedance

Power and Battery
12-18 hours of playtime from Android OS devices
16-24 hours of playtime from analog devices
Continuous playtime when using computers
Built in Rechargeable Lithium-ion battery Sanyo UF103450P 2000mAH/3.7V
Use any standard 5 volt 1 amp USB wall charger or connect to a computer USB port to recharge it in under 4 hours.

The AlgoRhythm Picollo DAC does not require a PC driver or special app

Package Contents
- Cypher Labs AlgoRhythm Picollo DAC
- User Guide
- Mini to mini interconnect (20cm)
- Black micro USB to micro USB cable (20cm) (connect to your USB capable Android device)
- Black USB A to micro USB cable (0.5m) (connect to your computer or USB charger)
- Leatherette pad to protect bundled devices from scratching
- Cypher Labs straps to bundle devices for travel

One year Cypher Labs parts and Labor warranty



[scrypt]

I'm curious to know why CL chose the Texas Instruments DAC chip. I'd also like to know whether CL has any plans to release a portable DSD DAC for sources like the LG G3.

Also: Did Ken Ball have anything to do with the design of the artwork on the enclosure?



[lukeap69]

It seems CL is giving out 10% discount on all their products for Labour Day. That makes the Picollo DAC less than 500USD.

For Android devices, I think this is a better choice compared to Theorem 720 (which I own) since you do not need additional app (UAPP) to make it work and you can use apps like spotify, youtube, etc. to use it. As far as I know only FiiO E18 can do this and now Picollo DAC. Interesting stuff.



[tomscy2000]

I'm curious to know why CL chose the Texas Instruments DAC chip. I'd also like to know whether CL has any plans to release a portable DSD DAC for sources like the LG G3.

Probably size and simplicity. Frankly, I'm surprised, as while that chipset isn't complete crap, its bitrate support is generations behind what could easily be supported with a simple PCM5102 + USB receiver design. I'm afraid to say I believe CypherLabs dropped the ball here. The addition of that DAC is clearly not worth the $150 price premium over the regular Piccolo amp.



[shotgunshane]

I would rather have seen a Picollo Solo variant, maintaining idevice compatibility, to mate with the Picollo amp. Maybe that's next? Hopefully it would use a more premiums dac selection as well.
