Anyone substitue a dual op amp with twin singles?

[peranders]

Quote:

Originally Posted by Filburt /img/forum/go_quote.gif Heh, I wish I could get some of those here in the states

Send me a message if you want to get hold of them.



[Freq Band]

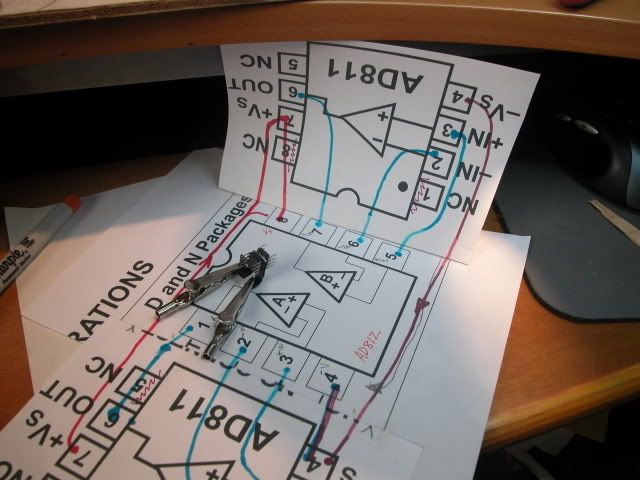

I've glued two singles to fit in one 8 pin DIP socket, thereby making it a dual.
...because I did not have the dual version of the chip:

http://i5.photobucket.com/albums/y17...t/DSCN1908.jpg
http://i5.photobucket.com/albums/y17...t/dscn1884.jpg
http://i5.photobucket.com/albums/y17...t/DSCN1886.jpg
http://i5.photobucket.com/albums/y17...t/DSCN1891.jpg
http://i5.photobucket.com/albums/y17...t/DSCN1890.jpg

=FB=



[billbillw]

Quote:

Originally Posted by Freq Band /img/forum/go_quote.gif I've glued two singles to fit in one 8 pin DIP socket, thereby making it a dual. ...because I did not have the dual version of the chip: http://i5.photobucket.com/albums/y17...t/DSCN1908.jpg http://i5.photobucket.com/albums/y17...t/dscn1884.jpg http://i5.photobucket.com/albums/y17...t/DSCN1886.jpg http://i5.photobucket.com/albums/y17...t/DSCN1891.jpg http://i5.photobucket.com/albums/y17...t/DSCN1890.jpg =FB=

Next time, use this:
http://www.cimarrontechnology.com/in...WPROD&ProdID=9

Only $3 and their shipping is cheap.



[peranders]

The advantage of this is smaller size and room for decoupling caps, both holemounted and SMD and also thicker copper traces. You can also connect ground for better decoupling.
