I am a pretty big fan of CEntrance's gear. I'm owning both HiFi-M8 and
Mini-M8, and I really hope to see full-sized desktop DAC/amp from CEntrance. Meanwhile, company presented very interesting tiny DAC with built-in headphone amplifier DAC Port HD. Of course, I can't resist and get one for review. Here are my humble 5 cents.
Package is really basic, it's small black cardboard box, inside you'll find device itself and USB cable to plug it.

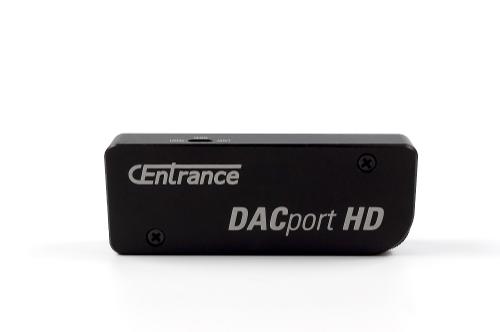

DACPort HD is incredibly tiny, it's slim and is just a bit bigger then usual disposable cigarette lighter. Device made completely form black aluminium and provides solid and sturdy build. From one side you plug MicroUSB, from other — headphones (3.5 mm used). One of edges contains volume wheel, other — gain switch. No LEDs, no power button, no built-in battery, pure minimalism.
It's really incredible, how many power was stuffed inside this small case. Heart of DACPort HD is fresh AMK4490 DAC, so device is capable of handing signal up to 384 kHz/32 bit and even DSD64/DSD128. Amplifier is built in A-class, powered by ±9 V rails and doesn't have output capacitors. It's heard to believe, but DACPort HD has up to 775 mW of output power, so it's pretty able to drive even orthos.
Actually, specs
- DAC: AK4490
- Formats supported: up to 384 kHz/32 bit, DSD64, DSD128
- Frequency response: 20 Hz – 40 kHz (±0.2 dB)
- Dynamic range: 112 dB
- THD+N: 0.002% (1 kHz)
- Noise level: 7 µV RMS (at high gain)
- Output impedance: 1Ω
- Max. signal level: 4.1 VRMS / +14.5 dBu
- Max. power: 775 mW
- Size: 76 mm × 29 mm × 11 mm
Pretty impressive for a device that weight 40 grams and cost $200. By the way, there is "simplified" version DAPort Slim, that sold exclusively on Massdrop and costs only $100. It has reduced power, doesn't support DSD and resolutions higher then 192/24. Also it has a bit worse THD+N and DR. But anyway, it's also a good option for "not-so-hard-to-drive-headphones" owners.
DACPort HD is a USB powered device, and it "wants" pretty lot of power to operate, thus isn't compatible with smartphones. I've seen solution, involved external battery, USB hub and Android smartphone, but I can't call it portable. I've seen mention, that DACPort Slim works with mobile sources, but I didn't have an opportunity to check it.
This tiny thing gets a bit worm during work, don't worry it's OK.
And, on to sound.
During the test I've used
- MacBook Pro Retina Late 2013 as a source
- Audirvana Plus as a player
- ZMF Omni, Oppo PM-3, Titan 3 and Titan 5, Lear LHF-AE1d, Ambient Acoustics AM10, VE Monk and Asura v2, HiFiMan HE-400S
-
DACPort HD shares same "house sound" as well-known HiFi-M8, it's detailed, neutral and have a good resolution, so device's sound is on brighter side, it's airy and light.
Bass is pretty quick, combined with plenty of power, it's both an advantage and a drawback of this device. The fact is that DACPort requires excellent bass control from headphones. It will showcase all faults in lows, if they are present. It's especially ruthless with small IEMs and earbuds. For example, it sounds pretty OK with new VE Asura, but with VE Monk — it's not an option at all. If you like strong lows, DACPort may be not a good option, as it doesn't add anything to lows, so you can benefit from darker sound, but DACPort is more for neutrality addicts.
Mids are emotional nd dynamic. DAC is especially good in representing small nuances and emotions of vocal. Voice's sound is intimate and engaging. It helps DACPort build pretty deep stage with good layers separation, it's pretty on par with some much more expensive desktop devices. Width is about average.
Highs are just perfect to my taste. Not too much, not too few, not harsh and not soft, not overdetailed, not veiled — just good in any aspect. DACPort even tries to "fix" bad treble of some old records, and sometimes it's even succeed in this business (but sometimes it doesn't, so it's better to feed it with good remasters).
"Big" HiFi-M8, of course is better in terms of connection and sound tuning options, also it features more resolution and better mids rendering, but DACPort can be easily treated as "sound sampler" of bigger M8.
As I've mentioned above, DACPort is pretty picky for IEMs, from my big collection most of all I've liked Titan 3 and Lear LHF-AE1d. But big cans is where DACPort shows his brilliance most of all. For last 5 days I'm listening DACPort HD with HiFiMan's HE-400S, and I think it's one of the best combos by price/sound ratio.
So, if you need small, inexpensive, but powerful device, I can recommend DACPort HD with easy heart.
