General Information
"The Timekeeper GT4 combines the best of high-voltage and high-current design for exceptional sound performance. Building on the innovation of the Timekeeper Voyager, the GT4 features an advanced power supply with higher voltage settings. When driving by this higher voltage, its British-made EXICON MOSFET power transistors deliver a sound that is rich, transparent, and dynamic.
The TK-GT4 also uses a high idling current to minimize distortion by keeping transistors in their optimal range. Despite increased heat and power demands, its Cool Case design eliminates bulky heat sinks, while the Fusion Core replaces noisy transformers, outputting pure Class-A within the first 30W".

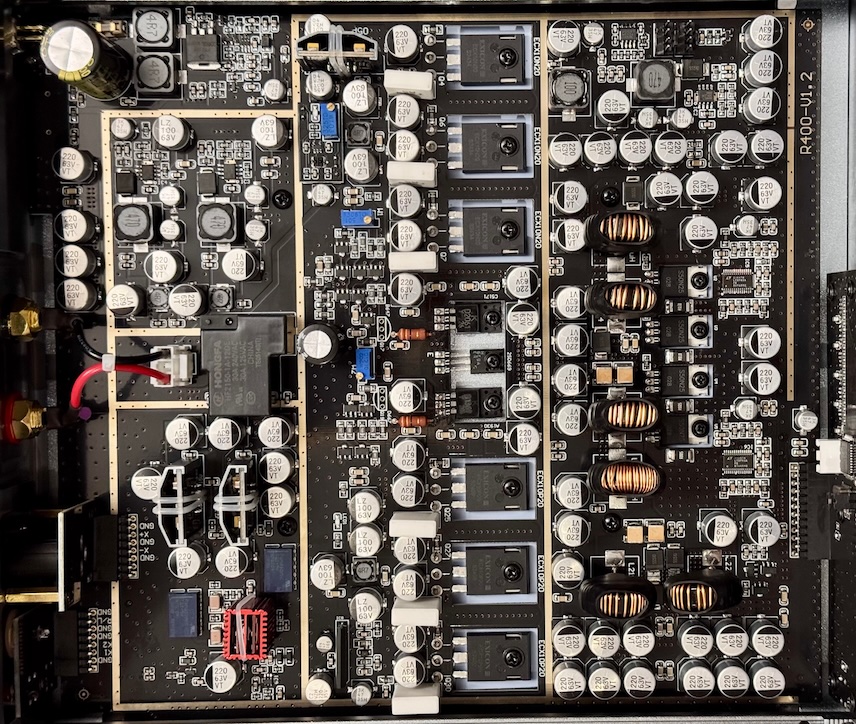

Inside the High End Timekeeper monoblock we have a nice & clean design with six big
EXICON output transistors for each monoblock
Key Features:
The TK-GT4 also uses a high idling current to minimize distortion by keeping transistors in their optimal range. Despite increased heat and power demands, its Cool Case design eliminates bulky heat sinks, while the Fusion Core replaces noisy transformers, outputting pure Class-A within the first 30W".
Inside the High End Timekeeper monoblock we have a nice & clean design with six big
EXICON output transistors for each monoblock
Key Features:
- High-Voltage and High-Current Design:
- Delivers exceptional sound by minimising distortion and keeping transistors in their optimal range.
- 100 Watts Idling Power:
- Outputs the first 30 Watts in pure Class-A operation.
- British-Made EXICON MOSFETs:
- Provides rich, transparent and dynamic sound.
Below are some thoughts coming from EXICON manufacturer about what makes these powerful transistors being one of the best choices in building High Fidelity Amplifiers:
"The Exicon range of lateral MOSFETS were specifically developed for high performance linear amplifier applications. They are capable of very high standards of amplification, with low distortion and very fast slew rates.
Completely free from secondary breakdown and thermal runaway they are extremely reliable.
In addition they have a number of characteristics which make them ideal for audio amplifiers, such as negative temperature coefficient for sharing current without the need for source or drain resistors, and simple drive requirements resulting in fewer components in the audio path".
Dual Power Supply - Burson Fusion Core X 2 (32V/15A)
Design:
Conductor GT4 and Timkeeper GT4 on the Mothership 3 rack

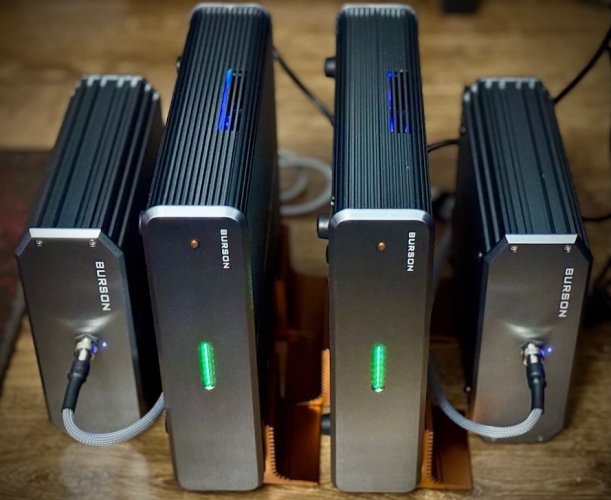

Timekeeper GT4 and the two Fusion Core power supplies
Top cover off
Top quality components inside
Mac Current Power Module II x 4
"The Exicon range of lateral MOSFETS were specifically developed for high performance linear amplifier applications. They are capable of very high standards of amplification, with low distortion and very fast slew rates.
Completely free from secondary breakdown and thermal runaway they are extremely reliable.
In addition they have a number of characteristics which make them ideal for audio amplifiers, such as negative temperature coefficient for sharing current without the need for source or drain resistors, and simple drive requirements resulting in fewer components in the audio path".
Dual Power Supply - Burson Fusion Core X 2 (32V/15A)
Design:
- Cool Case Design:
- Eliminates the need for bulky heat sinks.
- Optional Pure Class-A Input Buffer Stage:
- Ensures optimal system matching, adding 6 dB gain when needed.
- Monoblock Design:
- Eliminates cross-channel interference for a clean, accurate soundstage.
Conductor GT4 and Timkeeper GT4 on the Mothership 3 rack
Timekeeper GT4 and the two Fusion Core power supplies
Top cover off
Top quality components inside
Mac Current Power Module II x 4
