I had this problem once and it turned out to be a bad solder joint in the amp. I think I might have caused it while doing some mods.I need a new 6.3mm jack for mine, it doesn’t play audio on the right side unless kept at held at a specific angle. What replacement part do I need to order? Any pointers or input is welcomed and appreciated.
Latest Thread Images
Featured Sponsor Listings
You are using an out of date browser. It may not display this or other websites correctly.
You should upgrade or use an alternative browser.
You should upgrade or use an alternative browser.
Dark Voice 336SE mod thread (external cap-box etc)
- Thread starter AudioCats
- Start date
gapd94
New Head-Fier
Hello,Disclaimer: HIGH VOLTAGE circuitry. Info presented is for entertainment purpose only. Do not try at home.
Starting a thread to document my approach of 336SE mod.
MassDrop is selling DarkVoice 336SE for $240.
initial impressions: (with the stock tubes and a pair of Beyer DT990-600ohm.)
-- Build quality is solid.
-- the usable volume control range is tiny. Only the first 30 degrees or so. The sound is way too loud once above that.
-- hum is obvious when music volume is low.
-- sound is clean but not a lot of micro details.
plans:
** add pigtails with 2-pin XLR connectors, connect to external box holding film output caps. (2-pin xlr = standard 3-pin XLR with one pin removed and the corresponding hole in the socket plugged, this prevents plugging into the wrong equipment by mistake)
** DC filament supply to solve the hum problem. I might do a CCS so the filament heats up slowly. This also dictates using a timer to turn on the HV only after the filament has been fully on for a while.
** increase the usable range of volume pot.
So I see that its an old thread, however I have begin the mods on a DV336se for good.
At the moment I have been changing the capacitor’s that were damage on the procedure of manufacturing and some mods using this thread as a guide.
old Cap's

Since they are bigger I do end modyfing the board.

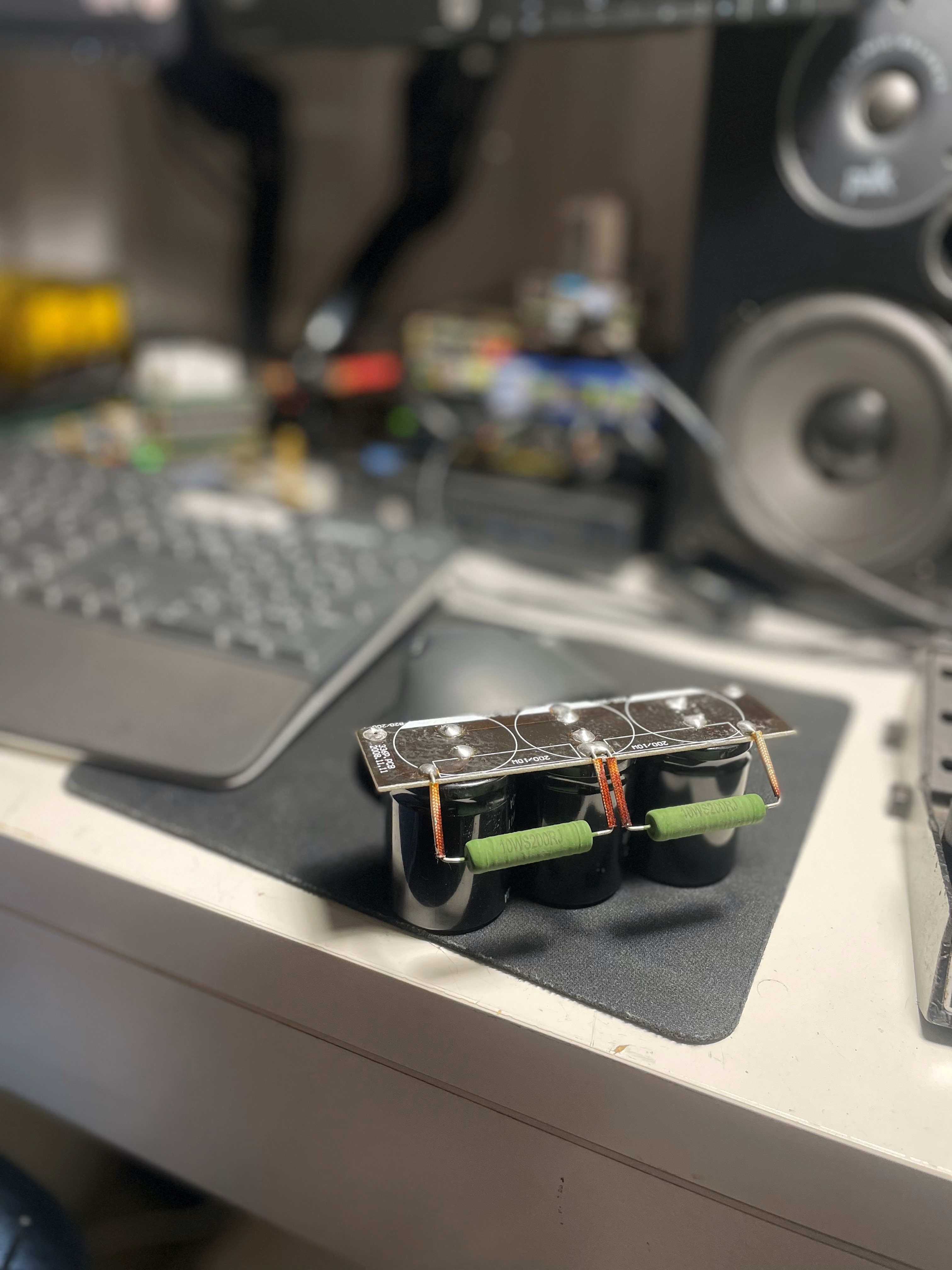

At the moment change the HV capacitor's for some Marcon 1000µF 250v

Still waiting for the 220µF they use 315v for those ones however I end up getting some 250v since they do not see near 315v in those cap's at all.
Already order an Alps RK27.
Right now I am looking for a way to make everything inside as a plug and play style in order to service it at some point in the near future. So would be keeping you guy's and gals posted.
If any sugestion arraised I would appreciated.
Thanks,
-Gus
Last edited:
Bump to this thread, hoping there will be an update from Gus.Hello,
So I see that its an old thread, however I have begin the mods on a DV336se for good.
At the moment I have been changing the capacitor’s that were damage on the procedure of manufacturing and some mods using this thread as a guide.
old Cap's
Since they are bigger I do end modyfing the board.
At the moment change the HV capacitor's for some Marcon 1000µF 250v
Still waiting for the 220µF they use 315v for those ones however I end up getting some 250v since they do not see near 315v in those cap's at all.
Already order an Alps RK27.
Right now I am looking for a way to make everything inside as a plug and play style in order to service it at some point in the near future. So would be keeping you guy's and gals posted.
If any sugestion arraised I would appreciated.
Thanks,
-Gus
