$1,299.00

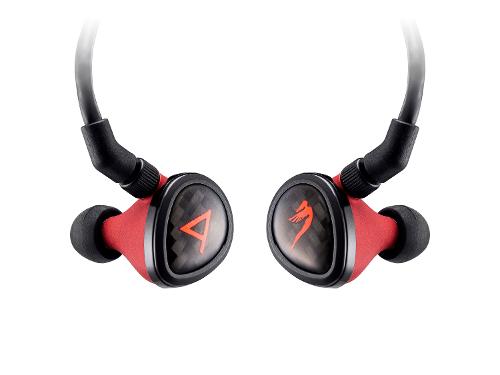

Astell & Kern Angie II Universal IEM
The Astell & Kern Angie II is the collaborative effort to form a perfect cohesion of sound with the JH Audio IEMs and Astell & Kern media players.
The Siren Series iems allow you to hear the music how the Recording Artist and Mix Engineer intended.
Features:
- Custom-made Proprietary Balanced Armature Drivers (8BA per side)
- Powered by soundrIVe technology : Dual low, Dual Mid and Quad High balanced armature drivers per side
- Variable bass output, adjustable from cable : user controlled low frequency drivers with the adjustable bass (0 - +10dB).
- Frequency ranges from flat bass response up to +10dB (10Hz to 100Hz)
- Integrated 4th Order crossover
- Triple Bore with Stainless Steel Tubing
- Noise Isolation -26dB
- 3.5mm unbalanced and 2.5mm balanced cables by Moon Audio both included
The 1st reference/mastering IEM from Jerry Harvey Audio
Full Metal Jacket
Each Body, Cap and Sound bore are machined from one Solid Block of Aluminum with Carbon Fiber Logo Plate insert.All new proprietary Driver designs
This series of IEM’s were designed to be used as a Mastering reference tool because the high driver was designed for optimum top end extention with minimal distortion. The mid driver is perfectly flat from 10Hz to 5kHz. Low driver designed for steeper low pass and with virtualy no distortion.All new proprietary Driver designs
AngieⅡ was equipped with soundrIVe Technology, using Jerry Harvey Audio’s proprietary mini quad drivers. 8 drivers [Dual Low, Dual Mid, Quad High] configuration that offers the widest frequency range you’ll ever hear.FreqPhase Technology / Stainless Steel Tube Waveguide
FreqPhase corrects Time and Phase of multiple Drivers. The Waveguide ensures each driver signal arrives within 0.01 milliseconds, resulting in a Phase coherent IEM.Variable bass output, adjustable from cable
User controlled low frequency drivers with the adjustable bass (0 - +10dB).Frequency ranges from flat bass response up to +10dB (10Hz to 100Hz)
4-pin cable connection with Machined Aluminum Collar mechanism provides a more secure and strong connection with earpiece and will also help to protect it from sweat and dust.
Additional Balance Cable for Astell&Kern
AK380 / AK320 / AK240 / AK120Ⅱ / AK100Ⅱ provides a balance output with its specific 2.5mm 4pole terminal. AngieⅡ is originally designed and tuned for the AK380 balance output and provides a balanced cable specially made to connect to the AK380.This originally designed 3.5mm and 2.5mm cables are specially made by Moon Audio in USA and both are included in the package.
Hand Crafted IEM made in the USA
Jerry Harvey Audio is proud to manufacture Angie Ⅱ by using old school craftsmanship, while using the most cutting edge Technology.The third offering in the Siren Series is aptly named after the Rolling Stones song Angie. Written by Mick Jagger and Keith Richards and recorded in November and December 1972, Angie is an acoustic-guitar-driven ballad, which tells of the end of a romance. Richards, who wrote almost all the music and lyrics for the song, claimed in his autobiography that the name Angie was a pseudonym for heroin, and that the song was about his attempt to quit using it while detoxing in Switzerland.
"The audio signature is reference quality with the same 4th order crossover network as Layla. Angie's dual low, dual mid and quad high configuration gives a very accurate representation of whatever source it has to reproduce. Designed for optimum top-end extension with minimal distortion. The mid driver is perfectly flat from 10Hz to 5kHz. Low driver designed for steeper low pass and with virtually no distortion. Bass response is perfectly flat when attenuated or up to +10 dB of bass boost at 60Hz when boosted."
– Jerry Harvey
Specifications
Type | Universal fit IEM |
Driver Unit | Custom-made Proprietary Balanced Armature Drivers [8BA per side] |
Frequency Response | 10Hz to 23kHz |
Input Sensitivity | 117dB @ 1mW |
Impedance | 17 ohm |
Freqphase time l phase WaveGuide |
Thank You.
Drew Baird
Moon Audio
Moon Audio
