New Astell products - AK500N Network audio player - AK500A Speaker Power Amp - AK500P - Power supply
Google translate
http://www.iriver.jp/information/entry_778.php
http://www.iriver.jp/products/product_104.php
Will be announced the
Ayuto (President Shinichi Watanabe, Head Office: Tokyo) Co., Ltd., announced by high-resolution portable audio brand "Astell & Kern (Astell and Cologne)", at the same brand's first home audio products, the network audio player "AK500N" We will.
This product will be ordering product, but we are planning to January 2015 the orders start, the official release date, you will be again Guidance If you have decided prices.
Ayuto also to listen actively to the user's voice future, in the Japanese market, "Astell & Kern" brand of market share gains, and for the audio market activation, you strive to strategic product introductions.
Isolation noise from the AC power by adopting the battery yet stationary
Adoption of no SSD storage of favorable vibration noise in sound quality
DLNA1.0 compliant, can interact with the PC or NAS that is connected to the LAN or WiFi in smartphones and tablets
AK240, AK120II, streaming playback possible through collaboration with AK100II
Abundant input and output terminals
A true dual mono dual DAC configuration CS4398 L / R independent adoption
DSD128 (5.6MHz / 1bit) / DSD64 Ne~iteibu playback compatible (2.8MHz / 1bit)
Real-time playback converted to DSD64 without degrading the DXD maximum 384kHz 32bit (Integer / float)
http://av.watch.impress.co.jp/docs/news/20141211_679897.html
Get saving!
Google translate
http://www.iriver.jp/information/entry_778.php
http://www.iriver.jp/products/product_104.php
Will be announced the
same brand's first home audio products was born by advanced digital audio technology of Astell & Kern.

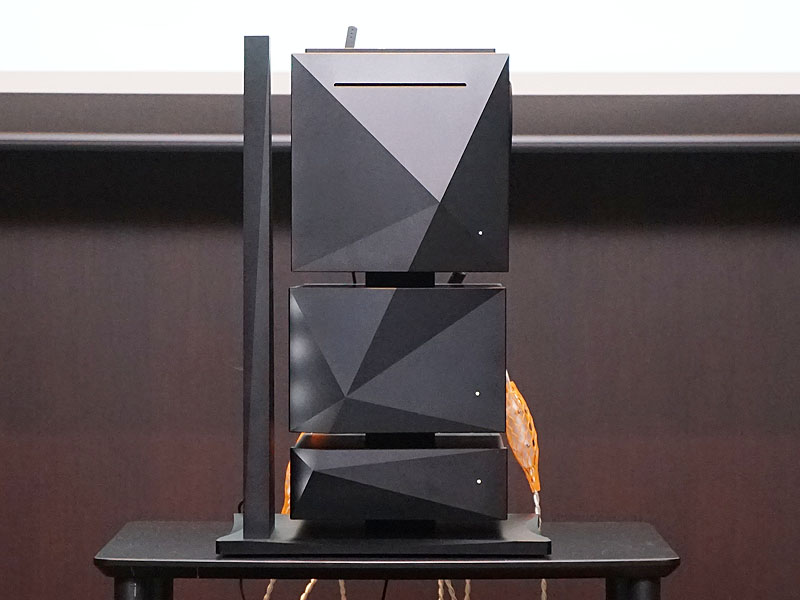

Network audio player Astell & Kern AK500N
Orders scheduled to start in January 2015
This product will be ordering product, but we are planning to January 2015 the orders start, the official release date, you will be again Guidance If you have decided prices.
Ayuto also to listen actively to the user's voice future, in the Japanese market, "Astell & Kern" brand of market share gains, and for the audio market activation, you strive to strategic product introductions.
Major features
The CD ripping function by the engine that was originally developed based on cdparanoia boasts the highest qualityIsolation noise from the AC power by adopting the battery yet stationary
Adoption of no SSD storage of favorable vibration noise in sound quality
DLNA1.0 compliant, can interact with the PC or NAS that is connected to the LAN or WiFi in smartphones and tablets
AK240, AK120II, streaming playback possible through collaboration with AK100II
Abundant input and output terminals
A true dual mono dual DAC configuration CS4398 L / R independent adoption
DSD128 (5.6MHz / 1bit) / DSD64 Ne~iteibu playback compatible (2.8MHz / 1bit)
Real-time playback converted to DSD64 without degrading the DXD maximum 384kHz 32bit (Integer / float)
Main Specifications
Product name | AK500N |

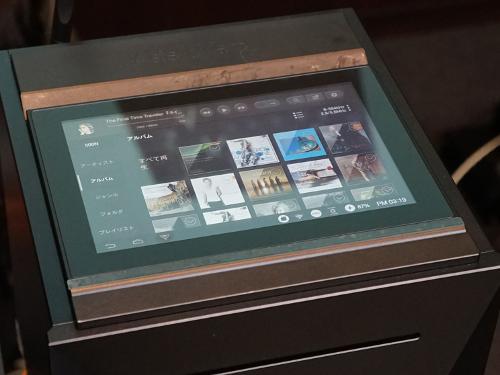

Display size | 7-inch WXGA (1280 x 800) capacitive touch display |
DAC | Cirrus Logic CS4398 x2 (Dual DAC configuration) |
Storage | SSD MLC 1TB / 2TB / 4TB (RAID 0,5 |
Digital input | AES / EBU x1, BNC x1, Coaxial x1, Optical x1 |
Digital output | AES / EBU x1, BNC x1, Coaxial x1, Optical x1 |
Analog output | Balanced (L / R) x2, RCA (L / R) x2 |
Fixed output level | 3V (RCA, Balanced) |
Variable output level | 7.5V (RCA) / 10V (Balanced) |
Crosstalk | > 135dB / 1kHz |
Frequency characteristic | ± 0.02dB / 20Hz ~ 20kHz, ± 0.4dB / 10Hz ~ 70kHz |
Total harmonic distortion factor | <0.0008% / 1kHz / 10V, <0.001% / 10Hz ~ 20kHz / 10V |
S / N ratio | 118dB / 1kHz / 10V |
Support Format | WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF |
Sampling rate | 8kHz ~ 384kHz (8/16 / 24bits per sample) DSD Native: DSD64 (1bit / 2.8MHz) / DSD128 (1bit / 5.6MHz) |
USB input | Type A (Host) x2, Type B (Device) x1 |
USB DAC function | UAC (USB Audio Class) 2.0 / DSD64, DSD128, PCM |
Network Support | Wi-Fi 802.11b / g / n (2.4GHz) & Ethernet 10/100/1000, DLNA (DMS, DMC, DMR) |
CD ripping file format | WAV, FLAC |
Power: Battery | Capacity: 10,400mAh / Voltage: 7.4 (normally) / Type: Li-Ion |
Size / weight | 214 [W] x 243 [H] x 238 [D] (mm) / 11.4kg |
