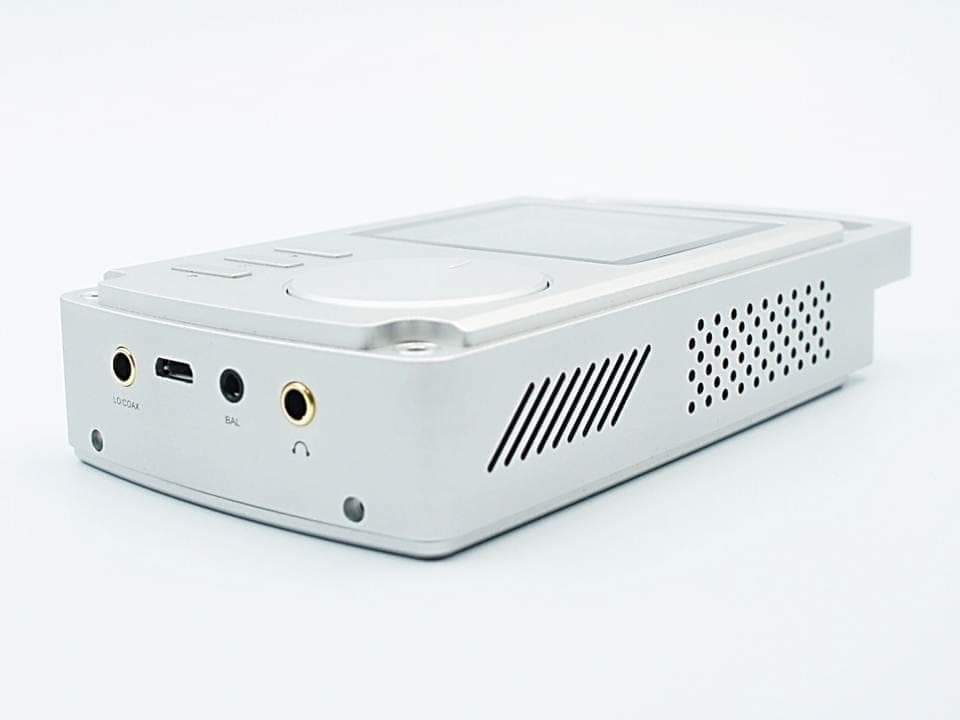

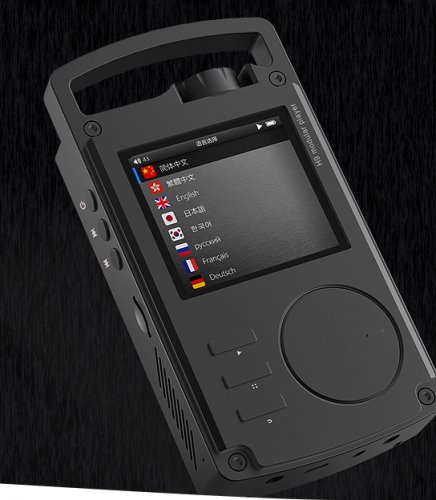

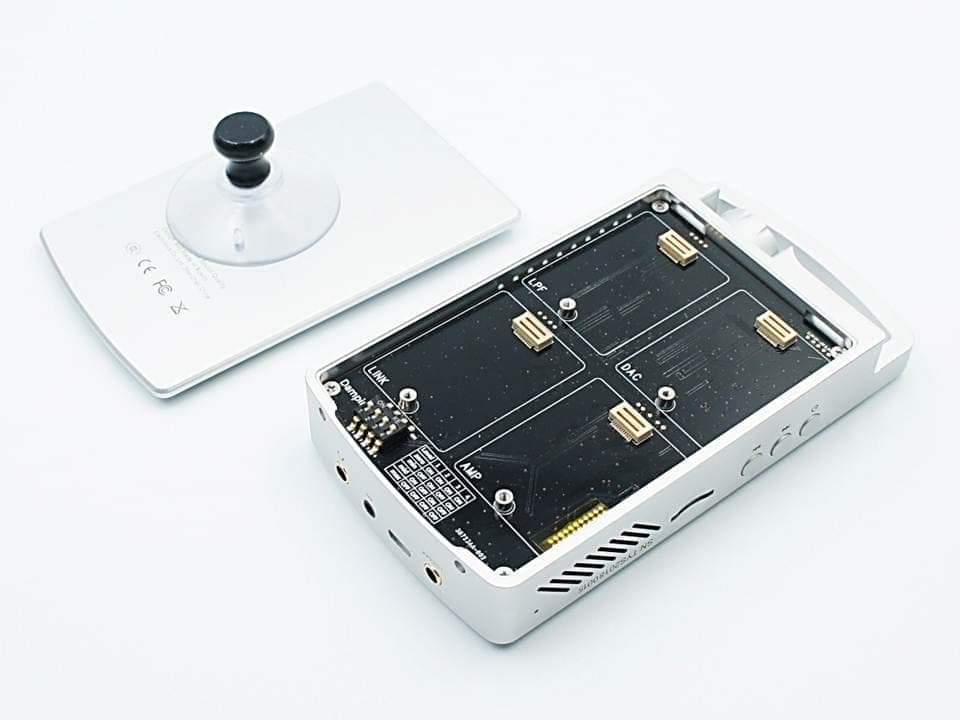

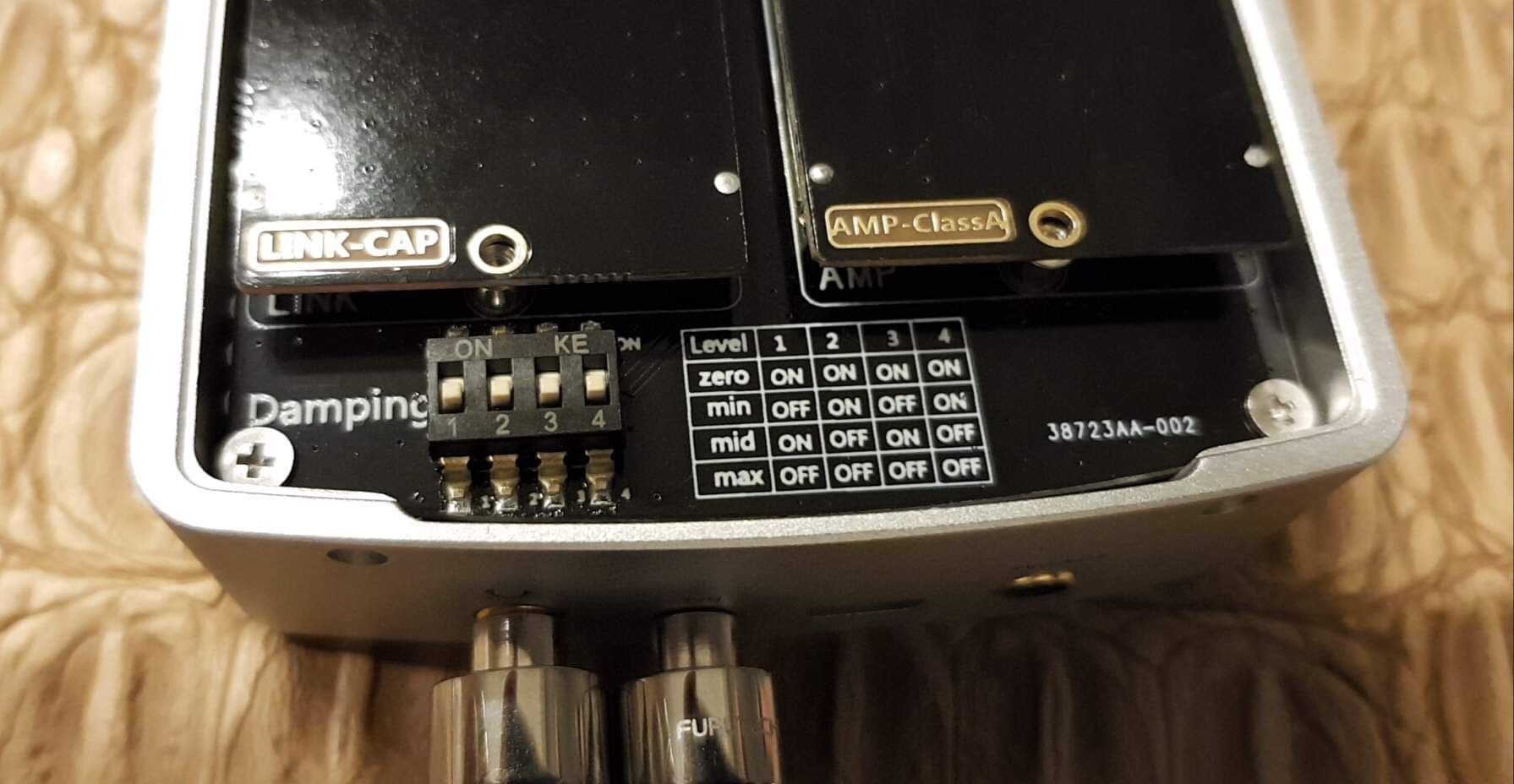

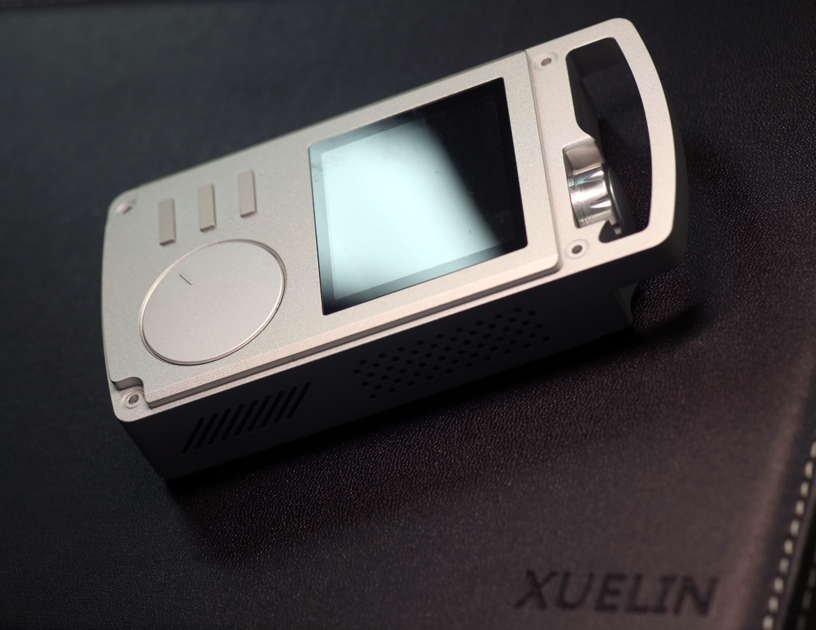

Xuelin Tuner DAP - a tuners dream, fully modular (DAC, LPF, AMP, LINK, DAMPING)
post-14699652
Thread Starter
Post #1 of 83

Nayparm

Member of the Trade: NP Audio
Joined
Oct 13, 2017
Messages
1,908
Reaction score
2,550
Location
UK
Joined
Oct 13, 2017
Location
UK
Posts
1,908
Likes
2,550
Last edited:
post-14699655
Post #2 of 83

Nayparm

Member of the Trade: NP Audio
Joined
Oct 13, 2017
Messages
1,908
Reaction score
2,550
Location
UK
Joined
Oct 13, 2017
Location
UK
Posts
1,908
Likes
2,550
Xuelin H8 Tuner OPA1622 Balanced Module for 2.5mm Balanced Output

-388872803-1422819775.jpg -1848243791343137229.jpg

Description

  • Xuelin tuner balanced module uses 2 OPA1622 to form BTL output. We have made careful design on the ground wire shielding, component layout and power supply decoupling, and the background noise in the actual test is very low.。
  • Since the earphone is ungrounded in the balanced mode, it has a wider sound field than the single-end amplifier. When matching 2.5mm balanced earbud, its wide and sweet music sense is intoxicating! Thanks to the excellent power management of OPA1622, with the balanced module, the battery life of the tuner will be doubled.
  • The OPA1622 is a two-channel, bipolar input, SoundPlus audio operational amplifier. This device under the 1 KHZ frequency with a 2.8nV/√Hz) of ultra-low noise density and -119.2 dB low THD + N, but also to the output power of 100 mw drive a 32 Ω load. The OPA1622 has extremely high AC power rejection ratio (PSRR) and common mode rejection ratio (CMRR) specifications to eliminate noise from power sources, so it's very good for portable audio applications.
  • In addition, the device has a high output drive capability of +145mA/ -- 130mA.
  • OPA1622 supports a wide power supply voltage range from ±2V to ±18V, and the power supply current of each channel is only 2.6mA. OPA1622 operational amplifiers have stable unit gain and excellent dynamic performance under a wide range of loads.
  • OPA1622 with turn off mode allows the amplifier to switch from normal operation to a standby current typically less than 5 µA.
  • This turn-off characteristic is designed to eliminate the click and crackle noise when entering or exiting the turn-off mode.
  • OPA1622 has a unique internal layout that enables minimal crosstalk and zero interaction between channels even under overdrive or overloads conditions

Unboxing video



Attachments

Last edited:
     Share This Post
  • Like
Reactions: nick n
post-14699659
Post #3 of 83

Nayparm

Member of the Trade: NP Audio
Joined
Oct 13, 2017
Messages
1,908
Reaction score
2,550
Location
UK
Joined
Oct 13, 2017
Location
UK
Posts
1,908
Likes
2,550
Reserved

     Share This Post
post-14700004
Post #7 of 83

Nayparm

Member of the Trade: NP Audio
Joined
Oct 13, 2017
Messages
1,908
Reaction score
2,550
Location
UK
Joined
Oct 13, 2017
Location
UK
Posts
1,908
Likes
2,550
     Share This Post
  • Like
Reactions: NotKunvinced
post-14700023
Post #8 of 83

chungoooo

Head-Fier
Joined
Mar 3, 2017
Messages
67
Reaction score
40
Joined
Mar 3, 2017
Posts
67
Likes
40
I don't like the looks, but man, it's pretty interesting... It has the potential to be an awesome device or to be & #@+((€!! As well.. I hope they get it right..

     Share This Post
  • Like
Reactions: NotKunvinced
post-14700083
Post #10 of 83

ilmothedude

500+ Head-Fier
Joined
Dec 20, 2014
Messages
500
Reaction score
216
Joined
Dec 20, 2014
Posts
500
Likes
216
It has quite rugged looks but I think it looks still quite charming. Seems really interesting indeed, I think it could be fun experience with different tunings. I wonder what's the price tag though, I have a feeling it could be quite pricey.

     Share This Post
post-14700789
Post #13 of 83

Quadfather

Headphoneus Supremus
Joined
Mar 18, 2015
Messages
2,371
Reaction score
1,210
Location
Illinois
Joined
Mar 18, 2015
Location
Illinois
Posts
2,371
Likes
1,210
I think it is just under $700 USD

     Share This Post
post-14701239
Post #14 of 83

Nayparm

Member of the Trade: NP Audio
Joined
Oct 13, 2017
Messages
1,908
Reaction score
2,550
Location
UK
Joined
Oct 13, 2017
Location
UK
Posts
1,908
Likes
2,550
     Share This Post
post-14701880
Post #15 of 83

Ivan TT

500+ Head-Fier
Joined
Jun 14, 2017
Messages
683
Reaction score
702
Location
New Zealand
Joined
Jun 14, 2017
Location
New Zealand
Posts
683
Likes
702
     Share This Post
  • Like
Reactions: NotKunvinced
