Sorry if this has been brought up before.

Is there any way to test tubes without an emission tester or other type of tube tester? If not, are there any recommendations for a tube tester that would be functional in the $100 range?

I got 4 Fotons off of eBay that I think were dead to begin with, and want to know how to verify before I request a refund.
You can test them for shorts with a DVM, but no way I know of to test for emission or GM without a tube tester.

     Share This Post
post-15243334
Post #4,682 of 5,239

ScubaMan2017

1000+ Head-Fier
Joined
Apr 18, 2017
Messages
1,113
Reaction score
1,454
Location
CN Tower, Canada
Joined
Apr 18, 2017
Location
CN Tower, Canada
Posts
1,113
Likes
1,454
I don't mind, but I have to write it up first. It's a little more involved than Tidal. I'll PM you. It's not on the Web.
Would you consider posting it on this thread?

     Share This Post
post-15243931
Post #4,683 of 5,239

Keno18

100+ Head-Fier
Joined
Mar 13, 2018
Messages
448
Reaction score
354
Location
North Babylon, NY
Joined
Mar 13, 2018
Location
North Babylon, NY
Posts
448
Likes
354
     Share This Post
post-15250089
Post #4,684 of 5,239

wabe

100+ Head-Fier
Joined
Aug 29, 2005
Messages
143
Reaction score
238
Joined
Aug 29, 2005
Posts
143
Likes
238
It appears that at least 2 of the tubes I got are functional (I found a shop in town that can test tubes). My next question is on the adapter. I got one of these:

https://www.ebay.com/itm/GARAGE1217-12SN7-6SN7-TO-12AU7-6922-TUBE-SOCKET-ADAPTER-TOP-BUILD-QUALITY/254102508696?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

to use in the Vali 2.

First question: is this the correct adapter for a 6SN7/6H8C tube? If not, which one should I get?

Second question: if this is the correct adapter, is there any way to determine if the adapter itself is bad with a DVM?

     Share This Post
post-15250169
Post #4,685 of 5,239

Keno18

100+ Head-Fier
Joined
Mar 13, 2018
Messages
448
Reaction score
354
Location
North Babylon, NY
Joined
Mar 13, 2018
Location
North Babylon, NY
Posts
448
Likes
354
It appears that at least 2 of the tubes I got are functional (I found a shop in town that can test tubes). My next question is on the adapter. I got one of these:

https://www.ebay.com/itm/GARAGE1217-12SN7-6SN7-TO-12AU7-6922-TUBE-SOCKET-ADAPTER-TOP-BUILD-QUALITY/254102508696?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

to use in the Vali 2.

First question: is this the correct adapter for a 6SN7/6H8C tube? If not, which one should I get?

Second question: if this is the correct adapter, is there any way to determine if the adapter itself is bad with a DVM?
I'm not familiar with the Garage1217 adapter, but you will need an additional 9 pin socket saver to put on the end of the Garage adapter because the adapter is too wide to fit the Vali's tube opening. Easily gotten from tubedepot.com.

     Share This Post
post-15250246
Post #4,686 of 5,239

TK16

Headphoneus Supremus
Joined
Mar 2, 2016
Messages
4,212
Reaction score
2,637
Location
Budd Lake, NJ
Joined
Mar 2, 2016
Location
Budd Lake, NJ
Posts
4,212
Likes
2,637
It appears that at least 2 of the tubes I got are functional (I found a shop in town that can test tubes). My next question is on the adapter. I got one of these:

https://www.ebay.com/itm/GARAGE1217-12SN7-6SN7-TO-12AU7-6922-TUBE-SOCKET-ADAPTER-TOP-BUILD-QUALITY/254102508696?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

to use in the Vali 2.

First question: is this the correct adapter for a 6SN7/6H8C tube? If not, which one should I get?

Second question: if this is the correct adapter, is there any way to determine if the adapter itself is bad with a DVM?
Have not used that adapter but I have the 2C51 garage adapter. Being ceramic it amplifies noise and or microphones compared to the bakelite. Adapter you linked looks to be ceramic.

     Share This Post
post-15250276
Post #4,687 of 5,239

Ripper2860

Headphoneus Supremus
Joined
Feb 24, 2018
Messages
3,050
Reaction score
6,891
Location
Texas, USA
Joined
Feb 24, 2018
Location
Texas, USA
Posts
3,050
Likes
6,891
I use a pair of Garage 2C51 adapters with my Valhalla 2 and have absolutely no issues with them being noisy or microphonic. Maybe it's your amp?? Or maybe it's your imagination. :smirk:

Last edited:
     Share This Post
post-15250448
Post #4,688 of 5,239

Keno18

100+ Head-Fier
Joined
Mar 13, 2018
Messages
448
Reaction score
354
Location
North Babylon, NY
Joined
Mar 13, 2018
Location
North Babylon, NY
Posts
448
Likes
354
Found another good sounding cheap tube. The JJ 12at7. Open, airy, with one of the best transient dynamic responses I've come across. (The "gunshot" in Fiedler's "Slaughter on 10th Avenue".)

     Share This Post
post-15250464
Post #4,689 of 5,239

wabe

100+ Head-Fier
Joined
Aug 29, 2005
Messages
143
Reaction score
238
Joined
Aug 29, 2005
Posts
143
Likes
238
@Keno18, I found that out when I started trying to figure out how to make it work. I got a couple of the tubesaver adapters.

What 6SN7 adapters do you folks recommend, if you haven't used the Garage1217 one?

     Share This Post
  • Like
Reactions: bcowen
post-15250467
Post #4,690 of 5,239

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
3,761
Reaction score
6,103
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
3,761
Likes
6,103
It appears that at least 2 of the tubes I got are functional (I found a shop in town that can test tubes). My next question is on the adapter. I got one of these:

https://www.ebay.com/itm/GARAGE1217-12SN7-6SN7-TO-12AU7-6922-TUBE-SOCKET-ADAPTER-TOP-BUILD-QUALITY/254102508696?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

to use in the Vali 2.

First question: is this the correct adapter for a 6SN7/6H8C tube? If not, which one should I get?

Second question: if this is the correct adapter, is there any way to determine if the adapter itself is bad with a DVM?
That adapter will work as long as you specify how you want it wired when you order it. It's configurable for different tubes. Just be sure to spell out you want it configured for a 6922 on the bottom and 6SN7 on the top.

     Share This Post
  • Like
Reactions: TK16
post-15250478
Post #4,691 of 5,239

wabe

100+ Head-Fier
Joined
Aug 29, 2005
Messages
143
Reaction score
238
Joined
Aug 29, 2005
Posts
143
Likes
238
That adapter will work as long as you specify how you want it wired when you order it. It's configurable for different tubes. Just be sure to spell out you want it configured for a 6922 on the bottom and 6SN7 on the top.
Ah, this might be my issue. Which configuration should I have requested? I assume config 2?

Config 1: Pins 4 and 5 on the 9 pin side can be joined for use adapting a 6sn7 to say a 6dj8 socket or a 12sn7 series to a true 12.6v socket such as a 12au7 which does not utilize the center tap
Config 2: Pins 4 or 5 can be linked to pin 9 on the noval side for designs running 6.3v but allowing 12.6v dual triodes to be run per the center tap

     Share This Post
  • Like
Reactions: bcowen
post-15250479
Post #4,692 of 5,239

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
3,761
Reaction score
6,103
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
3,761
Likes
6,103
@Keno18, I found that out when I started trying to figure out how to make it work. I got a couple of the tubesaver adapters.

What 6SN7 adapters do you folks recommend, if you haven't used the Garage1217 one?

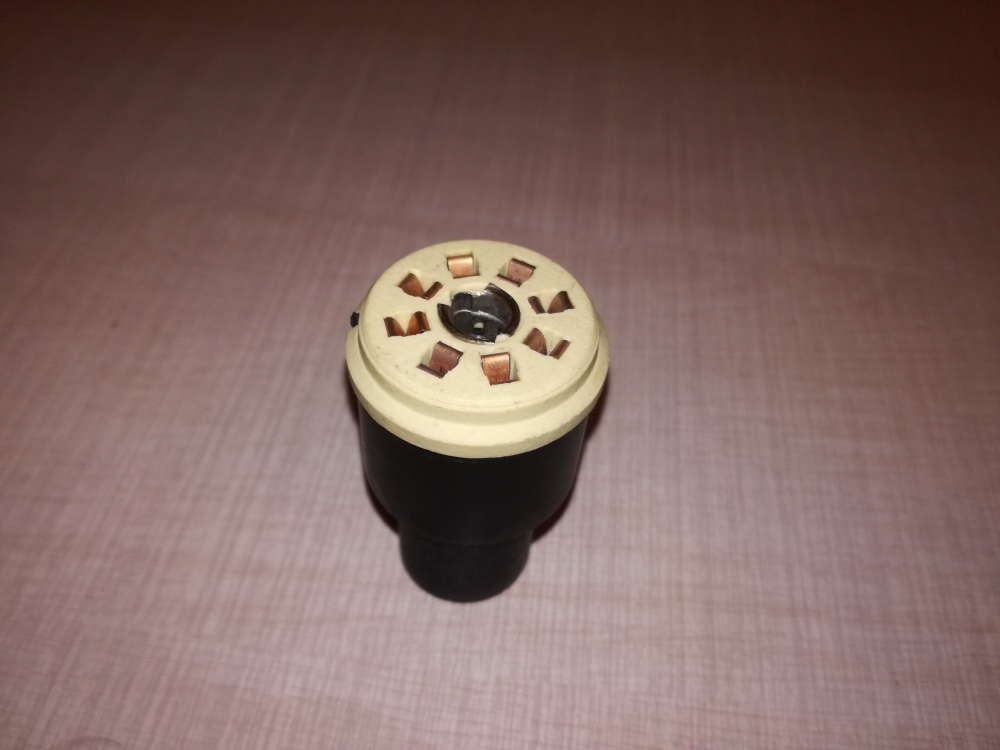

Just had one made for me by @Deyan . Haven't received it yet but from the pictures he sent the workmanship looks to be first rate. He's in Bulgaria so you'll have to wait a bit on the shipping. Mine is intended for the Vali 2 with a 7N7 on top rather than a 6SN7, but I believe he can configure an adapter for whatever you want. I like the one piece body on this which eliminates the need for a socket saver or extension (and more connections as a result). PM him if you have any interest.

6922 to 7N7 1.jpg

6922 to 7N7 2.jpg

     Share This Post
post-15250483
Post #4,693 of 5,239

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
3,761
Reaction score
6,103
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
3,761
Likes
6,103
Ah, this might be my issue. Which configuration should I have requested? I assume config 2?

Config 1: Pins 4 and 5 on the 9 pin side can be joined for use adapting a 6sn7 to say a 6dj8 socket or a 12sn7 series to a true 12.6v socket such as a 12au7 which does not utilize the center tap
Config 2: Pins 4 or 5 can be linked to pin 9 on the noval side for designs running 6.3v but allowing 12.6v dual triodes to be run per the center tap
No. Based on that description, you'd want Config 1 to run a 6SN7 / 6N8S / 6H8C in a Vali 2.

     Share This Post
post-15252035
Post #4,694 of 5,239

Mr Trev

Headphoneus Supremus
Joined
Aug 13, 2013
Messages
3,254
Reaction score
1,213
Location
North of the border, up Canada way
Joined
Aug 13, 2013
Location
North of the border, up Canada way
Posts
3,254
Likes
1,213
Just had one made for me by @Deyan . Haven't received it yet but from the pictures he sent the workmanship looks to be first rate. He's in Bulgaria so you'll have to wait a bit on the shipping. Mine is intended for the Vali 2 with a 7N7 on top rather than a 6SN7, but I believe he can configure an adapter for whatever you want. I like the one piece body on this which eliminates the need for a socket saver or extension (and more connections as a result). PM him if you have any interest.


Looks nice. Any mention on how tall is it? I'd like to keep it as low profile as possible - you know, for wind resistance & centre of gravity

     Share This Post
post-15252393
Post #4,695 of 5,239

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
3,761
Reaction score
6,103
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
3,761
Likes
6,103
Looks nice. Any mention on how tall is it? I'd like to keep it as low profile as possible - you know, for wind resistance & centre of gravity
No mention of the total height. Be happy to measure it and post the info once I get it. I need a fairly low profile myself, due more to felines and the space I'm allotted in the living room for my HP stuff. And it'll get even more restricted when I finish the Schiit rack whose design I blatantly ripped off from @Paladin79 . I *did* thank him though. :slight_smile:
