Topaz Low-Capacitance Isolation Transformers - for Affordably Clean Power
Jun 16, 2019 at 3:02 PM Post #331 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
Jun 18, 2019 at 1:04 AM Post #332 of 547

oneguy

1000+ Head-Fier
Joined
May 30, 2015
Posts
1,140
Likes
517
Location
Texas

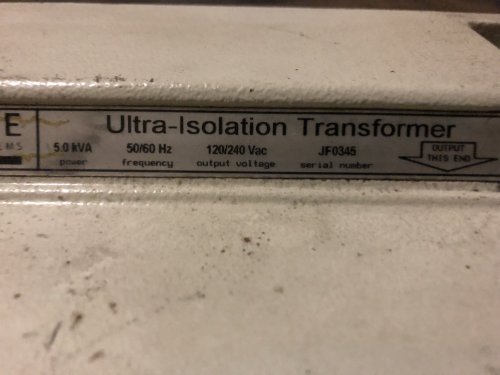

My 5kVa Topaz will arrive tomorrow. It’s untested so hopefully it’s not a dud but the price was to good to pass up. It list as weighing north of 100 lbs so it’s probably going to stay on a furniture dolly so it’s easy to move for wiring and testing. I’ll edit this post with pics tomorrow night.

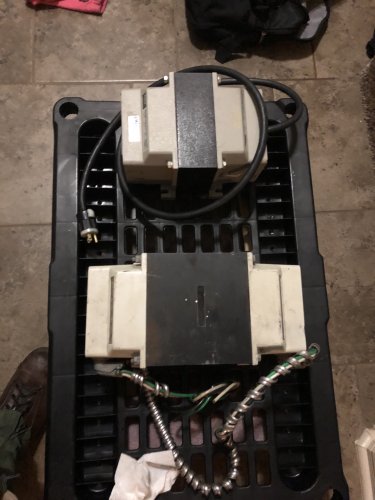

Edit: Here it is next to one of my 2.4kVa units. Sorry for the bad pics. I just got home and it’s midnight here.
87F4FCCE-9A93-4148-9AD3-BE852F65AD33.jpegA3CAD79C-31DF-4B46-A7D7-F1B2883BC501.jpeg 12B34779-8AAF-43FD-B719-1DE6B74B96E7.jpeg0869293B-233D-49B5-854B-FA5DDC04FF44.jpeg

Last edited:
Jun 21, 2019 at 11:32 PM Post #334 of 547

oneguy

1000+ Head-Fier
Joined
May 30, 2015
Posts
1,140
Likes
517
Location
Texas
It works! I hooked up a cord to it it and I get 115v in and 119.6v out. Well worth every penny!

Jun 21, 2019 at 11:49 PM Post #335 of 547

bequietjk

100+ Head-Fier
Joined
Jan 24, 2018
Posts
441
Likes
171
Location
Sacramento, CA
@oneguy Can we get a pic of the beast!? I have a 91001-31 on it's way ^_^. I'm afraid of the hum though... Maybe put it inside of some type of box? I may have to make a DIY box of some sort if the hum is too bad. New Topaz will be dedicated to my PC for surge protection and hopefully some SQ benefit. We'll see.

Last edited:
Jun 21, 2019 at 11:54 PM Post #336 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
@oneguy Can we get a pic of the beast!? I have a 91001-31 on it's way ^_^. I'm afraid of the hum though... Maybe put it inside of some type of box? I may have to make a DIY box of some sort if the hum is too bad. New Topaz will be dedicated to my PC for surge protection and hopefully some SQ benefit. We'll see.

Of the units I have, the -12 or -11 units have a hum/buzz and the -32 -31 units are silent.

Did you get it off ebay just recently? I saw a 91001-31 all wired up with a plug and 4 outlet box, nice unit.

It works! I hooked up a cord to it it and I get 115v in and 119.6v out. Well worth every penny!
gz!

Last edited:
Jun 22, 2019 at 12:04 AM Post #337 of 547

oneguy

1000+ Head-Fier
Joined
May 30, 2015
Posts
1,140
Likes
517
Location
Texas
@oneguy Can we get a pic of the beast!? I have a 91001-31 on it's way ^_^. I'm afraid of the hum though... Maybe put it inside of some type of box? I may have to make a DIY box of some sort if the hum is too bad. New Topaz will be dedicated to my PC for surge protection and hopefully some SQ benefit. We'll see.

Both of my -32 2.4 kva units have a slight hum that you can’t hear any further than 3ft away in a completely silent room. If there is anything blocking that “line of sight” the it drops significantly. I have never run my -32 500 unit by itself so I can’t comment.

EDIT: If there is nothing between the -31 125 va transformers and my ears I can begin to faintly hear them at 2 ft. If obstruct that direct “line of sight” with something as simple as cardboard it drops down to about 10 in.

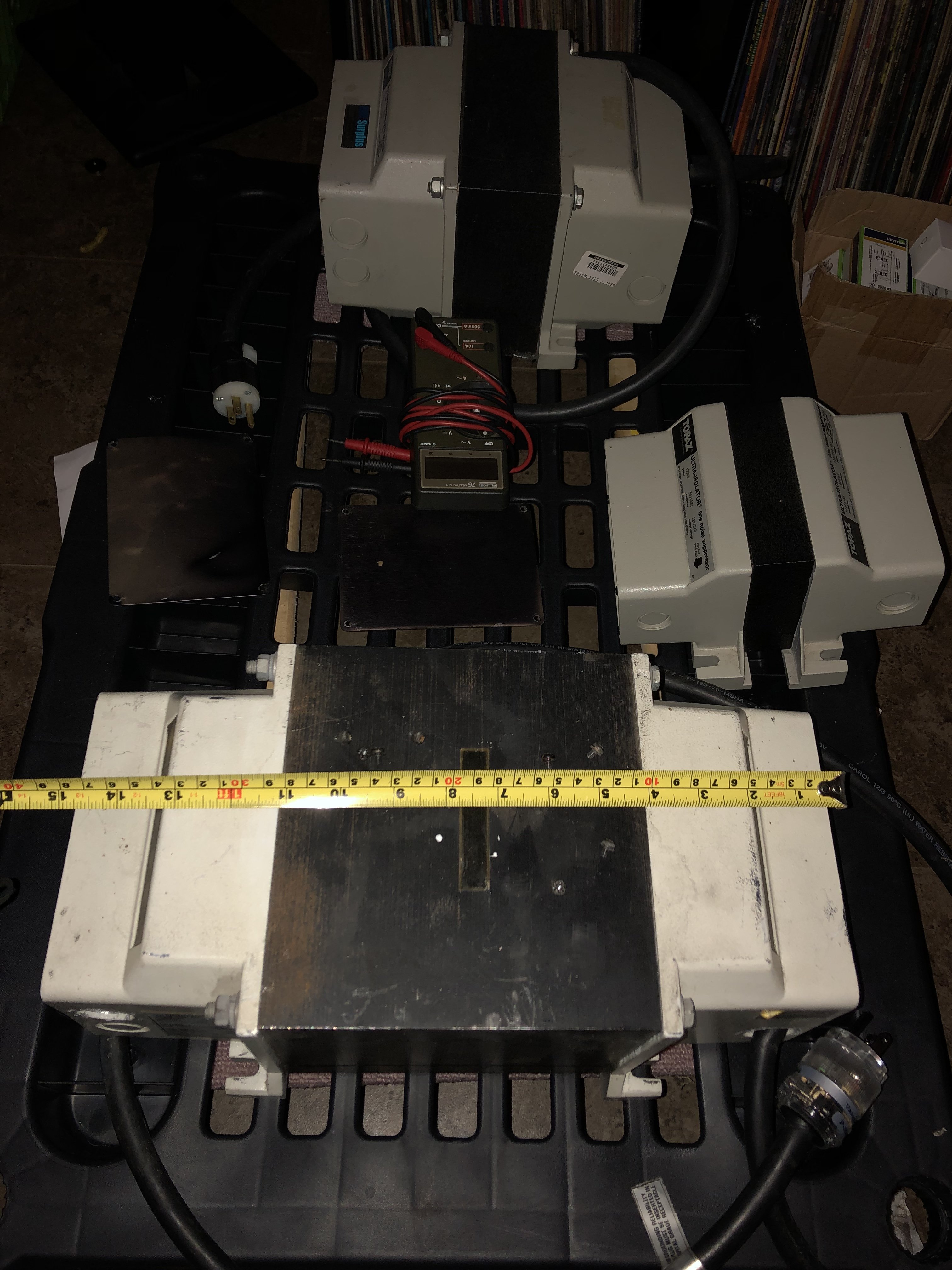

Here’s the photo of it next to a 2.4 kva and 125 va unit for reference.


Last edited:
Jun 23, 2019 at 3:09 PM Post #338 of 547

bequietjk

100+ Head-Fier
Joined
Jan 24, 2018
Posts
441
Likes
171
Location
Sacramento, CA
That is a behemoth. WOW that is a massive transformer! I wonder how hot all of those things get. My setup with all of the equipment firing it gets hot in my room, especially when im pushing my video card for gaming haha.

@Zenvota
When it comes to replacing the oil capacitor would you deem it necessary or... I really would like to replace my receptacle but I'm not sure if I should replace the cap too and what specifications to look out for in a replacement. I'm all in for do it right the first time.

Jun 23, 2019 at 3:25 PM Post #339 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
@Zenvota
When it comes to replacing the oil capacitor would you deem it necessary or... I really would like to replace my receptacle but I'm not sure if I should replace the cap too and what specifications to look out for in a replacement. I'm all in for do it right the first time.

I dont know Dx I need to look into it as well. I would imagine if its not leaking its ok to leave it, if its old and ineffective it just won't do anything, its meant to filter some extra traverse mode noise. Should be very simple to remove though.

Jun 23, 2019 at 3:58 PM Post #340 of 547

bequietjk

100+ Head-Fier
Joined
Jan 24, 2018
Posts
441
Likes
171
Location
Sacramento, CA

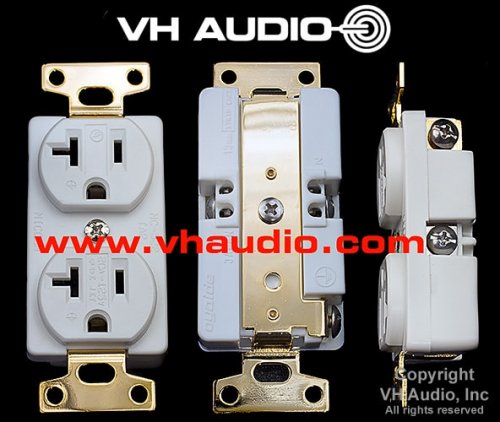

0623191245.jpg oyaide-r1.jpg I noticed on the stock receptacle that there are 4 input posts per side, and the Oyaide R1 only has 2 inputs per side. Because of the way this Topaz is wired you can see the neutral has a ground going into it as well.

If i am to wire this to work the R1 would I need to terminate the neutral and ground together into one crimp or is this not advisable?

Jun 23, 2019 at 4:05 PM Post #341 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
If i am to wire this to work the R1 would I need to terminate the neutral and ground together into one crimp or is this not advisable?
If you connect ground and neutral on the output make sure you add a gfci between the receptacle and anything you're plugging into the topaz. If you don't connect the ground and neutral on the output then it's floating and you don't need to do anything else.

Jun 23, 2019 at 4:28 PM Post #343 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
Ah! So it's the output not input. Doh! Learned something new hehe.

I may consider the Furutech GTX or the Maestro in this case. I'm afraid implementing a GFCI for the R1 is beyond my technical ability and understanding.

Using a gfci is for grounding the neutral not for using the r1

Jun 23, 2019 at 4:37 PM Post #345 of 547

Zenvota

1000+ Head-Fier
Joined
Jan 28, 2018
Posts
1,273
Likes
477
Location
Usa
