The (new) HD800 Impressions Thread
post-14764730
Post #27,136 of 28,266

FLTWS

Headphoneus Supremus
Joined
May 1, 2016
Messages
2,211
Reaction score
2,749
Location
USA EST
Joined
May 1, 2016
Location
USA EST
Posts
2,211
Likes
2,749
Shouldn't replacement parts be the same as for HD800S?

     Share This Post
post-14764765
Post #27,138 of 28,266

leng jai

1000+ Head-Fier
Joined
Aug 3, 2005
Messages
1,118
Reaction score
51
Joined
Aug 3, 2005
Posts
1,118
Likes
51
     Share This Post
post-14766373
Post #27,139 of 28,266

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,052
Reaction score
2,197
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,052
Likes
2,197

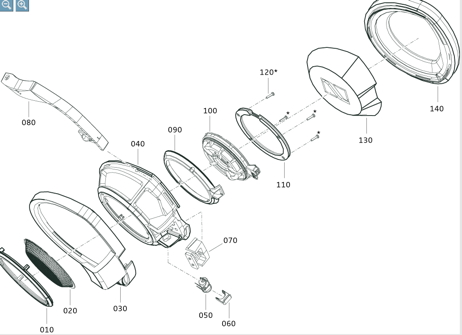

Those metal grill covers (#020 if this is what you are referring to) are p/n 533369 and the last time I checked the price it was ≈ $14 each.

HD800 exploded view.jpg

I have 2 sets that I have removed from my 800's, so if you want a set let me know and we can work out the details.
But I'd also suggest as a possibility, if SQ is high on your priority list , to remove them and see if there is any change for the better, or not.


JJ

     Share This Post
post-14766510
Post #27,140 of 28,266

leng jai

1000+ Head-Fier
Joined
Aug 3, 2005
Messages
1,118
Reaction score
51
Joined
Aug 3, 2005
Posts
1,118
Likes
51
Those metal grill covers (#020 if this is what you are referring to) are p/n 533369 and the last time I checked the price it was ≈ $14 each.



I have 2 sets that I have removed from my 800's, so if you want a set let me know and we can work out the details.
But I'd also suggest as a possibility, if SQ is high on your priority list , to remove them and see if there is any change for the better, or not.


JJ
Yeah I saw that picture but I couldn't find a link to actually buy that part by itself. Do you know where exactly on the site you can buy it?

I'm open to SQ improvements, what is the difference with the grills off? First time I've heard of that making a difference to the sound quality.

     Share This Post
post-14766534
Post #27,141 of 28,266

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,052
Reaction score
2,197
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,052
Likes
2,197
I usually have to call Sennheiser and talk to the repair/parts department to order the parts I need for the 800's.
I've never been able to order them online.

What I noticed after removing the grills was a less veiled acoustic presentation.
Less added resonances that makes for a 'cleaner' experience.

It is (relatively) easy to remove them and then put them back in, to determine if this is an improvement, or not, for you, assuming you have the tools and know what you are doing, etc.
It is one of 3 basic mods I have performed on my 800's.

JJ

Last edited:
     Share This Post
post-14766542
Post #27,142 of 28,266

leng jai

1000+ Head-Fier
Joined
Aug 3, 2005
Messages
1,118
Reaction score
51
Joined
Aug 3, 2005
Posts
1,118
Likes
51
I usually have to call Sennheiser and talk to the repair/parts department to order the parts I need for the 800's.
I've never been able to order them online.

What I noticed after removing the grills was a less veiled acoustic presentation.
Less added resonances that makes for a 'cleaner' experience.

It is (relatively) easy to remove them and then put them back in, to determine if this is an improvement, or not, for you, assuming you have the tools and know what you are doing, etc.
It is one of 3 basic mods I have performed on my 800's.

JJ
Sound interesting, do you have a guide or tutorial handy for removing them? I suppose I'll have to do it if I want to replace them anyway.

     Share This Post
post-14766584
Post #27,143 of 28,266

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,052
Reaction score
2,197
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,052
Likes
2,197
No I don't have a write up, but perhaps there is a you-tube video.
It's really not that hard, assuming you are familiar with performing such delicate tear downs, not to mention putting it all back together, as there are only 6 tiny torx screws.
Just make sure you don't slip with the torx bits and don't force anything.
These 800's are designed very well for being repaired/modified/taken apart and re-assembled, multiple times.

JJ

     Share This Post
post-14766764
Post #27,144 of 28,266

leng jai

1000+ Head-Fier
Joined
Aug 3, 2005
Messages
1,118
Reaction score
51
Joined
Aug 3, 2005
Posts
1,118
Likes
51
No I don't have a write up, but perhaps there is a you-tube video.
It's really not that hard, assuming you are familiar with performing such delicate tear downs, not to mention putting it all back together, as there are only 6 tiny torx screws.
Just make sure you don't slip with the torx bits and don't force anything.
These 800's are designed very well for being repaired/modified/taken apart and re-assembled, multiple times.

JJ
Might have a look on Youtube. Do you mind posting a picture of what it looks like with the grills off?

     Share This Post
post-14768374
Post #27,145 of 28,266

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,052
Reaction score
2,197
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,052
Likes
2,197
Sure, here you go.

Note: I have changed the small mesh screens to felt, in the very center of the driver as well

JJ


     Share This Post
  • Like
Reactions: omniweltall
post-14768407
Post #27,146 of 28,266

Whitigir

Headphoneus Supremus
Joined
Oct 14, 2013
Messages
19,557
Reaction score
14,856
Joined
Oct 14, 2013
Posts
19,557
Likes
14,856
Sure, here you go.

Note: I have changed the small mesh screens to felt, in the very center of the driver as well

JJ

Changing the center grill with felt would alternate the sound significantly wouldn’t it ? What effects have u observed by far ? Thank you

     Share This Post
post-14768563
Post #27,147 of 28,266

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,052
Reaction score
2,197
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,052
Likes
2,197
I didn't notice much, if any, change at all.
I even tried with it being completely open with the same results.

And yeah I thought I had really messed up and might need all new drivers etc.
I mean that is the center of the driver and the 'back wave port' so to speak, so I was in 'unknown territory' so to speak.
Until I listened, and listened some more as I continued to fuss with this 'change'…

The only reason I changed them was because I inadvertently collapsed one of them, so I pulled it all the way out and listened, then pulled the other side and listened again etc.
All the way until I had installed the felt inserts and have left it that way ever since.
They aren't even glued in…

JJ

Last edited:
     Share This Post
  • Like
Reactions: Whitigir
post-14770926
Post #27,148 of 28,266

eeagle

100+ Head-Fier
Joined
Dec 3, 2005
Messages
319
Reaction score
140
Location
FL, Space Coast
Joined
Dec 3, 2005
Location
FL, Space Coast
Posts
319
Likes
140
I didn't notice much, if any, change at all.
I even tried with it being completely open with the same results.

And yeah I thought I had really messed up and might need all new drivers etc.
I mean that is the center of the driver and the 'back wave port' so to speak, so I was in 'unknown territory' so to speak.
Until I listened, and listened some more as I continued to fuss with this 'change'…

The only reason I changed them was because I inadvertently collapsed one of them, so I pulled it all the way out and listened, then pulled the other side and listened again etc.
All the way until I had installed the felt inserts and have left it that way ever since.
They aren't even glued in…

JJ
Interesting info and experience, thanks. The felt insert reminds me of the SuperDupont Resonator (SDR) that is so popular among many HD800 owners.

Another interesting thread w/some pictures

Last edited:
     Share This Post
post-14770969
Post #27,149 of 28,266

Whitigir

Headphoneus Supremus
Joined
Oct 14, 2013
Messages
19,557
Reaction score
14,856
Joined
Oct 14, 2013
Posts
19,557
Likes
14,856
That is the part that hd800s has and regular 800 doesnt :)

helmholtz resonator

I think Sennheiser did some speacial researches to come out with the materials for it to revise into 800s

Last edited:
