ROFL! JJ started it....I'm just trying to be a good student and show that I'm paying attention. :stuck_out_tongue: :stuck_out_tongue:

I'm following along to see the final results of this experiment. 😏😁

     Share This Post
  • Like
Reactions: bcowen
post-15924133
Post #1,803 of 1,834

Tjj226 Angel

500+ Head-Fier
Joined
Oct 20, 2012
Messages
759
Reaction score
197
Joined
Oct 20, 2012
Posts
759
Likes
197
Well, the 47k resistors didn't do much. Took "loud" from 7:00 to maybe 7:30. Tried a few other combinations, and finally with this combo (22k R1 and 4.7k R2) I'm getting the volume control up into the 11:00 to 12:00 position. I'm happy with that, although the input voltage reduction (from 2.0v down to 0.352v) seems a bit extreme which makes me even more suspicious of that pot. At least now I know this will work, but before I begin formal surgery I'm going to go ahead and swap the pot and see if the result is the same. And glory be...I just happen to have Rikens in those values. LOL!

One last question though: the drastic reduction doesn't pose any risk to the source component does it? Right now it's a Modi Multibit, but the Bifrost 2 that's in normal use has the same 2.0v output...

No risk to your components.

     Share This Post
  • Like
Reactions: bcowen
post-15924149
Post #1,804 of 1,834

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
5,414
Reaction score
9,973
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
5,414
Likes
9,973
     Share This Post
post-15924166
Post #1,805 of 1,834

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,189
Reaction score
2,469
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,189
Likes
2,469
If it were me…
I'd opt for getting the pot in the 10-11 range as that means using a bit larger resistor values, which doesn't lower the input Ω of the amp quite as much.
But if you don't have those resistor values 'handy' then go with what is at hand.

As for changing the pot itself, yes now that you can compare the differences (albeit in only a minimal sorta way) that would be the next step.

It will be interesting to see what you notice after the new pot goes in.

JJ

     Share This Post
  • Like
Reactions: JKDJedi and bcowen
post-15924189
Post #1,806 of 1,834

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
5,414
Reaction score
9,973
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
5,414
Likes
9,973
If it were me…
I'd opt for getting the pot in the 10-11 range as that means using a bit larger resistor values, which doesn't lower the input Ω of the amp quite as much.
But if you don't have those resistor values 'handy' then go with what is at hand.

As for changing the pot itself, yes now that you can compare the differences (albeit in only a minimal sorta way) that would be the next step.

It will be interesting to see what you notice after the new pot goes in.

JJ
Good to know...thanks. I've got Rikens in other values, so perhaps can up the values a bit. Pot surgery is scheduled for tomorrow. :grinning:

     Share This Post
  • Like
Reactions: JKDJedi
post-15924192
Post #1,807 of 1,834

Tjj226 Angel

500+ Head-Fier
Joined
Oct 20, 2012
Messages
759
Reaction score
197
Joined
Oct 20, 2012
Posts
759
Likes
197
If it were me…
I'd opt for getting the pot in the 10-11 range as that means using a bit larger resistor values, which doesn't lower the input Ω of the amp quite as much.
But if you don't have those resistor values 'handy' then go with what is at hand.

As for changing the pot itself, yes now that you can compare the differences (albeit in only a minimal sorta way) that would be the next step.

It will be interesting to see what you notice after the new pot goes in.

JJ

Thats not a bad idea, but I don't think its all that useful either. So long as he doesn't use a preamp to drive the headphone amp (which would sort of defeat the point of adding the voltage divider in the first place), he should be fine.

His input impedance will be roughly 25K or so which is more than fine for most sources.

Theoretically the best thing he could do is fashion himself his own custom passive preamp, and remove the internal pot all together.

     Share This Post
post-15924605
Post #1,808 of 1,834

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,189
Reaction score
2,469
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,189
Likes
2,469
So I added Hovland SuperCaps as bypass caps for the main B+ power supply feed and for the bias caps that feed the 71A bias current.
They are settling in now.

And with the several recent changes, the SQ has been increasing, but I'm just now approaching the 20+ hr run time mark, where the SQ tends to reach a peak and the high water mark moves up a notch or 2 or 497845…

But these changes lately are remarkable in that the SQ across the board has taken a substantial Mutha May I step skyward.

The playback system seems to have slipped out the back, leaving just the musicians playing between my ears.
It is especially rewarding listening to massed strings, from quartets all the way to big orchestral pieces, mostly because the the 'blur factor' I usually hear has lessened to the degree that I can really easily track individual violins, cellos, bass's etc. in quartets, quintets, sextets etc.
And during really complex musical passages where the system tended to 'squish' much of the same harmonic signatures together into a single mass of sound, this has lessened considerably, to the point that I can hear different locations of the different violins etc in their section of the orchestra.

This is a 'serious test' of the resolving power of any system, let alone the recording process and everything in between.
To be able to 'pick out' a single instrument from a sea of them, or a single 'voice' while the whole rest of the orchestra is playing, is noteworthy in and of itself.

And the initial 'kick' or LEDI (Leading Edge Dynamic Impact) I mentioned previously has become even more solid, as in the smack of a cymbal or snap of a snare drum etc all now have more 'mass'/power behind them, are more visceral, when they smack me upside my head.

And the S/S (Spoky/Scary) factor has risen to the point that every 'voice' now has a more complete sound signature.
Put another way the harmonic structure of all 'voices' has become 'richer', more harmonically complete, more complex and with additional sonority and REALNESS.
This in turn yields a more 'realistic' acoustic soundstage which is coupled even more closely with all of the 'voices' that are playing and acoustically 'exciting' the space.

It's like there is more there, there, no matter what is playing, or hearing my music as if anew.
Again…

JJ

     Share This Post
  • Like
Reactions: bcowen
post-15924901
Post #1,809 of 1,834

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
5,414
Reaction score
9,973
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
5,414
Likes
9,973
So I added Hovland SuperCaps as bypass caps for the main B+ power supply feed and for the bias caps that feed the 71A bias current.
They are settling in now.

And with the several recent changes, the SQ has been increasing, but I'm just now approaching the 20+ hr run time mark, where the SQ tends to reach a peak and the high water mark moves up a notch or 2 or 497845…

But these changes lately are remarkable in that the SQ across the board has taken a substantial Mutha May I step skyward.

The playback system seems to have slipped out the back, leaving just the musicians playing between my ears.
It is especially rewarding listening to massed strings, from quartets all the way to big orchestral pieces, mostly because the the 'blur factor' I usually hear has lessened to the degree that I can really easily track individual violins, cellos, bass's etc. in quartets, quintets, sextets etc.
And during really complex musical passages where the system tended to 'squish' much of the same harmonic signatures together into a single mass of sound, this has lessened considerably, to the point that I can hear different locations of the different violins etc in their section of the orchestra.

This is a 'serious test' of the resolving power of any system, let alone the recording process and everything in between.
To be able to 'pick out' a single instrument from a sea of them, or a single 'voice' while the whole rest of the orchestra is playing, is noteworthy in and of itself.

And the initial 'kick' or LEDI (Leading Edge Dynamic Impact) I mentioned previously has become even more solid, as in the smack of a cymbal or snap of a snare drum etc all now have more 'mass'/power behind them, are more visceral, when they smack me upside my head.

And the S/S (Spoky/Scary) factor has risen to the point that every 'voice' now has a more complete sound signature.
Put another way the harmonic structure of all 'voices' has become 'richer', more harmonically complete, more complex and with additional sonority and REALNESS.
This in turn yields a more 'realistic' acoustic soundstage which is coupled even more closely with all of the 'voices' that are playing and acoustically 'exciting' the space.

It's like there is more there, there, no matter what is playing, or hearing my music as if anew.
Again…

JJ
Hmmmm.....I'd only need 44 of those (22 / channel) to get to the 100 uF capacitance level @Tjj226 Angel recommended for the Darkvoice. And a wee bit bigger chassis. But perhaps spending $2200 on caps for a $200 amp doesn't make the best sense. :grimacing::grinning:



Seriously, have you experimented with any of the Mundorf oil caps? Just wondering how the Hovlands compare if you have (I've never tried the Hovlands).

     Share This Post
post-15925350
Post #1,810 of 1,834

Tjj226 Angel

500+ Head-Fier
Joined
Oct 20, 2012
Messages
759
Reaction score
197
Joined
Oct 20, 2012
Posts
759
Likes
197
Hmmmm.....I'd only need 44 of those (22 / channel) to get to the 100 uF capacitance level @Tjj226 Angel recommended for the Darkvoice. And a wee bit bigger chassis. But perhaps spending $2200 on caps for a $200 amp doesn't make the best sense. :grimacing::grinning:



Seriously, have you experimented with any of the Mundorf oil caps? Just wondering how the Hovlands compare if you have (I've never tried the Hovlands).
I have. Mundorf has always just been a non start for me and I think john would agree. Mundorf just never sounds right. Its almost like they are doing something wrong in manufacturing.

While we are talking about it, can you measure across those three output caps and give me the width, length, and height measurements? I bet you I can find you a 100uf cap to fit in there.

     Share This Post
  • Like
Reactions: bcowen and JKDJedi
post-15925567
Post #1,811 of 1,834

bcowen

Headphoneus Supremus
Joined
Jan 3, 2018
Messages
5,414
Reaction score
9,973
Location
North Carolina
Joined
Jan 3, 2018
Location
North Carolina
Posts
5,414
Likes
9,973
I have. Mundorf has always just been a non start for me and I think john would agree. Mundorf just never sounds right. Its almost like they are doing something wrong in manufacturing.

While we are talking about it, can you measure across those three output caps and give me the width, length, and height measurements? I bet you I can find you a 100uf cap to fit in there.

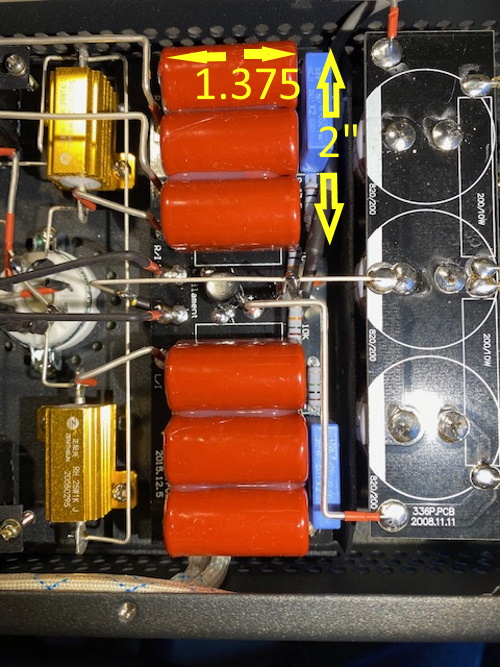

Awesome! Width and length below. They sit exactly 1" above the circuit board in height, but there is a bit more than 1.25" of room between the circuit board and bottom cover plate.

DV Cap Sizes.jpg

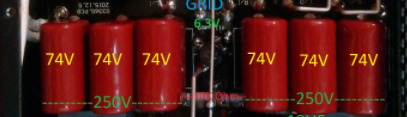

Edit: this might be helpful. Below was done by fellow HeadFi'er @Absoltuion . The 74v is what he measured in his amp, and the 250v is the rating on the cap.



Last edited:
     Share This Post
  • Like
Reactions: JKDJedi
post-15926118
Post #1,813 of 1,834

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,189
Reaction score
2,469
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,189
Likes
2,469
Hmmmm.....I'd only need 44 of those (22 / channel) to get to the 100 uF capacitance level @Tjj226 Angel recommended for the Darkvoice. And a wee bit bigger chassis. But perhaps spending $2200 on caps for a $200 amp doesn't make the best sense. :grimacing::grinning:



Seriously, have you experimented with any of the Mundorf oil caps? Just wondering how the Hovlands compare if you have (I've never tried the Hovlands).
The Hovlands I have are used as bypass caps, meaning they are added to an existing larger value cap to 'augment' it's performance.
Think of it as adding a 'terbo' to the circuit.

And Hovland does have larger values but at an ever increasing cost, so I use them for their 'terbo' function.

And as Tjj alluded to, I too have used the mundorfs and was unimpressed, as in 'ok what else can I use…'

The Hovlands have 2 'flavors' with 2 different types for each 'flavor'; lower voltage rated for speaker crossovers, and higher voltage rated for tube circuits, and have proven themselves to be 'superior' albeit costly and in some cases somewhat rare (read even more costly).

There are 'alternatives' which approach the Hovlands in SQ but are not necessarily less expensive and in some cases are even more so.

The 'trick' here is to use a large value cap of moderate quality (less costly) and bypass it with the higher quality 'terbo' caps, which also are less costly because they are much smaller in value.
The 'general rule' is to use a capacitance ratio of 100:1, meaning the largest value cap should be bypassed by a cap with 1/100 the capacitance, or there abouts.
The net effect will be, an improvement in the slew rate of the cap-bank (the big and small cap combined), a SQ improvement in the top end, and added clarity, focus, inner detail etc.
And the kicker is this 'trick' can significantly improve the SQ when used in 'key' locations within the circuit.

JJ

     Share This Post
  • Like
Reactions: bcowen
post-15928121
Post #1,814 of 1,834

johnjen

Headphoneus Supremus
Joined
Apr 13, 2010
Messages
3,189
Reaction score
2,469
Location
Well Grounded, here and now
Joined
Apr 13, 2010
Location
Well Grounded, here and now
Posts
3,189
Likes
2,469
MAJOR EXPERIMENT UNDER WAY!!!!!
Details to follow!
And just when the amp started to really SING!!!!





Ok, so we went full on crazy, and changed the output wiring configuration from a more traditional cap & resistor bypass configuration, to an Ultrapath circuit topology.
And this when the SQ was still climbing to the stratosphere, only to have our 'need to know' exert itself and set off the needed steps to find out…

The change itself was fairly easy as really all that happened was to change the cathode cap from parallel to the bias resistor, which runs from from the cathode to ground.
To, connect the B+ feed at the primary of the output xfmr to then feed the cap and then to the cathode.

Into this.

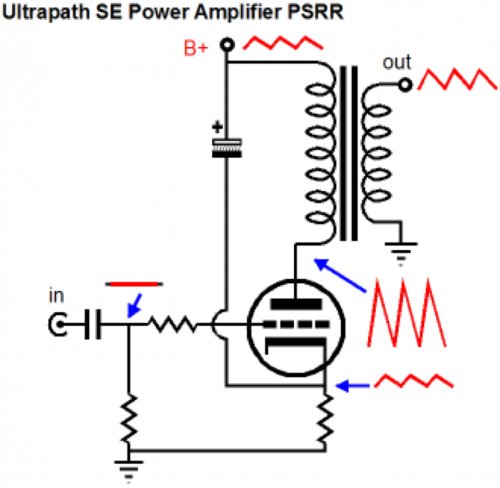

purp-amp output schematic.jpg

And of course it's still settling in as there is some dialing in yet to do.
The noise floor is now audible and the cap being used needs more hrs, (no surprise there right?)
So the search is on for a tweako cap for this setup, which fortunately should be easy(r) to find and won't break the bank nor require it's own sub-chassis :thinking: :ksc75smile:. hahahahahahahaha

JJ

Last edited:
     Share This Post
  • Like
Reactions: bcowen
post-15931707
Post #1,815 of 1,834

therremans

100+ Head-Fier
Joined
Sep 30, 2020
Messages
128
Reaction score
321
Location
Denver, Colorado
Joined
Sep 30, 2020
Location
Denver, Colorado
Posts
128
Likes
321
Age
34
Can anyone confirm that the yellow is left channel and Right, right channel? I don’t want to assume.

Thanks
