so, can we make this to sound like the sendy aiva ?
I haven't heard the Aiva but I would say the Sendy pads are a good start and make a massive improvement to the quality of the sound (more comfortable, too), most notably the shouty, hollow mids. And since they share the driver, after you swap the pads, it's only the cup shape/resonance and rear dampening that would make a difference in the sound between the Aiva and HF580.

https://shop.musicteck.com/collections/sendyaudio/products/sendyaudio-aiva-headphone-replaceable-earpad?variant=19910738509886

     Share This Post
  • Like
Reactions: grig
post-15405635
Post #797 of 881

Restatic

Head-Fier
Joined
May 9, 2018
Messages
60
Reaction score
25
Location
Sneek
Joined
May 9, 2018
Location
Sneek
Posts
60
Likes
25
This M1060 sheepskin earpad.......... SERIOUSLY? I get midrange to rise and keep the treble same or better level. I did not know this was angled... Also subbass goes deeper. More comfort than Brainwavz oval sheepskin. Probably the best earpad I have tried so far for this headphone! :gs1000smile: One treble spike around 11kHz. Easy to EQ but I wonder if I could do some pad mods and lower it. Modded Brainwavz Oval Sheepskin pads have smoother treble but this at stock and better midrange and bass.
I told you :wink:

You will love it! Such a simple addon.... does improve the Takstar so much! I'm getting same feeling on my Takstar like I've had on an Audeze LCD-x. I do push the Takstar with OTL tube amp: Little Dot MK2.

     Share This Post
post-15405643
Post #798 of 881

Restatic

Head-Fier
Joined
May 9, 2018
Messages
60
Reaction score
25
Location
Sneek
Joined
May 9, 2018
Location
Sneek
Posts
60
Likes
25
     Share This Post
  • Like
Reactions: jasswolf
post-15406852
Post #799 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
I told you :wink:

You will love it! Such a simple addon.... does improve the Takstar so much! I'm getting same feeling on my Takstar like I've had on an Audeze LCD-x. I do push the Takstar with OTL tube amp: Little Dot MK2.
I haven't yet figured how to lower that one small treble spike complitely. Do you hear too that treble spike? My is modded so sound is quite different that urs perhaps. Kinesio tape on the inside walls helped slightly. I may try to make my own pads. Pads shape from the inside is most crucial. Is it oval, rectangle or angled. Also how big they pad is also makes sound more different. I think best is try to keep the pads big as possible.

     Share This Post
post-15411046
Post #800 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
I made some mods to the M1060 pads I have now some kinesio on the inside walls, felt and high density foam under pads. Bretty clean burst decay. Of course all my other modifications inculed. Hot spot at 11 kHz still exist. I think this headphone is still very clean of disortion. I don't hear any unwanted messy thinks but more like ringing sometimes. I can't measure disortion very well but you can get the idea where is the hot spots and they are only on the upper treble and low middle if you not mod.

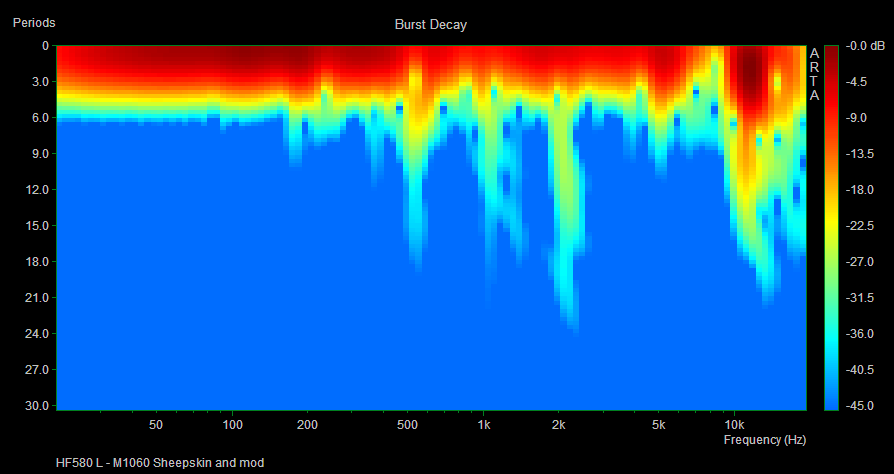

HF580 L - M1060 Sheepskin mod.png

Last edited:
     Share This Post
post-15412339
Post #801 of 881

pauldoni

New Head-Fier
Joined
Aug 26, 2019
Messages
48
Reaction score
7
Location
indonesia
Joined
Aug 26, 2019
Location
indonesia
Posts
48
Likes
7
Hi guys, anyone know how it compared to ath r70x?
I love r70x but need an upgrade for the soundstage. R70X has kinda balance sound signature, from bass mid to treble.
Is it an upgrade? Or r70x is better? Thx :)

Last edited:
     Share This Post
post-15412658
Post #802 of 881

stimuz

100+ Head-Fier
Joined
Mar 27, 2018
Messages
315
Reaction score
143
Location
HI
Joined
Mar 27, 2018
Location
HI
Posts
315
Likes
143
depends what you listen to, really. if you're a fan of electronic stuff it's ability to pull bass (eq gets it almost on par with 1060c bass) without really sacrificing much else is quite nice.

I personally think dynamics still do pre90s music better but it could be nostalgia bias for me.

also soundstage is a common complaint with the sendy drivers. as far as price performance goes for planars I don't think anything to date touches the 580.

Last edited:
     Share This Post
post-15412777
Post #803 of 881

Roderick

1000+ Head-Fier
Joined
Nov 7, 2014
Messages
1,250
Reaction score
1,083
Location
Finland
Joined
Nov 7, 2014
Location
Finland
Posts
1,250
Likes
1,083
580 is not a soundstage upgrade over r70x. Soundstage is not something planars usually do well. I also prefer r70x in general. Then again I'm not a fan of 580 so there's that.

     Share This Post
post-15415967
Post #804 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
I don't have really problems with soundstage. I think its just slight blurriness on the upper frequencies. But then again if u want best treble or better bass response? I think this HF580 does many thinks very well when modded. I have even got the midrange rise and its now perfect level. Many planars have problems at 2-4kHz. Too veiled and this headphones is not expeption. I like the planar bass response its deep, strong and clean. Bass heavy songs sound so weak on dynamic headphones or aleast on all that I have heared.

     Share This Post
post-15416261
Post #805 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
Hmm. I think I nailed it again. More back dampering. No spike treble but it still very strong. Some elevated upper bass and low mid range. Its over 95% closed headphone now. Subbass is a bit on shy side but easy to equalizer. I need check when I have more time if I need all those multible layers of back dampering. May be a bit messy and dffficult to do all my mods....

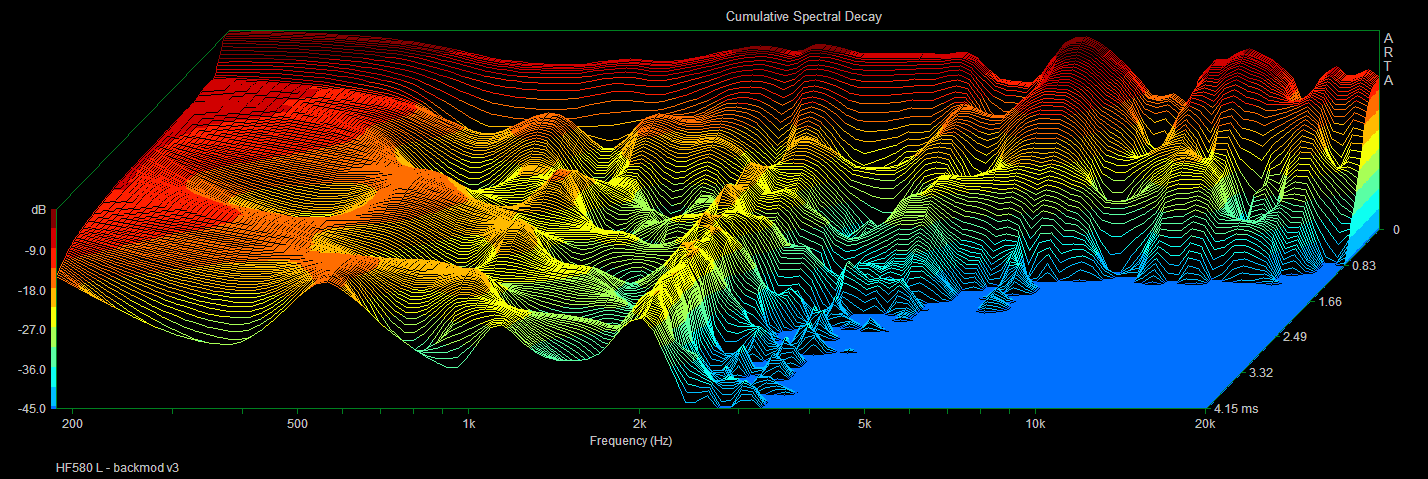

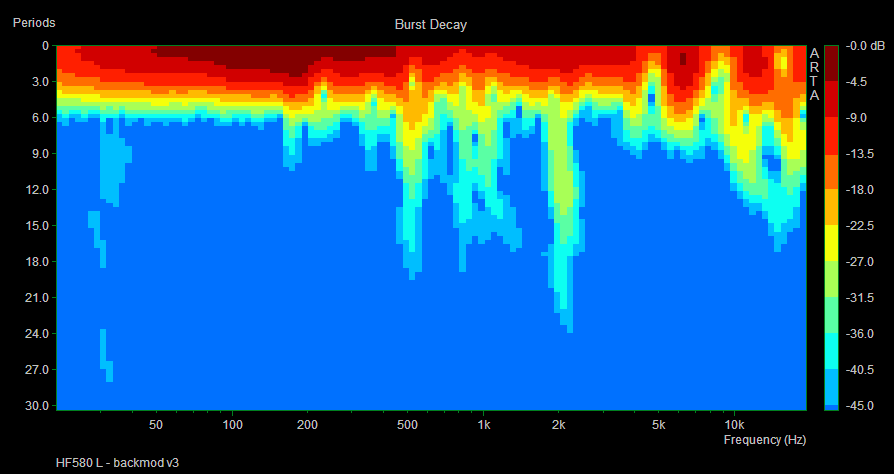

HF580 backmod v3 burst.png


hf580 backmod v3.png

     Share This Post
post-15416910
Post #806 of 881

jasswolf

New Head-Fier
Joined
Nov 2, 2019
Messages
43
Reaction score
17
Location
Australia
Joined
Nov 2, 2019
Location
Australia
Posts
43
Likes
17
Hmm. I think I nailed it again. More back dampering. No spike treble but it still very strong. Some elevated upper bass and low mid range. Its over 95% closed headphone now. Subbass is a bit on shy side but easy to equalizer. I need check when I have more time if I need all those multible layers of back dampering. May be a bit messy and dffficult to do all my mods....


Analytically you've done well, but is it preferable as a closed-back sound, was the brilliance boost right in that detail zone more welcome after the modifications?

What's the trade-off here?

     Share This Post
post-15417334
Post #807 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
Analytically you've done well, but is it preferable as a closed-back sound, was the brilliance boost right in that detail zone more welcome after the modifications?

What's the trade-off here?
Yes, I know I should have another headphone on the desk that is unmodificated to hear differenties. Sometimes I hear more subbass when modding but then again got more uneven treble.

You lose a lot sensitivity. Something like 8-10dB when doing all my mods I think mobile phone can still light this but not well.

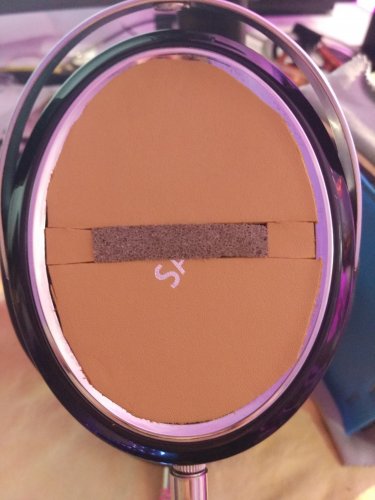

This is my latest backmod. I used leather and magnetic sheets outside because it was brettier than using paper or tape. Use something thick to seall all the leather areas and the box in the middle is medium density 3mm foam. Not sure if u need all the inside mods. Atleast someone can try and listen if its any good? Or do it need to pair with more mods.

     Share This Post
post-15417787
Post #808 of 881

Hal Rockwell

500+ Head-Fier
Joined
Nov 1, 2011
Messages
797
Reaction score
149
Location
Israel
Joined
Nov 1, 2011
Location
Israel
Posts
797
Likes
149
Age
37
After about six months with the HF580, trying numerous mods and pads, I think that I finally started to figure this one out. The problem I had with all the mods was, that they were making the treble way too elevated sibilant and piercing. It was unbearable to listen to it for more than 30 minutes, when it became too fatiguing for my ears. I decided to remove all the mods, and start all over again.

After reading someone's post in this thread (sorry, don't remember who the credit goes to), I decided to find suitable pads first, and mod later, if I'm still not satisfied with the result. At first, I started modding the HF580 cause it was lacking the sub-bass that planars supposed to have. By pressing the cups against my ears, using stock pads, I managed to regain some of the bass I was lacking, meaning that creating a good seal between the ear and the driver is paramount for experiencing what this headphone has to offer. Because of the large cups, slim original pads and the low clamping force, I noticed that there is a gap under the ear that brakes the seal.



So, using thick pads, that confirm with contour of the area around the ears is a must. I guess this is why Sandy Aiva pads work so well. Since this discovery, I only used those HM5 pads, and it sounds really good. I have numerous other HM5 pads that I'll try later and report, but from what I hear, I don't think there'll be much of an improvement, as long as there's a good seal. Maybe only if the pad is a whole and not perforated from the inside...

post-15418026
Post #809 of 881

Miiksu

100+ Head-Fier
Joined
Aug 28, 2013
Messages
263
Reaction score
95
Joined
Aug 28, 2013
Posts
263
Likes
95
Subbass is a bit shy, even modded. Why not EQ? I use now those China M1060 angled sheepskins. It's difficult to increase subbass. But some back mods helped it slightly.

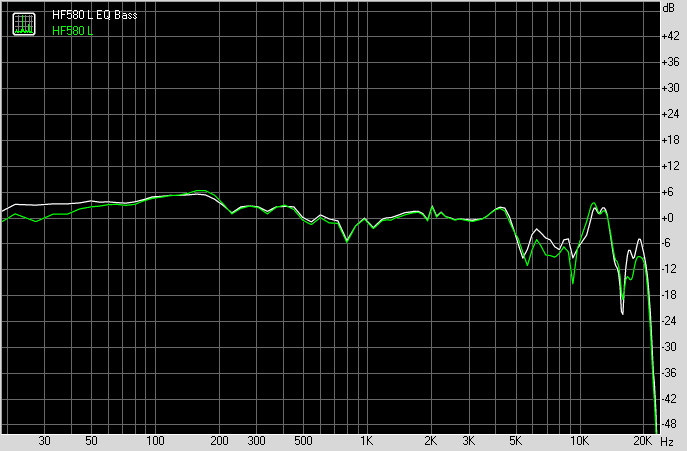

HF580 EQ bass.png

     Share This Post
