Simple PASS amp Schematic.

[JadeEast]

Nelson Pass has genously shared a new design with the world.
The firstwatt f5.First Watt: Articles

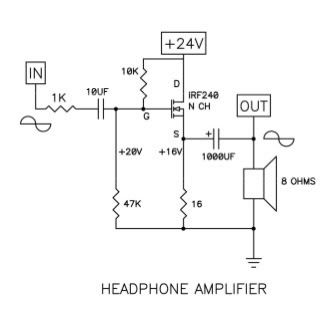

In the article about it he shares a simple schematic for a headphone amp.
It was used as a simple example to illustrate the article.
I'm wondering what people think of the viability of it as a design.



[luvdunhill]

This might be of more use:

HeadWize - Project: The Zen Headphone Amplifier by Marcello Pellerano



[amb]

That circuit is essentially the Szekeres amp, also found in the headwize library.



[Budgie]

I think that schematic leaves out the active current source that I believe the F5 uses.



[Blind Tree Frog]

Quote:

Originally Posted by amb /img/forum/go_quote.gif That circuit is essentially the Szekeres amp, also found in the headwize library.

It's a standard design that you learn when you start studying transistors.
