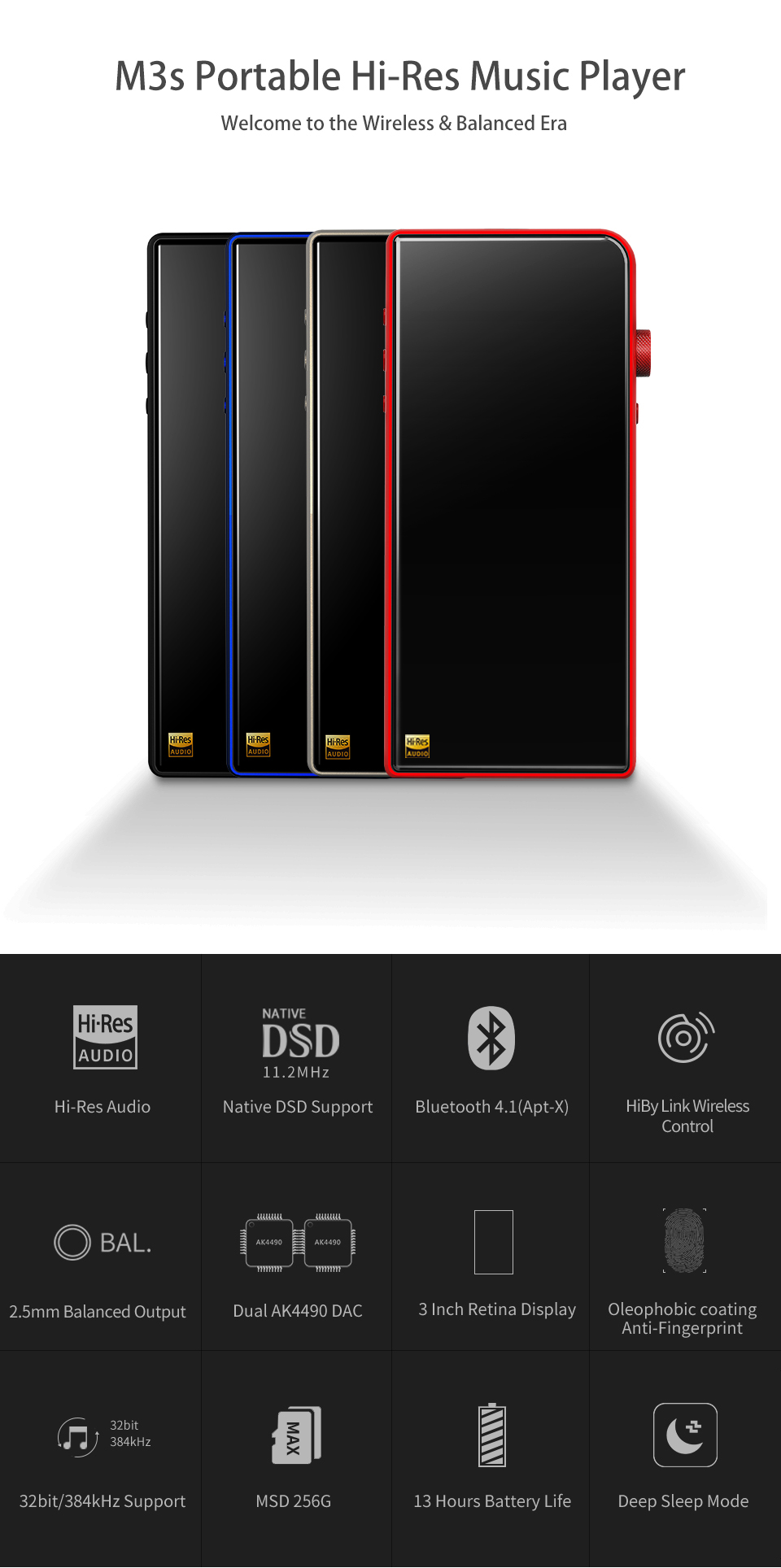

Introducing new Shanling M3s
MSRP 279 USD


Firmware updates
Videos and reviews
Tips and FAQ

Main features:

  • Fully balanced audio circuit based on dual AK4490EN DAC, followed with dual MUSE8920 and dual AD8397 headphone amps.
  • Low output impedance, to assure best compatibility with senstiive multidriver IEMs - 0.3 ohm on single ended and 0.6 ohm on balanced output
  • Support of DSD256 and PCM up to 32/384
  • Multifunctional USB C port, allowing M3s to be used both as external DAC with your computer or smarthphone, or as USB transport for external DAC. (best matched with our L2 USB cable)
  • Bluetooth 4.1 with apt-X support
  • Compatible with HiBy Link feature, control everything from your smartphone over bluetooth
  • Comfortable size at 113 x 53 x 14.5 mm, reasonable weight at 135 g
  • 3 inch retina screen with 480*800 resolution (300 PPI), newly with Oleophobic coating to reduce finger prints
  • Improved battery life with over 13 hours on single charge (balanced output reduces batttery life to 8 hours)
  • Standby/hybernation/deep sleep mode
  • Beatiful construction from two 2.5D glass panels and aluminum frame


Attachments

Last edited:
Shanling Have any question about our players? Just PM me or send me email. Stay updated on Shanling at their sponsor profile on Head-Fi.

https://www.facebook.com/Shanling-Audio-603230783166845/ https://twitter.com/ShanlingAudio https://www.instagram.com/shanlingaudio/ http://en.shanling.com/ frankie@shanling.com
post-13694336
Post #2 of 2,219

Shanling

Sponsor: Shanling
Joined
Mar 26, 2015
Messages
2,832
Reaction score
3,080
Location
Shenzhen, China
Joined
Mar 26, 2015
Location
Shenzhen, China
Posts
2,832
Likes
3,080
Firmware 1.7 update Shanling M3s:

Download from Google drive

Last edited:
Shanling Have any question about our players? Just PM me or send me email. Stay updated on Shanling at their sponsor profile on Head-Fi.

https://www.facebook.com/Shanling-Audio-603230783166845/ https://twitter.com/ShanlingAudio https://www.instagram.com/shanlingaudio/ http://en.shanling.com/ frankie@shanling.com
     Share This Post
  • Like
Reactions: Sp12er3
post-13694337
Post #3 of 2,219

Shanling

Sponsor: Shanling
Joined
Mar 26, 2015
Messages
2,832
Reaction score
3,080
Location
Shenzhen, China
Joined
Mar 26, 2015
Location
Shenzhen, China
Posts
2,832
Likes
3,080
Last edited:
Shanling Have any question about our players? Just PM me or send me email. Stay updated on Shanling at their sponsor profile on Head-Fi.

https://www.facebook.com/Shanling-Audio-603230783166845/ https://twitter.com/ShanlingAudio https://www.instagram.com/shanlingaudio/ http://en.shanling.com/ frankie@shanling.com
     Share This Post
post-13694366
Post #4 of 2,219

Shanling

Sponsor: Shanling
Joined
Mar 26, 2015
Messages
2,832
Reaction score
3,080
Location
Shenzhen, China
Joined
Mar 26, 2015
Location
Shenzhen, China
Posts
2,832
Likes
3,080
Tips and FAQ

How does the digital filters change the sound?

In M3s we use AKM AK4490 DAC and AKM prepared this useful chart explaining the functions of different filters and their effect on sound:
digital filters M3s.png


Can the single ended and balanced output be used at the same time?

It is possible, but it can lead to overheating and damaging the player. So we don't recommend this.

My M3s is warmer when using balanced output. Is it normal?

Since balanced output uses double amount of audio components, it's normal for the player to get warmer compared to single ended output.

How can I go quickly through my music library?

For quick scrolling use the prev and next buttons on left side of the player.

I messed up something during Firmware update and my unit doesn't react now, any help?


Send PM to Shanling and we will provide you with tool that can fix most software problems.

How can I set up HiBy Link for my player?

Go to our HiBY link thread, where you will find all needed info.

What is file limit on M3s?

15 000 songs

Shanling M3s USB Driver

How is the wheel attached to the player

Tip: Press and hold the wheel while on now playing screen for quick access to settings and more options.

Last edited:
Shanling Have any question about our players? Just PM me or send me email. Stay updated on Shanling at their sponsor profile on Head-Fi.

https://www.facebook.com/Shanling-Audio-603230783166845/ https://twitter.com/ShanlingAudio https://www.instagram.com/shanlingaudio/ http://en.shanling.com/ frankie@shanling.com
     Share This Post
  • Like
Reactions: Sp12er3
post-13694397
Post #5 of 2,219

BartSimpson1976

1000+ Head-Fier
Joined
Mar 21, 2015
Messages
1,244
Reaction score
254
Location
Germany
Joined
Mar 21, 2015
Location
Germany
Posts
1,244
Likes
254
Hm, as it has been announced today I believe it should have no issues with the new 400GB card.
Sounds all absolutely great for me, especially at that price point!

But do I see correctly that it will not be real USB-C but only USB 2.0 in USB-C shape?

Last edited:
     Share This Post
  • Like
Reactions: alphanumerix1
post-13694423
Post #6 of 2,219

eaglesgift

500+ Head-Fier
Joined
May 19, 2017
Messages
544
Reaction score
413
Location
Chiang Mai, Thailand
Joined
May 19, 2017
Location
Chiang Mai, Thailand
Posts
544
Likes
413
Hm, as it has been announced today I believe it should have no issues with the new 400GB card.
Sounds all absolutely great for me, especially at that price point!

But do I see correctly that it will not be real USB-C but only USB 2.0 in USB-C shape?
USB-C is a connector type, like micro USB or mini USB, not a USB standard.

     Share This Post
  • Like
Reactions: alphanumerix1
post-13694519
Post #11 of 2,219

HombreCangrejo

100+ Head-Fier
Joined
Sep 16, 2015
Messages
222
Reaction score
129
Joined
Sep 16, 2015
Posts
222
Likes
129
Does single-ended output use both DACs? Headphone outputs in the bottom is great for me, more logical in all senses. Battery life in balanced could have been better but, hey, this is a world of compromises, it's more powerful than single-ended and a bigger battery won't have allowed to keep the form factor and 135g. As long as I don't need streaming, this model really suits my needs, also in price.

     Share This Post
post-13694538
Post #12 of 2,219

alphanumerix1

1000+ Head-Fier
Joined
May 7, 2017
Messages
1,030
Reaction score
555
Location
Brisbane, Australia
Joined
May 7, 2017
Location
Brisbane, Australia
Posts
1,030
Likes
555
Another interest release from shanling wouldnt mind reviewing a unit.

     Share This Post
post-13694558
Post #13 of 2,219

Niyologist

Headphoneus Supremus
Joined
Oct 23, 2010
Messages
2,296
Reaction score
607
Location
NYC
Joined
Oct 23, 2010
Location
NYC
Posts
2,296
Likes
607
I need to get this. <_<

     Share This Post
  • Like
Reactions: nmatheis
post-13694610
Post #15 of 2,219

jazonmarkz

New Head-Fier
Joined
May 9, 2017
Messages
4
Reaction score
1
Joined
May 9, 2017
Posts
4
Likes
1
Nice specs, just what I need. better battery and low output impedance! is the card slot also dual or just single slot?

     Share This Post
  • Like
Reactions: stefzulj
