First off let me say I did search the forum and was unable to find an answer to my question. I picked up a pair of HD558s that I plan on using for gaming. I need a 1/8" stereo jack on them, and really don't like using the adapter. I know I can cut the plug off of the stock cable, but don't want to if I don't have to.

On the detachable cable it has a 2.5mm TRRS connector and when I tested it with a multi meter the last ring and sleeve are both ground. I have also found out that the locking portion on the headset can be removed by taking out 2 screws leaving a 2.5mm TRRS jack in the headset. My question is does anyone know if there would be any harm if I plug a 2.5mm TRS connector in instead of the TRRS connector on the headphone end? I am thinking about making a cable for them.

By everything I have learned I didn't think it would because the last Ring and Sleeve on the TRRS are both ground and if I plug a TRS connector into that jack both of the ground contacts would be connected to the sleeve. I know I would be loosing dedicated grounds at the headphone end, but the connector going into the equipment is a stereo connector any way and only has 1 ground point.

Any thought or input would be helpful.

     Share This Post
post-8239702
Post #2 of 48

PurpleAngel

Headphoneus Supremus
Joined
Sep 1, 2011
Messages
28,892
Reaction score
1,790
Location
California
Joined
Sep 1, 2011
Location
California
Posts
28,892
Likes
1,790
Last I heard, Sennheiser will be coming out with the 2.5mm to 3.5mm cable.....but when?

     Share This Post
post-8240793
Post #3 of 48

dsdragon83

New Head-Fier
Joined
May 10, 2011
Messages
17
Reaction score
11
Joined
May 10, 2011
Posts
17
Likes
11
Tonight I ended up testing out what I though, and it worked.  I had a TRS 2.5mm cable so I opened the headphones up and unscrewed the locking ring.  Once it is removed I was able to slide the 2.5mm cable into place, then tested it again with the multi-meter to make sure that the left, right, and ground were still correct.  After checking and double checking everything I plugged them in and they worked exactly like with the 4 pole factory cable except with a 3.5mm plug and about 1/3 the length.

     Share This Post
post-8240818
Post #4 of 48

jackwess

fabio-fi, jackwess and formula1 are all the same person.
Joined
Jun 14, 2011
Messages
1,375
Reaction score
41
Joined
Jun 14, 2011
Posts
1,375
Likes
41
Good to know man, do you have pics of your small project? it will be useful for head-fi'ers

     Share This Post
post-8240830
Post #5 of 48

dsdragon83

New Head-Fier
Joined
May 10, 2011
Messages
17
Reaction score
11
Joined
May 10, 2011
Posts
17
Likes
11
I don't have any right now, but I will take some and post them here tomorrow.

I decided to go ahead and take some pictures of it. I am planning on using this for a gaming headset so there is a mic attached to the side of it.  If the pictures are too big let me know and I will resize them.

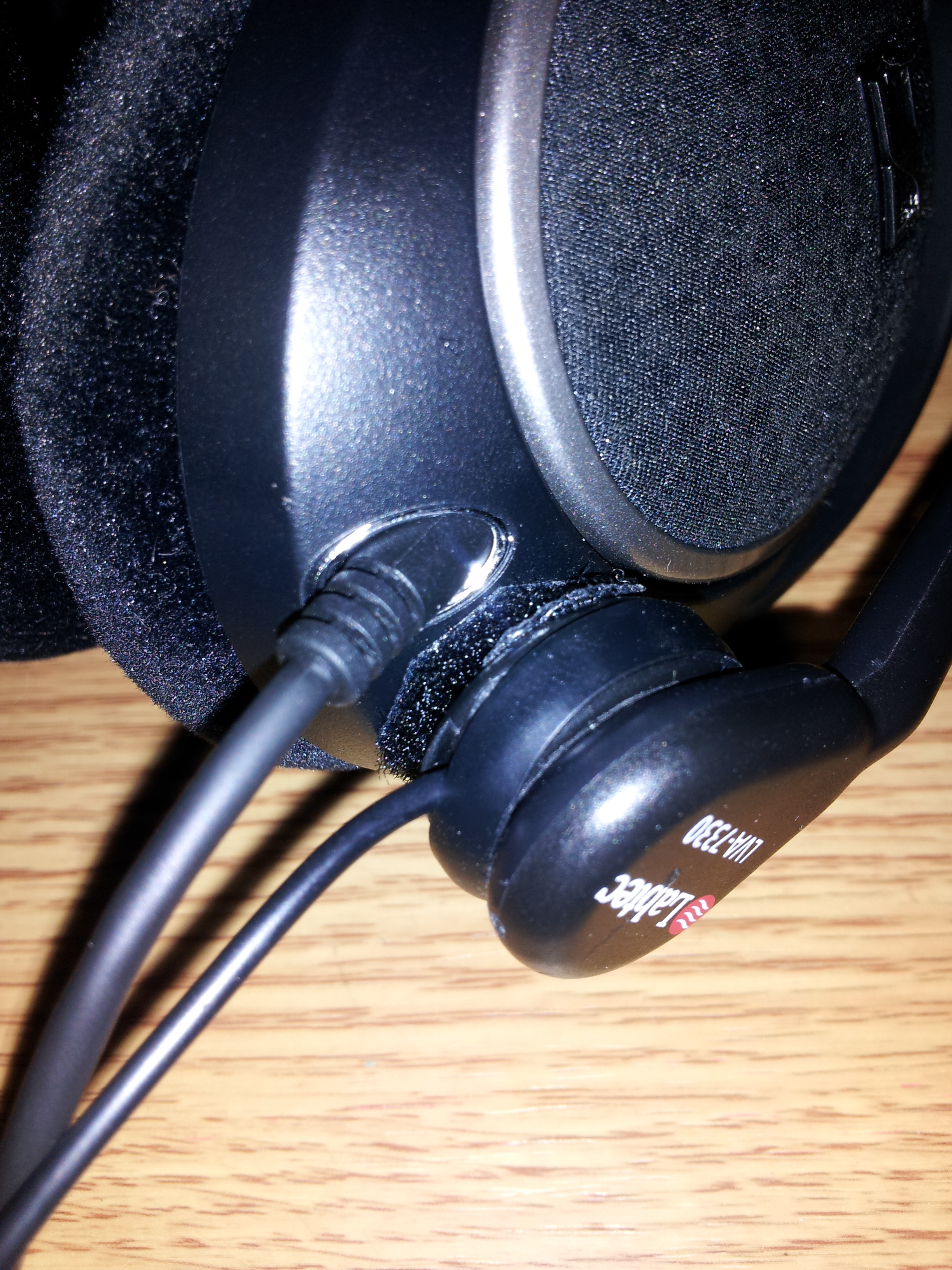

Here is the headset with the test cable and mic.


This is the cable I used for right now to test with. It is the XBox 360 chat cable that came with my Astro Mixamp.


Remove the 4 screws shown here and then the plastic locking piece will come out. After the locking ring is removed screw the PCB back in place.



this is the piece you want to remove



     Share This Post
  • Like
Reactions: Rocko1
post-8240986
Post #6 of 48

Sdmark

New Head-Fier
Joined
Dec 16, 2011
Messages
20
Reaction score
10
Joined
Dec 16, 2011
Posts
20
Likes
10
Awesome info dsdragon - I thought I was stuck with stock for my 598s but you've opened up the world of easy recabling to us. Thx for the pics too - really helpful.

     Share This Post
post-8241011
Post #7 of 48

dsdragon83

New Head-Fier
Joined
May 10, 2011
Messages
17
Reaction score
11
Joined
May 10, 2011
Posts
17
Likes
11
Glad i could be some help. Also i forgot to mention that if anyone recables and uses a 4 pole connecton, like the one that was originally used, make sure that the last two connections (the last ring and sleve)are the ground. I dont want anyone shorting out their headset.

     Share This Post
post-8277252
Post #8 of 48

rodea93

New Head-Fier
Joined
Apr 3, 2012
Messages
2
Reaction score
0
Joined
Apr 3, 2012
Posts
2
Likes
0
I was inspired by this post and went to my local radioshack to find a 2.5mm cable. They didn't have one, but they did have a 2.5mm to 3.5mm stereo adapter for like 6 dollars, which can be easily sanded down to fit snugly inside the input port with no modification of the headphone! it works fine, and can be used with any 3.5mm cable :D


     Share This Post
post-8277520
Post #9 of 48

dsdragon83

New Head-Fier
Joined
May 10, 2011
Messages
17
Reaction score
11
Joined
May 10, 2011
Posts
17
Likes
11
I found an adapter on ebay that fits perfect once you remove the locking ring.  Here is the ebay link, and a picture of the adapter.  I just got it in from china but is an exact fit. it is a 3.5mm stereo female to 2.5mm male 4 pole adapter. Ignore the velcro in the pic, that is for my labtec mic so I can use the headphones while gaming.
http://www.ebay.com/itm/260954472351?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649




     Share This Post
post-8284888
Post #10 of 48

rodea93

New Head-Fier
Joined
Apr 3, 2012
Messages
2
Reaction score
0
Joined
Apr 3, 2012
Posts
2
Likes
0
How tightly does that adapter fit into the headphone? That one looks much nicer than the one I have, but the first one I bought looked like that and it kept coming unplugged during normal use

     Share This Post
post-8284904
Post #11 of 48

dsdragon83

New Head-Fier
Joined
May 10, 2011
Messages
17
Reaction score
11
Joined
May 10, 2011
Posts
17
Likes
11
The one I received fits very well, and has not fallen out of my headset, but if the cable gets caught on something, or pulled on hard it will come out. My first thought was to take the factory cable, cut off the end that goes into the headset and attach a 3.5mm stereo female plug to it, but decided not to for now.  If the adapter is loose I would think a small amount of electrical tape or some heat shrink my also add enough friction to keep it in place.

     Share This Post
post-8382518
Post #12 of 48

killjoyxp

New Head-Fier
Joined
Oct 14, 2011
Messages
4
Reaction score
0
Joined
Oct 14, 2011
Posts
4
Likes
0
Quote:
I found an adapter on ebay that fits perfect once you remove the locking ring.  Here is the ebay link, and a picture of the adapter.  I just got it in from china but is an exact fit. it is a 3.5mm stereo female to 2.5mm male 4 pole adapter. Ignore the velcro in the pic, that is for my labtec mic so I can use the headphones while gaming.

You are a godsend

     Share This Post
post-8553650
Post #13 of 48

VeXun

100+ Head-Fier
Joined
Aug 11, 2011
Messages
200
Reaction score
27
Joined
Aug 11, 2011
Posts
200
Likes
27
Why has Sennheiser not came out with a new cable? I don't get this...

     Share This Post
post-8866177
Post #14 of 48

ru57y

100+ Head-Fier
Joined
Nov 12, 2012
Messages
113
Reaction score
12
Joined
Nov 12, 2012
Posts
113
Likes
12
+1 for Maplin in the UK, they do them too. Albeit at a much higher price...
Quote:
I was inspired by this post and went to my local radioshack to find a 2.5mm cable. They didn't have one, but they did have a 2.5mm to 3.5mm stereo adapter for like 6 dollars, which can be easily sanded down to fit snugly inside the input port with no modification of the headphone! it works fine, and can be used with any 3.5mm cable :D

     Share This Post
post-8866677
Post #15 of 48

cmarti

1000+ Head-Fier
Joined
Mar 25, 2012
Messages
1,181
Reaction score
115
Joined
Mar 25, 2012
Posts
1,181
Likes
115
Wanted to share this.

Apparently the cable from the Momentum fit an works with the Sennheiser HD's, I ordered this cable which come with the microphone and should be a direct fit.



Once I get it will post how it works.
