Phono pre-amps
post-11672659
Thread Starter
Post #1 of 25

safulop

100+ Head-Fier
Joined
Dec 10, 2008
Messages
106
Reaction score
24
Joined
Dec 10, 2008
Posts
106
Likes
24
So, given that the conventional wisdom among the "objectivists" is that all amplifiers sound alike, what do we think about phono stages and pre-amps, step-up transformers etc.  Some of these trinkets are $$$$$$, but the question is, will a dedicated phono pre-amp "improve the sound" of a high-end turntable versus the MM phono stage in a comprehensive integrated amplifier at a modest price point (e.g. Onkyo 9050A)?

Does the "amps are all the same" mantra extend into the esoteric realm of cartridge impedance matching and phono pre-amplification?

What if I use a low-output MC cartridge?  Then I am forced to buy something on this wild west marketplace - what is the best choice?  A simple step-up transformer from Denon can cost over $2K, and you can't even adjust the gain.  Meanwhile I could buy a complete phono pre-amp that can handle low-output cartridges for <$300, bypassing my amp's phono stage entirely.

What to do?

     Share This Post
post-11672838
Post #2 of 25

Speedskater

500+ Head-Fier
Joined
Dec 27, 2006
Messages
832
Reaction score
120
Joined
Dec 27, 2006
Posts
832
Likes
120
I think that many of us will accept the possibility that any phono cartridge/pre-amp combination may sound different than some other phono cartridge/pre-amp combinations.

When it comes to transducers (phono cartridge, microphone, loudspeaker or headphones) it's hard to make different designs sound the same.

     Share This Post
  • Like
Reactions: cjl
post-11673339
Post #3 of 25

sonitus mirus

Headphoneus Supremus
Joined
Mar 23, 2009
Messages
1,730
Reaction score
566
Joined
Mar 23, 2009
Posts
1,730
Likes
566
I don't believe that all amps sound the same, but any audible difference is most likely measurable without the need of an ABX for confirmation.

Speaking of ABX, I did manage to find a link with some ABX data for a couple of phono preamps.  Doesn't prove anything, but I thought it was interesting and worth sharing.

http://djcarlst.provide.net/abx_data.htm

     Share This Post
post-15488696
Post #4 of 25

bmichels

Headphoneus Supremus
Joined
Sep 11, 2012
Messages
6,060
Reaction score
2,287
Location
France, Belgium and Morocco
Joined
Sep 11, 2012
Location
France, Belgium and Morocco
Posts
6,060
Likes
2,287
Now I need to find a decent Phono-Pre to connect to my Thorend TD160 equiped with a MM Shure V15 III cartridge !

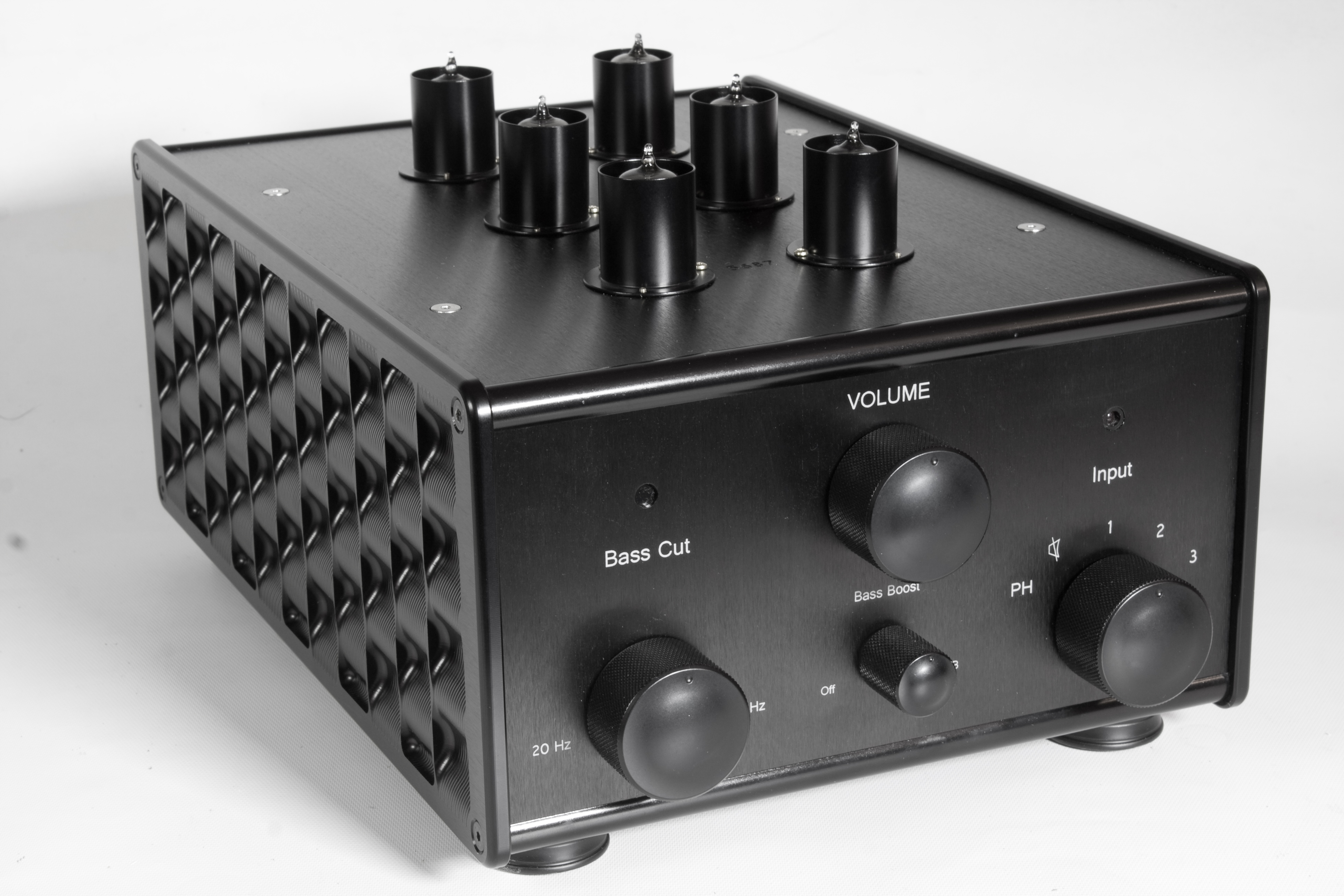

I am considering this Coffman G1. Has someone heard it ?


G1-Signature COFFMAN.jpg

     Share This Post
  • Like
Reactions: Redcarmoose
post-15488858
Post #5 of 25

bigshot

Headphoneus Supremus
Joined
Nov 16, 2004
Messages
21,230
Reaction score
3,395
Location
Hollywood USA
Joined
Nov 16, 2004
Location
Hollywood USA
Posts
21,230
Likes
3,395
Website
www.facebook.com
I have that turntable. I use a $50 preamp I got from Garage-A-Records. It works great. Applying the RIAA curve and bringing level up to line level isn't rocket science. You don't need to spend a lot (though some people go crazy on satiating their OCD by spending way too much). Slapping tubes on top of LP will certainly give you a nice rich, thick soup of distortion, if that's what you're looking for.

Last edited:
     Share This Post
post-15518256
Post #6 of 25

bmichels

Headphoneus Supremus
Joined
Sep 11, 2012
Messages
6,060
Reaction score
2,287
Location
France, Belgium and Morocco
Joined
Sep 11, 2012
Location
France, Belgium and Morocco
Posts
6,060
Likes
2,287
A new Phono-Preamp joined the team: the EAT E-GLO Petit. A perfect martch with my "vintage" Thorend TD160 + SME Serie 2 +Shure V15 III....







And some brand new vinyl arrived to feed the system.... All remastered Audiophile versions, some being LP 45 rpm....




     Share This Post
  • Like
Reactions: Redcarmoose
post-15518668
Post #7 of 25

bigshot

Headphoneus Supremus
Joined
Nov 16, 2004
Messages
21,230
Reaction score
3,395
Location
Hollywood USA
Joined
Nov 16, 2004
Location
Hollywood USA
Posts
21,230
Likes
3,395
Website
www.facebook.com
I have a really good one I got at Radio Shack for $40. Works perfect.

     Share This Post
post-15521771
Post #8 of 25

pinnahertz

Headphoneus Supremus
Joined
Mar 11, 2016
Messages
2,050
Reaction score
722
Joined
Mar 11, 2016
Posts
2,050
Likes
722
Now I need to find a decent Phono-Pre to connect to my Thorend TD160 equiped with a MM Shure V15 III cartridge !

I am considering this Coffman G1. Has someone heard it ?
The V15 III is notorious for being sensitive to loading issues known, at one time, as "cartridge inductance interaction". The load the cartridge "sees" is a combination of the cable C, and the complex input impedance seen at the first stage of the phono preamp. Yeah, they all have that 47K terminating resistor, and perhaps a hopeful 200pf cap, but that's not the whole story. The real impedance is affected by the topology, including feedback and the RIAA EQ network within the amp. The V15 III was particularly sensitive, so anything outside of the expected 47K/200pf "pure" load with cause HF response issues. The cart actually has an internal HF rise that is expected to be rolled off by the termination. If only it were that simple.

The only way to correctly verify the end result is to use a test record with response tests made without RIAA EQ, then measure the deviation from the ideal RIAA de-emphasis curve at the preamp output. The procedure is a little tedious, but worth the time and effort if you really want your system to play properly. Oh, and nobody does this anymore, so whoever does has a major leg up on everybody else.

Or use a cartridge without so much cartridge inductance interaction. I like the V15 V.

Now, isn't this fun? BTW, this is not new information, but it's only about 40+ years old, so still young in audio years.

     Share This Post
post-15521792
Post #9 of 25

bmichels

Headphoneus Supremus
Joined
Sep 11, 2012
Messages
6,060
Reaction score
2,287
Location
France, Belgium and Morocco
Joined
Sep 11, 2012
Location
France, Belgium and Morocco
Posts
6,060
Likes
2,287
The V15 III is notorious for being sensitive to loading issues known, at one time, as "cartridge inductance interaction". The load the cartridge "sees" is a combination of the cable C, and the complex input impedance seen at the first stage of the phono preamp. Yeah, they all have that 47K terminating resistor, and perhaps a hopeful 200pf cap, but that's not the whole story. The real impedance is affected by the topology, including feedback and the RIAA EQ network within the amp. The V15 III was particularly sensitive, so anything outside of the expected 47K/200pf "pure" load with cause HF response issues. The cart actually has an internal HF rise that is expected to be rolled off by the termination. If only it were that simple.

The only way to correctly verify the end result is to use a test record with response tests made without RIAA EQ, then measure the deviation from the ideal RIAA de-emphasis curve at the preamp output. The procedure is a little tedious, but worth the time and effort if you really want your system to play properly. Oh, and nobody does this anymore, so whoever does has a major leg up on everybody else.

Or use a cartridge without so much cartridge inductance interaction. I like the V15 V.

Now, isn't this fun? BTW, this is not new information, but it's only about 40+ years old, so still young in audio years.
thanks for all those infos.

     Share This Post
post-15522489
Post #10 of 25

pinnahertz

Headphoneus Supremus
Joined
Mar 11, 2016
Messages
2,050
Reaction score
722
Joined
Mar 11, 2016
Posts
2,050
Likes
722
thanks for all those infos.
Yup. The V15 IV is way better if you like "vintage", and the V15 V blows them both away, tracks the un-trackable. The stabilizer/static brush on the IV and V is also brilliant.

     Share This Post
post-15522706
Post #11 of 25

bigshot

Headphoneus Supremus
Joined
Nov 16, 2004
Messages
21,230
Reaction score
3,395
Location
Hollywood USA
Joined
Nov 16, 2004
Location
Hollywood USA
Posts
21,230
Likes
3,395
Website
www.facebook.com
I had an amp with both MM and MC preamps in it, so I said, What the heck and bought an Ortofon MC cartridge. I got it home and it didn't work with either preamp setting. I went back to the store and told them I wanted to return it because it didn't work, and they said it did work but only with Ortofon's preamp. They wouldn't let me exchange it for a cart that used standard preamps. They made me shell out another $85 for a dumb dongle. That was when I learned to hate non-standard gear.

     Share This Post
post-15522833
Post #12 of 25

old tech

500+ Head-Fier
Joined
Jul 8, 2015
Messages
689
Reaction score
307
Location
Sydney, Australia
Joined
Jul 8, 2015
Location
Sydney, Australia
Posts
689
Likes
307
I had an amp with both MM and MC preamps in it, so I said, What the heck and bought an Ortofon MC cartridge. I got it home and it didn't work with either preamp setting. I went back to the store and told them I wanted to return it because it didn't work, and they said it did work but only with Ortofon's preamp. They wouldn't let me exchange it for a cart that used standard preamps. They made me shell out another $85 for a dumb dongle. That was when I learned to hate non-standard gear.
You must have weak consumer protection laws over there. Normally, a customer would be entitled to a refund if something so relevant as the cartridge requiring a same brand amplifier was not disclosed.

Last edited:
     Share This Post
post-15522862
Post #13 of 25

bigshot

Headphoneus Supremus
Joined
Nov 16, 2004
Messages
21,230
Reaction score
3,395
Location
Hollywood USA
Joined
Nov 16, 2004
Location
Hollywood USA
Posts
21,230
Likes
3,395
Website
www.facebook.com
They said since I had taken the cartridge out and installed it on my turntable I couldn't return it. They may have been lying. I've been lied to before in high end audio stores. Needless to say, I never went back to that one.

     Share This Post
post-15547897
Post #14 of 25

Sterling2

100+ Head-Fier
Joined
Apr 28, 2017
Messages
146
Reaction score
54
Joined
Apr 28, 2017
Posts
146
Likes
54
I don't know a thing about phono preamps and I can prove it; yet, an understanding has not been necessary since my Shure V15V-MR with Jico SAS stylus delivers a distortion free sound in all manner indistinguishable from CDs of same music. Thus, I am satisfied with my LP playback system as a whole. Interestingly enough, my phono preamp is a Sony TA-E9000ES Pre-Pro feature, described by one reviewer as having merely an adequate phono preamp, a speculation based on an assumption that Sony did not need to address serious LP playback desires on a product which likely would never be connected to a turntable so long after the LPs demise. At any rate, the Sony's MM preamp seems to perfectly complement my Shure cartridge. Perhaps I got lucky. One thing for sure, I'm not throwing any more money at it for any perceived gains, since Apple Music downloads of music I have on LP sounds better than my LPs, precluding any interest in listening to them, or digitizing them for convenience and/or to filter pops.

Last edited:
     Share This Post
post-15549064
Post #15 of 25

old tech

500+ Head-Fier
Joined
Jul 8, 2015
Messages
689
Reaction score
307
Location
Sydney, Australia
Joined
Jul 8, 2015
Location
Sydney, Australia
Posts
689
Likes
307
I don't know a thing about phono preamps and I can prove it; yet, an understanding has not been necessary since my Shure V15V-MR with Jico SAS stylus delivers a distortion free sound in all manner indistinguishable from CDs of same music. Thus, I am satisfied with my LP playback system as a whole. Interestingly enough, my phono preamp is a Sony TA-E9000ES Pre-Pro feature, described by one reviewer as having merely an adequate phono preamp, a speculation based on an assumption that Sony did not need to address serious LP playback desires on a product which likely would never be connected to a turntable so long after the LPs demise. At any rate, the Sony's MM preamp seems to perfectly complement my Shure cartridge. Perhaps I got lucky. One thing for sure, I'm not throwing any more money at it for any perceived gains, since Apple Music downloads of music I have on LP sounds better than my LPs, precluding any interest in listening to them, or digitizing them for convenience and/or to filter pops.
Just curious as to which CD(s) of the same music sound indistinguishable from the LP. It is exceptionally rare to find an LP which is indistinguishable from the CD version or vice versa as they typically have mastering differences.

I have never found different but reasonable quality pre-amps to make much difference to LP playback when set up correctly except with MC cartridges, but even then it is not a major difference.

     Share This Post
  • Like
Reactions: Redcarmoose
