P4 the Warbler a new portable amp from iBasso . . first impression pg 3 . images Pg 6&7 . . .
post-8472926
Post #451 of 561

Fringe

100+ Head-Fier
Joined
Jan 8, 2012
Messages
115
Reaction score
13
Joined
Jan 8, 2012
Posts
115
Likes
13
The P4 does a pretty good job with the HD600 when I compare it to my LD MKIII. The biggest difference seems to be the bass impact/extension and soundstage. The P4 seems to be more upfront sounding with less depth so it's a little flatter and not as full sounding. I also use the Q701 with the P4 and it sounds good but i don't have anything besides the MKIII to compare to so i cant comment too much. I don't know how useful this is because of all the different opamp and tube variations that come into play here but hopefully it helps some.

     Share This Post
post-8629405
Post #452 of 561

giveit2menow

Head-Fier
Joined
Sep 6, 2010
Messages
99
Reaction score
10
Joined
Sep 6, 2010
Posts
99
Likes
10
i was interested to find the stock configuartion has the gain at the +10.5db setting. I thought it was always best to set the gain at the lowest setting you are happy with that works with the head unit. I wondered why they would set the stock to this?


     Share This Post
post-8692514
Post #453 of 561

Minkypou

Head-Fier
Joined
Sep 5, 2012
Messages
60
Reaction score
11
Joined
Sep 5, 2012
Posts
60
Likes
11
warbler or pb2? i want the best souding quality for my ultrasone pro 900 and my hd598. i know the warbler is fine for *drive* my headphones, but i really want the best sound quality , soundstage, base deep, instruments separation, details, and more. thx!

     Share This Post
post-8693940
Post #454 of 561

Bugdozer

New Head-Fier
Joined
Dec 3, 2002
Messages
46
Reaction score
15
Joined
Dec 3, 2002
Posts
46
Likes
15
I have both the P4 and PB2/DB2.  If you are using them single ended, you may not hear too much difference, depending on the op amps and buffers.  Where you will hear a difference is running balanced.  I have the iBasso balanced Sennheiser cord to my HD600s and there is a noticeable openness in the sound.

My P4 is for on the road driving my Ety 4S and I’m running an 8620 OPA and HA5002 buffers.  I did have 627s in the V/G sockets but I change them out but I don’t recall what is in there.  In my PB2 I also use the HA5002 buffers but swap around the OPAs.  If you are going to go balanced, get the PB2.

     Share This Post
post-8702273
Post #455 of 561

Triangle3

Head-Fier
Joined
Jul 18, 2012
Messages
89
Reaction score
13
Joined
Jul 18, 2012
Posts
89
Likes
13
I need help... lol

P4, D4 or D12...

All I really need  is an amp, but I could use a different DAC.
Taking any opinions.

     Share This Post
post-8703250
Post #456 of 561

Bugdozer

New Head-Fier
Joined
Dec 3, 2002
Messages
46
Reaction score
15
Joined
Dec 3, 2002
Posts
46
Likes
15
Check the D6.  It looks nice too. Coworker got a Fiio E17.  Actually sounds pretty good.

     Share This Post
post-8703263
Post #457 of 561

Triangle3

Head-Fier
Joined
Jul 18, 2012
Messages
89
Reaction score
13
Joined
Jul 18, 2012
Posts
89
Likes
13
Forgot to put it in my post lol

P4, D6, D4 or D12....

     Share This Post
post-8852271
Post #458 of 561

kiteki

aka Theta Alpha 1
aka Alpha Zeta 5
aka Alpha Zeta 6
aka Nanocat Systems
And many other aliases
Joined
Jun 7, 2010
Messages
10,619
Reaction score
172
Joined
Jun 7, 2010
Posts
10,619
Likes
172
They just give something different even with the same opamps, In 4 channel mode the P4 is a very exiting amp to listen to, the PB-2 is probably a more realistic sounding amp and one I transport for vacations etc with a set of balanced cans (D7000 usually). The P4 is a nice form to strap to a classic for an involving on the go listen but not one I use for critical istening. With the right chipset you probably could tune it for any application I just choose to have the two amps for separate uses.

Hope that helps.

Thanks for the advice on the Warbler. =)


I've noted...

+ gold-plated sockets
+ 3CH / 4CH design

versus Pelican

+ balanced
- four op-amp's required, or 2x stereo (like MUSES01 x2 etc.), no advantage here.
- less battery life
- higher THD and crosstalk? Not listed in the .pdf.


Naturally there are more differences, anyone else compared them?

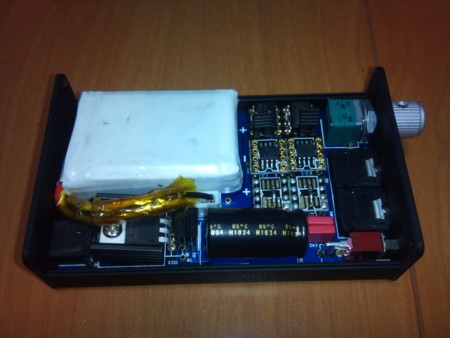

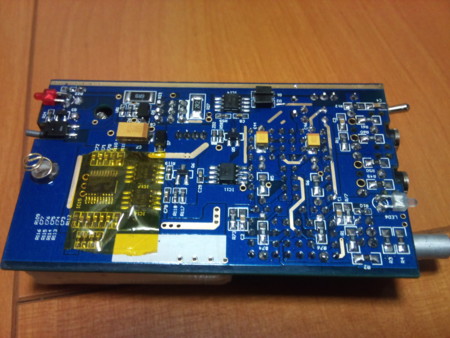

What's the IC at the bottom-left in this pic?





     Share This Post
post-8865861
Post #460 of 561

kiteki

aka Theta Alpha 1
aka Alpha Zeta 5
aka Alpha Zeta 6
aka Nanocat Systems
And many other aliases
Joined
Jun 7, 2010
Messages
10,619
Reaction score
172
Joined
Jun 7, 2010
Posts
10,619
Likes
172
Anyone know the voltage supply in this?  Will the stereo left and right meet at least +-9V (18V)?

     Share This Post
post-9055199
Post #461 of 561

Huxley

1000+ Head-Fier
Joined
Oct 28, 2006
Messages
1,171
Reaction score
68
Joined
Oct 28, 2006
Posts
1,171
Likes
68
Folks I've gone and bought two OPA627 and HA5002

I'm fine fitting the 627's but do I fit The 5002's the same only in the middle two sockets?

Don't want to blow my baby.

     Share This Post
post-9055290
Post #462 of 561

SpudHarris

Headphoneus Supremus
Joined
Jan 30, 2009
Messages
3,028
Reaction score
86
Joined
Jan 30, 2009
Posts
3,028
Likes
86
Folks I've gone and bought two OPA627 and HA5002

I'm fine fitting the 627's but do I fit The 5002's the same only in the middle two sockets?

Don't want to blow my baby.

Where did you get the 5002's? They are not your standard plug and play as they have to be mounted on an adapter with smd resistors etc....

If you got them ready mounted then yes you put them in the centre sockets.

     Share This Post
post-9055431
Post #463 of 561

Huxley

1000+ Head-Fier
Joined
Oct 28, 2006
Messages
1,171
Reaction score
68
Joined
Oct 28, 2006
Posts
1,171
Likes
68
Ah it's the bare chips.

Where do i get them pre mounted?

     Share This Post
post-9055632
Post #464 of 561

SpudHarris

Headphoneus Supremus
Joined
Jan 30, 2009
Messages
3,028
Reaction score
86
Joined
Jan 30, 2009
Posts
3,028
Likes
86
HiFlight (Ron Kerlin) is where I got mine. I bought pre built modules from him, he's a top bloke. You can find his details on this thread as he is also an avid fan of ibasso gear. He's the chap behind "topkits" (premium chipsets for rolling).

It's worth doing though as the 5002 is easily my favourite buffer.

Hope that helps....

     Share This Post
post-9057441
Post #465 of 561

putente

Headphoneus Supremus
Joined
Nov 10, 2010
Messages
2,044
Reaction score
43
Joined
Nov 10, 2010
Posts
2,044
Likes
43
Quote:
Folks I've gone and bought two OPA627 and HA5002

I'm fine fitting the 627's but do I fit The 5002's the same only in the middle two sockets?

Don't want to blow my baby.


That's the setup I currently have in my P4! It's very good indeed...

     Share This Post
