"Open Alpha" T50 3D printed headphone project from MrSpeakers
post-13890076
Post #481 of 703

paulmazz

New Head-Fier
Joined
Sep 29, 2016
Messages
44
Reaction score
14
Joined
Sep 29, 2016
Posts
44
Likes
14
I guess I'm just having trouble finding the leaks. I have all the vents closed, the cups sealed with silicone and jam packed with wool. Dat bass is insane. Maybe it's leaking around my jack.

     Share This Post
post-13890083
Post #482 of 703

William Song

New Head-Fier
Joined
Jul 4, 2017
Messages
20
Reaction score
1
Location
Australia
Joined
Jul 4, 2017
Location
Australia
Posts
20
Likes
1
I guess I'm just having trouble finding the leaks. I have all the vents closed, the cups sealed with silicone and jam packed with wool. Dat bass is insane. Maybe it's leaking around my jack.
Do you by any chance have too much wool in it?
It's a possibility, try messing around with the amount of wool.
Other thing you can do is reduce the amount of air going to the driver by placing permeable material like felt over the driver, or even block some of the holes.
In my pair with stock cups I cut out the paper backing and stuffed each of the holes with a thick cloth material, which I think brought out the mids, and made them smoother. A hard surface around the driver will usually reflect the high frequencies, so try using a hard reflex dot somewhere over the driver

     Share This Post
post-13891040
Post #483 of 703

nereus

100+ Head-Fier
Joined
Dec 1, 2014
Messages
102
Reaction score
48
Joined
Dec 1, 2014
Posts
102
Likes
48
If you have access to a 3D printer you could print out a waveguide. I've played around with one which reduced the bass and brought the mids forward a tad.

     Share This Post
post-13891294
Post #484 of 703

musicfan145

100+ Head-Fier
Joined
Apr 4, 2016
Messages
146
Reaction score
56
Joined
Apr 4, 2016
Posts
146
Likes
56
I guess I'm just having trouble finding the leaks. I have all the vents closed, the cups sealed with silicone and jam packed with wool. Dat bass is insane. Maybe it's leaking around my jack.
The center hole for the screw that holds the cup to the headband is another area that could leak. But I’d also go with something less than “jam packed” on the wool.

     Share This Post
post-13907497
Post #485 of 703

ToniBMW

New Head-Fier
Joined
May 1, 2015
Messages
1
Reaction score
0
Joined
May 1, 2015
Posts
1
Likes
0
Hi guys, i have one question: does this mod works on a T40RP MKI (1st gen)?

Thank you very much, great project!

     Share This Post
post-13907696
Post #486 of 703

axtran

100+ Head-Fier
Joined
Mar 19, 2009
Messages
348
Reaction score
99
Joined
Mar 19, 2009
Posts
348
Likes
99
Hi guys, i have one question: does this mod works on a T40RP MKI (1st gen)?

Thank you very much, great project!
You need to ensure that you have the square Fostex driver, with the correct headband components. Some older Fostex has a round driver, which although sounds better, doesn't work.

     Share This Post
post-13952532
Post #487 of 703

buffalomatt

Head-Fier
Joined
Feb 11, 2016
Messages
73
Reaction score
33
Location
Atlanta
Joined
Feb 11, 2016
Location
Atlanta
Posts
73
Likes
33
     Share This Post
post-13991679
Post #488 of 703

axtran

100+ Head-Fier
Joined
Mar 19, 2009
Messages
348
Reaction score
99
Joined
Mar 19, 2009
Posts
348
Likes
99
If you have access to a 3D printer you could print out a waveguide. I've played around with one which reduced the bass and brought the mids forward a tad.
Forgot to ask, but what did you use to apply the waveguide? I'm thinking of applying some using two-part epoxy adhesive.

     Share This Post
post-13993987
Post #489 of 703

rendyG

100+ Head-Fier
Joined
Jan 20, 2016
Messages
404
Reaction score
251
Location
Czech Republic
Joined
Jan 20, 2016
Location
Czech Republic
Posts
404
Likes
251
Hello friends, I finally decided to transform my mk3´s into alphas.
Any recommendations from more experienced modders? :)
I will see where I can print my cups and I´m not sure where to find the connectors/cables yet.
Should I buy some from China? I would like to buy the original MrSpeakers, but the shipping to EU would probably cost me as much as the connectors... :/

     Share This Post
post-14004419
Post #490 of 703

nereus

100+ Head-Fier
Joined
Dec 1, 2014
Messages
102
Reaction score
48
Joined
Dec 1, 2014
Posts
102
Likes
48
Forgot to ask, but what did you use to apply the waveguide? I'm thinking of applying some using two-part epoxy adhesive.
I used strong tape to hold it in place to demo the sound, which made it easy to reverse.

     Share This Post
post-14007708
Post #491 of 703

mrspeakers

Sponsor: Dan Clark Audio (Formerly MrSpeakers)
Joined
Oct 27, 2010
Messages
4,900
Reaction score
4,356
Location
San Diego, CA
Joined
Oct 27, 2010
Location
San Diego, CA
Posts
4,900
Likes
4,356
Website
danclarkaudio.com
Shapeways is a good resource for reliable, quality prints, though they often use subtractive materials which create heavier, solid parts...

Dan Clark Audio Make every day a fun day filled with music and friendship! Stay updated on Dan Clark Audio at their sponsor page on Head-Fi.

@funCANS MrSpeakers https://danclarkaudio.com info@danclarkaudio.com
     Share This Post
post-14010419
Post #492 of 703

axtran

100+ Head-Fier
Joined
Mar 19, 2009
Messages
348
Reaction score
99
Joined
Mar 19, 2009
Posts
348
Likes
99
Hello friends, I finally decided to transform my mk3´s into alphas.
Any recommendations from more experienced modders? :)
I will see where I can print my cups and I´m not sure where to find the connectors/cables yet.
Should I buy some from China? I would like to buy the original MrSpeakers, but the shipping to EU would probably cost me as much as the connectors... :/
I spent some time thinking about where to buy discounted connectors, but then realized that I could not place a price on how awesome @mrspeakers has been to me over the years with this hobby. I was able to upgrade a used Mad Dog that I purchased to an Alpha Prime, and I also have a wonderful Ether 1.1 which might get sent back to get the upgrade to an Ether Flow.

I’ll gladly continue to buy things like jacks and connectors, leather straps and pads... they’re great!

     Share This Post
  • Like
Reactions: mrspeakers
post-14097717
Post #493 of 703

rendyG

100+ Head-Fier
Joined
Jan 20, 2016
Messages
404
Reaction score
251
Location
Czech Republic
Joined
Jan 20, 2016
Location
Czech Republic
Posts
404
Likes
251

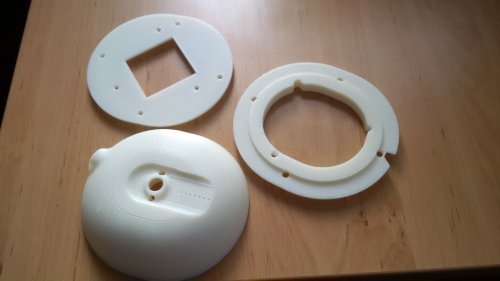

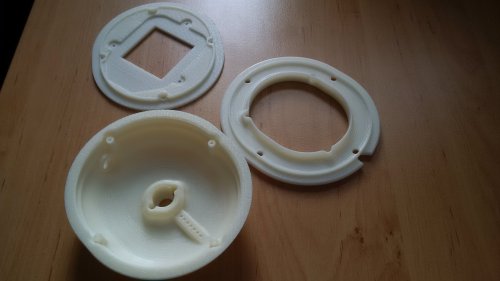

I finally have my cups printed, I am really surprised by the quality of the 3D printer at my university :D
(metallic black finish inc)

I was afraid that screw holes may not print well, but this is awesome :)
Wasn´t so lucky with waveguides tho :D I guess it is enough for testing now.

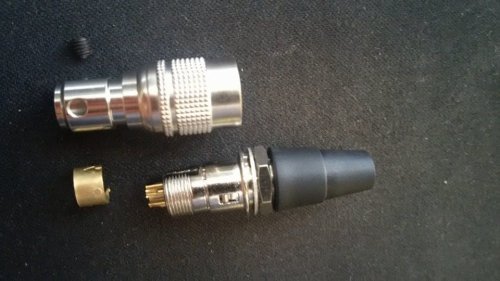

Also my Hirose connectors arrived! These looks and feels lovely! (the rubber thingy is there just to protect the pins now..)

Just waiting for Ag/Co cables from PAPRI audio to arrive so I can start :)
Just one question: The gold ring is supposed to secure the cables and end up in line with the screw like I have them lined now?

Last edited:
     Share This Post
  • Like
Reactions: lemarsghast
post-14098574
Post #494 of 703

lemarsghast

Head-Fier
Joined
Mar 28, 2016
Messages
62
Reaction score
20
Joined
Mar 28, 2016
Posts
62
Likes
20
I finally have my cups printed, I am really surprised by the quality of the 3D printer at my university :D
(metallic black finish inc)



I was afraid that screw holes may not print well, but this is awesome :)
Wasn´t so lucky with waveguides tho :D I guess it is enough for testing now.


Also my Hirose connectors arrived! These looks and feels lovely! (the rubber thingy is there just to protect the pins now..)


Just waiting for Ag/Co cables from PAPRI audio to arrive so I can start :)
Just one question: The gold ring is supposed to secure the cables and end up in line with the screw like I have them lined now?

Wow, that 3d printer must be very impressive! What kind of filament did it use?

Since your cups are way better than my current ones, what price would you name if I may have you print some for me(just the left and right cups, not the baffle and rings)?

As for the gold ring, I did the same thing as you suggested, so it should work.

     Share This Post
post-14098603
Post #495 of 703

rendyG

100+ Head-Fier
Joined
Jan 20, 2016
Messages
404
Reaction score
251
Location
Czech Republic
Joined
Jan 20, 2016
Location
Czech Republic
Posts
404
Likes
251
Wow, that 3d printer must be very impressive! What kind of filament did it use?

Since your cups are way better than my current ones, what price would you name if I may have you print some for me(just the left and right cups, not the baffle and rings)?

As for the gold ring, I did the same thing as you suggested, so it should work.
No idea about the filament and price, I would like to help you, but my friend printed it with 3D printer at our university using some leftover filament. He just told me that the 3D printer costs more than $50k :D
I bet it would be expensive af, because the s**tty waveguides cost me $10 :xf_eek:

     Share This Post
