MYSPHERE 3.1-UNIQUE in SOUND&DESIGN&BUILD QUALITY
post-13884089
Post #631 of 1,092

JaZZ

Headphoneus Supremus
Joined
May 9, 2002
Messages
9,568
Reaction score
1,533
Location
Zürich, Switzerland
Joined
May 9, 2002
Location
Zürich, Switzerland
Posts
9,568
Likes
1,533
Age
70
Thanks, Heinz!

I guess those interested in *carefully* equalizing the low-frequency drop-off aren't those planning to use the Mysphere for listening at excessive loudness levels. All they care about is the relation between low-frequency extension and the resulting increase of harmonic distortion. Do you by chance have the corresponding THD values to the above list?

     Share This Post
  • Like
Reactions: Dobrescu George
post-13884140
Post #632 of 1,092

hrklg01

Member of the Trade: Mysphere
AKG K1000 developer
Joined
Sep 30, 2012
Messages
415
Reaction score
364
Location
Italy
Joined
Sep 30, 2012
Location
Italy
Posts
415
Likes
364
Age
64
Website
mysphere.at
Make it really sense to discuss THD levels of Sound in the range of 120dbSPL?
All what I learned in the past explain that the human ear distort already so much...
Br heinz

post-13884146
Post #633 of 1,092

musikverein

New Head-Fier
Joined
Mar 26, 2017
Messages
18
Reaction score
21
Location
Some Location
Joined
Mar 26, 2017
Location
Some Location
Posts
18
Likes
21
About additional equalizing:
A dynamic system has the maximum membrane excursion at the fundamental resonance which is 50Hz for Mysphere 3.x
Below the excursion is not less, but the SPL reduce because the air has to be accelerated at the same level if the same SPL is wanted.
(This is true for totally open systems only!)
This lead to the fact, that if additional EQ is used, the max. excursion will be exceeded once.
So additional EQ-ing at very low frequencies is fine, but not when high SPL is wanted.
BR heinz
So true, Heinz :)

Would be nice if this context could be explained elsewhere too
The be sort of a Sonoma with all the advantages of a (trans)portable Mysphere is not a bad sweet spot to be in.

Perhaps you could introduce the 3.2 and its purpose for general enlightenment!

Last edited:
     Share This Post
post-13884180
Post #634 of 1,092

JaZZ

Headphoneus Supremus
Joined
May 9, 2002
Messages
9,568
Reaction score
1,533
Location
Zürich, Switzerland
Joined
May 9, 2002
Location
Zürich, Switzerland
Posts
9,568
Likes
1,533
Age
70
Make it really sense to discuss THD levels of Sound in the range of 120dbSPL?
All what I learned in the past explain that the human ear distort already so much...
Br heinz
No, Heinz! Like others (as it seems) I'm just interested in the distortion figures after equalizing down to 20 Hz at normal listening levels.

To explain my concern a bit further: My HD 800 responds extremely well to equalizing, which effectively lifts it two classes higher. The same doesn't seem to apply for the HD 800 S according to Inner Fidelity's Tyll Hertsens – due to its higher THD level at low frequencies reaching up to ~7.5%, and this at 100 dB (!). So the Mysphere with its THD of almost 10% at ultra-low frequencies already at 90 dB (!) is a candidate for being less suited for equalizing the lowest octave. Of course I'm hoping for the opposite. In any event I'm convinced that it will be a fine headphone with unique qualities either way.

Last edited:
     Share This Post
post-13884237
Post #635 of 1,092

hrklg01

Member of the Trade: Mysphere
AKG K1000 developer
Joined
Sep 30, 2012
Messages
415
Reaction score
364
Location
Italy
Joined
Sep 30, 2012
Location
Italy
Posts
415
Likes
364
Age
64
Website
mysphere.at
No, Heinz! Like others (as it seems) I'm just interested in the distortion figures after equalizing down to 20 Hz at normal listening levels.

To explain my concern a bit further: My HD 800 responds extremely well to equalizing, which effectively lifts it two classes higher. The same doesn't seem to apply for the HD 800 S according to Inner Fidelity's Tyll Hertsens – due to its higher THD level at low frequencies reaching up to ~7.5%, and this at 100 dB (!). So the Mysphere with its THD of almost 10% at ultra-low frequencies already at 90 dB (!) is a candidate for being less suited for equalizing the lowest octave. Of course I'm hoping for the opposite.
Oh! Understood your request now... :L3000:
BUT: As others already wrote, Human do not recognize distortions well coming from low frequencies....That's just a reminder that those effects should be tried and not interpreted potentially wrong using tables only. Also it's big difference if we talk about K2 or K3 because: asymmetric distortions does not pain human much (example a violin), but symmetric distortion are not welcome and mostly annoying.

So what I suggest is:
I create a table applying using Mysphere 3.1 the requested voltage so, that at all frequencies on the artificial ear it reach 1 PA (~94dBSPL] - the corresponding K2 + K3 will be listed.
Would this be fine for you?

BR heinz

post-13884255
Post #636 of 1,092

JaZZ

Headphoneus Supremus
Joined
May 9, 2002
Messages
9,568
Reaction score
1,533
Location
Zürich, Switzerland
Joined
May 9, 2002
Location
Zürich, Switzerland
Posts
9,568
Likes
1,533
Age
70
Yes, Heinz, and that's more than I would have expected.

And to make it clear: My concern shouldn't be read as a criticism – far from it! I absolutely understand the technical and physical problems of a completely open system like the Mysphere, as well as the advantages.

     Share This Post
  • Like
Reactions: Dobrescu George
post-13884740
Post #637 of 1,092

greenmountain

Head-Fier
Joined
Aug 24, 2013
Messages
97
Reaction score
24
Location
northern hemisphere
Joined
Aug 24, 2013
Location
northern hemisphere
Posts
97
Likes
24
Here is a list about maximum voltage [RMS] usable for Mysphere 3.1
For all the "EQ-gamers" :wink:
Please understand that this list of voltage shows only the capability of Mysphere to be applicable to play in a technical safe mode for the product.
This voltage does not mean to be applied for any long listening session because of potential hearing damage!
The voltage are RMS = mid value ofa sine frequency. Impulses can be applied with higher voltage....
KR heinz
I am astonished that the lowest permissible input voltage is at 160Hz. But if one stays at 105db peak levels (close to maximum at a classical concert) one could could get pretty much a flat frequency response to below30Hz! That is much better than most loudspeakers and no room frequency dips!

Last edited:
     Share This Post
  • Like
Reactions: Matrix Petka
post-13884769
Post #638 of 1,092

hrklg01

Member of the Trade: Mysphere
AKG K1000 developer
Joined
Sep 30, 2012
Messages
415
Reaction score
364
Location
Italy
Joined
Sep 30, 2012
Location
Italy
Posts
415
Likes
364
Age
64
Website
mysphere.at
You are right...
But you have to understand that most people using speakers like the additional effects of:
1) body sound coupling and feeling
2) the additional room resonace effect
So, Yes we are happy with the result as it sounds clean and correct, but we shall be fair to speakers at the same time.
KR heinz

     Share This Post
  • Like
Reactions: Matrix Petka
post-13884840
Post #639 of 1,092

greenmountain

Head-Fier
Joined
Aug 24, 2013
Messages
97
Reaction score
24
Location
northern hemisphere
Joined
Aug 24, 2013
Location
northern hemisphere
Posts
97
Likes
24
I am very interested in speakers and I am developing my own drivers (bending wave) and for me it is a more natural way of listening to music but if one wants to really hear the details of a recording good headphones can make that far more possible (and one can find out how many recordings are simply bad).

Last edited:
     Share This Post
post-13894933
Post #640 of 1,092

hrklg01

Member of the Trade: Mysphere
AKG K1000 developer
Joined
Sep 30, 2012
Messages
415
Reaction score
364
Location
Italy
Joined
Sep 30, 2012
Location
Italy
Posts
415
Likes
364
Age
64
Website
mysphere.at
@greenmountain

Thank you for the idea!
Ok, I'll give you a kind of table of maximum voltage to be applied for a series of frequencies...
Please give me some time!
Mille Grazie! :wink:
heinz

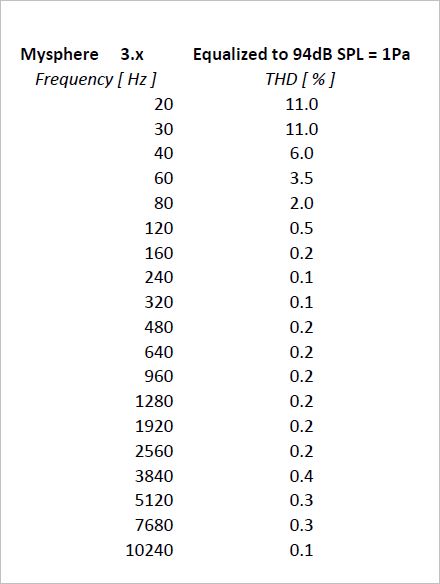

Hi - now here is the list of THD values in case the Mysphere 3.1 would be equalized to 94dB SPL ~ 1Pa at all frequencies: (the measurement is made on artificial ear simulating typical human ears - whatever this mean :wink:

typical THD values of Mysphere3.x equaliced to 1PA.JPG

post-13895183
Post #641 of 1,092

JaZZ

Headphoneus Supremus
Joined
May 9, 2002
Messages
9,568
Reaction score
1,533
Location
Zürich, Switzerland
Joined
May 9, 2002
Location
Zürich, Switzerland
Posts
9,568
Likes
1,533
Age
70
Thanks, Heinz! It looks good – as if it can be done.

     Share This Post
  • Like
Reactions: Dobrescu George
post-13914565
Post #642 of 1,092

yates7592

500+ Head-Fier
Joined
Feb 21, 2012
Messages
733
Reaction score
164
Joined
Feb 21, 2012
Posts
733
Likes
164
Which of 3.1 and 3.2 would match better with Violectric V281 or Woo WA22?

     Share This Post
post-13914638
Post #643 of 1,092

hrklg01

Member of the Trade: Mysphere
AKG K1000 developer
Joined
Sep 30, 2012
Messages
415
Reaction score
364
Location
Italy
Joined
Sep 30, 2012
Location
Italy
Posts
415
Likes
364
Age
64
Website
mysphere.at
Hi,
WA22... Mysphere3.1
V281... Mysphere3.2
I will try to create a kind of best fit cataloque with amps fitting to 3.1 or 3.2
But this will need some time.
Br heinz

     Share This Post
post-13914721
Post #644 of 1,092

bosiemoncrieff

Headphoneus Supremus
Joined
Mar 21, 2015
Messages
2,835
Reaction score
2,070
Location
San Francisco
Joined
Mar 21, 2015
Location
San Francisco
Posts
2,835
Likes
2,070
Oh wow I didn't realize we had two models! What are their main differences?

     Share This Post
