Monoprice Monolith Liquid Platinum - By Alex Cavalli
Nov 2, 2018 at 4:37 PM Post #407 of 3,735

Jim N

New Head-Fier
Joined
Sep 2, 2012
Posts
15
Likes
28
I burning one in right now. Manual says nothing about using variant tubes. After 2+ hours of running a burn-in disk (mix of XLO and others) the thermal protection circuit kicked in. I was driving Fostex TH-X00 and it turns out the manual suggested doing burn in without driving a load, which I am doing now. Unit runs quite warm on the cover by the tubes.

Good solid feel to the unit with nice case work. Will post more later on. I have Massdrop Focal Elex (balanced), HD600 (balanced) and the aforementioned Fostex amongst other cans. My current amp inventory is Auralic Taurus Mk II, Questyle 600i, Yulong A8.

Nov 2, 2018 at 4:43 PM Post #408 of 3,735

runeight

Member of the Trade: Cavalli Audio
Joined
Oct 10, 2002
Posts
2,941
Likes
1,404
Liquid Crimson --> Liquid Platinum

OK. Let's see how this goes. :)

First thing is, let's have a look at the Crimson. It is an embedded hybrid with no coupling caps. It uses 1 triode per channel, hence a single dual triode.

It is SE only with about 4-5W per channel into 50R. It has four supplies: Heater, HV, LV Rails, and Housekeeping.

It has a pretty beefy linear supply using a custom RCore transformer. It is all through hole components except for some housekeeping circuitry like the offset detector.

It uses a custom TKD volume control, Cardas RCA jacks and Neutrik headphone jacks.

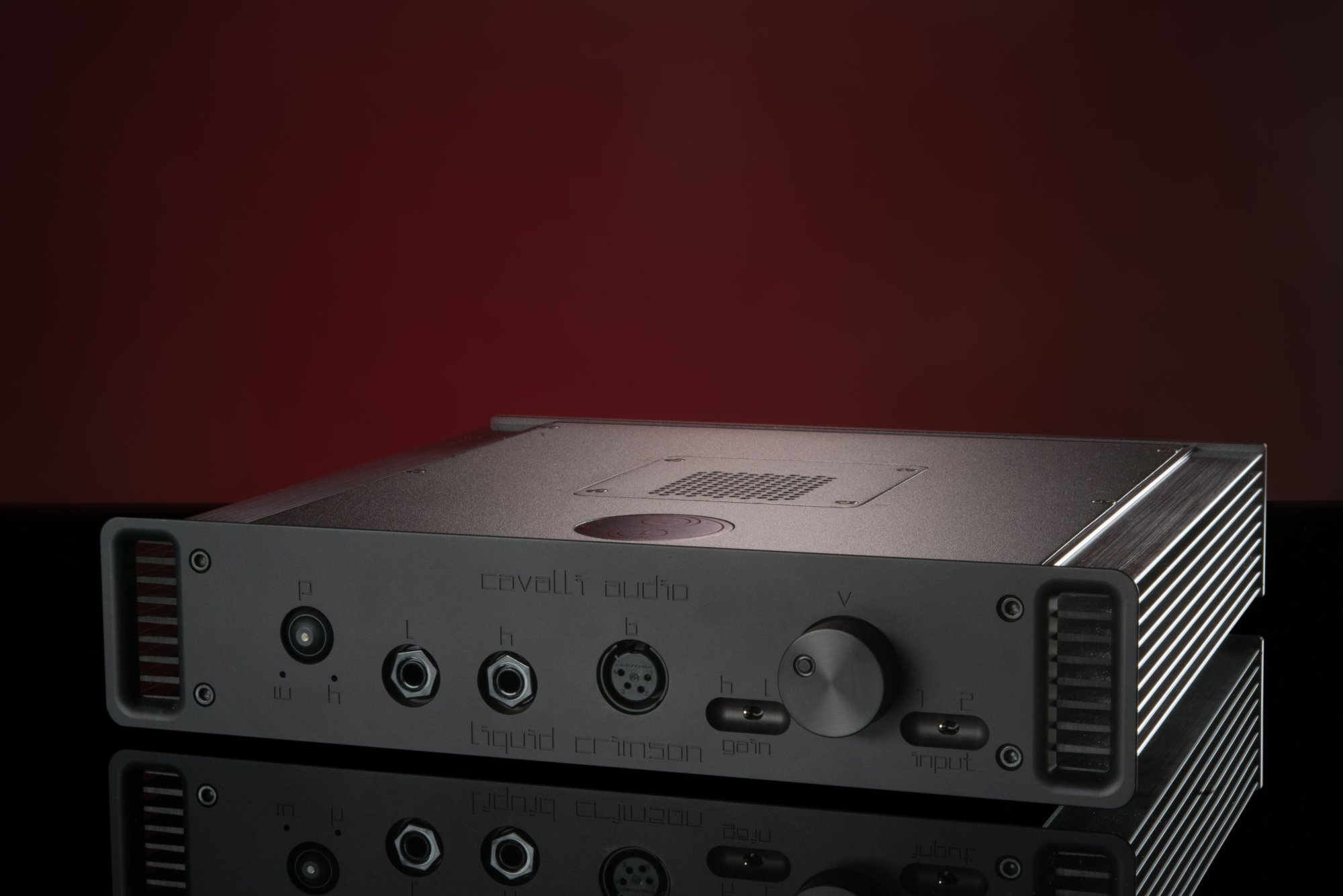

It's also pretty big. Here's a photo:



Notice that the sides are entirely heatsinks. These sinks make it possible to make 4-5W SE. The output mosfets are biased at 150mA keeping in class A mode for a very long time as power demand goes up. Each mosfet burns about 5W at idle creating a minimum of 20W that has to get out of the box. There are also hot regulators attached to the heatsinks so let's say 25W.

The Crimson is made on a single board (I can't find the interior photos offhand).

So the engineering question is, how do we take this and turn it from SE to Balanced (which would increase the original size by at least 50%), then take the balanced version and make it 1/4 the size of the SE Crimson, and then get the cost to a more affordable level?? We'll get into that in the next post.

Nov 2, 2018 at 4:53 PM Post #409 of 3,735

runeight

Member of the Trade: Cavalli Audio
Joined
Oct 10, 2002
Posts
2,941
Likes
1,404
I burning one in right now. Manual says nothing about using variant tubes. After 2+ hours of running a burn-in disk (mix of XLO and others) the thermal protection circuit kicked in. I was driving Fostex TH-X00 and it turns out the manual suggested doing burn in without driving a load, which I am doing now. Unit runs quite warm on the cover by the tubes.

Good solid feel to the unit with nice case work. Will post more later on. I have Massdrop Focal Elex (balanced), HD600 (balanced) and the aforementioned Fostex amongst other cans. My current amp inventory is Auralic Taurus Mk II, Questyle 600i, Yulong A8.

I know I've mentioned this in other threads. MHO is that extended burn in is not necessary. The amp should sound ok out of the box and will slowly improve as you listen normally. When I do a new amp, I don't really burn in anymore, I just use it. Just my thoughts.

Also, performance really is better out of balanced out for all the reasons that you guys know. If you don't have balanced cables I highly recommend that you get some if you can.

Nov 2, 2018 at 5:16 PM Post #410 of 3,735

Jim N

New Head-Fier
Joined
Sep 2, 2012
Posts
15
Likes
28
I know I've mentioned this in other threads. MHO is that extended burn in is not necessary. The amp should sound ok out of the box and will slowly improve as you listen normally. When I do a new amp, I don't really burn in anymore, I just use it. Just my thoughts.

Also, performance really is better out of balanced out for all the reasons that you guys know. If you don't have balanced cables I highly recommend that you get some if you can.

Thanks for the info. It's a little rolled off on top right now and bass is a touch woolly so I'll give it a bit of time. I run balanced from my Gumby into the Auralic and now the Liquid Platinum. Busy doing other things so I'm letting it do it's own until a bit later on.

Nov 2, 2018 at 6:10 PM Post #411 of 3,735

BearlyPizza

New Head-Fier
Joined
Apr 30, 2014
Posts
46
Likes
85
I have to say.. The all metal casing looks a lot better in person than the photos on the monoprice site! It feels quite sturdy too!
Sadly, i'm listening to it through SE until my balanced cable comes in! i'd like to give impressions, but i'd rather do that when I have my balanced cable =).
It does run a bit hot compared to what i'm used to though! Not hot enough to burn, but hotter than warm for sure when i'm touching the case.


Here's some photos!

Last edited:
Nov 2, 2018 at 6:27 PM Post #412 of 3,735

Allanmarcus

Headphoneus Supremus
Joined
Jan 15, 2014
Posts
4,612
Likes
1,740
Location
New Mexico
Also, performance really is better out of balanced out for all the reasons that you guys know. If you don't have balanced cables I highly recommend that you get some if you can.

I run balanced from my Gumby into the Auralic and now the Liquid Platinum.

Just to clarify for everyone. Alex said balanced out has better performance. I assume there is one amp for each polarity for each channel (4 amps) vs 2 amps for SE out.

As for balanced vs SE in, they should be the same. Balanced sources will output more power to their balanced out, so using balanced in might sound louder than SE in from the same DAC, but unless there is RFI, it should pretty darned close, if not identical. Of course this assumes that output is the same quality from the source.

@runeight : Any comments on balanced in vs SE in WRT the Liquid Platinum?

Last edited:
Nov 2, 2018 at 6:55 PM Post #413 of 3,735

PopZeus

Headphoneus Supremus
Joined
Jul 30, 2015
Posts
1,601
Likes
990
Is there a big difference between running the input balanced versus SE? I only have one balanced out on my DAC, so I'm torn between the idea of running this (potentially) SE or the Liquid Carbon X.

Nov 2, 2018 at 7:26 PM Post #414 of 3,735

runeight

Member of the Trade: Cavalli Audio
Joined
Oct 10, 2002
Posts
2,941
Likes
1,404
Just to clarify for everyone. Alex said balanced out has better performance. I assume there is one amp for each polarity for each channel (4 amps) vs 2 amps for SE out.

As for balanced vs SE in, they should be the same. Balanced sources will output more power to their balanced out, so using balanced in might sound louder than SE in from the same DAC, but unless there is RFI, it should pretty darned close, if not identical. Of course this assume that output is the same quality from the source.

@runeight : Any comments on balanced in vs SE in WRT the Liquid Platinum?

The Platinum uses two differential amps, one per channel. The Balanced is, obviously, taken between the two outputs of each amp. The SE, however, is taken from one output of each amp to ground. This means that SE can only output 1/4 the power into the same load. This is shown in the specs on MP website.

Human hearing, being logarithmic, doesn't really notice the power difference that much, especially when listening power is usually quite low and you can always change the volume setting. But I think the Bal out is a hair more dynamic than SE. And I have a general philosophy that a balanced amp should be run fully balanced in and out to get the best. Though this last idea is more of a personal thing than something measured out in detail.

At one point a while back I almost decided to remove the SE jacks from any future Balanced amp that i would make. A little extreme, I know, and others talked me out of it. :ksc75smile:

If you use the Platinum SE I think you'll be very happy with what it's doing. It sounds great. I just think Bal out adds just a tad more to the experience. Subtle but hearable if you really try.

Input doesn't matter. The amp should perform the same regardless of Bal or RCA ins. The RCA in has a built-in splitter so that the lower level SE signal is doubled to be more consistent with the Bal input. I have a DAC where the Bal out outputs twice the amplitude of SE. When using the Carbon (with a similar arrangement) I can live swap from one input to the other and I, honestly, can't even tell that the switch has occurred.

Oh. One interesting thing. With the Carbons there were quite a few questions about not being able to switch the output from Bal to SE and back using the input switch. So, just to maybe anticipate one or two of these, the button on the right only swaps the input selection. Both output jacks are live all the time. :L3000:

Nov 2, 2018 at 7:34 PM Post #415 of 3,735

runeight

Member of the Trade: Cavalli Audio
Joined
Oct 10, 2002
Posts
2,941
Likes
1,404
I have to say.. The all metal casing looks a lot better in person than the photos on the monoprice site! It feels quite sturdy too!
Sadly, i'm listening to it through SE until my balanced cable comes in! i'd like to give impressions, but i'd rather do that when I have my balanced cable =).
It does run a bit hot compared to what i'm used to though! Not hot enough to burn, but hotter than warm for sure when i'm touching the case.


Here's some photos!

It does run a little warm. Just be sure to give it lots of surrounding ventilation. Don't put it on top of something that is also hot. :)

Nov 2, 2018 at 7:55 PM Post #416 of 3,735

BearlyPizza

New Head-Fier
Joined
Apr 30, 2014
Posts
46
Likes
85
It does run a little warm. Just be sure to give it lots of surrounding ventilation. Don't put it on top of something that is also hot. :)

Definitely going to be giving it a lot of ventilation and its own spot on my desk! It's a lovely amp to listen to !

Nov 2, 2018 at 8:51 PM Post #417 of 3,735

Jim N

New Head-Fier
Joined
Sep 2, 2012
Posts
15
Likes
28
I know I've mentioned this in other threads. MHO is that extended burn in is not necessary. The amp should sound ok out of the box and will slowly improve as you listen normally. When I do a new amp, I don't really burn in anymore, I just use it. Just my thoughts.

Also, performance really is better out of balanced out for all the reasons that you guys know. If you don't have balanced cables I highly recommend that you get some if you can.

I just realized who responded :wink:. Thank you for taking the time here! I was greatly anticipating this amp!

I am running my Focal Elex balanced from the LP. I also have HD600 balanced. I had a long listening session last night with the Auralic driving the Elex balanced. I will listen to the same, very familiar CD's (Chick Corea / Ultimate Adventure, Dave Grusin / One of a Kind, Flim & The BB's Tunnel, Steely Dan /original issue MCA CD's of Aja and Gaucho) that I did last night. I know audible memory is quite short but I know these recordings very well and what details to look for.

Nov 2, 2018 at 9:10 PM Post #418 of 3,735

alphanumerix1

1000+ Head-Fier
Joined
May 7, 2017
Posts
1,030
Likes
556
Location
Brisbane, Australia
Also, I have this idea to write a few posts on how it was possible to engineer a very big and expensive, singled ended Liquid Crimson into an affordable, fully balanced version of the same amp now known as Liquid Platinum. You guys please let me know if this would be of interest on this thread.

Most definitely

Nov 3, 2018 at 1:38 AM Post #420 of 3,735

Jim N

New Head-Fier
Joined
Sep 2, 2012
Posts
15
Likes
28
Thanks for the info. It's a little rolled off on top right now and bass is a touch woolly so I'll give it a bit of time. I run balanced from my Gumby into the Auralic and now the Liquid Platinum. Busy doing other things so I'm letting it do it's own until a bit later on.

Quoting oneself does seem a bit tacky but.... amp is settling in quite nicely. Getting ready for the night's listening session. Will use the Elex balanced.

Alex, anything you wish to share would be greatly enjoyed and appreciated.
