Hello Head-Fier's,
I'm modding my Creative Aurvana's for about 6 Month now and I have already modded several for other Hi-Fiers and friends out there.
I haven't planed to publish my mod therefore I haven't got too many pictures.
There are 2 main differences betweens those headphones.
The first one is the cable hanger which is made of plastic in the Creative AL.
The other one is the back of the cups of the headphones. The Denon D1000 has onepiece cups made of plastic ,the Creative has twopiece cups which are screwed together and don't fit and isolate well.
You need 4 plastic-yoghurt-cups with a inner diameter of 69mm and an outer diameter of 72-73mm, yoghurt cups with a plastic ring are just perfect !
2-component epoxy
Sound wool/dampening wool
a small and a big scissor
Dynamat Xtreme
Screwdriver
sheet of paper
pen
tissue
Now you'll see the innerside of the Cups. There are 2 more screws which hold the back of the cups in place.
Remove the screws and put the back of the cup on the paper(facing the creative label towards you) and use your pen to create a drawing.
Cut the drawing with you scissor and test if it fits innerside of the back. You might have to make it a bit smaller and add 3 spaces for the plastic spikes inside the headphone.
The next Step is a bit tricky. You have to mix you 2component-Epoxy and put it on to the groove of the back of the headphone and attach the back to the cup again. It's better to use too little otherwise you have gluemarks on the outside of your headphone.
If you have Epoxy left put it on the surrounding inside the headphone to increase the isolation a bit more.
The glue needs about 1 hour to dry.
You can choose to add more Dynamat to the cups to increase the isolation and reduce vibrations.
But this also increases the weight of you headphones which leads to a more uncomfortable headphone.
The problem is the that the highs of the are really spiking your ears and even tough the punch-bass is quiet good, the headphone is lacking deep-bass.
The Deep-bass is necessary to give instruments and voices a certain bassline without making them too punchy and thin.
The Ultrasone HFI-780 is a good example for a good deep-bass.
To achieve more deep-bass the headphone has to "breath" more air. In terms of a closed headphone it's not possible to enhance this.
Therefore you have to lower the resistance of the air by cutting a little hole in the back of the fabric on the inner side of the system.
The hole should have the same size as the other holes that are already in the fabric.
It's possible to make the hole even bigger which leads to a more laid back sound. Maybe a try if you like Sennheisers?
Now that you have finished modding the cups ,add just a little bit of sound wool to the cups to dampen the sound.
The amount of wool depends on what sound characteristic you like.
If it's too much it sounds like you're listening through a curtain.
If there is no wool at all it'll sound a bit spiky and unbalanced.
You have to cut one ring out of each the yoghurt cup with a height of 7mm.
Cut the ring some where to make it more flexible.
Attach some Dynamat to the ring and put in the inside of the paddings, If your plastic ring has a flat plastic ring ,put the ring on the downside, facing the headphone.
Take a little bit of your tissue so you can fold it 4 times.The height should be 5mm afterwards. Put it also in you paddings.
Now add another plastic ring, this time the flat ring should face you.
There you have it ! Your Wannabe-modded Creative AL! with a nice punchy and fun-sounding characteristic.
Listen and enjoy.
If you have problems understanding my english (as you "might" have noticed I'm not a native speaker nor is my english really good) ask me for further information.
Also if you need more pictures you can ask me.
I'm modding my Creative Aurvana's for about 6 Month now and I have already modded several for other Hi-Fiers and friends out there.
I haven't planed to publish my mod therefore I haven't got too many pictures.
Differences between Creative AL & Denon D1000/10001
There are 2 main differences betweens those headphones.
The first one is the cable hanger which is made of plastic in the Creative AL.
The other one is the back of the cups of the headphones. The Denon D1000 has onepiece cups made of plastic ,the Creative has twopiece cups which are screwed together and don't fit and isolate well.
Goals
The Goal of my mod is to enhance the deepbass a little bit,to get the bass punchier,to improve the clarity and isolation without spending tons of material and money.Material

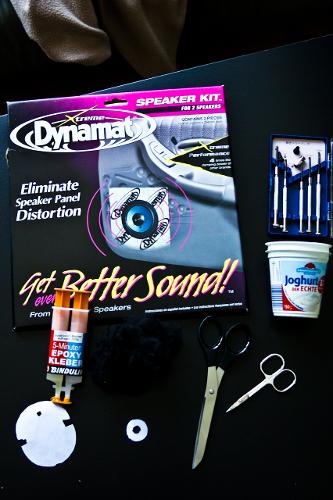

You need 4 plastic-yoghurt-cups with a inner diameter of 69mm and an outer diameter of 72-73mm, yoghurt cups with a plastic ring are just perfect !
2-component epoxy
Sound wool/dampening wool
a small and a big scissor
Dynamat Xtreme
Screwdriver
sheet of paper
pen
tissue
1.Step dissambling the headphone & create drawing
At first you have to take off the paddings and open the headphone by removing the 2 screws.Now you'll see the innerside of the Cups. There are 2 more screws which hold the back of the cups in place.
Remove the screws and put the back of the cup on the paper(facing the creative label towards you) and use your pen to create a drawing.
Cut the drawing with you scissor and test if it fits innerside of the back. You might have to make it a bit smaller and add 3 spaces for the plastic spikes inside the headphone.
2.Step Adding Dynamat Xtreme and glue your headphone
Now you can use the drawing to cut out the right piece of Dynamat to fit in to the back.The next Step is a bit tricky. You have to mix you 2component-Epoxy and put it on to the groove of the back of the headphone and attach the back to the cup again. It's better to use too little otherwise you have gluemarks on the outside of your headphone.
If you have Epoxy left put it on the surrounding inside the headphone to increase the isolation a bit more.
The glue needs about 1 hour to dry.
3.Step More Dynamat
Next step is well known from Markl-Mods. Attach some Dynamat to the magnet ring.You can choose to add more Dynamat to the cups to increase the isolation and reduce vibrations.
But this also increases the weight of you headphones which leads to a more uncomfortable headphone.
4.Step Hole in to the System, sounding wool
If you have already listened to the Creative or the Denon you might have noticed that the headphone has an "in-your-face" sound So it's more of a fun sounding headphone than a serious fidelity headphone with a flat frequence.The problem is the that the highs of the are really spiking your ears and even tough the punch-bass is quiet good, the headphone is lacking deep-bass.
The Deep-bass is necessary to give instruments and voices a certain bassline without making them too punchy and thin.
The Ultrasone HFI-780 is a good example for a good deep-bass.
To achieve more deep-bass the headphone has to "breath" more air. In terms of a closed headphone it's not possible to enhance this.
Therefore you have to lower the resistance of the air by cutting a little hole in the back of the fabric on the inner side of the system.
The hole should have the same size as the other holes that are already in the fabric.
It's possible to make the hole even bigger which leads to a more laid back sound. Maybe a try if you like Sennheisers?
Now that you have finished modding the cups ,add just a little bit of sound wool to the cups to dampen the sound.
The amount of wool depends on what sound characteristic you like.
If it's too much it sounds like you're listening through a curtain.
If there is no wool at all it'll sound a bit spiky and unbalanced.
5. Modding the pads
The last step is to mod you pads.You have to cut one ring out of each the yoghurt cup with a height of 7mm.
Cut the ring some where to make it more flexible.
Attach some Dynamat to the ring and put in the inside of the paddings, If your plastic ring has a flat plastic ring ,put the ring on the downside, facing the headphone.
Take a little bit of your tissue so you can fold it 4 times.The height should be 5mm afterwards. Put it also in you paddings.
Now add another plastic ring, this time the flat ring should face you.
Finished !
There you have it ! Your Wannabe-modded Creative AL! with a nice punchy and fun-sounding characteristic.
Listen and enjoy.
If you have problems understanding my english (as you "might" have noticed I'm not a native speaker nor is my english really good) ask me for further information.
Also if you need more pictures you can ask me.
