iFi audio ZEN Blue - The Official Thread
post-15207189
Thread Starter
Post #1 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
Enlightened audio at a down-to-earth price

First of a new range of audio components priced at just £129, US$129 and €149, iFi’s ZEN Blue delivers hi-res Bluetooth streaming to any audio system

Southport, England – iFi kicks off a new range of high-quality, super-affordable, desktop-sized audio products with the ZEN Blue – the world’s first Bluetooth receiver supporting all the latest hi-res codecs for the best-quality music streaming from smartphones, tablets, PCs and Macs to any audio system.


The ZEN Blue immediately impresses with its sturdy aluminium enclosure, unusual at such a low price. But what really sets it apart is the circuitry within – as always, iFi has gone to great lengths to ensure that sound quality over Bluetooth is the best it can be, even if it has to be designed from the ground up.

Bluetooth reception represents a mere convenience for many audio manufacturers, enabled in the simplest and cheapest way to ‘tick a box’ on the features list. But the manner in which Bluetooth is implemented – the quality of signal processing and the circuitry that surrounds it – has a big impact on performance. Not all Bluetooth sounds the same, and iFi engineers its products to obtain the best possible performance from every audio source – Bluetooth streaming included.

With the ZEN Blue, this starts with a state-of-the-art Qualcomm QCC5100 chip to process the incoming data – the ZEN Blue is the first product of its kind to benefit from this new-generation Bluetooth IC.


All the latest 24-bit-capable Bluetooth audio formats are supported, including Qualcomm’s aptX Adaptive and aptX HD, Sony’s LDAC and Huawei’s HWA – no other Bluetooth streamer boasts this cutting-edge hi-res specification. Other codecs covered include regular aptX and aptX Low Latency, AAC (the favoured format of Apple iOS devices) and SBC (the ‘plain vanilla’ Bluetooth codec). This means that every possible source device is covered at the highest audio resolution its Bluetooth specification allows.

The Qualcomm QCC5100 offers a ‘system-on-a-chip’ Bluetooth solution, with all functions covered including D-to-A conversion. Many manufacturers would simply rely on this chip to deliver the DAC function, but this is not the iFi way. The ZEN Blue has separate digital and analogue stages; to feed the analogue stage, the processed digital signal is routed from the QCC5100 to a specialised DAC chip from ESS Technology’s Sabre family to convert the signal from digital to analogue.

One of the key advantages of the ESS Sabre DAC chip is its Hyperstream architecture with integrated Time Domain Jitter Eliminator, which helps to deliver vanishingly low distortion and high dynamic range. iFi has found that this allies perfectly with the Qualcomm chip to deliver Bluetooth audio that sounds far better than the norm.

None of this would mean much if the rest of the ZEN Blue’s circuitry were not up to scratch. This is the first iFi product to benefit from the input of legendary audio designer John Curl, who has teamed up with the iFi electronics design team, led by Technical Director Thorsten Loesch, to ensure the circuit design of every product is fully optimised.

The ZEN Blue’s analogue output stage is a balanced design – highly unusual in a DAC anywhere near this price point. It incorporates a range of high-quality circuit components, carefully selected for their performance in an audio context, including professional-grade balanced line drivers, C0G capacitors from TDK and a precision low-noise power supply IC from Texas Instruments. It all adds up to a highly affordable Bluetooth streamer with a sound that punches well above its weight.

It’s all connected

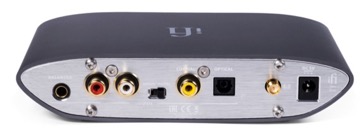

The ZEN Blue adds high-quality Bluetooth reception to any audio system via analogue or digital cable connections. A switch at the back dictates how the digital signal is routed; either through the DAC and analogue output stage, or directly to the digital outputs. On the analogue side, RCA stereo outputs allow connection to amplifiers, active speakers and the like, while a 4.4mm Pentaconn output enables balanced signal transfer to amps/speakers equipped with a balanced input – either a 4.4mm input, or XLR inputs via a 4.4mm-to-XLR cable. For digital connections, optical and coaxial outputs are provided – these allow connection to anything with a built-in DAC and corresponding digital input, such as an AV amp or an external hi-fi DAC.


The ZEN Blue ‘remembers’ up to seven paired Bluetooth source devices, making it easy to switch from one device to another, with impressive reception range thanks to the latest Bluetooth 5 specification. The DAC stage handles sampling rates well in excess of the maximum delivered by current hi-res Bluetooth formats – of the 24-bit-capable codecs, aptX Adaptive and aptX HD support up to 48kHz, while LDAC and HWA reach 96kHz.

The LED at the centre of the ZEN Blue’s front panel changes colour to identify the Bluetooth codec being received, while another LED to the right indicates the sample rate. Qualcomm’s QCC5100 chip can be updated over-the-air, enabling future Bluetooth codecs to be added to the ZEN Blue’s specification.

Find your ZEN

Available from October, the ZEN Blue hi-res Bluetooth streamer is the first of a range of ZEN Series products, all of which share the same 158x35x100mm (WxHxD) aluminium case. It will be followed swiftly by the ZEN DAC, which swaps Bluetooth reception for a USB input and adds an integrated headphone amp. Further ZEN Series products will arrive in the coming months.

TABLE OF CONTENTS:

1. Teaser:


2. The official release:
3. Getting all tech about Bluetooth:

Last edited:
iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15207238
Post #2 of 225

joshnor713

1000+ Head-Fier
Joined
Apr 1, 2014
Messages
1,074
Reaction score
571
Location
Seattle Area
Joined
Apr 1, 2014
Location
Seattle Area
Posts
1,074
Likes
571
Interesting. Looking forward to hearing more about it. LDAC is a win for me. If the sound can match the Micro iDSD BL over BT then it should be a hit.

     Share This Post
post-15209201
Post #3 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
Interesting. Looking forward to hearing more about it. LDAC is a win for me. If the sound can match the Micro iDSD BL over BT then it should be a hit.
Soon, very soon...

iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15209425
Post #4 of 225

Gazny

100+ Head-Fier
Joined
Apr 6, 2019
Messages
243
Reaction score
156
Location
San Diego
Joined
Apr 6, 2019
Location
San Diego
Posts
243
Likes
156
Actually was looking for a product to do this. iFi Nano Ione was on my list for a pickup.

     Share This Post
post-15211323
Post #5 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15213309
Post #7 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15213396
Post #8 of 225

joshnor713

1000+ Head-Fier
Joined
Apr 1, 2014
Messages
1,074
Reaction score
571
Location
Seattle Area
Joined
Apr 1, 2014
Location
Seattle Area
Posts
1,074
Likes
571
And? Where is it?

     Share This Post
post-15214437
Post #9 of 225

buke9

Headphoneus Supremus
Help and Recommendation Contributor
Joined
Feb 21, 2015
Messages
8,474
Reaction score
1,489
Location
Kentucky
Joined
Feb 21, 2015
Location
Kentucky
Posts
8,474
Likes
1,489
     Share This Post
post-15215988
post-15217081
Post #11 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
Last edited:
iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15217195
Post #12 of 225

buke9

Headphoneus Supremus
Help and Recommendation Contributor
Joined
Feb 21, 2015
Messages
8,474
Reaction score
1,489
Location
Kentucky
Joined
Feb 21, 2015
Location
Kentucky
Posts
8,474
Likes
1,489
     Share This Post
post-15218733
Post #13 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
iFi audio Stay updated on iFi audio at their sponsor page on Head-Fi.

https://www.facebook.com/iFiAudio/ https://twitter.com/ifiaudio https://www.instagram.com/ifiaudio/ https://ifi-audio.com/ info@ifi-audio.com
     Share This Post
post-15220060
Post #14 of 225

joshnor713

1000+ Head-Fier
Joined
Apr 1, 2014
Messages
1,074
Reaction score
571
Location
Seattle Area
Joined
Apr 1, 2014
Location
Seattle Area
Posts
1,074
Likes
571
So the press release is out for this and webpage is live. Really nice option (maybe the best) if you want wireless and affordability to make a simple HiFi system. However, at an output impedance of just <50 ohm, not suitable for IEM use. Also, iFi doesn't say which ESS DAC is under the hood, which is odd.

Something similar to this would be great for portable headphone users in an office. I know the xDSD has Bluetooth capability, but it tops out at aptX. It also uses an uncommon 3.5mm balanced port. Maybe a sequel is in the works.

     Share This Post
post-15220606
Post #15 of 225

iFi audio

Sponsor: iFi Audio
Joined
Mar 20, 2013
Messages
6,187
Reaction score
3,204
Location
Location: HQ in the UK, but spread far and wide.
Joined
Mar 20, 2013
Location
Location: HQ in the UK, but spread far and wide.
Posts
6,187
Likes
3,204
Website
ifi-audio.com
However, at an output impedance of just <50 ohm, not suitable for IEM use
We aimed at a small and not costly desktop machine of impressive performance. But this one doesn't have a heapdhone out. Its 4.4mm socket is a balanced line out, not meant to be used with headphones.
