(How-to fix) How I fixed my Ultimate Ears Triple-Fi 10 (TF10)
Jan 11, 2013 at 6:02 PM Thread Starter Post #1 of 11

goldfingerfif

New Head-Fier
Joined
Feb 17, 2012
Posts
1
Likes
11
I ordered the Fiio RC-UE1 cable for my Ultimate Ears Triple Fi 10 (TF10) to my work.  UPS tracking showed it will be here today so I thought I would get a head start and remove the cables from the ear buds.  I should have probably waited until I got home and delicately took my time but I didn’t think the super glue holding the plug into the ear bud would break.



I tried pulling on it and though wow this is really in there,  so I pulled a tad bit harder and it just popped out with the plug and the soldered enameled connection inside the ear bud broke too.  I almost cried but my emotions quickly turned to anger and almost smashed them and tossed them in the trash.  I remained calm and went back to sad and depressed.  I looked for a disassembly guide, surely I’m not the first I thought.  Seen others who had this problem but as for a guide….no luck

Everyone had just said to get them reshelled but not much about repair.  Determined as I was I tried taking them apart carefully and was successful.

1.   Here is the picture of the headphones at the end but since I forgot to take a starting pic I figured I would show where to press to break the ear buds apart first.  I used my knife to press on the sides and break the "tabs" free as you'll see in other pics.  The knife is the Benchmade 480-1 M390 Super Stainless Steel with Carbon Fiber and anodized Titanium handle (It feels like it weighs nothing) http://www.benchmade.com/products/480-1










2.   I then cut some small wires because I didn't like the ones that were on there, I felt the enamel was wearing and the wires looked frayed.




At this time my cable arrived

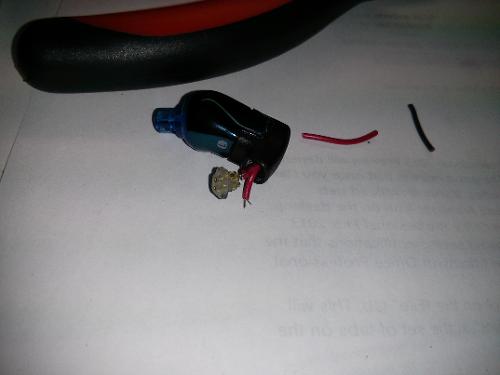

3.   I soldered my wires onto the board first EXTREMELY CAREFULLY




4.   Then put the black plastic piece back on




5.   Started unsoldering the wires from the connector (see above image)

6.   Cut appropriate and equal amount off each wire.




7.  Soldered wires to connector

8.  Since wires were too thick to easily stuff in I had to take it apart slightly to put connector in first so I could move wires around.



9.   I then tested earbuds to make sure they worked

10.  I took apart the connector slightly and applied glue.







11.  Tested earbuds again.

12.  Glued housing back together.







They Work Great!  I am very proud of myself.  Hopefully this helps someone.  If you want to see more pics (I didn't want to post them all in here)

http://s68.photobucket.com/albums/i38/goldfingerfif/TF10/

Jan 28, 2013 at 8:17 PM Post #3 of 11

PrgSkidmark

New Head-Fier
Joined
Jan 28, 2013
Posts
21
Likes
15
Location
Indianapolis
Hey guys,
I went to change my comply foam tips on my TF10, and the post broke away from the body!!
I called tech support but the guy kept telling me about the cable breaking off.  I said no it's the post.  LOL
That brings me here.  :)

What adhesive should I use?  It still feels a little tacky.  I should probably remove the old adhesive.


I see that you broke the tabs apart, and didn't use glue.  I didn't read carefully enough.

Thanks,
Doug

Feb 1, 2013 at 7:01 AM Post #4 of 11

PrgSkidmark

New Head-Fier
Joined
Jan 28, 2013
Posts
21
Likes
15
Location
Indianapolis
I went to walmart and the Extended Set LocTite super glue for plastics was not there.  So I went with Krazy Glue super glue with the word Craft on it.
I touched the applicator around the edge.  I didn't cover the entire circle with glue.  It was like spot gluing.
I had to press together for 30 seconds.  I wiped off excess.  It says bonds skin instantly, but I wiped more glue off the plastic like 30 minutes later.  So I let sit for 3 hours.  It looked dry, and held together.  I'll see how it holds long term.
Doug

Feb 2, 2013 at 6:09 PM Post #5 of 11

KimChee

Headphoneus Supremus
Joined
Feb 20, 2010
Posts
2,965
Likes
415
Location
US
wow nice work OP, I guess you had nothing to lose.  Good job at taking the housing apart.  OTOH that could have given you an excuse to do a reshell.

Mar 11, 2014 at 8:40 PM Post #6 of 11

pofilmboy

New Head-Fier
Joined
Mar 11, 2014
Posts
3
Likes
0
Thanks for sharing your experience.  I managed to get mine open, but was thoroughly intimidated to have to solder the tiny posts. I have the soldering skills of a Chemical Engineer.  I took mine to Jeff at Tri-Point Audio in Des Moines who had done a great job repairing damage to a turntable, tonearm and cartridge that was damaged during a move.  He said that he could resolder the leads with no problem.  I will repost with the result and cost.

Peter

Mar 15, 2014 at 1:50 PM Post #7 of 11

willysan

New Head-Fier
Joined
Mar 15, 2014
Posts
1
Likes
0
Many Thx for your post! I have broken my wife TF10 pro exactly the same way you did. I was shocked when this happen tonight. Luckily I clam down and found your post here, it gave me a hope. I did my best and the case opened finally.

Thx again!!!

Aug 6, 2016 at 11:58 PM Post #10 of 11

coco-bun

New Head-Fier
Joined
Feb 12, 2016
Posts
23
Likes
10
...similar thing just happened to me.

The sound randomly cut out from the left side, took a look, and one of the brass sockets from the left driver unit (to plug in the cable) just came out stuck to the cable pin...

I'm not sure if I can repair it myself but hopefully I can find a shop that can.
