HiBY W5 - 192KHz Bluetooth audio breakthrough
Mar 3, 2019 at 5:34 AM Thread Starter Post #1 of 32

IryxBRO

500+ Head-Fier
Joined
Aug 8, 2017
Posts
756
Likes
1,070
Location
Ukraine
HiBy W5 — the world’s first Bluetooth DAC/AMP receiver with UAT (Ultra Audio Transmission) codec that might set the new wireless audio standards for the entire industry. 192KHz Ultra Audio Transmission technology was developed by HiBy as new generation of Bluetooth audio codec superior to all previous standards. HiBy has managed to take the advantage of Bluetooth 5.0 and overcome previous bandwidth limitations that didn’t allow sufficient data transfer speeds, consequently lowering sampling frequency. With the introduction of UAT, 192KHz files with the maximum transfer rate of 1.2Mbps would be streamed directly from the source to headphones with no further downsampling.



HiBy W5 technical specifications and discription:
  • Type: Bluetooth audio receiver with integrated DAC&AMP
  • Connectivity: Bluetooth 5.0 (CSR8675)
  • Bluetooth audio codecs: SBC, AAC, apt-X, apt-X_LL, apt-X HD, LDAC, UAT
  • Max. bit rate: 1.2Mbps
  • Max. bit depth: 24bit
  • Max. sampling frequency: 192kHz
  • DAC&AMP chip: ESS Sabre ES9218P
  • SNR: 118dB
  • THD+N: -103dB
  • Output power: 80mW+80mW@32Ω
  • Audio output: 3.5mm
  • Control elements: 1 sensor button + LED indicator
  • Battery life: ≥20 hours (W5 battery + cradle battery), ≥100 hours at standby
  • Compatibility: Windows, Android, iOS, MacOS
  • Other features: intergrated mic for voice calls, IP67 waterproof, remote control by HiBY Music app
  • Weight: 19.5g (W5), 57.1g (cradle)

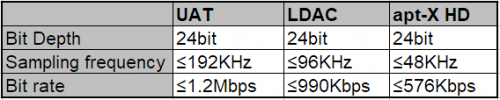

Short comparison of main specs of the two latest audio codecs developed by Qualcomm (apt-X HD) and Sony (LDAC):



As far as we understand, HiBy might be pushing their innovation to different vendors right after confirming that it is perfectly stable. Anyway, W5 is compatible with all currently available BT audio codecs and could be paired to any other audio source supporting Bluetooth. Therefore, you can use it with any DAPs or smartphones and enjoy all advantages of the latest wireless audio transmission technologies.


HiBy has launched W5 on KickStarter on 5th of March and would start delivering production units on May. Next post of this thread would contain our review of fully functional peproduction sample.


__________________________________________________________________________________________
LINKS:

HiBy W5 on KickStarter: LINK
Official HiBy W5 page: LINK


__________________________________________________________________________________________
Reviews:

1. IryxBRO review: LINK
2. HiBy W5 on HeadFi: LINK
3. Review by Audio123: LINK
4. Review by Headfonics: LINK

__________________________________________________________________________________________
FAQ:

Last edited:
Mar 3, 2019 at 5:11 PM Post #3 of 32

jant71

Headphoneus Supremus
Joined
Feb 19, 2005
Posts
7,277
Likes
4,242
Hmmm, no volume control is a deal breaker for me :frowning2: and other controls being worse than necessary doesn't help either... press and then press and hold to power down? I can see on TW earphones at their size but a BT amp should have the three control buttons at least like most others do.

Mar 4, 2019 at 4:21 AM Post #4 of 32

manukmanohar

100+ Head-Fier
Joined
Apr 14, 2017
Posts
322
Likes
175
Location
India
Hmmm, no volume control is a deal breaker for me :frowning2: and other controls being worse than necessary doesn't help either... press and then press and hold to power down? I can see on TW earphones at their size but a BT amp should have the three control buttons at least like most others do.

Oh, no! Lack of volume control is a bummer.

Btw , @IryxBRO , would you know what is the output impedance of the 3.5 mm out. (becomes important for OI sensitive iems like Massdrop Plus, Andromeda).

Mar 4, 2019 at 9:00 AM Post #6 of 32

rendyG

100+ Head-Fier
Joined
Jan 20, 2016
Posts
418
Likes
259
Location
Czech Republic
I would really want to support Hiby on this project, but Earstudio ES100 just seems like a better option still, except w5 may sound just a touch better.
It doesn't have balanced out, volume buttons, the software and mainly it can't match the ES's battery life..
Now I'm regretting I didn't jump on ES100 back then :/ I didn't believe in bluetooth, until I tried ES100 for a minute recently.

Am I missing something?

Mar 5, 2019 at 10:35 AM Post #7 of 32

audio123

Reviewer at audio123
Joined
Jan 10, 2016
Posts
9,591
Likes
7,975
My take on the HiBy W5. Enjoy & Happy Listening, as always! :)


Oh, no! Lack of volume control is a bummer.

Btw , @IryxBRO , would you know what is the output impedance of the 3.5 mm out. (becomes important for OI sensitive iems like Massdrop Plus, Andromeda).
I got you. Quite silent with my Andromeda!


Mar 6, 2019 at 7:59 PM Post #8 of 32

subtec

100+ Head-Fier
Joined
Nov 7, 2017
Posts
108
Likes
53
Location
US
HiBy has managed to take the advantage of Bluetooth 5.0 and overcome previous bandwidth limitations that didn’t allow sufficient data transfer speeds
This is a little misleading. Audio transmission is done over Bluetooth Classic, and BT Classic hasn't changed with BT 5.0. Only if it was using Bluetooth Low Energy (which it isn't) would BT 5.0 make a difference.

Mar 15, 2019 at 12:02 AM Post #9 of 32

Joe Bloggs

Member of the Trade: HiBy / EFO technologies Co
His Porta Corda walked the Green Mile
Joined
Oct 21, 2001
Posts
11,316
Likes
3,103
Location
Hong Kong and Melbourne
No data. Should check or ask. I would update if I'd have this info
The output impedance is under one ohm. For more information, the w5's DAC and amp are the ESS ES9218P combo DAC/amp chip.

Oh, no! Lack of volume control is a bummer.

Btw , @IryxBRO , would you know what is the output impedance of the 3.5 mm out. (becomes important for OI sensitive iems like Massdrop Plus, Andromeda).
Actually it has volume and transport buttons, if a single button overloaded with button combos counts :sweat_smile:

May 7, 2019 at 10:21 AM Post #10 of 32

Pro-Jules

1000+ Head-Fier
Joined
Apr 11, 2015
Posts
1,278
Likes
513
Will I be able to listen to a HiBy R6 Pro in the highest quality setting UAT and also receive phone calls via my iPhone?

I other words will it be 'multi device'?

May 7, 2019 at 12:40 PM Post #12 of 32

Joe Bloggs

Member of the Trade: HiBy / EFO technologies Co
His Porta Corda walked the Green Mile
Joined
Oct 21, 2001
Posts
11,316
Likes
3,103
Location
Hong Kong and Melbourne
Will I be able to listen to a HiBy R6 Pro in the highest quality setting UAT and also receive phone calls via my iPhone?

I other words will it be 'multi device'?
It connnects to one device at a time... :sweat_smile:

May 7, 2019 at 1:02 PM Post #14 of 32

Pro-Jules

1000+ Head-Fier
Joined
Apr 11, 2015
Posts
1,278
Likes
513
Some Bluetooth devices can multi-pair.

Would be handy to be alerted and be able to take calls on my headphones.

May 7, 2019 at 2:45 PM Post #15 of 32

ClieOS

IEM Reviewer Extraordinaire
Joined
May 11, 2004
Posts
20,228
Likes
9,814
Location
Mid Johor, Malaysia
I am interested as well. Unfortunately I can't place an pre-order on Hiby store for now as apparently I need to order it from a local distributor. Guess it will take a little longer to get one.
