Grado modders go Magnum
post-15429444
Post #4,862 of 4,891

WNBC

Headphoneus Supremus
Joined
Dec 9, 2010
Messages
2,238
Reaction score
182
Location
WA
Joined
Dec 9, 2010
Location
WA
Posts
2,238
Likes
182
     Share This Post
  • Like
Reactions: Philimon
post-15431768
Post #4,863 of 4,891

Rhydon

MOT: Symphones
Joined
Mar 7, 2005
Messages
789
Reaction score
63
Joined
Mar 7, 2005
Posts
789
Likes
63
Three layers of micropore tape and the bass is closer to neutral. Its difficult to tell because vocals are a bit recessed. Using reverse bowls tones down highs and in relation lifts mids n lows. In combination with more bass tuning I can get the mids and vocals closer to even. Bass is still a bit peaky however just no longer cannons.
Can you private message me? This doesn't sound like our V9's, wondering if something went wrong with the install or something is not working correctly.

post-15434863
Post #4,864 of 4,891

fleasbaby

Member of the Trade: Wabi Sabi Headphones
Joined
Jul 8, 2011
Messages
3,152
Reaction score
1,900
Joined
Jul 8, 2011
Posts
3,152
Likes
1,900
Can you private message me? This doesn't sound like our V9's, wondering if something went wrong with the install or something is not working correctly.
@Rhydon Let me know your thoughts when you're done discussing. I suppose I should share mine now that I have had a few days with a build I made for myself. Mine are mounted in a pair of Walnut GS1K-style cups, with a copper cable by Ted at Headphonelounge.
Can you private message me? This doesn't sound like our V9's, wondering if something went wrong with the install or something is not working correctly.
@Rhydon I shot you a PM yesterday as well, with some notes. I have a build for myself, using Walnut GS1K clones that has less design variables in it.

     Share This Post
post-15435210
Post #4,866 of 4,891

Geezer Rock 001

500+ Head-Fier
Joined
Jan 15, 2018
Messages
611
Reaction score
370
Location
Georgia USA
Joined
Jan 15, 2018
Location
Georgia USA
Posts
611
Likes
370
My V9 s in fleasbaby cups rock better than any other Grado platform can that I have experienced. Driving it with a Violectric V100 with Sparkos op amps. They get a regular rotation and continue to impress me!

     Share This Post
post-15435312
Post #4,867 of 4,891

Philimon

500+ Head-Fier
Joined
Oct 14, 2007
Messages
975
Reaction score
110
Location
Portland
Joined
Oct 14, 2007
Location
Portland
Posts
975
Likes
110
Looks like I will be shipping my headphones out to Symphones for evaluation. If driver is found faulty then Ill receive a replacement free of charge. Thank you Rhydon. So, please ignore my previous v9 sound comments. I will stay away from this thread for now. Sorry everyone.

     Share This Post
post-15449137
Post #4,868 of 4,891

fleasbaby

Member of the Trade: Wabi Sabi Headphones
Joined
Jul 8, 2011
Messages
3,152
Reaction score
1,900
Joined
Jul 8, 2011
Posts
3,152
Likes
1,900

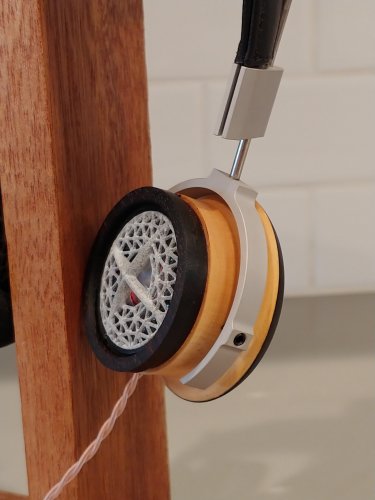

Redid my V9 build with some newer cups I made for myself. Been testing out an all natural, food safe finish made from beeswax and linseed oil. The wood is Rosewood and Maple, laminated together.

Note, I recessed the driver to see how it sounds. Will share impressions as they come.

I also rehoused my V8 in my daily driver cups. These are finished with Shellac and are Ebony, Walnut and Purple Heart laminated together.


Will try to do some side by side comparisons this week, with the V9 recessed and flush with the cup lip.

post-15458040
Post #4,869 of 4,891

dhruvmeena96

Headphoneus Supremus
Joined
Dec 13, 2014
Messages
2,334
Reaction score
1,016
Location
Gurgaon, India
Joined
Dec 13, 2014
Location
Gurgaon, India
Posts
2,334
Likes
1,016
@fleasbaby @Rhydon and everyone doing grado mods

Love magnum V9 from a friend's set

But I have to ask

Since you guys believe in woods and sound effecting due to back tube resonances in Grado cups(well wood do effects the sound a bit, from wood to woo

Since its a tube
What will happen if I use different kind of metals etc

Like, anybody experienced different metal sound

Just asking

As all metal have different resonating mode, plus thick metal won't resonate .... And reflection of sound in metal

And the last bit of grooving or making the shell like a horn towards outside

Etc


Just asking for some knowledge


And I am placing order on MAGNUM v9 and beautiful audio Grado G cush

Magnum V9 is something I felt non grado like and more like planar in sound( wall of sound)

Presentation is huge while being controlled

     Share This Post
post-15459805
Post #4,870 of 4,891

Rhydon

MOT: Symphones
Joined
Mar 7, 2005
Messages
789
Reaction score
63
Joined
Mar 7, 2005
Posts
789
Likes
63
@fleasbaby @Rhydon and everyone doing grado mods
Since its a tube
What will happen if I use different kind of metals etc
As all metal have different resonating mode, plus thick metal won't resonate .... And reflection of sound in metal
And the last bit of grooving or making the shell like a horn towards outside
You may want to stick with wood ear cups. Metals have very little damping and high weight which makes them hard to use for large headphones. Some use metal outer cups with inner wood inserts, this is good practice if you want the strength of aluminum but the damping of wood.

Part of the fun with DIY headphones is experimenting to get the sound you like. Feel free to have some fun with different shapes and materials to see what the effects are. There are a few vendors on our site that make custom cups, or if you know someone with a wood lathe maybe they could help you make a few prototypes.

Last edited:
     Share This Post
post-15459956
Post #4,871 of 4,891

dhruvmeena96

Headphoneus Supremus
Joined
Dec 13, 2014
Messages
2,334
Reaction score
1,016
Location
Gurgaon, India
Joined
Dec 13, 2014
Location
Gurgaon, India
Posts
2,334
Likes
1,016
You may want to stick with wood ear cups. Metals have very little damping and high weight which makes them hard to use for large headphones. Some use metal outer cups with inner wood inserts, this is good practice if you want the strength of aluminum but the damping of wood.

Part of the fun with DIY headphones is experimenting to get the sound you like. Feel free to have some fun with different shapes and materials to see what the effects are. There are a few vendors on our site that make custom cups, or if you know someone with a wood lathe maybe they could help you make a few prototypes.
I work with military research
So I can get duralumin.

I was thinking of avoiding the wood, because I dont like woody sound. Symphones V9 needs to be transparent what I feel
They are huge departure from V8 in the feel of sound

But sir...still thanks

Will keep that in mind

     Share This Post
post-15461223
Post #4,872 of 4,891

fleasbaby

Member of the Trade: Wabi Sabi Headphones
Joined
Jul 8, 2011
Messages
3,152
Reaction score
1,900
Joined
Jul 8, 2011
Posts
3,152
Likes
1,900
@fleasbaby @Rhydon and everyone doing grado mods

Love magnum V9 from a friend's set

But I have to ask

Since you guys believe in woods and sound effecting due to back tube resonances in Grado cups(well wood do effects the sound a bit, from wood to woo

Since its a tube
What will happen if I use different kind of metals etc

Like, anybody experienced different metal sound

Just asking

As all metal have different resonating mode, plus thick metal won't resonate .... And reflection of sound in metal

And the last bit of grooving or making the shell like a horn towards outside

Etc


Just asking for some knowledge


And I am placing order on MAGNUM v9 and beautiful audio Grado G cush

Magnum V9 is something I felt non grado like and more like planar in sound( wall of sound)

Presentation is huge while being controlled
There have been a few folks who have tried solid brass/aluminium/etc. The original Joe Grado HP series was housed in metal as well. Personally I have only gone as far as wooden sleeves in aluminium housings. My experience has been that it keeps a bit of the tone of wood, but adds more control. Some like that, others don't. It can't hurt to try :).

     Share This Post
  • Like
Reactions: dhruvmeena96
post-15461259
Post #4,873 of 4,891

Rhydon

MOT: Symphones
Joined
Mar 7, 2005
Messages
789
Reaction score
63
Joined
Mar 7, 2005
Posts
789
Likes
63
Come to think of it I think Joe Grado was going for reliability and ruggedness with the choice of aluminum for the HP-1000 rather than sonics alone. This headphone was designed as a recording engineers tool, used in a sometimes hectic and fast paced recording studio. Lots of being handeled, moved around, banged, dropped- if it were to be taken seriously it had to last. Although the resonance of aluminum earcups are higher in frequency, it is still well within the audio band, not to mention its Q factor is much more pronounced (db of resonance). Wood has a much lower stiffness and hense resonance, but much much better damping (low Q). Problem is you use wood headphones in a recording studio and they'd be toast in a few weeks. So if you are anticipating a rough ride, for example using your headphones on the go or at work, then aluminum outer cups with wood inserts is still a great idea and what modern higher-end grado's use today. But if you are using around the house or at your computer, maybe consider reducing the weight with wood only earcups. Also if you are finding your headphone to sound overly warm that could be a problem with air leaks. Be sure the driver is sealed properly within the earcup.

post-15463950
Post #4,874 of 4,891

northendjazz

Head-Fier
Joined
Oct 26, 2015
Messages
88
Reaction score
54
Joined
Oct 26, 2015
Posts
88
Likes
54
While other materials have been brought up, anyone know what resin cups would sound like? My sister works in resin and I've been thinking of making mould of some cups I haven't completed yet. Visually they would be amazing in clear resin with some colour but if they don't sound good...

     Share This Post
post-15466410
Post #4,875 of 4,891

Rhydon

MOT: Symphones
Joined
Mar 7, 2005
Messages
789
Reaction score
63
Joined
Mar 7, 2005
Posts
789
Likes
63
While other materials have been brought up, anyone know what resin cups would sound like? Visually they would be amazing in clear resin with some colour but if they don't sound good...
Plastic tends to have low stiffness (so low resonance frequency) and high Q (level of resonance). For this reason i would shy away from it. You dont see many high quality speakers or headphones with large enclosures use plastic, its not the best for resonance. Wood or damped wood is best if (and a big if) your enclosure is large. If you are using a small frame then material stiffness is more important than resonance.

Last edited:
     Share This Post
