DTPA alive in powersupply case PICS

[Kenny12]

well is alive, will post more when i come back from friends house, sounding nice



[Garbz]

nice work. It's great watching a project like this evolve from a simple idea.

The case is a bit of a waste though, it looks like it would fit nicely into a smaller hammond case.



[Jazper]

Quote:

Originally Posted by Garbz nice work. It's great watching a project like this evolve from a simple idea. The case is a bit of a waste though, it looks like it would fit nicely into a smaller hammond case.

I'd show you mine (which is in a hammond case) but I don't have anywhere to host pictures :S Note that it is my first amp.

if you're registered for ocau then you can see it here: http://forums.overclockers.com.au/sh...20#post4176420



[Kenny12]

actually i'm building another one, to be put in a hammond case

this is just a pre run



[DaKi][er]

if i ever get the urge to mount the pot at the back of a pcb and think of using a shaft extender, please kick me

here's one i finished this afternoon -

im already working on a v2 of the boards, they will be much more user friendly

but for the first time i've ever gotten boards made from something of my own design, they turned out good



[Kenny12]

kicks DaKi][er

><' got a pot stuck in the board with no extender!



[amb]

Since that power transformer (EI core too) and AC wiring looms so close to the input, I wonder if you notice any hum? Try running RMAA and see if you observe any spikes at 60Hz and its harmonics in the noise plot.



[Jazper]

Quote:

Originally Posted by Kenny12 kicks DaKi][er ><' got a pot stuck in the board with no extender!

so desolder it...

(easier said than done, I know - I did it)



[Kenny12]

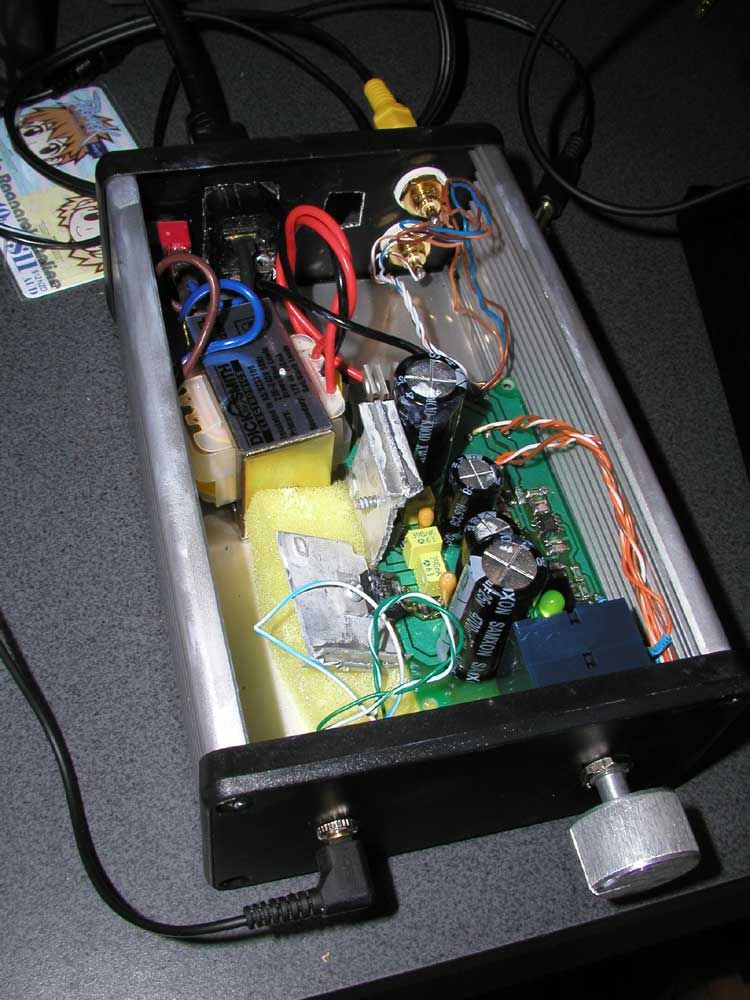

finally got around to desoldering the pot and finishing my 2nd amp



[Edwood]

Coughcutthepotshaftdowncough.

Oh, and foam by a heatsink is usually not a good idea (don't know how hot it gets, though.)

Nice cramming of the components, though.

-Ed
