It's all about experimenting, try both with nothing else and see

     Share This Post
  • Like
Reactions: robar
post-15193046
Post #1,082 of 2,068

robar

100+ Head-Fier
Joined
Aug 11, 2019
Messages
400
Reaction score
373
Location
Hungary
Joined
Aug 11, 2019
Location
Hungary
Posts
400
Likes
373

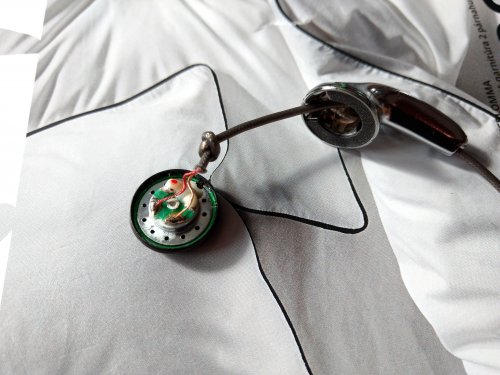

I've opened up the Fengru Silver (tc200) to see what's inside, potentially for modding (reducing v shape plus improve low bass, or shell swap). Do you know what driver is this? A bit looks like diy mx500 on ali, but colored differently and supposedly 16ohm versus 32.
Opening up was fairly straightforward with little bit of hairdryer, but the driver itself was a bit glued to the shell, so the front cover came loose for a sec. I should be more careful next time, I'm quite scared of detached covers because I managed to ruin vido drivers with that.

Last edited:
     Share This Post
post-15193456
Post #1,083 of 2,068

robar

100+ Head-Fier
Joined
Aug 11, 2019
Messages
400
Reaction score
373
Location
Hungary
Joined
Aug 11, 2019
Location
Hungary
Posts
400
Likes
373
I don't recommend tc200 for diy projects, one of the drivers died on me when I opened up the shell. The circuit/magnet part was glued on the shell somehow, so when I took off the front the driver got separated, the circuit/magnet stayed in the shell while the membrane and coil remained in the grille and got damaged. :/ Interestingly, I didn't have this problem with the other half, it was pretty easy to open it and stayed intact just fine. Maybe some manufacturing inconsistency caused the excessive glue on the died one

Last edited:
     Share This Post
post-15195710
Post #1,084 of 2,068

silverfishla

Headphoneus Supremus
Joined
Oct 6, 2016
Messages
1,649
Reaction score
1,441
Location
Los Angeles
Joined
Oct 6, 2016
Location
Los Angeles
Posts
1,649
Likes
1,441
Pliobond is the glue that you should get to mate driver and shell. Works great. Just in case, since I’ve seen other forms of glue floating around.
Edit: it goes on liquid and becomes tacky, then turns into a rubber seal. Squeeze out can be peeled off or rubbed off. Very clean bond.

Last edited:
post-15196998
Post #1,085 of 2,068

subwoof3r

500+ Head-Fier
Joined
Dec 17, 2006
Messages
858
Reaction score
1,260
Location
France
Joined
Dec 17, 2006
Location
France
Posts
858
Likes
1,260

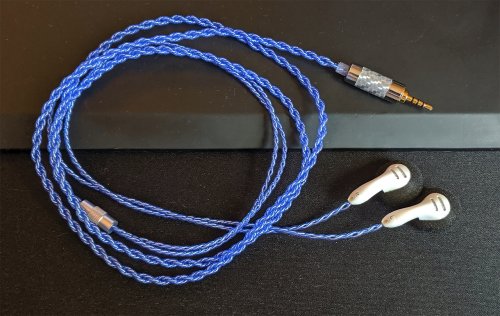

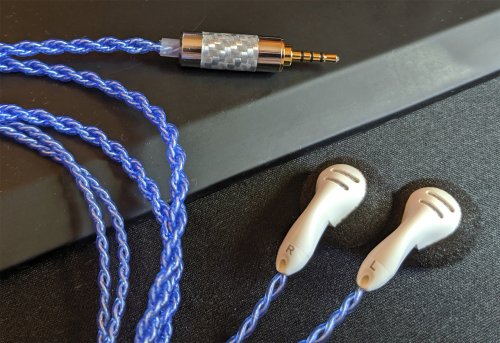

I succeed my first retermination to 2.5mm balanced TRRS ⚡ Very pleased with the result, balanced FTW!
Thank you @hakuzen & @HungryPanda for the hints! much appreciated :)



Last edited:
post-15197180
Post #1,086 of 2,068

Merlin-PT

100+ Head-Fier
Joined
Jan 21, 2005
Messages
469
Reaction score
512
Joined
Jan 21, 2005
Posts
469
Likes
512
Pliobond is the glue that you should get to mate driver and shell. Works great. Just in case, since I’ve seen other forms of glue floating around.
Edit: it goes on liquid and becomes tacky, then turns into a rubber seal. Squeeze out can be peeled off or rubbed off. Very clean bond.
I saw a youtube video to see how Pliobond looked like and it looks like Patex that I have here, but I don't know if it's equivalent.
I never tried to glue the drivers before and didn't knew what to use, so the only one time I needed to glue a vido driver that was separated from the membrane, I used thin varnish, because it looked like that some kind of varnish was already used in the drivers. Patex would be too think and the varnish I used is thin like water (very low viscocity), doesn't occupy space. I was worried if it would react with the membrane, but had no problem.

To glue both parts of the plastic housing, I was thinking of using some kind of weak thread/nut locker, there are several strengths, the weak one is designed to glue, but also to unglue with weak force. It looks like some kind of thin varnish. Still I never used it, because all my housings close well without glue, so I don't know what is the best.

Last edited:
post-15197971
Post #1,087 of 2,068

HungryPanda

Headphoneus Supremus
Joined
Dec 8, 2013
Messages
7,974
Reaction score
13,204
Location
Kent, UK
Joined
Dec 8, 2013
Location
Kent, UK
Posts
7,974
Likes
13,204

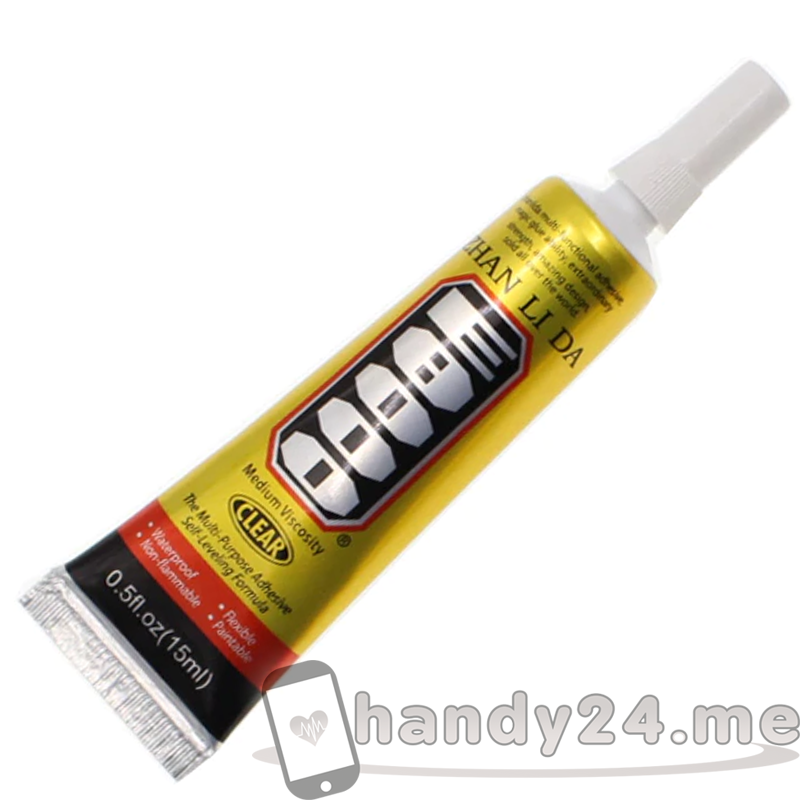

E8000 is the glue that I use on all my earbud projects

post-15198022
Post #1,088 of 2,068

Merlin-PT

100+ Head-Fier
Joined
Jan 21, 2005
Messages
469
Reaction score
512
Joined
Jan 21, 2005
Posts
469
Likes
512
I have several of those AliE glues in cart to try (for different uses), but didn't knew what to order first.
I'll order that one first. Thanks.

Last edited:
     Share This Post
  • Like
Reactions: subwoof3r
post-15201120
Post #1,089 of 2,068

subwoof3r

500+ Head-Fier
Joined
Dec 17, 2006
Messages
858
Reaction score
1,260
Location
France
Joined
Dec 17, 2006
Location
France
Posts
858
Likes
1,260
Personally I'm using cyanolit (cyanoacrylate) glue, especially for MMCX PIN sockets, does the trick very well, but once its dry, its impossible to remove after. So I have to make other shells with other PIN sockets (which is sad, considering MMCX socket prices on ali)


Last edited:
     Share This Post
  • Like
Reactions: DBaldock9
post-15201323
Post #1,090 of 2,068

assassin10000

1000+ Head-Fier
Joined
Jun 14, 2010
Messages
1,361
Reaction score
1,274
Location
CA
Joined
Jun 14, 2010
Location
CA
Posts
1,361
Likes
1,274
Personally I'm using cyanolit (cyanoacrylate) glue, especially for MMCX PIN sockets, does the trick very well, but once its dry, its impossible to remove after. So I have to make other shells with other PIN sockets (which is sad, considering MMCX socket prices on ali)

I'm not 100% sure, but I think it's been mentioned that the off gassing or exothermic reaction from that glue can damage diaphragms. (By slater or hungrypanda iirc?)

Anyone here able to confirm?


I've been trying to decide on an adhesive myself, current choices are: e8000, pva or now pliobond.

post-15201438
Post #1,091 of 2,068

HungryPanda

Headphoneus Supremus
Joined
Dec 8, 2013
Messages
7,974
Reaction score
13,204
Location
Kent, UK
Joined
Dec 8, 2013
Location
Kent, UK
Posts
7,974
Likes
13,204
I personally would not recommend super glue. E8000 is best E7000 is a little bit more pliable and used more for phone and dap repairs

Last edited:
     Share This Post
post-15201635
Post #1,093 of 2,068

subwoof3r

500+ Head-Fier
Joined
Dec 17, 2006
Messages
858
Reaction score
1,260
Location
France
Joined
Dec 17, 2006
Location
France
Posts
858
Likes
1,260
btw, if I may suggest, another of my great tools is THIS solder sucker (ENGINEER SS-02)
I'm using it now since few weeks. This is one of the best (if not the best) solder sucker ever made.
Greatly finished (100% made in japan) and sucking power is just incredible. A real pleasure to use this tool for every of my DIY projects. I tried cheaper solder sucker in the past and its night and day difference. The only cons is the price but it really worth it. Highly recommended from me :)


post-15201738
Post #1,094 of 2,068

endia

100+ Head-Fier
Joined
Jul 9, 2003
Messages
346
Reaction score
159
Location
istanbul
Joined
Jul 9, 2003
Location
istanbul
Posts
346
Likes
159
btw, if I may suggest, another of my great tools is THIS solder sucker (ENGINEER SS-02)
I'm using it now since few weeks. This is one of the best (if not the best) solder sucker ever made.
Greatly finished (100% made in japan) and sucking power is just incredible. A real pleasure to use this tool for every of my DIY projects. I tried cheaper solder sucker in the past and its night and day difference. The only cons is the price but it really worth it. Highly recommended from me :)

I've been using this one for two years and never look back. totally different level to me.. but it was half the price at the time..

US $42.20 | WALFRONT 30W 220V 50Hz Electric Vacuum Solder Sucker /Desoldering Pump / Iron Gun
https://s.click.aliexpress.com/e/Ob0l7R2o

post-15202507
Post #1,095 of 2,068

subwoof3r

500+ Head-Fier
Joined
Dec 17, 2006
Messages
858
Reaction score
1,260
Location
France
Joined
Dec 17, 2006
Location
France
Posts
858
Likes
1,260

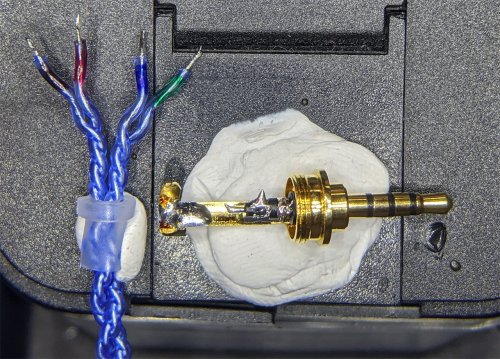

If it can help I just made (for myself) a balanced TRRS plug schema, hope it will help some of you in case of need :)
(sorry for the lunashop watermark, but I found the position of the plug very good to show)


Last edited:
