Was a little bored so I got to modding a Periodic Be I had lying around.



Hot damn, it sounds stupid good. Will post the process and final impressions later.

post-14502103
Post #872 of 2,924

Mmurin

Head-Fier
Joined
Jul 9, 2017
Messages
66
Reaction score
21
Location
Paris
Joined
Jul 9, 2017
Location
Paris
Posts
66
Likes
21
I would really like to know how the new sony hybrids xba-n1 and xba-n3 rank compared to the others

     Share This Post
post-14502115
Post #873 of 2,924

Nalin

Formerly known as Thearcade12
Joined
Nov 27, 2012
Messages
350
Reaction score
65
Joined
Nov 27, 2012
Posts
350
Likes
65
Was a little bored so I got to modding a Periodic Be I had lying around.



Hot damn, it sounds stupid good. Will post the process and final impressions later.
Any chances of flc8n, i think lmue stocks them.

Thanks

     Share This Post
post-14502450
Post #875 of 2,924

crinacle

Member of the Trade: In-Ear Fidelity
Joined
Feb 3, 2011
Messages
2,347
Reaction score
2,922
Location
Singapore
Joined
Feb 3, 2011
Location
Singapore
Posts
2,347
Likes
2,922
Website
crinacle.com
Periodic Audio Be Mod


The Be is Periodic Audio's current flagship DD IEM and is named so after its beryllium foil diaphragm. The driver itself is actually extremely competent, having rather excellent impulse response and THD but the tuning itself was a little too much for my own personal taste. Considering that it was already a rather warm to begin with, the 10dBs of mostly-midbass emphasis was the cherry on top of the cherry pie.

The mod that I've come up with (and am still experimenting with) attempts to follow my personal target curve and is comprised of two parts: a simple reversible mod and an irreversible advanced one.

For reference, the original FR response captured on my phone app which I used for the experimentation:


The quick and dirty

Extremely simple; first, just seal the back vent (pictured here) with whatever material you want, scotch tape in my case. Second, the nozzle requires two layers of teabag filter; I personally cut a strip out of a Twinnings bag, folded it in half, laid it over the nozzle and fitted a silicone tip over.

Taping the back vent should kill the bass response slightly, and the teabag filters smooths out the peaks in the treble. This simple mod already improves the clarity and overall cohesiveness of the Be's signature quite significantly. Frequency responses below:



Red: stock FR, Black: simple mod FR

Going further

Caution: It is recommended that you have some sort of coupler+microphone measuring rig before proceeding with the following.

Now the next part is just me wanting to kill the midbass response even further. Sealing the back vents is the best one can do without permanently tampering with components, so to go beyond that we'll have to tinker with the front vents as well. The front vent is located at the bottom of the nozzle. The location is pictured below, though mine has already been taped over:


With a sharp object (SIM card remover, pen nib etc., needle not recommended here due to size), pierce the mesh inside the front vent. Feel free to pierce all the way as the vent is perpendicular to the driver and so you won't have to worry about damaging the diaphragm (just don't push towards the driver and you'll be fine!). Once that happens, the bass will start rolling off due to excessive leakage so you'll need to control the airflow within the chamber. Tape over the front vent and prep a needle.

At this point it's mostly a matter of art because I can't predict how you yourself will perform the mod. To start off, make one pinhole at the back vent tape. Next, play around with front vent tape by poking around. The goal here is to get as little bass as possible without rolling off; I'm essentially aiming for a linear, EX1000-style bass as much as possible. Once the bass is at the desired linearity, switch the nozzle dampening from two layers of teabag filter to three layers. The reduced lower-frequency response seems to make the sound a little more shrill, so just a tad extra attenuation in the upper end is recommended in my opinion.

The final FR should be like so:



Comparison with "simple" mod

Comparison with stock
Some additional choice comparisons with other IEMs:


Against InEar ProPhile-8

Against Etymotic ER4SR


Final impressions

I'm not the best person to pass judgement considering that this is tuned literally to my own specifications, but IMO this is now my favourite dynamic-driver IEM. I wouldn't call it true neutral but it certainly doesn't overly emphasise any specific frequency range. The sound is slightly warm, vocals aren't biased toward either male or female, no significant complaints on my end apart from the housing the cabling of the IEM itself. Already prefer it over the Beyerdynamic Xelento and the Sennheiser IE800S based off a comparison earlier this afternoon.

post-14503085
Post #876 of 2,924

Piotr Michalak

100+ Head-Fier
Joined
Nov 27, 2016
Messages
408
Reaction score
305
Joined
Nov 27, 2016
Posts
408
Likes
305
I'm not the best person to pass judgement considering that this is tuned literally to my own specifications, but IMO this is now my favourite dynamic-driver IEM. I wouldn't call it true neutral but it certainly doesn't overly emphasise any specific frequency range. The sound is slightly warm, vocals aren't biased toward either male or female, no significant complaints on my end apart from the housing the cabling of the IEM itself. Already prefer it over the Beyerdynamic Xelento and the Sennheiser IE800S based off a comparison earlier this afternoon.
HeadphoneGodMode=On!

Thank you for sharing. Regarding Xelento, or rather mine T8ie Mk2, would you consider sharing any ideas about how to flatten their bass also? I love their capabilities, but this bass is also too much for me, especially if I've listened to KSE1500 in Sensaphonics custom shells the same day (they are reference flat tuned... I believe). I'd love to do to T8ie EXACTLY what you did to the aforementioned IEMs.

     Share This Post
post-14505297
Post #879 of 2,924

chungjun

500+ Head-Fier
Joined
Nov 14, 2016
Messages
608
Reaction score
436
Joined
Nov 14, 2016
Posts
608
Likes
436
Ramblings of a man with nothing better to do: "The Hybrid Endgame"
So, I've been back home in "IEM central" for about two weeks now. Mainly focusing on my measurements database, but I've definitely been doing my fair share of subjective listening on some of the IEMs that I've really wanted to try for a year now.

As most people would know, I love hybrid IEMs. I take a rather staunch stance against balanced armature woofers; based on my experience, BA bass will never be as good as dynamic bass. They do not have the texture, nor do they have the power and/or authority. Any improvements in speed, clarity or "transparency" for BA woofers are simply overshadowed by how unnatural they sound like, especially compared to the full-sized headphones and speaker setups that I've had the opportunity to listen to. Now, DDs aren't perfect either, but in my eyes they are the better solution for bass reproduction than any current-generation balanced armature driver.

Anyways, this really isn't a hit-piece on BA woofers. My journey for my "perfect headphone" has been going on since the turn of the decade, and till now I'm still on the lookout for what I hope shall wean me off the upgraditis virus, possibly forever. So, here's some Friday night word-vomit about my history with hybrids and the fresh faces on the market that I've had the pleasure of listening to.

Ultimate Ears Super.fi 5 Extra Bass "SF5EB"
Ah yes, the grandfather of hybrids. I managed to get some ear-time on these last year when a kind gentleman loaned me his for a good hour. I shall refer to its sound as the "classic hybrid" sound, big gobs of bass with a bare smattering of treble just to remind you that there's a tiny BA tweeter in there. Unfortunately, it was a muddy mess, barely any resolution and was far too bassy for most genres to fully appreciate.

Still though, pioneers are never the greatest, and while my current ears would never touch one with a ten foot pole, it served as a great concept. A concept of uniting the best of both worlds, even if Mr. Harvey wasn't so successful back then.

Unique Melody Merlin (first generation)
My memory of this gem is foggy but enough for some choice words. The Chinese-made hybrid sported 4 BAs and 1 DD (I could be wrong) and had, to my memory, the same "classic hybrid" bass-centric and warm sound that the SF5EB had. Just as a UM representative said in an interview with Audio Primate: "The old Merlin certainly had some degree of flaws, many of which we address in our V2 version, but people loved the idea that you can finally get “real” bass in a BA custom IEM. And that’s a big part of our design philosophy."

Here, the "flaws" being that while it had the signature DD bass, it kind of failed everywhere else. The UM of old placed too much emphasis on the "DD" and not enough on the "BA", resulting in a sound that was, again, overly warm and rolled-off, detracting from the audiophile experience as a whole. A valiant effort that, while not successful as an IEM, was more successful than the SF5EB in bringing awareness of the hybrid design to the IEM community.

AKG K3003
I remember when this came out, it was one of the most expensive IEMs ever sold. $1,500! That's already just as expensive as the then-recently-released HD800! It was a simple design, a Knowles TWFK and a dynamic driver in an extremely compact design, barely exceeding the size of common earbuds. However, what was interesting was that AKG didn't opt for the classic sound of big bass, and rather went for a more reference-style tuning (depending on the filters used, of course). It was a shock to the IEM community at the time; a hybrid that isn't bass boost all the way? What madness is this?

To be succinct with my words, the sound was unoffensive . To be more precise: it's balanced, perhaps a mild V-shape, not entirely flat and dead but not the most energetic or natural sounding earphone by today's standard. Back then though, I remembered being floored by it. The bass wasn't powerful, but sounded completely different from what I was used to hearing in my TF10. It was an effortless naturality that only a DD woofer can bring, which made the TF10 sound farty and lifeless in comparison despite the similar levels of emphasis. The K3003 was my hook into the hybrid world as is the case with many fellow hybrid nuts nowadays.

The K3003 was what I believed to have kickstarted the hybrid renaissance. Chinese copycats were scrambling to stuff TWFKs (genuine or otherwise) with their cheap DDs hoping to take advantage the K3003's massive press. Slowly but surely the driver wars began, but there were some who refused to participate and decided to stand out on other merits.

FLC Technologies FLC8
Forrest Wei's first baby was one of the most unique hybrid IEMs, even till today. Similar in design to the K3003, using a TWFK and DD, but now with a new twist: interchangeable filters. We see this "gimmick" everywhere nowadays, but in my opinion the FLC8 is one of the best implemented and most useful even in today's context. Now, a technical breakdown would take an entire post of its own so I won't go into that. The geist of it is that it has a filter of the DD vents (adjusting airflow), DD tubing (adjusting leakage) and interchangeable dampers for its TWFK.

It has been a while since I've heard the FLC8, but I remember it fondly as my top pick for "best IEM under $1000" in terms of value and sheer performance. It sounds great right out of the box, and if it's not your cup of tea in its default state you still have 35 other configurations to try out before you throw it back to the store. It certainly won't turn heads today but I'd still take it over some of its cheaper copycats like the LZ A4.

Today's contenders

AAW W900
Here's the point in time when we start getting into the high-end side of hybrids. For the longest time, the market was dominated by pure-BA setups from companies such as UE, JH and Noble. The notion of "high end hybrid" wasn't really getting a lot of traction and while there were a few attempts made (Kumitate's KL-REF, Unique Melody's refresh of the Merlin), none really caught a lot of attention. It was then that a certain reviewer called jelt2359 ranked a certain W500 as number 2 in his highly popular "Fit for a Bat!" CIEM shootout did the boom really begin. Banking on the success of the W500, AAW of course updated their flagship to the W900, a more balanced take on the hybrid sound much like the K3003.

I'd classify the W900 has neutral-warm, perhaps too stunted in the treble to be considered true neutral. The midrange was a little honky-tonk and the treble, while extremely extended and linear, didn't really sound natural enough. The big selling points of the W900 was its amazing bass, a page taken right out of the W500's book, as well as huge soundstage. It definitely wasn't perfect though, and while I did buy one, I was never under the illusion that this was my endgame. Not by a long shot.

64 Audio Tia Fourte
It's the K3003 situation all over again. What did you say? How much does this thing cost? $3,600? Are you mad?! The Fourte's pricing was another shock to the community, only slightly mitigated by the subsequent release of the $3,000 A18Tzar. I believe that the Fourte is an interesting concept, worth a try but not the price (according to my wallet). Now, I may have gushed over it during its early days, but the flaws of the Fourte get more apparently on the second, third, fourth listen.

Not sure if it's due to that chamber technology thing going on inside the Fourte, but it has the widest, most open soundstage I have ever heard in any IEM to date. The bass response too, reaches so low, beautiful decay; I cannot deny the wow factor of the Fourte. However, after a few listens and with the confirmation of trusted ears, there is a disjointedness going on somewhere, perhaps in the midrange. It sounds hollow, maybe a little shrill, almost reminiscent of an out-of-phase recording. That was the main reason why I docked the Fourte from S to S-; sure it has all the technical chops, but man, it just sounds odd. Completely different from my reference gear.

Rhapsodio Zombie
Throwing back to its roots, the Zombie Rhapsodio's first 8+1 hybrid in the same vein as the W900 with the classic hybrid sound. It throws a wall of bass right at your face, sometimes uncontrollably bleeding over frequencies it shouldn't be touching. The Zombie makes me kind of nostalgic on first listen, it was quite a while since I've heard a tuning that was so focused on the DD aspect of hybrids, perhaps to its detriment.

It really is a marmite situation with the Zombie; I can say with confidence that most people will not like it but for the few that do, you'd probably never find another like it.

64 Audio Tia Trio
The new kid on the Tia block, based off the design of the Fourte. It's a little cheaper but not enough for me to pull it out of the "overpriced" zone. Disregarding price and apparent technology though, I find the Trio to be a superior version of the Fourte. Sure, there are mild cutbacks in stage size and treble sparkle from what I assume to be one less tia tweeter, but it sounded less disjointed, less hollow and meatier, removing a lot of the oddness that I found with the Fourte.

Then again, the keyword here is "less". There is still hints of disjointedness and hollowness which is hard to ignore especially when directly comparing against other TOTLs. I guess in terms of the ranking, the tradeoff in technicalities for timbre accuracy and tonal balance would put the Trio in the same league as the Fourte.

Empire Ears Legend X
My my... the hype for these are off the rails these days. I'll be honest, my first listen of the LX wasn't too great; it sounded extremely bassy and a tad too imbalanced. On subsequent listens though I was liking it more and more. The vocals, while coloured, had a real nice sweet quality to it. It wasn't hollow like the Tia models but neither was it honky like W900. It was a little too focused in the midbass for my liking which resulted in some bloom, but had that nice deep rumble that I've come to know and love. The Legend X is a good hybrid, a great hybrid, and if I were to own one of these babies I would be perfectly happy till the next big thing comes by.

That is, if I were to own one. Local prices for custom units are set at S$3,500 (~US$2,600), which is just as much as a local Vision Ears VE8. At that point, it has blasted past the "overpriced" mark. Sorry Singaporeans, guess we got the short end of the stick for this one.

Hyla CE-5
Oh, the Japanese and their weird designs. Hyla, the "spin-off" of the popular hybrid IEM makers Oriolus, have their own DD + 2BA + ceramic tweeter three-technology hybrid. On listening, the CE-5 has possibly the best bass I've heard, reaching down low on the rumble yet with clean and fast hits in the midbass. It is still a Japanese tuning though, you have a little upper midrange emphasis to bring more sweetness to female vocals, which may or may not work with your genres (it doesn't for mine, which is comprised of 70% male vocals). Lower midrange has some suckout, resulting in thinner notes that, again, may work against your music.

Despite how it's essentially the antithesis of my preferred sound signature, I still enjoyed the CE-5 a lot. It has technical ability and isn't afraid to show it, even if it means compromising a little on timbre and tonal balance. It's also on the cheaper side of things in today's crazy-inflated market.

64 Audio N8 "Nate"
The N8 is 64 Audio's "normal" hybrid, not using the Trio/Fourte's chambering technology which allows it to be made in custom form. 8 BAs (one of which being that roofless tia tweeter) and 1 DD. On my first listen, I was extremely impressed. It was very well-tuned, one of the best tunings of "neutral with bass boost" I have ever heard. The low-pass filter of the N8's dynamic driver is also nothing short of miraculous; all 15dBs of its heart-pounding bass were focused almost entirely in the sub-bass regions, giving it powerful rumble and authoritative hits yet straying clear from massive bloom and bleeding. There is a slight dip in the mid-treble, which makes it not exactly true-neutral-with-bass-boost but hey, close enough. From aural memory, the midrange didn't have the "sweet" quality of the Legend X but was definitely a lot more neutral in tone in comparison. In terms of wow-factor and perhaps overall resolution, the LX has the upper edge, but the N8 has better bass control and is more "true", though that may translate to a more boring sound for some genres.

One thing that could boost the N8 to actual "top tier" material would be the inclusion of a more vented APEX module, perhaps a M10 or a M5 if that ever gets made. In its current state, it may be too bassy for many ears which makes me hesitant to blind-recommend the N8 to potential buyers. Removing the APEX module results in complete bass rolloff so there's certainly a middle ground somewhere for, say, 5-10dBs of bass boost...

AKG N5005
Behold, the IEM tuned by SCIENCE. It's over, pack your bags, this is objectively the best IEM ever made... right? Well, other than the fact that I don't really subscribed to Harman's new in-ear target curve even as a measurements guy myself, the N5005 is essentially a one-trick pony. The bass, like the N8t, was extremely well-controlled, rising only from the lowest registers and keeping out of the lower midrange, creating a response that sound, well, amazing. I loved the N5005's bass and many upcoming hybrid makers could learn a thing or two from what the guys in Austria are doing with their drivers.

However, as mentioned, one-trick pony. The sound from the midrange-up has a certain artificial quality to it, almost like an exaggeration of classic BA timbre. I keep the filters at Bass Boosted mainly because going higher with the filters made the timbre issues worse. The folks at Harmon are heading in the right direction though, and I'll be highly interested if they ever revisit their IEM product line again.

Kumitate KL-REF (Type-S)
One of the oldest models in this article now updated with the option of having better female vocals, according to the marketing at least. Now, it has been a year since I've heard the original KL-REF and I don't have any more opportunity to do so now that Jaben doesn't carry Kumitate anymore. However, recently I've had the opportunity to try out the Type-S which has been in my sights for quite a while now.

The KL-REF (and to a certain extent, the Type-S) was tuned to be neutral with a pot allowing control of the bass frequencies if you so desire. Just like the N8t and N5005, the bass boost of the KL-REF Type-S is very well done, limiting the rise only at the sub-bass frequencies and minimising bleed. However, the problems with the Type-S is similar to that of the N5005; it sounds odd and gets almost plasticky at times especially in instrument-heavy tracks. In addition, comparing it to something like the Legend X shows the Type S' lacking resolution. At the price that Kumitate is charging, it's a hard pass for me.

Jomo Quatre
The newest kid on the block, Jomo used to only make pure-BA IEMs. The Deux and the Quatre are their newest foray into the market, the Quatre is their newest "flagship hybrid" sporting 3 BAs and 1 DD. Now, I've mostly forgotten the marketing relating to its ACU/CSU technology but what I can tell you is that the Quatre uses an interchangeable filter system for its DD vents, changing airflow and its frequency response.

I'd consider the Quatre as a good hybrid though probably not top-tier material. Standard V-shaped response (depending on filters but it is generally V), dynamic bass, "normal" midrange, a 5k-ish peak, rolled off upper treble. Nothing really stands out as exceptional but at least the flaws are relatively insignificant.

Ultimate Ears Live
Who knew that one of the OGs of the CIEM world would be jumping on the hybrid bandwagon? Paired with the glorious TrueTone drivers that provided the ridiculous extension of the UERR and the UE18+, this should be a competitive hybrid that plays with all the top dogs, shouldn't it?

Oh, how I wanted to love this so much. "A UE18+ with dynamic bass!" the hopefuls cried, not knowing of the horrors that the Live truly possessed. A monster that looms around in mud, fat on its diet of bass from the river, wailing out "I'm for musicians, not audiophiles!"

Okay, a little bit of storytelling hyperbole but I really did feel a sense of betrayal of sorts when I heard the Live. It was low resolution, extremely bloomy and had an odd tuning that I'm certain few audiophiles can really appreciate. It's kind of a low quality everything, especially when you have a wealth of other TOTL IEMs to compare it with directly. Now, I loved the 18+ and it remains as my reference to this day. The Live on the other hand... I guess it's better for it to be forgotten, lost to the history books like the original UE18 was.

Interesting read and as I screen through the main list, no hybrid makes it to the top "S" lists (albeit many are at "S-"). I wonder what is it that is holding hybrid IEM down in general?

     Share This Post
post-14505804
Post #880 of 2,924

crinacle

Member of the Trade: In-Ear Fidelity
Joined
Feb 3, 2011
Messages
2,347
Reaction score
2,922
Location
Singapore
Joined
Feb 3, 2011
Location
Singapore
Posts
2,347
Likes
2,922
Website
crinacle.com
HeadphoneGodMode=On!

Thank you for sharing. Regarding Xelento, or rather mine T8ie Mk2, would you consider sharing any ideas about how to flatten their bass also? I love their capabilities, but this bass is also too much for me, especially if I've listened to KSE1500 in Sensaphonics custom shells the same day (they are reference flat tuned... I believe). I'd love to do to T8ie EXACTLY what you did to the aforementioned IEMs.
Just look for the back vent and tape it over. If there are two vents you just have to trial-and-error; taping the front vent increases bass response instead. I'll try to take a look at the Xelento again soon.

Hey OP have you ever tried the Sony XBA-N1 & N3?.
If it's not on the ranking list or the measurements database, there is a very good chances that I haven't tried it.

Crinacle, How would you compare the modded Periodic Audio BE to the ex1000?
Not quite as resolving nor as competent in imaging, but it's a lot better balanced and easier to listen to.

Interesting read and as I screen through the main list, no hybrid makes it to the top "S" lists (albeit many are at "S-"). I wonder what is it that is holding hybrid IEM down in general?
There's something about adding that DD into a hybrid that somehow knocks the resolution down a little. Or you could go the Tia Fourte's route and have top-tier resolution but fail at maintaining the proper tone. The N8 and Trio are almost there, though at this point in time the two completely destroy any S-tier IEM in bass reproduction.

Last edited:
     Share This Post
  • Like
Reactions: ezekiel77
post-14507123
Post #881 of 2,924

productred

500+ Head-Fier
Joined
Dec 13, 2006
Messages
791
Reaction score
333
Joined
Dec 13, 2006
Posts
791
Likes
333
@crinacle I found my own rankings and impressions fairly similar to yours in general, and so I'd recommend you to have a go with the Acoustune HS1670ss. Dunno if you have or have tried it, but to me it is clear S-class material (with a rather modest price tag by today's standards and SS class construction).

     Share This Post
post-14507510
Post #882 of 2,924

Piotr Michalak

100+ Head-Fier
Joined
Nov 27, 2016
Messages
408
Reaction score
305
Joined
Nov 27, 2016
Posts
408
Likes
305
Yesterday I've received my set of EARS and started testing till 2 AM. Here are my first results. Note that all of this went through IEM diffuse field compensation provided by EARS manufacturer.

Below is a comparison of T8ie Mk2 on different cables (Linum super BAX and Forza Pyre IEM hybrid). Not much difference here.
Zrzut ekranu 2018-09-27 o 00.54.39.png

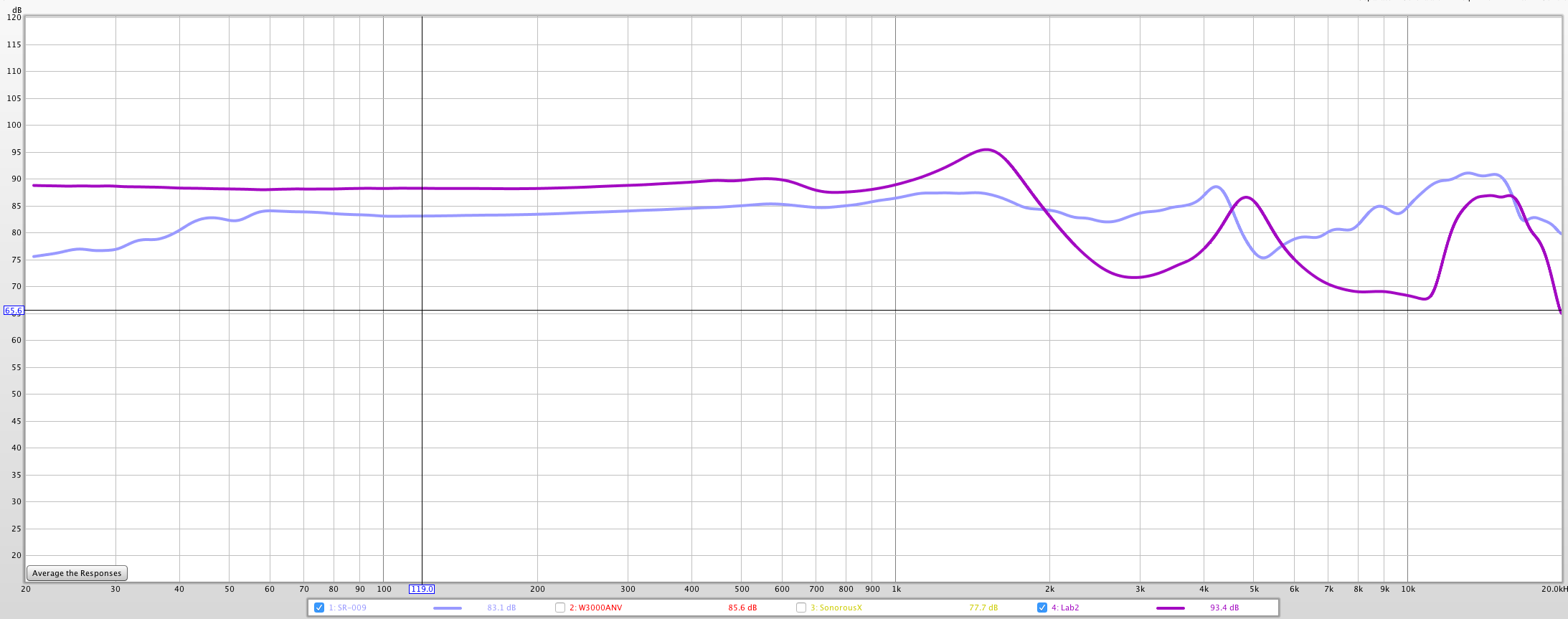

Next we have a comparison of Final Lab2 and... Stax SR-009. Important note: Lab2 were inserted as an in-ear IEM, I'm not sure if this is completely correct. The ears of EARS are too small to place Lab2 correctly in the concha. I will try to measure again in the future. But still, It's outstanding how flat Lab2 seems here up to 2kHz, even more than SR-009.
Zrzut ekranu 2018-09-26 o 23.12.18.png

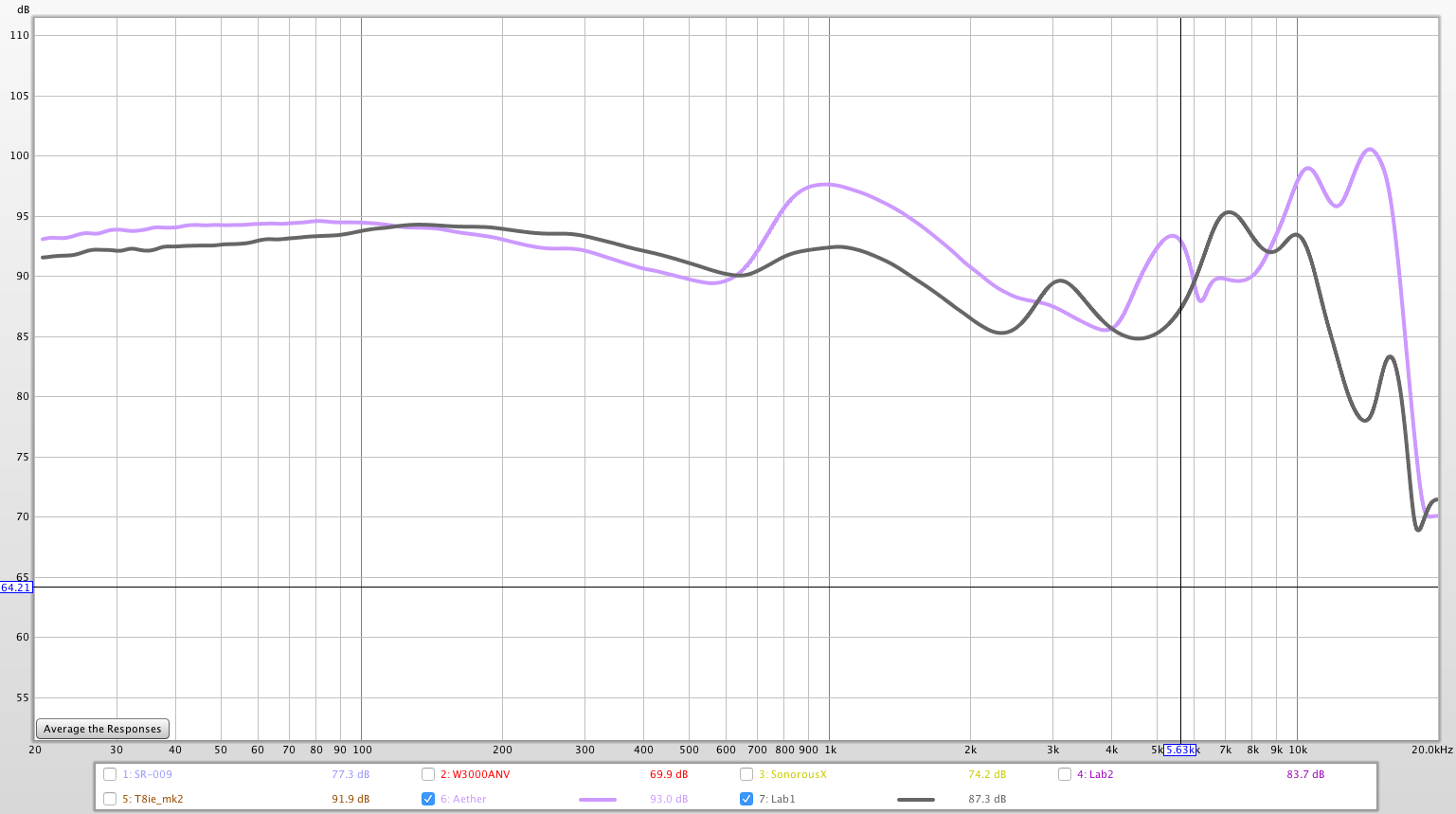

Last but not least we have force fitted Lime Ears Aether versus Final Lab1. Nice!
Zrzut ekranu 2018-09-26 o 23.56.51.png

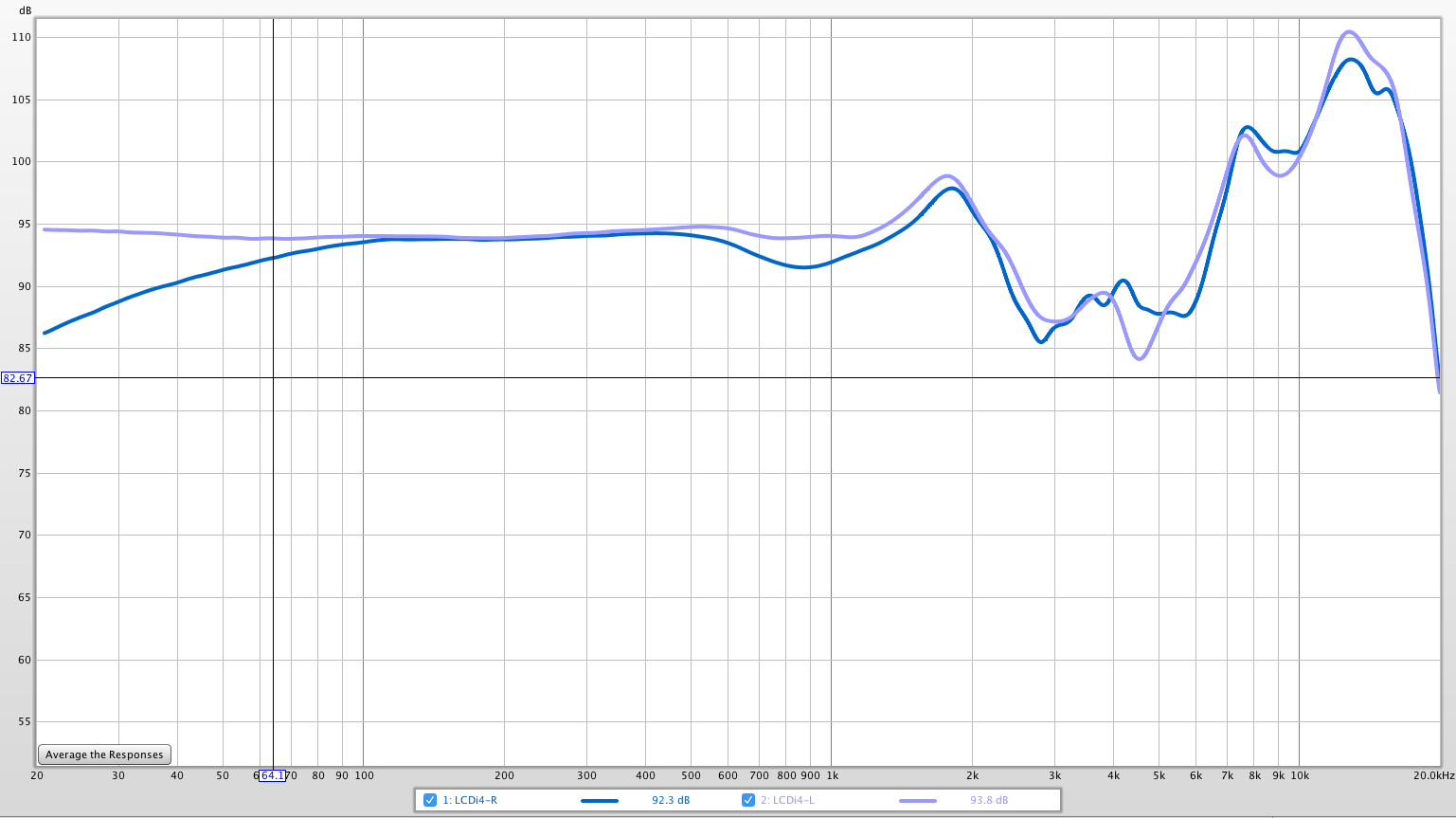

Bonus: channel differences in the sub bass and lots of highs on LCD-i4.
Zrzut ekranu 2018-09-27 o 00.43.17.png


Bonus2: Lab2 on different cables. Not much difference even with 8-wire Forza Noir Hybrid. But it sounds so much better.
Zrzut ekranu 2018-09-27 o 01.15.40.png

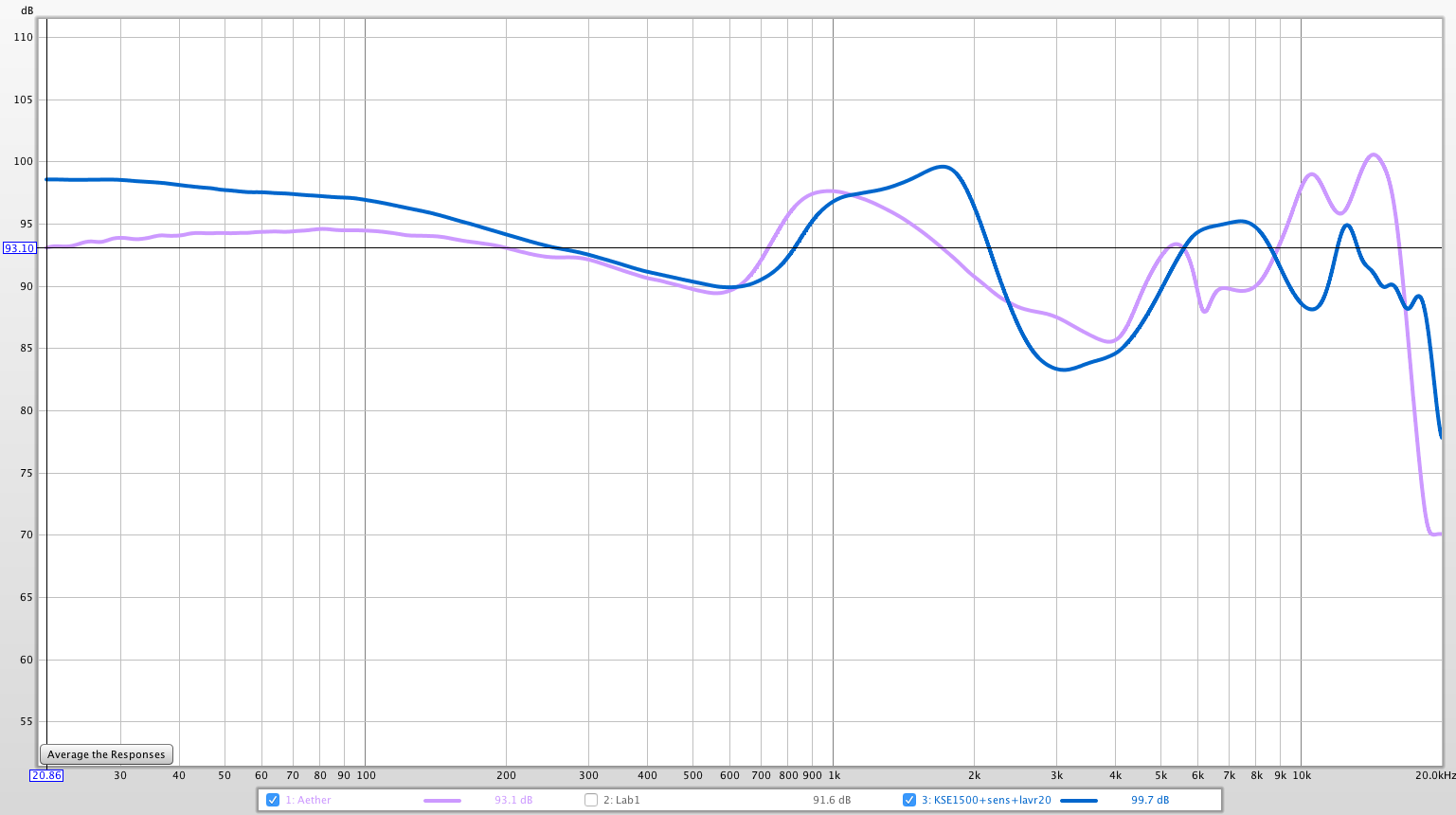

And a cherry on top of the cake, Bonus 3: LEA versus KSE1500 custom shell by Sensaphonics force fitted! This one sounds pretty flat and reference tuned to me, seems I'm deaf after all. Or there's some psychoacoustic shenanigans going on here. Even though they may look similar on the diagram here, KSE1500+Sensaphonics is a killer-of-all IEM.
Zrzut ekranu 2018-09-27 o 00.26.25.png

     Share This Post
post-14507659
Post #883 of 2,924

crinacle

Member of the Trade: In-Ear Fidelity
Joined
Feb 3, 2011
Messages
2,347
Reaction score
2,922
Location
Singapore
Joined
Feb 3, 2011
Location
Singapore
Posts
2,347
Likes
2,922
Website
crinacle.com
Yesterday I've received my set of EARS and started testing till 2 AM. Here are my first results. Note that all of this went through IEM diffuse field compensation provided by EARS manufacturer.

Below is a comparison of T8ie Mk2 on different cables (Linum super BAX and Forza Pyre IEM hybrid). Not much difference here.


Next we have a comparison of Final Lab2 and... Stax SR-009. Important note: Lab2 were inserted as an in-ear IEM, I'm not sure if this is completely correct. The ears of EARS are too small to place Lab2 correctly in the concha. I will try to measure again in the future. But still, It's outstanding how flat Lab2 seems here up to 2kHz, even more than SR-009.


Last but not least we have force fitted Lime Ears Aether versus Final Lab1. Nice!


Bonus: channel differences in the sub bass and lots of highs on LCD-i4.


Bonus2: Lab2 on different cables. Not much difference even with 8-wire Forza Noir Hybrid. But it sounds so much better.


And a cherry on top of the cake, Bonus 3: LEA versus KSE1500 custom shell by Sensaphonics force fitted! This one sounds pretty flat and reference tuned to me, seems I'm deaf after all. Or there's some psychoacoustic shenanigans going on here. Even though they may look similar on the diagram here, KSE1500+Sensaphonics is a killer-of-all IEM.
You got the right thread creator but the wrong thread :grin: Your experiences would be better suited for the measurements thread. Still though, glad you're enjoying your toe-dip into the wild and whacky world of squiggly lines.

     Share This Post
  • Like
Reactions: emptymt
post-14507660
Post #884 of 2,924

crinacle

Member of the Trade: In-Ear Fidelity
Joined
Feb 3, 2011
Messages
2,347
Reaction score
2,922
Location
Singapore
Joined
Feb 3, 2011
Location
Singapore
Posts
2,347
Likes
2,922
Website
crinacle.com
Periodic Audio Be Mod


The Be is Periodic Audio's current flagship DD IEM and is named so after its beryllium foil diaphragm. The driver itself is actually extremely competent, having rather excellent impulse response and THD but the tuning itself was a little too much for my own personal taste. Considering that it was already a rather warm to begin with, the 10dBs of mostly-midbass emphasis was the cherry on top of the cherry pie.

The mod that I've come up with (and am still experimenting with) attempts to follow my personal target curve and is comprised of two parts: a simple reversible mod and an irreversible advanced one.

For reference, the original FR response captured on my phone app which I used for the experimentation:


The quick and dirty

Extremely simple; first, just seal the back vent (pictured here) with whatever material you want, scotch tape in my case. Second, the nozzle requires two layers of teabag filter; I personally cut a strip out of a Twinnings bag, folded it in half, laid it over the nozzle and fitted a silicone tip over.

Taping the back vent should kill the bass response slightly, and the teabag filters smooths out the peaks in the treble. This simple mod already improves the clarity and overall cohesiveness of the Be's signature quite significantly. Frequency responses below:



Red: stock FR, Black: simple mod FR

Going further

Caution: It is recommended that you have some sort of coupler+microphone measuring rig before proceeding with the following.

Now the next part is just me wanting to kill the midbass response even further. Sealing the back vents is the best one can do without permanently tampering with components, so to go beyond that we'll have to tinker with the front vents as well. The front vent is located at the bottom of the nozzle. The location is pictured below, though mine has already been taped over:


With a sharp object (SIM card remover, pen nib etc., needle not recommended here due to size), pierce the mesh inside the front vent. Feel free to pierce all the way as the vent is perpendicular to the driver and so you won't have to worry about damaging the diaphragm (just don't push towards the driver and you'll be fine!). Once that happens, the bass will start rolling off due to excessive leakage so you'll need to control the airflow within the chamber. Tape over the front vent and prep a needle.

At this point it's mostly a matter of art because I can't predict how you yourself will perform the mod. To start off, make one pinhole at the back vent tape. Next, play around with front vent tape by poking around. The goal here is to get as little bass as possible without rolling off; I'm essentially aiming for a linear, EX1000-style bass as much as possible. Once the bass is at the desired linearity, switch the nozzle dampening from two layers of teabag filter to three layers. The reduced lower-frequency response seems to make the sound a little more shrill, so just a tad extra attenuation in the upper end is recommended in my opinion.

The final FR should be like so:



Comparison with "simple" mod

Comparison with stock
Some additional choice comparisons with other IEMs:


Against InEar ProPhile-8

Against Etymotic ER4SR


Final impressions

I'm not the best person to pass judgement considering that this is tuned literally to my own specifications, but IMO this is now my favourite dynamic-driver IEM. I wouldn't call it true neutral but it certainly doesn't overly emphasise any specific frequency range. The sound is slightly warm, vocals aren't biased toward either male or female, no significant complaints on my end apart from the housing the cabling of the IEM itself. Already prefer it over the Beyerdynamic Xelento and the Sennheiser IE800S based off a comparison earlier this afternoon.
This mod also works for the entry level Mg IEM:

     Share This Post
  • Like
Reactions: Max Choiral
post-14512720
Post #885 of 2,924

crinacle

Member of the Trade: In-Ear Fidelity
Joined
Feb 3, 2011
Messages
2,347
Reaction score
2,922
Location
Singapore
Joined
Feb 3, 2011
Location
Singapore
Posts
2,347
Likes
2,922
Website
crinacle.com
BGVP DMG and Massdrop x MEE Planamic on the way.
