A KRK Woody tower Fun!

  1. skwoodwiva
    I am divorcing, letting wifey keep the ES system..True that,
    I must downsize
    Will use the
    Sub amp for the woofer

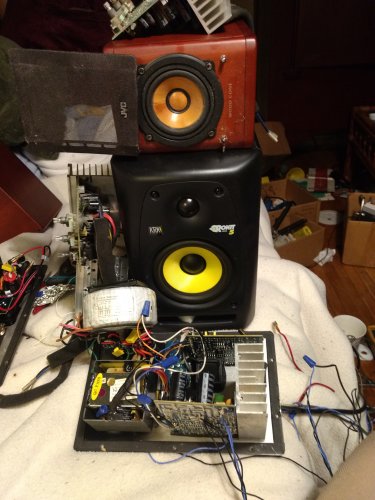

    Add another regular 8 amp in place of the 5 to drive the woody & tweet. IMG_20180410_202016.jpg

  2. skwoodwiva
    IMG_20180411_092330.jpg 90% finished?
    Steller!


    Lol, each JVC is 3 ohms.
    One as a tweet, the other is a wide range ~ 1 K to 100 hz or whatever K has it set at. The 5 " is woofer.
    I need more boards to do the other. I could not turn it on w/o mich tequila!
    This prtotype is just till get more baby sub woofer boards & utilize the stock tweet and only I JVC per speaker.


    I am in the position where in could do the an audiophile dealer.

    I have access to many salvage boards!!
    Send a KRK to me!

    Last edited: Apr 12, 2018
  3. skwoodwiva

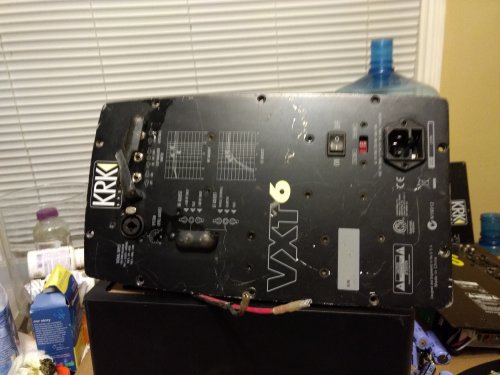

    IMG_20180413_000239.jpg Goodies arrived!
    The star:

    The supporting actor., to be crammed in one of the IMG_20180413_000756.jpg woodies. Switcher must go on back too.
    I have a roll of Buss fuse wire, 2Amp, I use for emergency repairs, HVACR, I also do everything mechanical or electrical .
    So fuses, it will need them.

    Last edited: Apr 13, 2018
  4. Mad Max
    lol

    How is that KRK as subwoofer?

  5. skwoodwiva
    Well it just parts now. The prototype was a stunner putting m 94 Sony 7 pyramids to shame. Just sonics from 1 mono. I only have 2 JVCs
    The 8s will be set about 100hz... With Kimber going to the other woof.

    Last edited: Apr 14, 2018
  6. skwoodwiva
  7. skwoodwiva
    IMG_20180416_035240.jpg I will spend some of my day cramming them into this, lol.
    I may just JB weld a top floor on this neat phone holder for the balanced jacks as well.

    http://www.rane.com/note110.html
    I just am not sure how to ID the wires

    Last edited: Apr 16, 2018
  8. skwoodwiva
    I think it wise to ferro fluid cool the woofer and woody too.
    Anybody done this?

  9. skwoodwiva
    Last edited: Apr 21, 2018
