xDuoo XP-2 Bluetooth & USB DAC/Amp

Rating:
4.58333/5,
  1. techinblack
    Little monster
    Written by techinblack
    Published Sep 7, 2019
    5.0/5,
    Pros - Build quality and materials

    Noiseless

    Great battery life

    Stable wireless signal

    Fantastic volume knob

    Intuitive

    Good amping section

    Linear frequency reproduction
    Cons - USB type C would have been more future-proofing
    Price: 110$

    Where to buy: https://www.xtenik.com/product/xduoo-xp-2/

    Specifications (from Xtenik):

    • DAC: AKM AK4452

    • Bluetooth version: Bluetooth 5.0, support AAC, SBC, aptX

    • Output power: 245mW @ 32 Ohm

    • Recommended output impedance: 16 - 300 Ohm

    • Supported sampling rate: 24bit 192kHz

    • THD+N: 0.008% @ 1kHz

    • Adjustable gain: +3dB / +9dB

    • Frequency response: 10Hz - 100kHz (+/-0.5dB)

    • Battery capacity: 3.7V 1800mAh

    • Battery life: AUX IN: ≥15H Bluetooth input: ≥12H USB IN: ≥8H

    • USB receiver: Support Android mobile phone with OTG function and 192kHz/24bit lossless transmission at most, computer USB input, support with XP, Win7, Win8, Win10 (it is necessary to install driver), MAC system.

    • Weight: 115g
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Thanks to Xtenik (official XDUOO distributor) for providing this review sample.

    This same review can be found here: https://www.techinblack.it/audio1/2019/9/7/xduoo-xp-2-review



    Unboxing

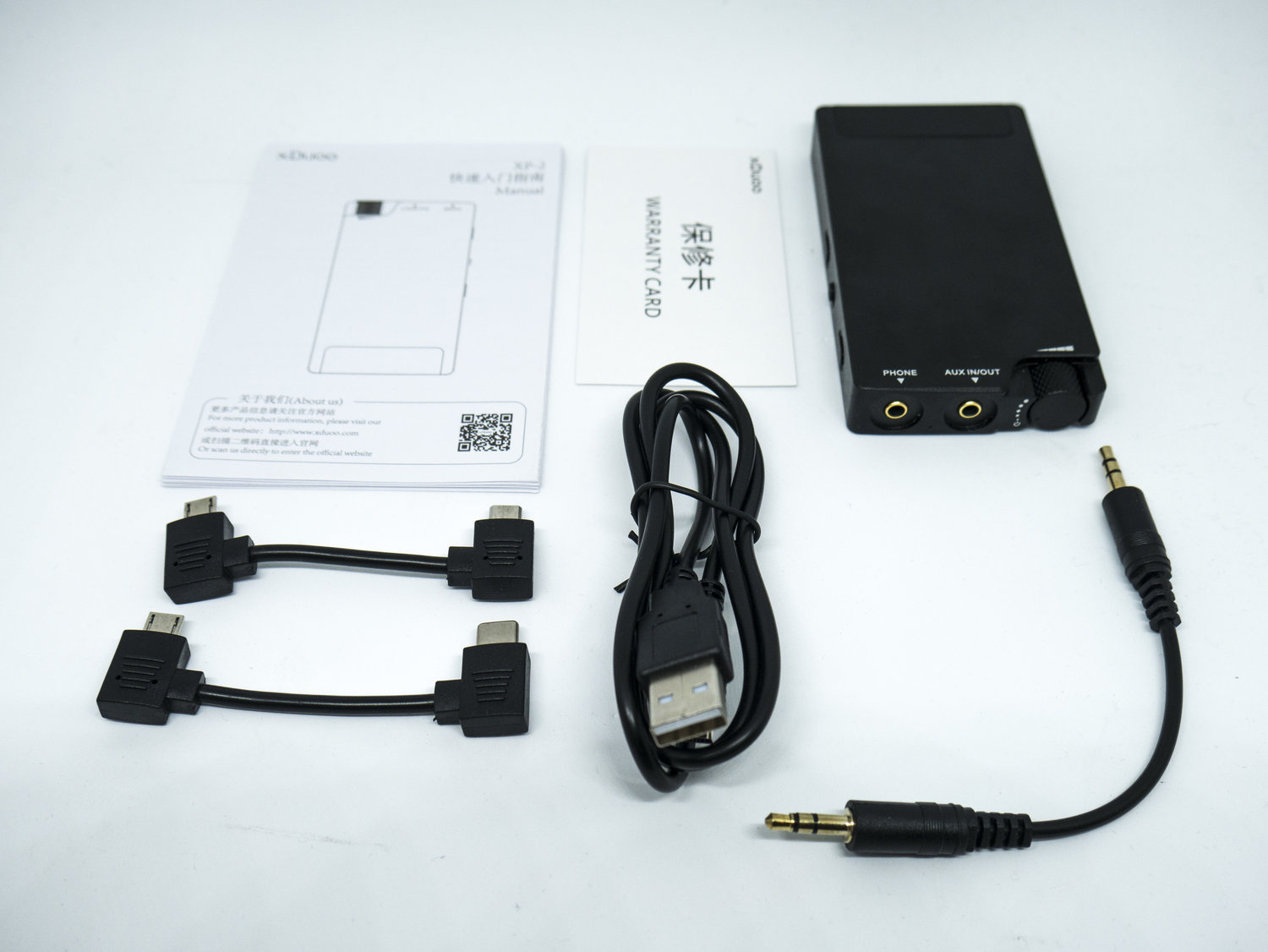

    A white box contains a cardboard black one, with all the stuff inside:

    • charging/data cable (USB type A to micro-USB);

    • micro-USB to micro-USB cable;

    • micro-USB to USB type C cable;

    • jack to jack (both 3.5mm) cable;

    • instruction manual;

    • warranty card;

    • soft separator (to make stacks).


    [​IMG]

    There’s not an included cable to connect in a wired way the XP-2 to an iDevice. You have to buy the official camera adapter from Apple. I don’t own any Apple mobile devices, so my impressions will concern Android and Mac OS. With Windows, you’d need some drivers.

    I just have a loan xDSD to compare as a similar product, so I’ll put them side-to-side various times.

    [​IMG]
    Hardware and first impressions
    The XP-2 is a budget friendly (100$) DAC/Amp with Bluetooth capabilities. It just has a single-ended 3.5mm phone output and a 3.5mm line out. The volume knob also works as power on/off and it has a fantastic tactile feedback. On the left side, there are Bluetooth link button (pretty useless because the device automatically searches for wireless devices when turned on), a gain switch (+2dB I believe) and a SELECT button to switch modes (BT, line out, USB). There are three LEDs (one on the front, two on the side), but I’m colorblind so I’ll copy some functions of them from the manual or another review because I don’t really mind colors, the device perfectly works even if you don’t know anything about the LEDs.

    • Green: Bluetooth;

    • Red: USB;

    • Both: Aux.
    The back of the device is the only plastic-made because it covers the BT antenna. The right side is void.

    [​IMG]

    Wireless mode

    Actually, I found it to be better than the xDSD while speaking about wireless signal; it may be due the updated BT version (5.0). It’s not perfect, sometimes even without any disturbs, the signal has some strange cracks. But this is rare and I didn’t have any problems of connectivity, my Mi MIX 2 and my FiiO M7 perfectly matched and worked with this device (both with Qualcomm AptX codec). This is also thanks to the intuitiveness of the XP-2 (the xDSD is not comparable, because it’s a pain to understand how to properly use it). I think the wireless mode is the best of this device. Even though it perfectly works via line out and via USB, the battery is so long-lasting and the quality is so high that even I (Bluetooth hater) did enjoy it via Bluetooth: it actually lasts 10 hours (I’ve just used low gain). An impressive result: it actually didn’t die more than two times for the exhaust battery.


    [​IMG]

    Wired mode

    USB: I’ve used my MacBook Pro and my Mi MIX 2 via USB with the XP-2. Unfortunately, it’s not compatible (yet?) with the FiiO M7, so the only way to use them together is via line out. The USB mode is stable, noiseless, and you can really use the XP-2 to improve your phone’s or PC’s poor DAC. The Amp section is great too, because it provides a lot of power. I’m an IEM user mainly, I just have some On Ears which are pretty easy to drive, so I don’t really need that much power. You won’t have any problems even with hard-to-drive headphones (remember we’re talking about a budget product). I think that wired it works much better than the xDSD by iFi, which has very bad background noises with devices with grounding.

    Line out: I’ve used the FiiO M7 and the Dodocool DA106. Actually, the XP-2 it’s a great stack-buddy for your DAP. And the switch between modes is easy and convenient.


    [​IMG]

    Sound

    The sound signature of this device, if it’s in any way possible to judge it, is pretty reference-like. The xDSD is a lot warmer and, in my opinion, it colors the sound even too much. The XP-2 is brighter and flatter. So, I appreciate the neutrality. Something less exciting is the stage, because it doesn’t give to your IEMs any help to improve its width or its depth; the xDSD has a space virtualizer. That being said, I don’t mind any fake surround effect, so I appreciate the XP-2 in its honesty.

    Some earphones/headphones I’ve paired it to: AudioSense T800, BGVP DM6, UfoEar112, FiiO FA1, PaiAudio DR2, Tri I4, KZ ZS7, 1MORE Piston, NiceHCK EP10, 1MORE MK801, Sennheiser Momentum On Ear 1st gen.

    I didn’t find any bad synergy with this device. I have a Zorloo ZuperDAC-S which is terrible with some IEMs like the AudioSense T800. This one, instead, is really clean and solid in every situation. This is one of my favourite devices of all times, honestly. It doesn’t really affect the sound signature of your source, but it amps really well and the DAC is capable, quick and linear. And it doesn’t lack body at all. I’m conscious that some IEMs I have give their best when they get a bit of color; with the XP-2 I’d rather pair some earphones which don’t need this kind of treatment. So, I’d choose the Ufo112 as my favorite match, with an incredible airiness and a fantastic reproduction of every frequency. Other earphones which works well with it are the warmer ones: KZ ZS7, CCA C10, BGVP DM6. Every match has its pros; it’s honestly difficult to find some cons here, due the great engineering behind this device. I love how the sound is always very clean and doesn’t produce any background noises.



    [​IMG]

    Comparisons

    Zorloo ZuperDAC-S: a device which can be compared just on a wired side. The Zorloo has digital volume controls, while the XDUOO has an analog knob. Both have Micro USB to charge and connect them to some sources, both have a single-ended 3.5mm output. I actually find the ZuperDAC-S to have some problems with sound (like I’ve previously mentioned, the AudioSense T800 have some flaws, I don’t know why – maybe some phase issues) and build quality (the USB port is not centered), as well as some accessories which randomly stop working. Considering its price – just 20$ less than the XDUOO – and how many features they lack rather than the XP-2, it’s difficult for me to recommend it; but I have to admit the dimensions are really different, and if you need something small, you can get the Zorloo – but my suggestion is another one, in that case: get the Audirect Beam.

    iFi xDSD: I can’t deny this is a great sounding device. But it adds some color. It’s a warm device, with improvements for bass and surround effects. It’s very easy for me to say: if the XP-2 is worth 100$ (and it is), the xDSD is absolutely not worth 300. The XP-2 is much more intuitive, its features are exactly the same – except from SPDIF presence – and for an IEM user it has far more power than necessary (we’ll see with the Tin HiFi P1). If you need more power and you like your life to be difficult, the xDSD could be good for you. Oh, I forgot to mention the absurd background noise of the xDSD when connected to a PC, which I absolutely didn’t get with the XP-2. Be wise.

    FiiO M7: strange enough? Nope. The M7 can be used as a Bluetooth receiver (up to LDAC) and as a portable DAC. As a BT receiver, it has some flaws – LDAC works just sometimes, SBC is better, AptX works pretty well. On a wired side, they are comparable when it comes to user experience, but the volume control of the XP-2 is much superior and the sound quality and the amp side are better too. If you just need a single 360° device, you can get the FiiO DAP – maybe a wiser choice is the M6, nowadays – while if you need a more specific device which works better on those sides, go for the XP-2: it’s a worthy machine.



    [​IMG]

    Conclusions

    I recommend this device. Really easy. This is one of the better products I’ve ever tried. It’s totally worth its price, its performances are great, the battery is long-lasting, the materials are good and the build quality is high. To me, it can compete with higher-priced devices. This is actually my top recommendation for a versatile product which works as a DAC, as an amp or as a Bluetooth receiver.
      thesheik137 and rayliam80 like this.
    1. thesheik137
      Couldn't agree more. I am absolutely loving using mine. I used to be a strong disbeliever in bluetooth, but it turns out if you have a good dac/amp and implementation, it can actually sound fantastic. My only complaint would be the high noise floor with sensitive iems, but an impedance adapter can fix that easily.
      thesheik137, Sep 11, 2019
  2. Lidson Mendes Br
    Xduoo XP-2 - Versatility
    Written by Lidson Mendes Br
    Published Aug 24, 2019
    5.0/5,
    Pros - 192khz-24bit USB DAC, Battery life, Light-weight, Good Construction, Great Sound Quality, Volume Control.
    Cons - No LDAC/AptXHD
    Xduoo XP-2 – Bluetooth e USB DAC/Amplifier

    [​IMG]

    Xtenik Audio shipped the product free of charge for the purpose of review in exchange for my honest opinion.

    You can purchase Xduoo XP-2 from the link below at the Xtenik Audio Store.

    Xduoo XP-2: https://www.xtenik.com/product/xduoo-xp-2/

    Originally posted:
    https://audiofiliabrasil.home.blog/

    First: Sorry for the bad english.

    Intro

    Xduoo is a Chinese company that has become known as a well-priced manufacturer of Daps, its catalog has grown over time and has a wider range of products such as Tube Amplifiers, Dacs and Portable Amplifiers.

    I owned Xduoo X3 and an X10 I remember they were very solid products and I was really impressed with their quality, unfortunately I don't have both anymore.

    [​IMG]

    Accessories & Design

    Xduoo XP-2 has a very solid build, it really is robust and very well done. The body is all metal including the volume knob, has no imperfections or sharp edges. Based on this description you should imagine a heavy product, but otherwise it is very light, small and portable.

    The package is very complete and the inner box is very beautiful with a matte black and the name Xduoo in white, comes with a very wide variety of cables. One USB charging cable, two USB OTG cables (Micro USB and USB-C) and one 3.5mm - 3.5mm cable plus manual and warranty.

    [​IMG]

    The controls are on the side, the bluetooth pairing buttons, gain mode and the mode selector. There is a led next to the mode dial that shows which mode the XP-2 is in with color change. To turn on just turn the volume knob that will light a green led.

    Battery life is great, these times are approximate.

    Bluetooth mode: 11 hours / USB mode: 7 hours

    Sound

    When analyzing the Xduoo XP-2 I have to take into account all the features, should be divided into three parts the review. At the moment I don't have any Full Size headphones to test it only as an Amplifier, so I won't be able to see if it can push power hungry headphones. In the future taking some Full Size I will revisit this review and make a new test with this function only.

    [​IMG]

    Sound – Wired

    Using the wired connection via OTG or USB connected to the Xduoo XP-2 Notebook brought Ibasso IT01 more definition, control, clarity and more detail. The guitars, bass and drums are more defined, the sound is more balanced than bluetooth.

    In addition to all these improvements I had a smartphone issue that was rough volume control, either increasing too much or decreasing too much, which annoyed me or caused hearing fatigue because it usually turned up the volume a lot, now with Xduoo XP- 2 I have a very specific volume control, you can control it with any small movement.

    Being able to listen to 24 / 192kHz / 24-bit music files with XP-2 has greatly improved audio quality compared to listening to the Ibasso IT01 plugged directly into the smartphone's P2 output. I can no longer hear plugged directly into the smartphone the quality difference is too large.

    [​IMG]

    Sound – Wireless

    I had never used anything wirelessly, and it was amazing to be able to sync via bluetooth with my smartphone, I used it for over 10 hours and the versatility that the XP-2 brought along with a great battery and stable long range signal. Wireless connection has brought a very important tool to my daily life, I listen to podcast many hours a day and using via bluetooth helps me a lot because of the secure connection and the big battery.

    Listening to music via bluetooth I felt less clarity compared to OTG connection, this is seen in the bass that loses some control and clarity, the codec used is Aptx, maybe if it was Aptx HD or LDAC there would be no difference.

    Anyway overall I found it worth it compared to some bluetooth headsets that have a ridiculous battery life.

    Conclusion

    Xduoo brought a very good product, incredible construction, solid and prepared for daily and urban use without worry. Versatility is something to be taken seriously, you can switch between USB, Bluetooth and Amplifier connection.

    The sound quality compared to my Smartphone and Notebook is water and wine, the sound just got incredibly better. I was looking for an upgrade to my Ibasso IT01, but I saw how much it still has to deliver on performance.

    I still take into account that he can push energy-hungry headphones, and that's for the future.

    The most important thing in this hobby is listening to music, and Xduoo XP-2 gave me that so I completely forgot about the review. Greatly improved audio quality compared to my smartphone, I'm sure other colleagues are looking for the same.

    Xduoo XP-2 – Bluetooth e USB DAC/Amplifier - U$ 110

    DAC: AKM AK4452
    Bluetooth version: Bluetooth 5.0, support AAC, SBC, aptX
    Output power: 245mW @ 32 Ohm
    Recommended output impedance: 16 – 300 Ohm
    Supported sampling rate: 24bit 192kHz
    THD: +N 0.008% @ 1kHz
    Adjustable gain: +3dB / +9dB
    Frequency response: 10Hz – 100kHz (+/-0.5dB)
    Battery capacity: 3.7V 1800mAh
    Battery life: AUX IN: ≥15H Bluetooth input: ≥12H USB IN: ≥8H
    USB receiver Support Android mobile phone with OTG function and 192kHz/24bit lossless transmission at most, computer USB input, support with XP, Win7, Win8, Win10 (it is necessary to install driver), MAC system.
    Weight: 115g

    images

    1. WhatsApp Image 2019-07-26 at 16.51.13 (1).jpeg
    2. WhatsApp Image 2019-07-26 at 16.51.08.jpeg
    3. WhatsApp Image 2019-07-26 at 16.51.09 (1).jpeg
    4. WhatsApp Image 2019-07-26 at 16.51.13 (2).jpeg
    5. WhatsApp Image 2019-07-26 at 16.51.13.jpeg
  3. narco dacunzolo
    XDUOO XP-2 GAME CHANGER
    Written by narco dacunzolo
    Published Jun 29, 2019
    4.5/5,
    Pros - Build quality
    Battery life
    Noise isolation
    It provides a lot of power
    Clean sound
    Intuitive
    Solid wireless connection
    Price
    Cons - No USB C
    Price: 110$

    Specifications:

    DAC AKM AK4452
    Bluetooth version Bluetooth 5.0, support AAC, SBC, aptX
    Output power 245mW @ 32 Ohm
    Recommended output impedance 16 – 300 Ohm
    Supported sampling rate 24bit 192kHz
    THD+N 0.008% @ 1kHz
    Adjustable gain +3dB / +9dB
    Frequency response 10Hz – 100kHz (+/-0.5dB)
    Battery capacity 3.7V 1800mAh
    Battery life AUX IN: ≥15H Bluetooth input: ≥12H USB IN: ≥8H
    USB receiver Support Android mobile phone with OTG function and 192kHz/24bit lossless transmission at most, computer USB input, support with XP, Win7, Win8, Win10 (it is necessary to install driver), MAC system.
    Weight 115g


    Unboxing
    The XDUOO XP-2 comes in a white cardboard external box, which contains another black rigid one. There are a charging/data cable (USB type A to micro-USB), a micro-USB to micro-USB, a micro-USB to USB type C and a jack to jack. And then a manual and a warranty card, and you can also find a soft separator to stack the XP-2 with other devices. I believe you can connect it to an iPhone with a camera adapter which you can buy directly from Apple. I don’t own any Apple mobile devices, so my impressions will concern Android and Mac OS. With Windows, you’d need some drivers.

    The product
    The XP-2 is a DAC/Amp which works bot wired and wireless, with Bluetooth 5.0. The wired interface is a micro-USB, and there are two of them, one for charging the device and the other for your PC/Smartphone/DAP connection. There are a headphone output and an aux in/out jack, both 3.5mm, both gold-plated. The volume knob is analogic, and it also works as an on/off wheel on the first step. It is a great feature of this DAC, because it’s very well-built and reacts from any small movement you do on it. The build quality is great, with an all-metal body and just a plastic insert for the Bluetooth receiver. Spoiler: the antenna is not bad! On a side, there’s a Bluetooth link button (which however is not so essential because when you power up the XP-2, it automatically searches for the last device connected). There’s also a gain switch, with low and high. For my IEMs, even the low gain mode provides a lot of power. The last button is a “Select” one, to switch between modes. I find this device to be very intuitive, much more than the iFi xDSD. There’s a LED which helps you to understand which mode you are using:

    • Green: Bluetooth (but while pairing it’s blue, I believe; I’m colorblind);
    • Red: USB;
    • Both: Aux.
    If I had to change something, I’d say that they could put a USB type C interface instead of the micro-USB. In fact, the BT 5.0 is pretty future-proof, but the micro-USB is not. I accept it because I know that it helps keeping the price low.

    Pairings
    I’ve used the XDUOO XP-2 in every possible way. I’ll list the sources and the various earphones paired.

    MacBook Pro 2012 via USB; Xiaomi Mi MIX 2 via USB and Bluetooth; Dodocool DA106 via Aux; FiiO M7 via AUX and Bluetooth (the M7 is not compatible with the XP-2 via USB, exactly like it wasn’t with the Audirect Beam; instead, with the iFi xDSD it perfectly works).

    IEMs: BGVP DM6 and DMG, FiiO FA1, Tin HiFi T2 and T3, ADVANCED M4.

    Headphones: Sennheiser Momentum On Ear, 1MORE MK801.

    Earbuds: 1MORE Piston, YinYoo BK2.


    Sound, features, comparisons
    Let’s start saying the sound is great. Not only this device can provide a lot of power, but its signal is also really clean and noiseless. Comparing it to the iFi xDSD (which costs more than 3 times more), I find the XDUOO to provide a much more neutral sound. You can easily understand the xDSD is a bass-oriented multi-functional DAC, but I was surprised to hear how much the XP-2 was cleaner and brighter in its reproduction. That being said, the bass provided by the XP-2 is still great and more forward than average. The soundstage is average, but it depends a lot on the earphones in use; the xDSD offers more 360° impressions, width and especially depth. But I don’t feel the need to have something better here: a wide sounding IEM (like the ADVANCED M4) is perfect paired with it. It’s difficult to talk about a DAC speaking about its sound characteristics, because the final result is filtered by the earphones’ signatures; however, I can say that vocals on the XP-2 are always airy and bodied, I love the midrange and I’m not bothered by the slight sharpness on the treble. The instrument separation is very good: it can improve my YinYoo Topaz (very natural sounding earphones with great dynamic, a nice match with it) in difficult tracks with dense mixes (like some Bloody Beetroots’ stuff). The isolation from noises is exceptional: I honestly didn’t think a mobile DAP could outperform that way my dedicated audio interface or the xDSD itself, without any signal purifier. I believe this DAC is very well-engineered. This falls in the same price range as the Audirect Beam, which however has not the same features (no Bluetooth, no Aux, no analogical volume controls…) but I think it could be a fair comparison. I did like the Beam, even though it lacked power sometimes and it got hot very easily; the sound was neutral but with a touch of darkness. The XP-2, for me, is a product of another category. Its performance for price ratio is fenomenal: all my IEMs can be very easily driven in low gain, with the knob at a maximum level set at half. Generally, my earbuds require a little bit more power, and my headphones (they are meant to be easily driven anyway) even more; with the headphones (Sennheiser Momentum and 1MORE MK801) I can effectively benefit from switching to high gain.



    Wired
    USB: So far, speaking of sound quality, the best way to use the XP-2 is via USB. The isolation it provides is amazing (it is not disturbed by electrical noises when attached to my Mac, while the xDSD was pretty unusable, especially when the pc was powered with the charger plugged in). The easiness of switching modes makes it a perfect hybrid between a mobile and a desktop tool. My MacBook Pro doesn’t require any drivers, so it’s a completely plug-and-play DAC both on Android and Mac OS. It unfortunately doesn’t work that way with my FiiO M7, but I can still use the Bluetooth and its line-out to connect them together. The provided cables do their job perfectly well: I’ve tried with my Mac, with my Mi MIX 2 and with my first Moto G, as (not only) TIDAL sources, and every one of them was good. So, via USB I’d define the XP-2 as fairly versatile.

    Aux: this obviously depends a lot on the power of your source. I generally found the volume being lower via Aux, especially with the Dodocool DA106: it’s better to use the high gain feature on this mode. The provided Aux cable has the right length, so you are not disturbed when you stack items. This is the mode I’ve used the least, but it’s functional and very good if you are a stack person.



    Wireless
    The most versatile mode of the XP-2 is Bluetooth. Thanks to an amazing battery life (with IEMs, on low gain, I easily can use it for 10 hours straight!) and a stable signal even on a long range, it connects via Qualcomm aptX to my FiiO M7 and Xiaomi Mi MIX 2 and it becomes a great tool to carry around without the need to have poor-battery Bluetooth earphones: every earphone can be turned into a wireless one, with the advantage of a long-lasting battery and a fantastic sound quality. I was skeptical about the wireless quality, but aptX is good enough and if you have good files in your source (FLACs, Master TIDAL quality, but even good MP3s) you may not feel the need to have a better instrument. I personally don’t: this is a fantastic multi-functional DAC/Amp. The wireless mode maintains the quality of the tuning of the wired modes, and it adds various comforts.

    Best pairings and conclusions
    I came to this conclusion: the best earphones to use with the XDUOO XP-2 are the bassier ones. Headphones like the Momentum, or in ear monitors like the DM6, which provide a lot of bass but need a brighter source, match perfectly with the XP-2. I’d rather it than the xDSD paired with those earphones. The xDSD is preferable when it comes to drive reference tuned earphones while wanting a touch of fun. (I’m comparing these two, even though they are from different categories, because at this moment I have the possibility of A-B test them)

    What I can say about this device in the end: it’s one of the best products I have ever tried. Its versatility and nearly universal compatibility make it a game changer for its price range. It can be the DAP of your only-digital source, it can be your endless-lasting Bluetooth receiver, it can be your PC audio card! In every iteration, it is an amazing performer. This is a solid product (not only for its great build quality) and I can’t but recommend it, especially for its price range.

    Pros
    • Build quality
    • Battery life
    • Noise isolation
    • It provides a lot of power
    • Clean sound
    • Intuitive
    • Solid wireless connection
    • Price


    Cons
    • No USB C
  4. Cinder
    There’s Power in Versatility
    Written by Cinder
    Published Mar 23, 2019
    4.0/5,
    Pros - Incredibly Versitile, light-weight, good construction, dedicated charging port, good cable selection, two gain modes, good pairing behavior, painless drivers on Windows
    Cons - no LDAC/aptXHD, no USB-C
    [​IMG]
    Xduoo, while not a household brand in the English-speaking markets of the West, has built many compelling products that serve the audiophile-on-a-budget market for the past couple of years. Today I’m reviewing their XP-2 DAC/AMP Bluetooth receiver. Its got a plethora of features that give it broad acceptability in a diverse collection of source chains.

    You can find the XP-2 for sale here from X-Technic, for $110.

    Tech Specs
    • Connectivity: Micro-USB OTG, Bluetooth 5.0
    • Codecs: AAC, SBC, aptX
    • USB Sampling Rate: 44.1 kHz-192 kHz, 16–24 bit
    • Output Power: 245mW @32 Ohms
    • THD: 0.008% (1 kHz)
    • Battery Capacity: 1800 mAH
    • Battery Life: Aux ≥ 15H, Bluetooth ≥ 12H, USB ≥ 8H
    • Gain: 2-modes
    Sound Signature
    Sonic Overview:
    The XP-2 sounds very linear and transparent. It doesn’t impede the sound of music at any point, whether it's only using a passthrough amp or is actually using its DAC for decoding purposes. That said, Bluetooth mode does introduce some mild warmth into the low-end of the sound signature, though this doesn’t affect the overall stellar dynamics that the XP-2 presents. This could be due to any number of factors but is likely the result of some decoding artifacts introduced inside the XP-2’s receiver. I am glad to report that the shift in presentation is so subtle that switching between Bluetooth and USB/Aux modes isn’t disorienting at all.

    Packaging / Unboxing

    [​IMG]

    [​IMG]

    [​IMG]
    Build
    Construction Quality

    [​IMG]
    The xDuoo is pretty compact for a device of its form-factor. The little device packs a good amount of tech within its aluminum frame. Said frame is constructed with precision, not presenting any unwieldy seams or uneven surfaces. While I would have preferred to see xDuoo not use such difficult-to-remove screws so I could see exactly what’s going on under-the-hood, I can understand why they wouldn’t want the average-joe tampering with a device that is designed around creating high-voltages.

    The XP-2’s buttons and sliders are all made of metal, and they are fixed to the frame well. While the buttons have a minute amount of shuffle, I can accept that for a reasonably-priced device such as this. Beside the Select button is an LED that turns different colors depending on what connectivity mode it is in. To the left of the BT Link button is another LED that acts as a Bluetooth pairing indicator.


    [​IMG]
    xDuoo did a really good job staging and tuning the feel of the XP-2’s volume knob. It turns very nicely, giving off a premium feel that is reminiscent of the mechanism inside the FiiO A5.


    [​IMG]
    The bottom of the device features two Micro-USB ports. They are sturdily connected to the frame and do not wiggle about. The ports hold firmly onto the cables that are inserted into them. Beside each port is an LED status indicator that gives the user back useful information about whether or not the port is functioning correctly in a given mode.

    Functionality
    The XP-2 pairs easily with my HTC U11, LG V40, iPhone X, and Huawei Matebook X. This is not as easy a feat to accomplish as it may sound, as Bluetooth is a mess of implementation that varies wildly across vendors and platforms.

    I also found that the XP-2 had enough juice to easily handle my IEMs, and just enough to drive my Advanced Sound Alpha while in high-gain mode. Oddly, I was able to get more volume out of the XP-2 when using it in Aux mode than when it was in USB mode with my V40. I’m willing to bet that this is a small detail that can be adjusted with a firmware update.

    As far as battery life goes, I was able to get roughly the advertised times out of the XP-2. Here are my battery life averages per day over two weeks:

    • Aux Mode: 14.3 hours (low-gain, IEMs)
    • Bluetooth Mode: 12.2 hours (low-gain, IEMs)
    • USB Mode: 7.7 hours (high-gain, planar headphones)
    I’m satisfied with the given times. The disparities between my actual results and the expected times were low enough that I can chalk them up to either environmental factors or flaws in my testing scheme. What really matters is that with these times, I never found myself out of juice in the middle of the day, no matter what configuration I was using. Further, since the XP-2 has a dedicated charging port, you can charge it while you use it, meaning it can be put to use indefinitely should that be what you desire.

    Accessories

    [​IMG]
    Inside the box you’ll find:

    • 1x 3.5mm to 3.5mm cable
    • 1x Micro-USB to Micro-USB OTG cable
    • 1x USB-C to Micro-USB OTG cable
    • 1x USB-A to Micro-USB OTG cable
    • 1x xDuoo branded carry pad
    These are about as many accessories as one can expect from a device such as this. While some rubber retention-bands could have been useful, I’d imagine that they are common enough to not impede an audiophile from using the XP-2 in a meaningful way. The cables included in the box are built sturdily enough. They cover all the use cases that I could think of given the XP-2’s varied input scheme. I find it hard to complain about what xDuoo went with here.

    Summary
    The XP-2 is a well-rounded device that can be used in a myriad of ways. While you won’t be driving any headphones with monster impedances, you can easily power the more reasonably-specced headphones such as the Advanced Sound planar lineup, Meze lineup, and essentially everything that the likes of Bose and JBL produce. Sensitive IEMs are welcomed by the XP-2’s low-gain mode, so fret not balanced-armature users. While USB-C and aptXHD/LDAC would be welcomed additions that would really set the XP-2 aside from its competition, for $110 I find the XP-2 to be a reasonable proposition as is. So if you want a multi-functional DAC for whatever device you have, the XP-2 can probably fit your needs.

    As always, happy listening!
  5. NymPHONOmaniac
    Much more than a Bluetooth receiver
    Written by NymPHONOmaniac
    Published Mar 12, 2019
    4.5/5,
    Pros - Powerfull amping, portable amp, great sound quality, great construction, good battery life, high gain switch, volume control know, multiple DAC pairing, 192khz-24bit USB DAC
    Cons - Sound quality is better with USB dac than Bluetooth, amping have slight warm to it
    XDUOO XP2 Bluetooth USB DAC AMP REVIEW :


    SOUND: 8.5/10
    CONSTRUCTION: 9.5/10
    DESIGN: 9/10
    VALUE: 8.5/10


    INTRO:

    To say i'm an XDUOO fanatic is an euphemism, we can say instead i'm a compulsive-impulsive Xduoo products collector since more than 5 years. It begin with my passionate love for the Xduoo X1 and X2 DAP and overwhelming addiction to Xduoo X3 that I still consider the best product they ever made. After, I get interested in there Xduoo XD-05 DAC AMP to conclude this is again an incredible all in one budget audiophile dream. The XD-05 is responsible for my later addiction to deskop and portable amp as well as OPamp swapping obsession.

    SO, when X-TENIK kindly propose me to write a review of this new Xduoo Bluetooth receiver, it fall in a perfect timing due to my new enthusiast about this type of device using an independant DAC to process bluetooth signal. Before I review other BT receiver like the Radsone ES100, I was extremely sceptikal about sound quality this type of technology can offer. Thanks to the AK4452 premium multi channel DAC used in the Xduoo XP2, because it take bluetooth signal to new level and offer tremendous sound performance only find in entry and mid tier DAP. But this isn't all, and what make the XP2 stand appart its the fact it have AUX IN as well so we can use it as a powerfull portable amp. Now let's see if this is too beautifull to be true as I will do my best to objectively review the XP2 and make comparaison with other DAC and AMP.

    You can buy the Xduoo XP2 here:https://www.xtenik.com/product/xduoo-xp-2/


    SPECS AND INFO:

    Info about AK4452 DAC:https://www.akm.com/akm/en/aboutus/news/20150522AK4452AK4454AK4456AK4458_001/

    xDuoo XP-2 24bit/192khz PCM Bluetooth 5.0 & USB DAC HiFi Audiophile Portable Headphone Amplifier

    Description

    Bluetooth 5.0

    HD Bluetooth Transmission

    High Performance USB Decoding

    Independent DAC

    2 Gain Adjustment

    Bluetooth 5.0 HD Signal Transmission

    Support high-definition signal transmission, through an independent high-performance professional DAC chip decoding, display a complete music signal with a better sound quality than the traditional Bluetooth audio equipment.

    Flipped PC USB DAC

    Professional decoding headphone amps let you listen to better music, USB receiver chips uses high-performance ship SA9123, works in asynchronous mode, supports up to 24bit/192khz PCM signal

    IOS Device USB DAC

    Professional decoding chip, let your Apple device become HI-FI player

    Support up to 24bit/192khz PCM signals (Apple Camera Connection Kit is needed to use)

    Android Device USB DAC

    Professional decoding chip, let your Android device also become HI-FI player

    Support up to 24bit/192khz PCM signals (the corresponding USB OTG connecter is needed to use)

    Two stages of high and low gain adjustment

    Support different sensitivity of the headphones, including in-ear headphones and headphones

    What can it do for you?

    Aux In / Provide High Quality Audio Source/ 2 Gain Adjustment

    Professional amplifier, let you listen to better music

    After Bluetooth / USB HD decoding, provide high quality audio source, you can connect it to the active speakers in your house, in order to effectively improve the sound quality of your speakers

    Power Amplifier Circuit

    The amp section adopts the OP+BUF architecture and its driving force is even stronger! The driver power supply provides +/-5V through a high-efficiency power conversion circuit, which can better drive the headset! The power output circuit adopts the OCL circuit structure, and no output coupling capacitor is required; The bass is calm and clean, and the sound is powerful!

    Specification

    Bluetooth receiver: Bluetooth 5.0, support AAC, SBC, aptX

    Output Power: 245mW@32Ω

    THD+N: 0.008% (1kHz)

    Recommended headphone resistance: 16Ω-300Ω

    Gain: +3/+9dB

    Size: 105*56*15mm

    Frequency Response: 10Hz~100kHz (+/-0.5dB)

    Battery: 3.7V/1800mAH

    USB sampling rate: Support 44.1kHz-192kHz, 16-24bit

    Battery life: AUX IN: ≥15H Bluetooth input: ≥12H USB IN: ≥8H

    USB receiver: Support Android mobile phone with OTG function and 192kHz/24bit lossless transmission at most, computer USB input, support with XP, Win7, Win8, Win10 (it is necessary to install drive), MAC system.

    Weight: 115g



    CONSTRUCION, DESIGN & ACCESSORIES :

    P3060946.JPG P3060947.JPG P3060948.JPG

    UNBOXING is very rewarding here, as Xduoo do not forget any accessories to fully take advantage of its device : it have 1 USB to micro usb for charging and USB DAC, 1 small micro usb to micro usb L cable for OTG DAC as well as micro usb to micro usb type C L cable for newer phone OTG dac, a gold plated aux cable for audio input and a Xduoo silicone Pad double side sticker to hold togheter the Xduoo XP2 with your phone or DAP.

    P3060926.JPG P3060924.JPG P3060921.JPG P3060919.JPG

    CONSTRUCTION is really impressive, but Xduoo rarely if ever disappoint about workmanship. Here its no exception and they go full metal and only piece of plastic you will find is the gain switch and the plastic side where the usb connection are and its to permit bluetooth signal to be properly sent.

    The buttons are metal, the volume know is metal, 95% of body is metal and even the audio jack are metal. This device will sure survive to hardcore everyday use and promise long durability with such a great sturdy construction.

    P3060923.JPG P3060920.JPG

    DESIGN is intuitive yet minimalist. You open the receiver by turning the knob and a green light between 2 jacks welcome you. I you have already selected Bluetooth fonction, it will atomatically connect to you phone or laptop and your ready to enjoy music. If its your first time connecting BT with your phone, perhaps you will have to push the rarely used BT link button.

    INNER CONSTRUCTION is just a caprice of my curiosity about whole construction quality, so here again, I conclude this is seriously well built circuitry-clean and professional with all the stated compenents. But, I don't think it will be easy to change the battery once it die in some years (wich is a drawback to me).
    P3030869.JPG P3030865.JPG

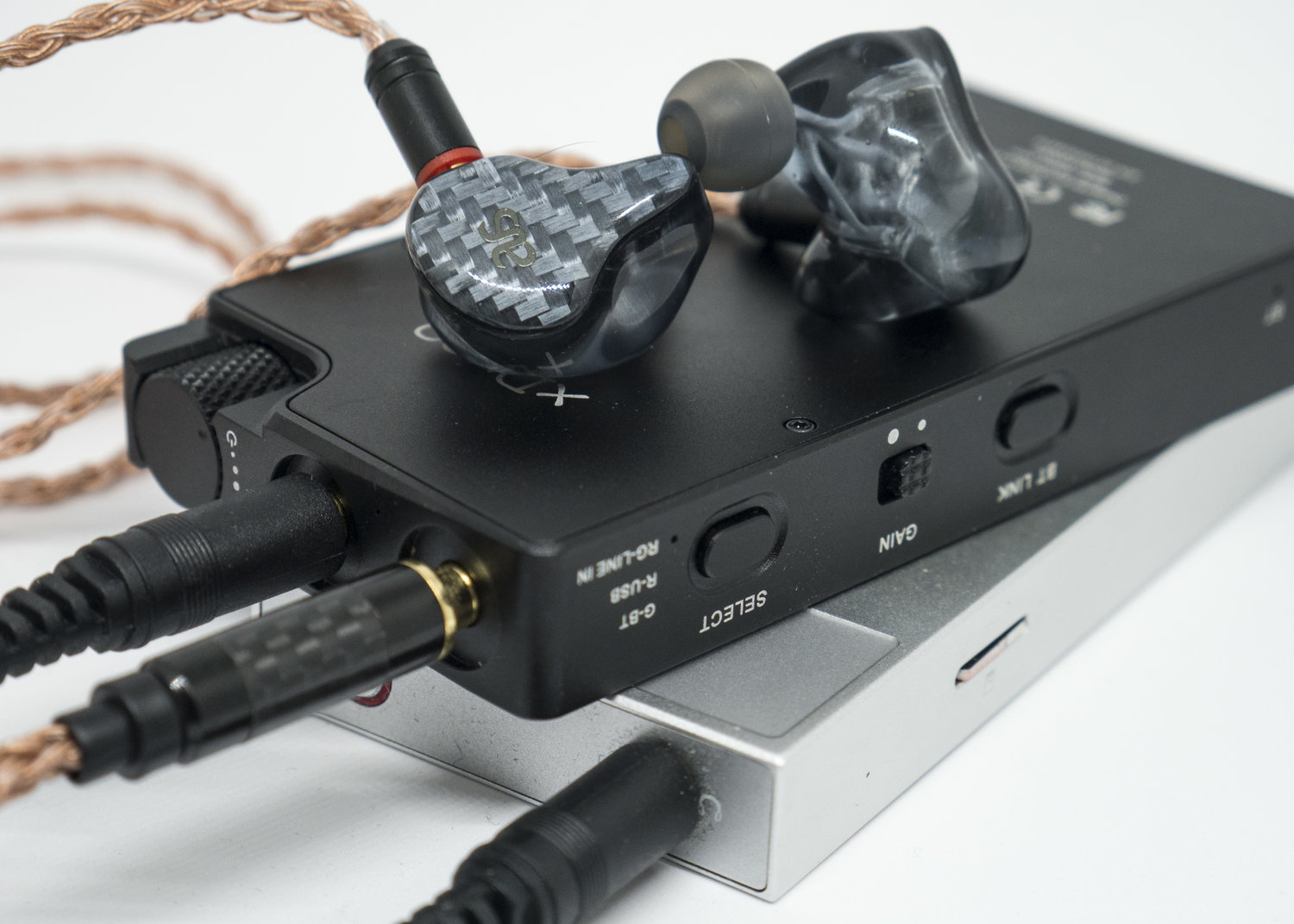

    SELECT button have 3 option that are shown trough light color at side of the button.

    GREEN is for bluetooth mode.

    RED is when USB DAC mode is on.

    GREEN+RED Lights mixed togheter is for AUX in mode.

    There no special color for Audio out, it will be audio in for amp mode and real line out (without volume control) for DAC or BT mode.


    OTG DAC work flawlessly with my LG G6 and was just a plug and play enjoyment, I was very happy to have the L cable to connect it tightly too. Sound do not creat interference or any cliking unlike cheaper otg dac I try in the past.


    USB DAC is same worries free plug and play and offer same sound quality.


    BLUETOOTH DAC was easily findable and once connected for one time, i just needed to open XP2 and it connect by himself on the bluetooth device that was open.


    BLUETOOTH reception is above average and can go up to more than 12meter in open space, as we cannot reivent physic laws, the signal struggle to pass trough thick wall as any other bluetooth device.

    GAIN give extra 9db and will be able to drive properly anything of 300ohm and below, it will not be able to drive at full potential 600ohm headphone and can struggle with 160-300ohm one if they have very low sensitivity.






    SOUND :

    OVERALL SOUND IMPRESSIONS :

    With the Xduoo XP2, we have a AK dac that remind me of AK4490 dac from Xduoo X3II, but with more bass emphasis. When used as BT receiver we have a warm, weighty sound, that tend towards a smooth overall rendering. Sub bass is more emphased than mid bass, mids are quite linear, not bright, near organic sounding, treble is smooth but well layered with good tone and soft timbre.

    The sound is quite energic because of weight impact, but still warmly rendered, far from being analytical, it can remind of analog type of sound, laid back but resolved and greatly enjoyable.

    As well, there a sens of transparency to layers, wich soundstage panoramic widness help to heard.


    USB OTG DAC mode have the best sound rendering, it is clearer and more balanced than with Bluetooth. The bass have more control and details even if still slightly pushed fowards. Clarity of imaging is impressive. Details retreival are above average but not analytical, it feel natural and never cold or artificial sounding. The fact you can listen up to 192khz/24bit music files is a proof that the DAC is fully take advantage off in USB mode because there limitation to APTX 5.0 Bluetooth (48khz/24bit).


    BLUETOOTH mode sound very similar, but little less agile and clear. The big difference is in bass warmness that feel less controled and stole some space in soundstage as well as clarity. Mids have little less body too, but overall sound is excellent, with a wide airy presentation and good transparency.


    AMP mode is very usefull and make this BT device stand appart because of this great feature. It’s quite powerfull at high gain, and I think the amping section is responsible for extra bass and warmness we have with overall XP2 sound rendering, This is up to the pairing for getting excellent sound, but earbuds lover should really think about this Bt Receiver as the go to solution for enjoying full potential of earbuds on the go, XP2 is just from another league for amping earbuds, headphones or hard to drive iem.


    COMPARAISONS:

    P3060934.JPG P3060932.JPG

    VS Radsone Earstudio ES100 (100$):

    Here I compare mostly to the unbalanced output of ES100, because XP-2 do not have balanced out. Will add extra observation about 2.5mm balanced out of ES100 in they end.

    I compare the 2 devices using my LG G6 as Bluetooth source, all file was ripped in FLAC. Music style are diverse, wich include indie rock (Thus Owl), Classical, Modern Jazz, electronic and Singersongwriter (Jessica Pratt).

    I use these headphones for comparaison : Final Audio E2000, Koss Portapro, NiceHCK EBX earbuds, Hifiman HE-300.


    CONSTRUCTION of Xduoo XP-2 is from another league here, its all black metal that feel sturdy and have a high quality look, but its heavier than ES100 as well, 10 times heavier in fact as it weight 115g vs 18g for ES100. Output jack are made of metal, and again, of better quality than plastic one of ES100.

    Anyway, whole construction of ES100 with the exception of the metal clip is plastic, and the size is 4 times smaller wich make the ES100 a real portable bluetooth dac-amp that can be clip on your clothes. The Xduoo XP-2 fit easily in your pocket, but is still less portable.

    Even is way smaller, the ES100 have more buttons and features, you can change tracks, pause and play, and unfortunately, you cannot with the XP-2, wich is a real drawback. Biggest difference is the fact ES100 have 2 outputs, one unbalanced and one 2.5mm balanced that isthe star of the show with this device as it give more power and clearer background noise floor.

    XP-2 have one 3.5mm output that is way more powerfull than ES100 and have a High gain switch that is very usefull as I prefer switch to firmware interface gain.

    Big plus for ES100 here is the dedicated Earstudio application that permit to customise amping power as well as sound in multiple of way. The Xduoo XP2 do not have dedicated application at all.


    SOUNDSTAGE feel wider with the XP-2, wich is especially hearable with headphones of more than 64ohm like the Portapro of Hifiman HE-300, wich sound a little thin and congested on the ES100. With lower impendance iem or earbuds, the ES100 show its superior talent for precise layering in a deeper soundstage as I can hear with Brainwavz B200 that lack clarity with the XP-2. In other hand, more demanding headphone will gain in soundstage and natural imaging, wich clearler show the pairing with trebly Hifiman HE-300 that sound very airy and gain in bass and softness with this pairing at high gain.

    BASS of the XP-2 feel more extended as well as having more lower end presence with a softer mid bass presentation than more punchy and brighter ES100. The fact sub can stole some clarity to mids of XP-2 make the ES100 better controled, but less thick sounding too. Here the XP-2 will benifit high impendance headphones or bright sounding iem, while the ES100 will give extra clarity to low impendance iem or headphones as well as extra enery.

    MIDS of ES100 are more fowards and bright, feeling more detailed but less wide and transparent than the XP-2. Overall sound of Xduoo is more natural and soft, while the ES100 feel analytical and more energic. Vocal can sound a little nasal with ES100, wich will not help for pairing with hissy earphone, XP-2 have great natural mids presence, warmer and more transparent than ES100, but the layering is less agile and detailed.

    TREBLE extension of ES100 is more pushed, wich give more microdetails and texture than XP-2, XP-2 feel smoother with upper treble roll off and is more permissive with hissy music or earphones. It have better tone than ES100, and fuller timbre. ES100 have a more fowarded texture and clinical approachthat give extra resolution to sound layers where the XP-2 can feel too laidback.




    VS ALPHA & DELTA BT RECEIVER(30$) :


    P3060953.JPG P3060956.JPG

    So this is very different BT receiver, and one is 3 times cheaper than the other, but as I do not have a big collection of this type of device, I think it’s interesting to compare it for consumer thinking about doing an upgrade for higher priced receiver.

    Well, if you just have very sensible IEM that are very easy to drive and offer tremendous sound (aka, no cheap immature IEM), I think perhaps you don’t need to buy a powerfull DAC-AMP BT receiver Plus Stand alone AMP. But if you have any demanding iem or a pair of headphones (whatever the impendance), yeah, must certainly you will benifit from a BT receiver that have some amping power to it, because no, the Alpha Delta do not have lot of amping power, in fact, perhaps your phone have more.

    Alpha & Delta BT receiver is an ultra small portable device, wich is perfect to transform your iem in wired BT one, for that, I suggest you buy a small mmcx cable and begin this budget iem collection with detachable cable because 90% of BT earphones have….wire.

    Being extra small, it really cannot compare to amping power of XP2, and we don’t talk about high gain here. Just the fact XP2 is a standalone portable amp too justify the price jump, but the sound is suppose to be better as well due to an independant dac chip, aren’t it??
    To be honnest the sound paired with easy to drive IEM is quite similar, the soundstage of Xduoo being wider but warmer, weightier too, while the Alpha Delta receiver is more analytical and cold sounding. But, when you use any less easy or capricious to drive iem , earbuds or headphones, the A&D begin to struggle and sound thin, lacking in power, while the XP2 begin to shine even more expanding soundstage and give extra weight and presence to bass and mids, and being able to drive near anything up to 300ohm….this IS the big difference,

    So, this is a 30$ device against a 110$ one...and XP2 win everywhere but for ultra portability, as well as tracks changing buttons, wich even a cheap device have, hum.

    Sound improvment is sure there, but biggest plus is the amping power and extra feature like usb dac and amp with audio input etc.

    VS LG G6:

    Did I really need to do this?
    G6 sound congested, dry and have background hissing compared to vivid XP-2 sound.
    SOUNDSTAGE is immense compared to frontal G6 presentation that lack deepness and feel artificial.
    BASS is way better controled and have rounder more weightier presentation.
    MIDS are wide and lively, they are well layered while the G6 have them stick on a cardboard soundstage.
    TREBLE is clean, with hint of brillance and great layering while the G6 feel dry and bright and veiled.

    (extra) PORTABLE AMP COMPARAISON WITH IBASSO BOA D2+.

    I will not compare DAC section here, just amping because BOA is not a BT receiver.

    The BOA have about same amping power than XP2 but a longer battery life that can go up to 30H.

    Construction is pretty basic and look more like a DIY project than a real professionaly made one, so the Xduoo XP2 with is from another league here and more portable as well due to less thich body.

    Overall sound of BOA D2+ amp section is brighter and more grainy and lack the smooth finess of XP2. As well, background noise floor of XP2 is blackest and near perfect while BOA D2+ have some hissing.

    BASS have more body and impact with XP2 and can feel quite thin with the BOA.

    MIDS are brighter with BOA, with it have thicker more natural timbre with the XP2.

    TREBLE is strangely affected by BOA rendering and became more dry and grainy, this can give the impression the BOA is clearer but in fact it have more distortion in sound and affect highs negatively.



    PAIRING IMPRESSIONS:




    With IKKO OH1 Hybrid :

    This pairing sound extremely good, even if the OH1 are on the bassy side already, here the overall control seem better and gain in body timbre, this is mostly due to expension of soundstage given by plenty of amping capabilities of XP2.

    MIDS too open up in the big soundstage, and feel less rough in upper range, as well, they gain separation from other instrumental. Overall clarity is excellent as well.

    Treble feel smoothed out a little, around 8khz and 14khz, but it do not stole details, just some brightness there and there, wich in fact benifit the OH1.

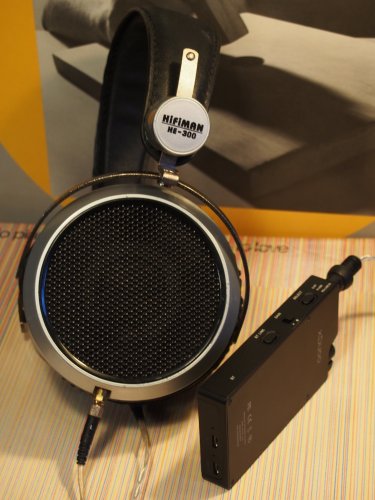

    With Hifiman HE-3000 :



    Again, this pairing is excellent, as the HE-300 can sound too cold and analytical, here the XP2 warm the sound as well as injecting some more bass to it, wich was lacking before.

    The bass gain in sub and impact and give extra body to mids.

    MIDS became more natural and less grainy, more bodied and have a wider presence.

    Treble wich was very fowards is softened too, giving an overall darker tone that i feel make the HE-300 more musical, as highs was to sharp and agressive before.

    For once rightly amped by a portable amp, the HE-300 became a very listenable headphones and we can thank the XP2 saver as I will surely used them more because of him.


    With the Faaeal 64ohm earbuds :

    (XP2 Bluetooth+high gain)

    At 64ohm, I feel these need proper amping and will sound too thin with not enough juice.

    Here, again, everything look to open up more and gain in weight and presence, but not much in timbre.

    The bass became way more controled and bodied, wich take me by surprise because I didn’t think the Faaeal can offer this type of round bass in a clear not distorted way.

    MIDS wich was already fowards became better layered from rest of instrument, vocal becaming softer, more present and more transparent, wich give a less opaque mid centric soundsignature by adding extra air and widness to soundstage.

    TREBLE is more extended too, especially around 10-14khz, where the Faaeal was feeling too soft before, as if extra amping give the highs better decay and brilliance.

    All in all, a superb pairing that clearly benifit this earbuds.

    CONCLUSION:


    Xduoo make some error lately with some of there DAP like the D3, so I was a little afraid this device don't hold well its price ratio performance.
    I was so wrong, so so wrong!
    It's the opposite that happen, as even if features look minimalist at first, we fastly discover that the XP-2 is way more than a simple Bluetooth receiver. The genius idea of Xduoo here is to make the XP-2 a stand alone portable amp of great quality that offer powerfull clean amping with physical high gain button. This permit to the usb or bluetooth dac to be way more versatile in amping power than all other bluetooth receiver on the market right now.
    The sound quality is a clear improvment from any laptop and surely any phone, its clear, immersive, wide and lively withouth any congestion or distortion to the sound.
    Sure XP-2 is a little bigger than Radsone ES100, but it is still is very portable and will offer more pairing or amping possibilities that can benifit your hard to drive headphones, non amped usb DAC or any of your DAP with line out.
    If you search for a simple and intuitive Bluetooth receiver that will be able to properly amp any of your headphones, earbuds or iem, I'm convince only the Xduoo XP-2 have enough muscle for this task.

    For more reviews and audio related news and stuffs, give a look to my website HERE

    images

    1. P3060944.JPG
      cqtek, B9Scrambler and snellemin like this.
    1. Preachy1
      "and overwhelming addiction to Xduoo X3 that I still consider the best product they ever made."

      YEEEEESSSSS!!!!!!!!!!!!!!!!!!!!
      Preachy1, Mar 13, 2019
      Nymphonomaniac likes this.
  6. Wiljen
    Xduoo XP-2 - The Jack of all trades
    Written by Wiljen
    Published Mar 10, 2019
    4.5/5,
    Pros - Solid build, great battery life, lots of functionality.
    Cons - Returns to Bluetooth mode on power cycle, DAC adds some mild coloration to sound.
    The Xduoo XP-2 falls into a class of products that is being advertised as a bluetooth Amp. What this means depends on which vendor you are talking to. In this case the XP-2 has the capability to act as a bluetooth receiver from a source device and then output to a set of wired headphones, and can be used as a purely wired amp via the 3.5mm input port or as a USB dac/amp by connecting a source via usb.



    Packaging:

    The Xp-2 came double boxed with a white outer package with graphics on front and details on rear and a black lift-top style inner box done in much more subtle tones.

    [​IMG][​IMG][​IMG]

    The inner box is a lift-top design with a shelf the XP-2 sits on, and a compartment underneath with a wealth of cables that come with it. The XP-2 comes with 2 3.5mm cables (one 90º and one straight) for use with wired sources, and two USB OTG cables (one USB-C on both ends and the other USB-C to Micro-USB) to allow the XP-2 to connect to just about anything. It also comes with a USB cable for charging the device, a manual, and warranty card hiding in the lower compartment.

    [​IMG] [​IMG] [​IMG]

    Build:

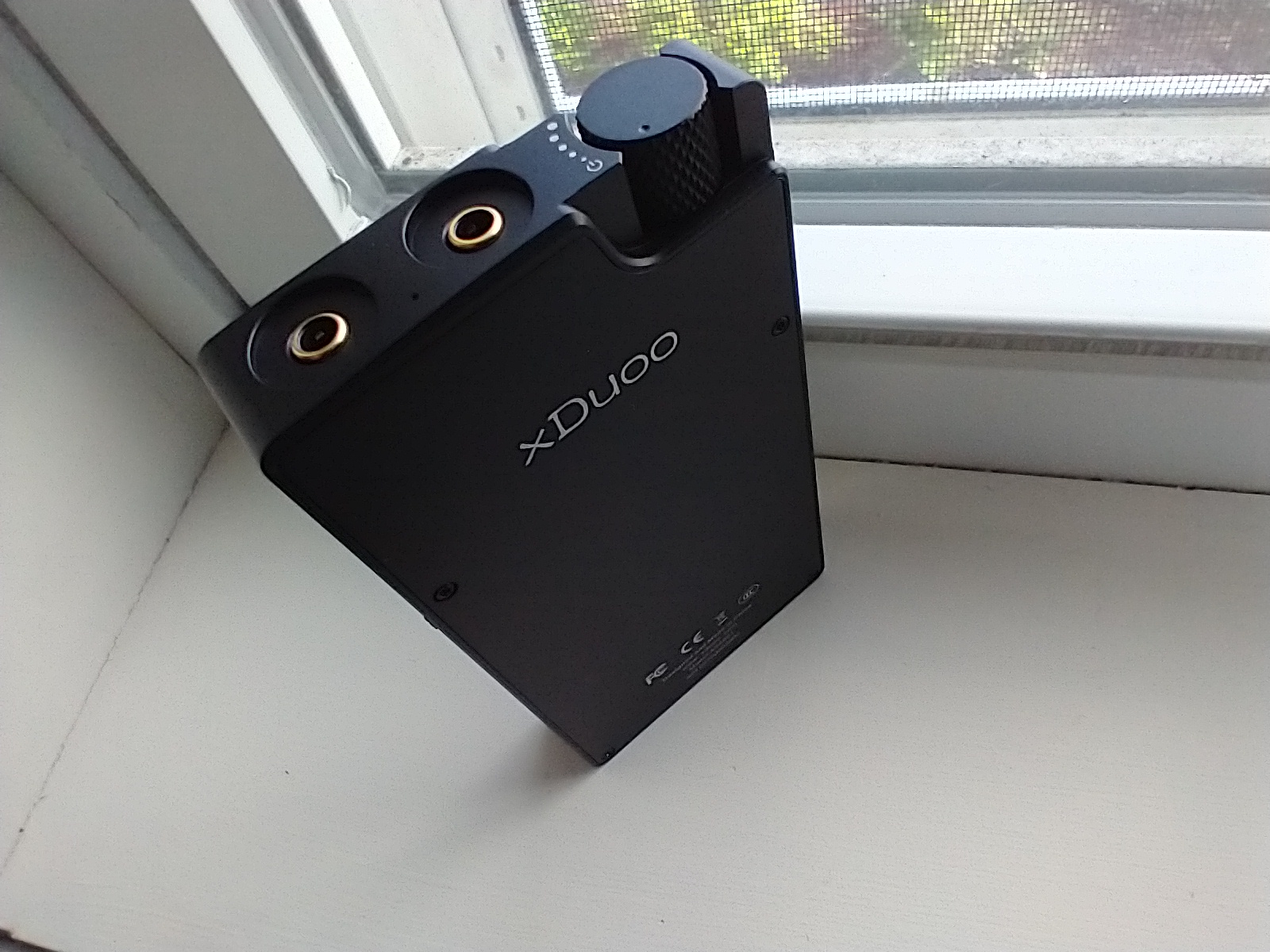

    The Xp-2 is very solid and has good heft. Size-wise, it is roughly the same size as the Cayin N3. Slightly narrower than a deck of cards with a similar length. Weight is about double that of a desck of cards. While still very portable, the construction gives the user some assurance that it will withstand the rigors of pocket use. Jacks are countersunk in the face and the volume knob is well protected. Buttons and switches on the side of the player are very tactile and require an intentional push to change modes so again, worry about pocket carry is minimal. The bottom of the device has two micro-USB ports, one for charging and a 2nd for data traffic. This allows the unit to be charged while in use and prevents excessive drain from the phone when used as a usb DAC as the data line does not pull the 500ma current typical of USB.

    [​IMG][​IMG][​IMG]



    [​IMG]

    Internals:

    Xduoo advertises the XP-2 as using the SA9123 USB Controller for input, and the AKM 4452 DAC chip. I found several references to opamp/buffer design in Xduoo's advertising materials, but none specifying which components. So I did what any normal person would. I took it apart. As can be seen below, the Opamps are TI OPA1652 and OPA1662 chips with a LMH6643ma buffer following. I tried running the QR code on the bluetooth antenna (lower left) but was unable to get further than the literal translation (HNY1809001).

    [​IMG][​IMG][​IMG]



    Features:

    I mentioned the modes the device can be used in during the intro, but lets look at these in a bit more detail.

    The simplest mode is as a wired Amplifier. In this mode, input is via the 3.5mm aux in/out port and output is via the 3.5mm Phone Jack. Xduoo advertises the amp circuit as having ± 5V rails for maximum drive which provides roughly 250mW @ 32Ω. I found the little unit had no problem powering most headphones including the 600Ω Beyer 990 and the T50rp which are notorious power sponges. While the t50rp couldn't be pushed to ear-splittling levels, with the gain on high, it had more than enough power for reasonable listening levels. Most fairly sensitive IEMs and even some low impedance/high sensitivity cans will be better served by the low gain mode as high gain leaves very little usable volume control before it gets loud enough to be troublesome.

    Next up, USB DAC Mode. I tested this using the iPhone 8 with a camera connection kit, an HTC m11, the Cayin N3, and the Moto Z3 Play smartphone. The Xduoo worked effortlessly with all except the Moto which refused to detect it as a USB DAC. On the Iphone and M11, all apps worked well and the unit's battery held up well to all day work sessions. I was also able to connect the XP-2 to a Windows 10 PC and use it as a DAC/amp using the native win10 drivers.

    It should be noted that the USB Dac mode can be combined with bluetooth headphones so the phone can be left in a pocket or so the user can walk around the office and not be tethered to the DAC.

    The third mode is the bluetooth mode. In this case, we are using bluetooth between source and the XP-2 and the XP-2 is providing both DAC and amp functionality. In this mode, the gain switch is still in play since the headphones are wired to the XP-2 and the bluetooth connection is prior to the amp stage. (When using bluetooth headphones with the XP-2, the gain switch is bypassed). In this mode I was able to again pair the laundry list of phones and PCs to the XP-2 with no issues (even the moto works this way) and connectivity was solid as long as the XP-2 and source device remained within 5-10 feet of each other. This is nice as a few devices I have tested have suffered from cut-outs when one was in a pocket and the other not. Battery life in bluetooth mode is lessened somewhat, but it was still able to put in an entire workday (8 hours without needing a charge). (When used as a wired amp, I was able to get 2 days out of it before it cut out).

    (Section pulled while rechecking- may have been in error)

    Controls

    Most XP-2 controls are on the side of the unit. The exception being the on/off/volume knob on the top with the 3.5mm ports. Looking at the right hand side of the unit from left to right, we have the bluetooth LED (marked BT), the Bluetooth Pairing button, the gain Switch, and the mode selection switch and LED.

    [​IMG]

    Most of these need little or no explanation, but the Select option does have a couple quirks that are worth noting. First, the unit always powers on in G-BT mode. (Bluetooth), and must be changed to R-USB mode or RG-Line in mode at startup each time if so desired. The G, R, and GR (which turns out yellow) are the designations for the LED color displayed in each mode. So when powered on, the LED always starts out green. The issue I ran into with this is that when pairing the unit using USB, most devices will not see the unit unless it is in USB mode and since powering the unit off and back on reverts it to Bluetooth, it makes using it as a portable usb dac paired to a phone a bit more fiddly than I'd prefer. A last mode memory would go a long way here if you are reading this X-duoo.



    Sound

    This is a tough section to write as the unit has several different answers to the question, "how does it sound?". If used purely as a wired amp, the XP-2 does an admirable job of being colorless and doesn't introduce any notable changes in tone. When used as a USB Dac/Amp, I did find the XP-2 to add a minor boost in the mid-bass and again in the lower treble. I have to assume this is part of the tuning of the dac itself as it was not present when used as a wired amp. When used with a bluetooth connection from source to XP-2 and wired headphones, the slight boost was again noticable. I didn't find the boost pronounced enough to be bothersome in either case, but do think those looking for a perfectly neutral platform would want to know up front that the XP-2 does add some coloration to the sound in certain instances.

    Conclusion

    The XP-2 is a jack of many trades and does most things quite well. Battery life is impressive for a device its size, and power is more than adequate for most real-world situations. I found the XP-2 to be a very solid alternative for those interested in something like the xDSD at a considerably lower price point. The unit is no larger, every bit as solid, and other than using a slightly less potent DAC chip, offers most of the same feature set. Most of us liked the xDSD when it came out not long ago and called it an excellent value, so what do you call something that offers the same functionality at 1/3 that price? I'm calling this one "mine", you can call your whatever you like when you get it.

    [​IMG]
      steven.lambert1026 likes this.
    1. View previous replies...
    2. NymPHONOmaniac
      Don't talk much about sound aspect....I find it utterly important, especially fo this warm sounding dac and amp. Quite an impressive device, but it have an ''analog'' like soundsignautre to me. Its like the opposite of Radsone ES100 in all aspect, for the better and the worst.
      NymPHONOmaniac, Mar 10, 2019
    3. Wiljen
      I found it warmer if using it as a dac and did mention that, when used as a straight amp using 3.5 input and output, the boost in the mid-bass and lower treble is not as noticable as when using it as a dac in either USB mode or bluetooth.
      Wiljen, Mar 11, 2019
    4. Brooko
      How did you pair to headphones? I have it in front of me now, and I can't get it to pair with a Mobius (via Bluetooth) so I can test as a Bluetooth transmitter - with wired connection to DAP (as per your review). How did you do it please?
      Brooko, Apr 26, 2019
