Tanchjim Origin Review
Pros: Neutralish Tonality, Realistic Timbre, Brilliant Technical Performance, Solid Metal Build
Cons: Not for Bassheads, Easily Gets Scratches, Lower Mids Lacks the Body
TANCHJIM ORIGIN- LET THE TECHNICALITIES ORIGINATE

DISCLAIMER:
Our unit of Tanchjim Origin was purchased directly from Tanchjim Audio along with a small discount. We at Aural Cafe would like to thank the Tanchjim Audio team for this opportunity and their continuous support for Aural Cafe.

Introduction: -

Today at Aural Cafe we will be reviewing Tanchjim Origin which features Tanchjim Audio’s latest DMT-5 Dual Magnetic Dynamic driver technology.

Tanchjim Origin is Tanchjim Audio's flagship offering in a single Dynamic-Driver-based IEM lineup which not only features Tanchjim's latest DMT-5 Dual Magnetic Dynamic drivers but also Tanchjim’s first IEM which comes equipped with three sets of replaceable tuning nozzles. Before we dig deeper into Tanchjim Origin let’s talk a bit about Tanchjim Audio first. Tanchjim is a professional audio brand which established in 2015 by a team of young Audiophiles. Tanchjim Audio's headquarters is in Nanning, a city in Southern China known for its Dragon Lake, hilltop fort and botanical garden. With a professional team of acoustic engineers, Tanchjim has released several flagship award-winning In-Ear monitors in the industry such as Oxygen, Hana and Prisim. Tanchjim Audio have also come with budget IEM offerings such as Tanchjim Zero, Ola, and One DSP. Recently Tanchjim Audio also came up with very successful portable dongles such as Tanchjim Space and Space Lite which we had the honour to review in Aural Cafe but it's Tanchjim Audio Oxygen which is Tanchjim's biggest gift to Audiophile community and is still relevant after so many years of launch.

Tanchjim Origin features a 10 mm Dynamic Driver in a patented fifth-generation Dual Magnetic and double cavity acoustic technology setup. The patented DMT-5 Acoustic Technology implemented in Tanchjim Origin resulted in not only pulling off the higher magnetic flux and stronger dynamics but also helping in achieving an ultra-low level of harmonic distortion at 1khz<0.056% @94dB. The ultra-low distortion along with the high-quality stainless-steel shell contributed to cleaner tonal balance, accurate timbre, wider soundstage, imaging and separation. The story doesn’t just end here but probably starts as the 10 mm dynamic driver features a specially designed composite diaphragm which is combined with Finite Element Analysis simulation to deliver a diaphragm that has high rigidity and equivalent compliance to achieve a hi-fi immersive experience and dynamics from the whole diaphragm.

The cavity cover has a waveguide design that is geometrically optimized with the help of Finite Element Analysis simulation design to improve the efficiency of modal distribution and high-frequency acoustic energy transfer. Very high-quality Monolithic brass is used by the Tanchjim Audio team in CNC high-precision machining which says a lot about the focus that which Tanchjim Audio team gave to come up with their patented DMT-5 Acoustic Technology setup. Moreover, there are special radian corrugations on the inner wall of the waveguide cover which help in affecting and suppressing the radiation angle of sound source vibration to achieve ultra-low distortion and clean tonal balance which ultimately forms the core of hi-fi sound.

The Tanchjim Audio team for the first time implemented a replaceable conduit design on their IEM, Origin to unlock more modes. The high-quality replaceable tuning nozzles are easiely unscrewed and replaced through the quickly disassembled thread structure in our experience while listening to different genres of music. The IEM comes fitted with Standard conduits along with Dynamic and Light conduits in the box. According to the Tanchjim Audio team, the inner cavity geometry of the three conduits of Origin is slightly different bringing different resonance effects and unlocking more modes. The Origin comes with a rear cavity structure and leakage Valve which is implemented with the help of FEA simulation Design to effectively manage air pressure inside the IEMs and to achieve the immersive dynamics.

Tanchjim Origin is priced at US$ 259.



Specifications: -
  • Driver Configuration: 10 mm DD (Composite Diaphragm DMT-5 DD Unit)
  • Impedance: 16Ω ± 5%
  • Freq Response: 2Hz-48Khz
  • Sensitivity: 126dB/VRMS
  • Total Harmonic Distortion (THD): 1khz<0.056% @94dB
Packaging & Accessories: -

When it comes to Tanchjim’s Design language the Tanchjim Audio IEMs and dongles have always followed very simple, elegant and visually aesthetic designs. The Origin is no different and follows a similar elegant premium design language. The Tanchjim Origin comes in a grey square-shaped medium-sized cardboard box which is covered by a white colour sleeve. The front part of the sleeve is dominated by the Tanchjim Origin photo while the frequency graph and other specifications can be found at the back of the sleeve. Removing the white colour sleeve the grey colour cardboard box can be seen along with the Tanchjim’s logo (The Angel of Prosperity) placed right in the middle of the box. On unboxing, we are first greeted by the manuals and quick guides tucked cleanly inside a white square envelope. After the manuals, we are greeted by the Origin IEMs nicely placed at the top section of the box along with the tuning nozzles being placed in between the IEM shells. The Tanchjim Origin comes with Tanchjim’s proprietary six pairs of T-APB ear tips which are placed in the bottom section of the box just below the IEMs. Three pairs of ear tips in S, M and L sizes are for lower frequency while the other three pairs are exclusively for higher frequency. The high purity 6N Litz Oxygen Free Silver-plated Copper cable with 3.5mm termination can be found placed inside the beautiful white waterproof carry case at the bottom layer of the box. All in all, we can say that the Tanchjim Origin comes with very high-quality accessories and a premium unboxing experience. You can click on the following link to enjoy the unboxing video of Tanchjim Origin.







Build & Design Concept: -

The Tanchjim Origin’s shells are made using high-quality 304-grade stainless steel with Tanchjim’s logo etched on the right shell while the model’s name ‘Origin’ is etched on the left shell. The shells of the Tanchjim Origin are ergonomically designed with a more scientific inclination angle of the nozzle resulting in better isolation and comfort for a longer duration of usage. The added isolation helps us listen to the higher frequency of the soundtrack on Tancjim Origin even on moderate volume; thus, we welcome this updated nozzle design. The other unique feature updated on Tanchjim Origin over its previous flagships is the use of a Double Composite Strainer. The composite strainer is composed of a stainless-steel filter on the outer side to condense moisture and impurities vis-a-vis ensuring high-fidelity sound transmission while the inner layer of the DCS is composed of Dust and Waterproof Resistant acoustic strainer to make high-frequency sound smoother and natural. All in all, when we see the design and quality of Origin shells' lightweight high-quality SPC cable and other accessories we can confidently say that the Tanchjim Audio team has focused on each aspect of the Origin and tried their best to present us with a premium hi-fi IEMs which doesn’t only sound great but comes with a better fit over their previous flagship IEMs.



Sound Analysis: -

We would like to state here that our sound impressions are based on the Tanchjim Origin Standard conduits. The effect of the Dynamic and Light conduits on the sound frequency will be discussed separately in the Synergy Part.


Credits: @ToneDeafMonk

  • Tonality: - After listening to different kinds of soundtracks across different genres we can say that the sound tonality of Origin is neutral with a hint of warmness across the frequency. We at Aural Cafe also feel that the latest 10 mm Dynamic Driver helps in adding a tinge of warmness to the whole frequency so that the timbre of the instruments sounds natural and realistic than rather sounding dry. We would also add here DMT-5 Acoustic Technology setup has been implemented superbly in Origin making it worthy of Tanchjim Audio’s flagship single-DD IEMs. The DMT-5 Acoustic Technology setup is the brain of the Tanchjim Origin and is responsible for high-fidelity technicalities. We especially enjoyed listening to the Progressive Metal music on Tanchjim Origin.

  • Lows: - The lows on Tanchjim Origin are tuned keeping in mind its neutral signature. The Lows in Tanchjim Origin are precisely tuned and don’t bleed rather merge smoothly with the Mids. The mid-bass response is tight with the right speed and attack. The sub-bass rumble is decent but controlled and might not be able to satisfy the bass heads. We here would like to add that the Tanchjim Origin being a Single-DD IEM loves powerful warm musical sources and, in our case, the low frequencies reached their best while using it with sources such as Dethonray DTR1+ and Dethonray SG1 Gold. The DMT-5 Acoustic Technology setup here plays a great role in adding speed and dynamics to the whole low frequency along with top-notch clarity. We enjoyed listening to tracks such as ‘Party Monster’ and ‘The Hills’ by the Weekend but yes, we would love a bit more rumble in the Sub-bass region.

  • Mids: - The Mids are again tuned in a very balanced way merging smoothly with lows and highs. The Mids on Tanchjim Origin are neither forward nor recessed but very precisely tuned with lots of resolution and soul. Both the male and female vocals have high fidelity clarity and texture due to low distortion achieved through the updated setup and become really handy while listening to complex tracks and Progressive Metal genres of music. The lower mids are decent but lack body, it’s the upper mids which is the star of the show. The upper mids have a superb body. clarity, air without any shouting. We really enjoyed listening to ‘Arziyan’ from the movie Delhi-6 composed by A.R. Rahman and Javed Ali and Kailash Kher on vocals, ‘Moh Moh Ke Dhaage’ composed by Anu Malik with Monali Thakur on vocals and finally, we enjoyed listening to ‘Eternal Rains will come’ by the Swedish Prog-Metal Band, Opeth.

  • Highs: - The highs on Tanchjim Origin are tuned in a very referenced and balanced way. The high frequencies on the Origin are quite resolving and refined along with decent sparkle and micro details. There is no harshness in high frequency and thus becomes suitable for a longer duration of usage. The upper treble is smooth like butter with a decent amount of air. We had a good time listening to ‘Stairway to Heaven’ by Led Zepplin on Tanchjim Origin on Dethonray Listening M1 with the Linum SuperBax cable.

  • Soundstage & Imaging: - We would strongly say that Tanchjim Origin is one of the best IEMs in terms of technicalities we have come across (Considering the Price) being in this hobby for the last 8 years now. The Soundstage is great both in terms of width and depth and scales well with the Sources. The separation, dynamics, and imaging are precise, and top-notch experienced at this price range. We really loved listening to Progressive metal rock numbers such as ‘Harlequin Forest’ by the Opeth due to top-class separation and soundstage. The imaging was top-class precise while listening to ‘Ramta Jogi’ composed by A.R. Rahman and sung by Sukhvinder Singh and Alka Yagnik. We also loved the timbre of the instruments while listening to ‘Dream On’ by Aerosmith.

  • Synergy: - The Tanchjim Origin is an easy-to-drive IEM, but scales very high with powerful sources. The Single 10 mm composite DD in Tanchjim Origin loves powerful sources and the Dynamics, Soundstage and Imaging reach to a different level with Sources such as Dethonray Listening M1 and Dtr1+. We would also like to inform you that the Tanchjim Origin responds well to the Source matching and merges really well with warm musical sources, Dethonray SG1 Gold in our case. So, if you are an audiophile who wants to test your sources' capability then Tanchjim Origin can come in very handy in this case. When it comes to ear tips, we loved it with Divinus Velvet, and stock narrow bore tips over wide bore ear tips although the wide bore adds a bit of air to the overall frequency of the Tanchjim Origin. When it comes to cables the stock cable performs well considering the neutral tonality of the IEM but the Linum Dualbax brings the mids a bit forward while the Rhapsodio Copper Cable adds a bit more musicality to the whole sound frequency. We would like to also talk about the replaceable nozzle in this part of the review. So, the Tanchjim Origin comes with three pairs of replaceable nozzles. The Tanchjim Origin comes fit with the Standard nozzle out of the box along with Dynamic and Light pair of nozzles. We tested the effect of Dynamic and Light conduits on the sound frequency with the help of neutral sources such as Aune M1p, iFi Go Bar KENSEI and Dethonray DTR1 in our case. We would like to say that the Light pair of nozzles make the soundtrack a bit more reference while the Dynamic pair of conduits add a bit of dynamics and fun to the whole frequency and become handy and fun while listening to hip hop genre music, but we were ‘Comfortably Numb’ with the balanced Stock Standard conduits.



Conclusion: -

We would like to conclude this review by stating that we really enjoyed class-leading technicalities in Tanchjim Origin considering the price range. The DMT-5 Acoustic Technology setup is no gimmick and forms the brain of the Tanchjim Origin while the 10 mm composite DD forms the heart. The Soundstage, Transient response, Tonal balance, clarity and imaging are very very precise. We also enjoyed Tanchjim Origin as it responds well to source matching which becomes fun for Audiophiles like us. The added pair of Conduits is just a bonus and caters very well to the ever-demanding value-centric Audiophiles. We would also like to add that we would love a bit more sub-bass rumble and texture along with more body in the lower mids area but if you are in this hobby and want to enjoy and experience top-notch technicalities without breaking the bank then this IEM becomes an easy choice considering the built quality, premium accessories and sound technicalities.

Non-Affiliated Link: -
zeissiez
zeissiez
After I switched from stock tips to Electech Baroque tips, there's a substantial increase in bass relative to the treble. I highly recommend Electech Baroque tips for the Origin.

MD Rohit

500+ Head-Fier
Tanchjim Origin detailed review
Pros: •Neutral sound profile

•Solid build quality

•Quality Bass response

•Forward and excellent vocal presentation

•Great technical performance

•EQ responsive

•Easy to drive
Cons: •Fingerprint magnet

•Scratches easily

•Poor stock cable

•Not for bass head's

•Tuning nozzles are useless( Tuning nozzles do not change the sound )

Disclaimer
I purchased this IEM with my own funds and have not received any compensation or incentives to write about its strengths or weaknesses. The opinions expressed in this review are entirely my own, based on my personal experience.

For those interested in purchasing this IEM internationally, I recommend HiFiGo. If you're looking to buy within Bangladesh, Geek Mart is a reliable option.

@TANCHJIM

WHAT IN BOX?
  • Earphones 1 pair
  • Cable 1
  • Conduits 3 pairs
  • Pneumatic balance earplugs 6 pairs
  • Operation instructions 1
  • PVC storage box 1

Technical Details
  • Impedance: 16Ω±5%.
  • Sensitivity: 126dB/Vrms.
  • THD+N: <0.056%.
  • Frequency Response Range: 2-48kHz.
  • Connector Type: 0.78mm 2-pin.
  • Termination Plug: 3.5mm Single-Ended Termination.

Design and Materials
The Tanchjim Origin is known for its meticulous design and robust build quality. The IEM features a sleek metal construction that feels solid and durable. However, the mirror finish, while aesthetically pleasing, is prone to fingerprints and scratches, which can be quite annoying. The carved 3D logo on the back of the IEM adds a nice touch, but the matte finish around the logo tends to wear off after some use.

Comfort and Fit
Despite its metal build, which can feel a bit heavy in the hand, the Tanchjim Origin is surprisingly comfortable to wear. The weight is not noticeable once the IEMs are in your ears, and they do not cause ear fatigue even after long listening sessions. The design allows for a secure and comfortable fit, though the interchangeable nozzles can be a bit thick and long. This might cause some trouble with the fit of aftermarket eartips, potentially affecting the seal and, consequently, the sound quality.

Practical Usage
In everyday use, the durability of the metal construction stands out, but the tendency to attract fingerprints and scratches means you'll need to clean them regularly to maintain their appearance. The design ensures they sit well in the ears without causing discomfort, which is a significant advantage for prolonged use.

Final Thoughts
Overall, the Tanchjim Origin impresses with its attention to detail and robust build quality. While there are minor drawbacks, such as the susceptibility to fingerprints and potential issues with aftermarket eartip fit, these are outweighed by the durability and comfort of the IEMs. For those who prioritize build quality and design in their audio equipment, the Tanchjim Origin is a commendable choice.




Cable
The Tanchjim Origin comes with a sturdy 2-pin 0.78mm cable terminated in 3.5mm, designed for durability and reliability. While it feels robust, the cable's appearance may not match its price tag, lacking the premium aesthetic of higher-end alternatives. One notable omission is the lack of a 4.4mm balanced version, which could limit options for users seeking balanced audio configurations. Compared to similarly priced competitors like the Dunu Falcon Ultra and SimGOT EA1000, the Tanchjim Origin's cable functionality is solid but could benefit from a more sophisticated design to complement its overall quality in the over $200 USD range.



Tips
The stock tips provided with the Tanchjim Origin deliver a balanced sound profile with no major issues, ensuring a satisfactory listening experience out of the box. However, for audiophiles looking to fine-tune their sound and comfort levels, aftermarket options like the Azla SednaEarfit Max offer noticeable improvements. These silicone tips enhance bass depth and impact while providing a snug fit that enhances isolation and comfort during extended listening sessions. While alternatives like the Dunu Candy tips can enhance sound quality, they may not fit as securely, potentially requiring readjustments during use.

In summary, while the Tanchjim Origin provides a reliable cable and satisfactory stock tips, those seeking to optimize their audio experience can achieve significant improvements by investing in high-quality aftermarket tips like the Azla SednaEarfit Max. These upgrades promise enhanced sound clarity, deeper bass response, and improved comfort, unlocking the IEM's full potential across various listening environments.


Testing Source
Dap:
•Cowon Plenue R2
•Astell & kern sp1000m
•Hiby R3 ii
•Hiny R5 saver

Dongle:
•Questyle M15
•Cayin ru7
•Ddhifi tc44c
•Moondrop dawn pro
•Hidizs s9 pro plus
•Nicehck TC3
•Apple dongle type c

BT DAC:
•IFI Go Blue
•Fiio btr7 and btr5 2021
•Shanling up4 and up5

Dextop:
•Shanling h5
•IFI Zen dac V2
•IFI Hip DAC V2
•Xduoo xd05 basic

Mobile phone:
•Lg v60

•Asus zenfone 10

The Tanchjim Origin proves to be remarkably efficient across a wide array of sources in my testing experience. It consistently delivers excellent sound performance, adapting well to different devices and configurations. One standout observation is its exceptional synergy when paired with the Asus ZenFone 10, where it provided rich sound quality with ample volume and clarity. Even at 70-80% volume, the output remained impressive, delivering full sound with perfect impact.

In terms of pairing, I found that it didn't pair as well with the Questyle M15, occasionally producing slightly energetic sound signatures. However, it performed excellently with devices like the Fiio BTR7, Cayin RU7, and Shanling H5, demonstrating its adaptability across neutral, neutral-warm, and warm source types.

Overall, the Tanchjim Origin's versatility and ability to deliver high-quality sound across diverse equipment make it a standout choice for audiophiles looking for consistent performance and compatibility with various audio setups.


Tuning Nozzles
When I first received the Tanchjim Origin, I was intrigued by the inclusion of three tuning nozzles, typically a feature aimed at offering diverse sound profiles to cater to different listener preferences or music genres. This level of customization is often seen as a significant advantage in the competitive world of IEMs

Initial Impressions and Testing
Spending several hours testing each of the three nozzles, I eagerly anticipated distinct sonic variations that would enhance my listening experience. However, to my surprise and disappointment, all three nozzles—Light, Dynamic, and Standard—delivered virtually identical sound signatures. Whether I switched between them, I couldn't discern notable differences in bass response, midrange clarity, or treble extension. This consistency across all three nozzles was unexpected, especially considering the potential for nuanced adjustments in sound that tuning nozzles typically offer.

Comparison with Other IEMs
In contrast, I have experience with other IEMs in a similar price range that effectively utilize tuning nozzles to provide meaningful variations in sound. For example, another model offered distinct nozzles for enhanced bass or balanced sound profiles, each significantly altering the listening experience to suit different genres or personal preferences. This flexibility not only broadened the IEMs' appeal but also demonstrated their capability to adapt to various musical contexts.

Conclusion and Thoughts
While the Tanchjim Origin excels in other aspects such as overall sound quality, build design, and comfort, its implementation of tuning nozzles falls short of expectations. The lack of discernible differences among the three provided nozzles limits the IEMs' versatility and customization potential compared to competitors. Despite its commendable sound performance, the Tanchjim Origin misses an opportunity to offer users meaningful tuning options that could further enhance their listening enjoyment.

For audiophiles and music enthusiasts seeking IEMs with versatile sound customization through tuning nozzles, the Tanchjim Origin may not fulfill those expectations. However, its strengths in sound quality and build make it a solid choice for those prioritizing other aspects of IEM performance.




The sound performance
Tonality
The Tanchjim Origin exhibits a balanced and versatile tonality that caters to a wide range of musical preferences. Here's a breakdown of its tonal characteristics across different frequency ranges:

Bass
The bass response of the Tanchjim Origin is balanced and controlled, with a focus on sub-bass. It delivers punchy and clear lows that do not overpower the mids, making it suitable for genres that benefit from precise bass presence without excessive boominess. However, if you're a bass head looking for powerful, booming bass, you might find the Tanchjim Origin lacking in output.

Sub-bass
The sub-bass on the Tanchjim Origin has good rumble and is well-controlled. It doesn’t bleed into the mids or mid-bass, maintaining clarity and separation throughout. The sub-bass is excellent in quality and detail, though its neutral presentation can sometimes make it sound less prominent. This can be a plus if you prefer a more balanced and accurate bass response.

Lose Yourself to Dance by Daft Punk:This track features a prominent sub-bass line, and the Tanchjim Origin handles it perfectly. The sub-bass rumble is present and detailed, providing a solid foundation without overpowering the rest of the mix. However, the neutral tuning means that the bass doesn’t have the exaggerated thump some listeners might expect. If you appreciate a clean, detailed bass that doesn’t overshadow the mids and highs, you’ll find this presentation appealing.

Mid-bass
The mid-bass is punchy and controlled, though it lacks a bit of body. It is fast and has great speed, making it suitable for complex tracks that require precise bass articulation.

-The Count of Tuscany by Dream Theater:This track has a complex bassline that the Tanchjim Origin handles with detail and dynamics. The mid-bass punches through without overwhelming the other frequencies, providing good separation and a detailed sound. However, the lack of a fuller mid-bass presence might leave some wanting more warmth and impact. This track showcases the IEMs' ability to keep up with fast, intricate bass parts, maintaining clarity even in busy passages.

Personal Experience and Additional Details
Using the Tanchjim Origin for various tracks, I've noticed that its bass performance shines in genres that rely on precision rather than sheer power. For example, electronic tracks with deep sub-bass lines, like Daft Punk's, are rendered with impressive clarity and control. The sub-bass is present and detailed, but never overwhelming.

On the other hand, rock and metal tracks like those from Dream Theater benefit from the fast, articulate mid-bass. The Tanchjim Origin's ability to handle complex basslines without muddling the sound makes it a good choice for these genres. However, the slightly lean mid-bass might not satisfy listeners looking for a richer, more impactful bass experience.


Conclusion
The Tanchjim Origin IEMs offer a balanced and detailed bass performance that will appeal to listeners who appreciate accuracy and control over sheer power. While the sub-bass is detailed and well-handled, the neutral tuning might not satisfy those looking for a more pronounced bass experience. The mid-bass is punchy and fast, making it suitable for complex music, though it could benefit from a bit more body. Overall, the Tanchjim Origin provides a clean and precise bass response, making it a solid choice for those who enjoy a balanced sound signature.

Mid-Range
The midrange on the Tanchjim Origin is forward and detailed, with a slight warmth that adds richness and body to both vocals and instruments. This tuning results in a smooth and engaging listening experience, ideal for vocal-centric and acoustic music. However, the forward nature of the midrange might not appeal to everyone, particularly those who prefer a more laid-back sound signature.

Male Vocals
Male vocals on the Tanchjim Origin are presented cleanly and naturally. The slight warmth in the midrange adds a sense of weight and texture, making male voices sound full and realistic. This quality is particularly beneficial for genres like jazz and acoustic music, where the authenticity and presence of the vocals are crucial.

Just The Two Of Us by Grover Washington, Jr.:The male vocals in this track come through with a natural warmth and clarity. The Origin’s ability to provide texture and weight to the vocals enhances the overall feel of the performance, making the listener feel as though they are experiencing the song live. However, some might find the forwardness a bit overpowering depending on their preference.

Female Vocals
Female vocals benefit from the Tanchjim Origin’s good extension and lively presentation. The smooth energy ensures that female vocals are delivered with clarity and without any harshness or sibilance, making the IEMs suitable for long listening sessions without causing ear fatigue.

Hold On by Amber Rubarth: Amber Rubarth’s voice is rendered with a smooth energy that captures the emotional nuances of her performance. The clarity and extension in the midrange allow the listener to fully appreciate the richness of her vocals. The Tanchjim Origin’s ability to handle female vocals with such detail and smoothness is impressive, though it may be too lively for some listeners who prefer a more neutral presentation.

Instrument Clarity
The Tanchjim Origin excels in delivering clear and distinct instruments, ensuring that each instrument can be heard separately and with great detail. This contributes to a rich and dynamic sound, though it may highlight the deficiencies in lower-quality recordings.

Just Take My Heart by Mr. Big:The electric guitars in this track have a dynamic presence, with each strum and note coming through clearly. The piano and trumpets are also well-defined, making the song’s instrumental sections as engaging as the vocal parts. The separation of instruments ensures that complex arrangements do not become muddled, allowing for a more immersive listening experience. However, the detail can sometimes reveal imperfections in the recording that might go unnoticed with less resolving earphones.

Additional Notes on Instruments
Guitars: Guitar presentations are particularly strong, with each note and strum articulated clearly. The slight warmth in the midrange adds richness, enhancing acoustic guitar performances and making them sound more lifelike. This can be a double-edged sword, as the detailed representation can be unforgiving to poorly mixed tracks.

Piano:The piano sounds full and resonant, with a natural timbre that stands out in mixes. The clarity ensures that each keystroke is distinct and well-defined, adding depth to piano pieces.

Trumpet:Trumpet sounds are lively and energetic, with a smooth top end that avoids harshness. The midrange warmth adds body to the trumpet, making it sound realistic and engaging, though the forwardness might not be to everyone's taste.

Conclusion
The midrange performance of the Tanchjim Origin IEMs is impressive, offering a rich, detailed, and engaging sound that excels with both male and female vocals and a variety of instruments. While the forward and detailed presentation might not be for everyone, it provides a compelling option for listeners who appreciate clarity and detail in their music. Whether you’re enjoying jazz, acoustic, or rock, the Tanchjim Origin delivers a well-rounded and immersive listening experience.


The Treble
The treble performance of these IEMs demonstrates a commendable balance of smoothness, clarity, and detail, making them suitable for discerning listeners across various musical genres.

The smooth extension of the treble ensures that high-frequency details, such as those found in intricate compositions like "Dance of Eternity" by Dream Theater, are accurately reproduced. This track challenges the listener with its rapid changes in tempo and complex melodies, and the IEMs handle these dynamic shifts adeptly, maintaining clarity and separation of instruments without any harshness.

Similarly, in "A Change of Seasons," known for its emotional depth and musical diversity, the IEMs excel in revealing the subtleties of acoustic guitars, vocal harmonies, and dynamic shifts. The treble remains clear and well-defined, contributing to a balanced presentation that enhances the listener's engagement with the music.

Clarity is a standout feature of the treble range, allowing for precise rendering of instruments like hi-hats and strings. This clarity adds realism to the soundstage, enabling listeners to discern intricate nuances and textures within the music.

Moreover, the treble contributes to an open and airy soundstage, enriching the overall listening experience with its dynamic and engaging presentation. This quality enhances the immersion in complex musical arrangements, such as those found in progressive rock, where intricate layers of instrumentation unfold.

In summary, the treble performance of these IEMs is characterized by its smoothness, clarity, and ability to handle complex musical passages without fatigue. Whether exploring the technical intricacies of progressive rock or the emotional landscapes of acoustic performances, these IEMs deliver a detailed and enjoyable listening experience that caters to audiophiles and music enthusiasts alike.


Technical Performance
Soundstage and Imaging
The Tanchjim Origin offers a soundstage that feels wide and open for IEMs, giving a more immersive listening experience. This helps in creating a sense of space and depth in the music, making it easier to distinguish between different instruments and vocal placements.

Imaging: The imaging is precise, allowing for accurate placement of sounds within the soundstage. For example, in "Dance of Eternity" by Dream Theater, each instrument is distinctly placed, making it easy to follow individual parts even during complex sections.

Detail Retrieval and Resolution
One of the standout features of the Tanchjim Origin is its ability to retrieve fine details across the frequency spectrum. This ensures that even subtle nuances in the music are clearly audible.

Resolution: The high resolution allows for a clear and articulate sound. In dense mixes, the IEMs maintain clarity and separation, so nothing feels lost or muddy. For instance, in "The Count of Tuscany" by Dream Theater, every layer of the song is distinct, highlighting the IEM's capacity to handle complex arrangements.

Dynamics and Speed
The Tanchjim Origin excels in dynamics, providing a good range between the quietest and loudest parts of a track. This dynamic range adds emotional depth to the music.

Speed:The IEMs handle rapid changes and fast-paced music with ease. The driver’s quick transient response ensures that fast beats and intricate passages are reproduced accurately. For example, in "Lose Yourself to Dance" by Daft Punk, the quick rhythms are handled cleanly, maintaining the song's energy and rhythm.

Tonal Balance and Coherence
The tonal balance is neutral and natural, making the Tanchjim Origin suitable for a variety of music genres. The integration between bass, midrange, and treble is seamless, ensuring a coherent and balanced sound.

Coherence:The frequencies blend smoothly without any harsh peaks or dips. This ensures a consistent and well-rounded sound, making the music sound natural and true to the original recording.

Personal Impressions and Additional Notes
Using the Tanchjim Origin across different tracks, I found that it excels in delivering a balanced and detailed sound. The bass is controlled and precise, the midrange is warm and engaging, and the treble is extended without being harsh. This makes it suitable for long listening sessions, as it avoids the fatigue often associated with overly bright IEMs.

Conclusion
The Tanchjim Origin IEMs offer an impressive technical performance, making them an excellent choice for audiophiles who appreciate detail, clarity, and a balanced sound signature. Their sophisticated driver design ensures high resolution and low distortion, while the precise imaging and strong dynamics enhance the overall listening experience. Whether you enjoy complex arrangements or fast-paced music, the Tanchjim Origin handles it all with finesse.


My Experience with Tanchjim Origin's EQ Capabilities
When it comes to fine-tuning my audio experience, the Tanchjim Origin has been a revelation, especially with its impressive EQ capabilities. Using the Wavelet app, I've been able to tailor its sound profile to suit my musical preferences with remarkable precision.

Tailoring the Sound Profile
1. Bass Enhancement:

- Adjusting the sub-bass has allowed me to deepen the rumble for tracks that thrive on a powerful low-end, like EDM and hip-hop. It's amazing how a subtle boost can transform the listening experience without overwhelming the overall balance.
- For genres needing punchier mid-bass, tweaking this region has added warmth and impact, making rock and pop tracks more engaging and dynamic.

2. Midrange Clarity:
- Vocals are where the Tanchjim Origin truly shines after EQ adjustments. Bringing vocals forward in the mix has brought out details and emotions in acoustic and vocal-centric music that I hadn't noticed before.
- Adjusting the midrange has also enhanced instrument separation, making complex arrangements sound more spacious and allowing each instrument to shine through with clarity.

3. Treble Refinement:
- To smooth out the treble without losing detail, I've fine-tuned the upper frequencies to reduce any harshness. This refinement ensures a more comfortable listening experience, especially during extended sessions with detailed acoustic recordings or fast-paced tracks.

Results and Enjoyment

In practice, these EQ tweaks have significantly enhanced my enjoyment of the Tanchjim Origin across a wide range of music genres. Whether I'm immersing myself in bass-heavy beats, savoring intimate vocal performances, or appreciating the intricate details of classical compositions, the IEM adapts seamlessly to deliver a tailored sound experience that feels both personalized and faithful to its natural sound signature.

Final Thoughts

The Tanchjim Origin's EQ capabilities have not only allowed me to customize its sound to my liking but have also deepened my appreciation for its versatility and technical prowess. It's reassuring to know that even with adjustments, the IEM maintains its core strengths in clarity, balance, and detail retrieval, making it a standout choice for anyone who values both quality sound and customization options.



Who should buy the Tanchjim Origin
1. Fans of Neutral Sound: If you prefer IEMs that provide a balanced and accurate sound without favoring any specific frequency range, the Tanchjim Origin offers a natural and transparent audio experience.

2. Quality Bass Lovers: For those who appreciate well-defined and controlled bass that integrates smoothly with the music, rather than overpowering it, the Tanchjim Origin delivers clear and precise low-end frequencies.

3. Detail-Oriented Listeners: If you enjoy discovering subtle details and nuances in your music, the Tanchjim Origin excels in revealing intricate elements across different genres, enhancing your overall listening enjoyment.

4. Vocal Enthusiasts: With its forward and detailed midrange, the Tanchjim Origin reproduces vocals with clarity and realism, making it particularly suitable for genres where vocal performance is crucial, such as jazz or acoustic music.

5. Versatility Seekers: Whether you listen to a variety of music genres or use different audio sources, the Tanchjim Origin adapts well and consistently delivers high-quality sound performance across different setups.

6. Critical Listeners: If you prioritize audio quality and appreciate IEMs that offer clear imaging, a wide soundstage, and high-resolution sound reproduction, the technical prowess of the Tanchjim Origin will meet your expectations.

7. Comfortable Long Listening Sessions: Designed with comfort in mind, the ergonomic fit and balanced sound signature of the Tanchjim Origin ensure it is suitable for extended listening sessions without causing listener fatigue.

Who should not buy the Tanchjim Origin:
1. Bass Enthusiasts:
If you prefer IEMs with a pronounced and powerful bass presence that dominates the sound signature, the more controlled and balanced bass response of the Tanchjim Origin may not meet your preferences.

2. Warm Sound Seekers: For listeners who prefer a warmer sound signature characterized by richer, fuller mids and bass, along with a smoother treble, the neutral tuning of the Tanchjim Origin might appear too clinical or lacking in warmth.

In summary, while the Tanchjim Origin excels in providing balanced soun
d, detailed audio reproduction, and comfort, it may not be ideal for those specifically seeking a strong emphasis on bass or a warmer sound signature.

Last edited:
AbCube
AbCube
great review with great pictures
MotherX1
MotherX1
Nice detailed review. And those pictures are just wow 😮
RK Turan
RK Turan
The level of details is insane!

ahammedsojib

100+ Head-Fier
Tanchjim Origin IEM ~ In-depth review
Pros: ~ well-crafed & durable metal build IEM shell.
~ Very comfortable to wear in the ear.
~ Natural tonality & timbre as a single dd set.
~ Clean & forward midrange presentation.
~ Great staging, imaging & transparency.
~ Well-extended treble performance.
Cons: ~ Mirror finish shell fingerprint & scratch magnet.
~ Somewhat weaker sound isolation.
~ Useless stock nozzle filters.
~ Poor bass impact & depth (with Stock nozzles that came with it).
~ Average stock cable & accessories.
~ Slightly roll-off sub bass.
~ 3 - 5k region will be sibilance to many (Its nozzle filters are responsible for this issue).
★ Introduction :-

Tanchjim is a well-known Chinese audio company. They are well known for manufacturing quality audio gear. They ensure a combination of fine craftsmanship and aesthetic design along with advanced technology in product manufacturing and then release the product. Which attracts the attention of consumers along with the exceptional sound. Although they have released in the gear item market less than other chifi brands. Their most popular single dd IEM in their 200$ price category was the Tanchjim Oxygen. To maintain this continuity after a long time they have just launched Origin. I've been using this IEM as my daily driver for over four months. I'll try to highlight all aspects of this IEM in my review. So that it is convenient for you to understand how equitable it is for this price category.

Tanchjim origin IEM .jpg



★ Disclaimer :-

I purchased Tanchjim origin IEM from Ali express (Grave Audio Store). I had no financial agreement with them to promote their product.The entire opinion of this review is completly my personal.


★ Box Content at a Glance :-

The unboxing experience of tanchjim origin was pretty good. All kind of accessories were present out of the box.Tanchjim has no room to complain in this regard😊

Tanchjim origin IEM _1.jpg

Tanchjim origin IEM _ 2.jpg

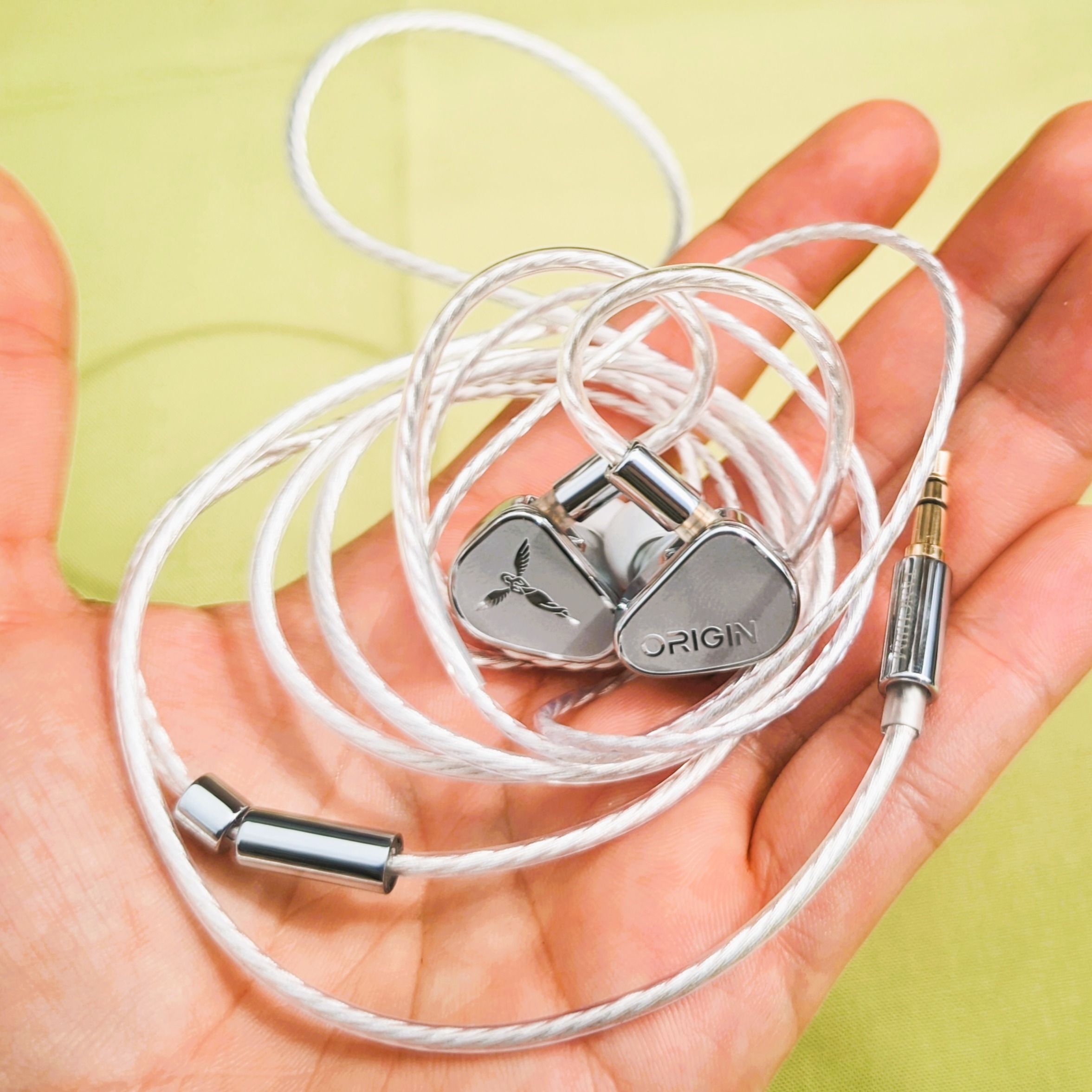

1. A pair of Tanchjim Origin IEMs.
2. Six pairs of different size eartips.
3. A large carrying pouch ×1.
4. Decent 3.5mm 6n Oxygen-free silver-plated copper cable ×1.

5. A user manual guide and some paper works.


The IEM comes in a rather large box with two types of cardboard with different sizes of eartips,(which quality is quite ok) stock cable & carrying pouch. On the other hand as a stock cable, high-purity 6N oxygen-free copper-plating silver wire, which according to tanchjim is effective as the Litz texture of the cable for softness and anti-oxidation. But in my opinion, the possibility of this cable oxidizing after several days of regular usage. But the good part of the cable is that does not create any unwanted microphonics while using it. I've always used an aftermarket bal cable with it though. Origin's white color stock carrying pouch is quite large and it is basically made of artificial leather. And the hand feel was good due to its finishing being like premium . Moreover, due to the good amount of space inside it, the IEM can be inserted very well.


★ Specifications :-

~ Driver :-
10mm DMT 5th Generation Single Dynamic Driver
~ Impedance :- 16Ω±5%
~ Sensitivity :- 126dB/Vrms
~ Distortion ratio :- 0.056%@1kHz
~ Frequency response :- 20Hz-48kHz
~ Connector :- 0.78mm 2-pin
~ Cable type :- 6n Oxygen-free silver-plated copper cable with 3.5mm terminated jack.


★ Design, Build & Comfort :-

Origin IEM known for its meticulous design and robust build quality. This IEM features a sleek design with a focus on both form and function. Its metal construction build quality makes it very robust but due to the mirror finish the entire area around the IEM gets a lot of fingerprints and scratches very easily which looks quite annoying. Moreover, carved 3D logo of this IEM back side looks very nice, but the paint there wears off very easily after continuous use for a few months (without using pouch).



However, due to the metal build, it feels a bit heavy to hold in the hand, but this heaviness disappears when you put it in your ears, and it doesn't feel like you have an IEM in your ears.
That's why I've been able to listen to it for so long. I've not faced any problem of ear heaviness or discomfort. Due to its interchangeable nozzles being a little too thick and short, there was some trouble with the fit of the after market eartips. Because of this, many times in ear does not create proper seal. Overall, the Tanchjim Origin is for attention to detail in the design and highly commendable in the build and comfort department.



Sound Aspect :-

The Origin is another neutral and natural sounding IEM. Where harman-ish profile has some touch. But not treble or bass region boosted like other harman profile. It can be said that there is almost no coloration in its sound because the whole sound presentation is completely clean & transparent. This IEM comes with 3 pairs of interchangeable nozzle filters which are individually marked by "L, D, S" respectively.

"L" stands for~Light
"D" stands for~Dynamic
"S" stands for~Standard


But the saddest thing is that these tuning nozzles do not bring any change in the sound. And using after market eartips with them is a lot of trouble.

Moreover, its sound is not so good with stock nozzle filters, especially the bass region suffers more. Sub bass a bit roll-off and lack of mid bass presence is too much even 70-80$ range single dd IEM's mid bass seems better lol. On the other hand, 3-5k region will require sibilance for many people who are a little more sensitive in this area, they will face some listening fatigue.


graph (3).png

Credit :- @TimmyVangtan

In my testing, to get the full potential of origin, it is necessary to use the DIY kit of Simgot EA500 (included tuning nozzle) . After using this tuning nozzle, Origin was able to show its maximum capability and the lacks of this IEM's sound were fulfilled. Noticeable improvement has come in the mid bass section and at the same time the sub bass rumble has also improved. Although the IEM is somewhat tips sensitive. I've used Kbear 07, Spinfit W1 & Trn T eartips with it but got the best results with T-eartips. Fit, comfort and isolation are also better with it.

Overall notes of sound have been thickened & warmth effect has been added which makes the overall sound signature much more engaging & enjoyable than the stock nozzle filters. So I judged the sound of origin using the tuning nozzle of Simgot EA500 and based on that I interpreted its total sound performance.



★ Gear used :-

1
. @Questyle Audio Engineering CMA15
2.
@Cayin Ru7 (Se & Bal both)
3. Questyle M15 (Se & Bal both)
4. Quloos Mc01 (SE & Bal both)
5. Epz Tp50 (Se & Bal both)
6. Fosi Audio Ds2 ~ 2024 (Se & Bal both)


Tanchjim Origin is a set of 16Ω impedance whose sensitivity level is 126dB but it required firly powerful amplification is needed to drive it, but if a good quality dac amp or portable player is used, then it gets scaled up with the source and becomes better sounding.


However, the best pairing I've found is with CMA Fifteen. Excellent staging, imaging even got lots of details & mico details. At the time I thought it was a 300$ range DD IEM.

Now, I will discuss the sound in detail, I will start with the Low end of this set, i.e. the bass....


★ The Bass :-


Origin features a good bass response that is often described as tight, controlled, & deep. Doesn't overwhelm the other frequencies but adds depth and impact to the whole sound signature. On the other hand, It has good extension into the sub-bass regions, but the sub bass is somewhat roll-off. providing good rumble which does not muddying the midrange or becoming boomy. Though mid bass struggles a bit to handle complex bass-lines that's a downside. It will not satisfy those who prefer boomy bass or bass head level performance.

So, here the focus is on quality rather than quantity of bass region. The bass, guitar and kick drum sound a little lacking in adequacy while ensuring good control levels while failing slightly to make the mid-bass self-sufficient. Because the control level is good, the entire bass frequencies are not overpowering by the midrange and high frequencies, so this balance manner ensures that all elements of the music are clearly heard and the listening experience is enjoyable. It can give fairly similar results in all genres.

★ The Mids :-

Origin's midrange performance is its biggest strength. It has ability to present vocals and instruments with smoothness, clarity, and a natural tonality indeed makes them stand out.Both male & female vocal's body was completely intact. Female vocal sounds a little more energetic in some tracks which can be a little annoying for some. The upper mids a little bit forward though that's why the artist's vocal section seems close to listeners. However, its lower mids region was also quite good , so it doesn't seem very thin or recessed at all. This characteristic is highly suited for mids lovers.Those who want adequate detail in the mid-range frequencies but without the problems of unwanted harshness or sibilance will get excellent performance from it, especially in genres such as jazz and acoustic music where there is an abundance of vocals and instruments. The Tanchjim Origin IEM can easily maintain enough clarity in the mids section so its characteristics will satisfy most mids lovers.

★ The Treble :-

The treble section is one of the biggest strengths of this set. Treble seemed lively and well-extended. Where there is no problem like harshness or sibilance. There is beautiful detailed which is not on your face type, smooth delivery along with micro details of descend amount as well as sparkle is available but not that much detail is missed or dull. Cymbals & Hi-hats sound natural without any unwanted boost which is why treble can be enjoyed for a long time without any listening fatigue. I can safely say that all but extremely treble sensitive folks will be satisfied with the Origin's highs.That is why it has been able to show descent performance in all genres.

Tanchjim origin IEM _4.jpg


★ Technicalities :-

As a single dd IEM, Origin technically showed better performance. Its soundstage is vey wide and at the same time the height and depth of the stage was more accurate. This wideness contributes to a more immersive listening experience, particularly noticeable in orchestral pieces or recordings with multiple layers.
Imaging was pretty good, pinpoint instruments placement & positioning which is really impressive. Origin undoubtedly gives better results in gaming.
 On the other hand micro and macro details can portray fairly well. Tonality & timbre were also quite natural which is expected from a well-tuned single dd IEM. Overall, this IEM is providing solid performance in terms of technical aspect.


Tanchjim origin IEM _3.jpg


Overall rating out of 5 is what I would give 👇

Bass :
3.8/5
Mids : 4.5/5
Treble : 4.2/5
Technicalities : 4.5/5
Dynamics/Speed : 4.2/5

Build & Aesthetics : 4/5

★ Conclusion :-

Tanchjim Origin IEM has been recently launched in the market as the successor of its previous model Oxygen. But the Origin's sound is quite disappointing with its stock nozzles which is not at all desirable from an IEM in the 260$ price category. However, if not used with the Simgot EA500 tuning kit (nozzle included) it will not be acceptable to many.
I would not call this IEM bad by any means but for those who are thinking of buying origin for them ea500 tuning kit is definitely mandatory, and I would suggest to purchase it. Hopefully my shared info will be able to satisfy the origin users and for those who are interested in buying this set.




I've provided purchase link below for everyone's convenience 👇👇

Linsoul Audio (link isn’t affiliated)

HifiGo (link isn't affiliated)

Shenzhen Audio (link isn’t affiliated
)
Last edited:
MD Rohit
MD Rohit
Good writing brother 👍
ivannnn
ivannnn
May I know what after market cable is that in the pictures? Thanks in advance.
ahammedsojib
ahammedsojib
@ivannnn mate, i was using hisenior white wheal cable as aftermarket cable. if you want, you can find more better option in the current market.

briantbrain

New Head-Fier
Built for Long Listening Vocal Lovers - Not for Analytical
Pros: + Enjoyable unboxing
+ Good build quality IEM
+ Good sub-bass texture from single DD
+ Made for vocal lovers
+ Smooth and clear treble without sibilance or piercing
+ Wide soundstage
+ Suitable with DACs that have Neutral/Analog/Bright character
Cons: - Slow sub-bass and bass impact
- Treble is too relaxed (subjective)
- Imaging still feels too close and lacks 3D feeling
- Price (?)

Built for Long Listening Vocal Lovers - Not for Analytical​


I’ve been curious about Tanchjim’s IEMs since I reviewed the 4U, which I found suitable for long listening with quality that matches its price.
Let's get into it...Tanchjim Origin


==DISCLAIMER==​

All impressions were tested using my usual setup (list below). Differences in sound impressions may be due to our subjective hearing, defective units, or the source used.
All my impressions and reviews are subjective, adhering to the belief, "I may lie to my savings, but my reviews are always honest." Agree? Great. Disagree? Also fine. I review because I want to and enjoy it, not because I need to.
Note: I recommend you audition them yourself; who knows if it's my ears that need an ENT specialist or yours (haha).

==MY DAILY DRIVER==​

- Symphonium Crimson
- Kinera Verdandi
- Penon Voltage
- Simgot SuperMix4
- Fiio Q15
- Chord Mojo 2
- HibyDigital M300
- Hiby R4
- Ear Tips Eletech Baroque, Spinfit W1 Premium, Azla Sedna Crystall. Nostalgia Audio Wide Bore, Penon Liqueur

Unboxing:
Like my previous Tanchjim unboxing of the 4U, the Origin also gave me a memorable experience. I love the box layout and the included white carrying case because it looks luxurious and very nice, although, unfortunately, the white carrying case might get dirty easily. Inside the box:
- The IEM itself
- Cable with 2-pin connector and 3.5mm jack
- Carrying case (one of the coolest carrying cases I've ever seen for an IEM)
- 2 types of ear tips, each with 3 different sizes
- 2 additional nozzles (just a heads-up, the nozzles don't affect sound quality, so no need to discuss them. They might be backups in case they get damaged or dirty)
- Manual


Fitting:
It has a full metal body with embossed Tanchjim and Origin logos, adding a cool and royal impression to this IEM. With a standard-length nozzle but slightly larger diameter, I initially thought it would be easy to get a good seal in my ears with Eletech Baroque or Spinfit W1 Premium ear tips, but it turned out to be less sealing. I had to use ear tips with a stiff bore like Azla Sedna Crystall to get a perfect seal. Also, the IEM is quite heavy and prone to scratches, so be careful when carrying it.

==SOUND IMPRESSION==​

Bass:
My first impression was, "Wow, this sub-bass is great, reminds me of the IE600." After listening longer, I realized it's the rich texture of the good single DD that is very clear in the low frequencies. It has a long and rounded sub-bass rumble that is very pleasing to the ear and makes the soundstage feel more grand. Unfortunately, the impact feels slow, making it less suitable for rock and metal music. The bass has a round and full thump, but like the sub-bass, it doesn't feel deep and has a slow speed. Overall, I like the delivery of the low frequencies as it aligns with other aspects for long listening.

Mid:
The star of this IEM. The natural timbre of the snare drum sound is very pleasing to the ear. The vocals are lustrous and musical, with no harshness or sharpness, whether male or female. With the presentation more forward than the instruments, the soul of each song feels better. The vocal tone is just right, full-bodied but still feels free. This excellent vocal delivery reminds me of the Kinera Freya 2.0, which also has great vocals.

Treble:
"Enough" is the one word that describes the treble of this IEM. Enough in the sense that it perfectly accompanies the produced vocals and bass. The sound is clean and smooth without any sibilance or piercing. Instruments like cymbals and tambourines feel adequate. Personally, I prefer a more cring sound, but unfortunately, the treble is just average with extended treble that is also average.

Clarity:
Clear, as clear as my future. For a single DD IEM, the Origin has excellent micro detail for its price range, although it still can't be compared with similarly priced multi-driver IEMs.

Soundstage:
Wide. The airy impression of the stage and the impact of the sub-bass with good texture and long rumble make the soundstage feel wide.

Imaging:
This might be the only downside of this IEM, which some people might still find usable (depending on preference). 3D imaging feels lacking. Vocals are upfront, but the instruments feel lined up behind, making the sound less dynamic. Instruments can still be pinpointed clearly without overlapping, but their placement feels very close, almost touching each other.


==SOURCE SELECTION==​

  • Mojo 2 (analog, a bit warm)
Recommended. The sub-bass texture feels very rich. The slow impact with long rumble feels fuller and smoother. Vocals feel lush and effortless. The vocal sound feels like it's being whispered by the original singer. The treble has good detail, not sparkling but clearly cring.

  • Fiio Q15 (Neutral, analytical)
Great. The sub-bass doesn't rumble and texture as much as on the Mojo 2 (still good), but you can feel the layering and texture of the bass, which feels more loose and airy. Vocals feel airy with engaging energy. Slightly thinner than the Mojo 2 but still of good quality. The cring treble is more pronounced and thicker, still smooth and not piercing. Separation feels slightly more spaced.

  • Hiby R4 (Warm with Smooth Vocal, not bright)
Okay. The sub-bass rumble is pushed to a better level but still with the same speed. Vocals feel thicker and more forward but not as analog as the Mojo 2. The snare drum sound feels crisper and more enjoyable. Treble is still smooth but with a darker and lazier power.


==CONCLUSION==​

  • Once again, my perception of IEMs with Anime boxes selling only the box is proven wrong. The build quality and sound produced are top-notch. Made for vocal lovers who will be comfortable for long listening without having to worry about details and analytics because everything is presented just right.
  • However, for some people who like details, it might still feel lacking, especially in the price range of around $300.
  • Is it worth buying? If you have around $300 and love vocals or are looking for comfortable IEMs for long listening, the Origin is an option to consider. But for technicalities, there might be better ones in this price range.

That's it.
Trust Your Own Ears.
Bye.
  • Like
Reactions: Leonarfd

Ceeluh7

500+ Head-Fier
Tanchjim Origin Review
Pros: -Exceptional build quality
-Absolutely gorgeous design
-One of the more comfortable shell designs
-Unboxing / Accessories
-Clean, resolute and wonderfully natural timbre
-Very well balanced across the mix
-Tight, expedient, and textured low-end
-Oh the midrange! Vocals, vocals, vocals!
-Treble is open, airy and extended nicely
-Soundstage is wide, tall and deep
-Imaging / Layering of sounds is very nice for a single DD
-Details retrieval is also very nice
Cons: -Warm, dark, thick lovers will want to keep looking
-There is some shout on the right tracks if you are sensitive to it
-Fingerprints and smudges show up easily on shells & faceplates
-The Origin shell can develop hairline scratches over time (con?)
-Not exactly a “fun” sound per se
-Bass bois won’t get excited over the Origin
-Tuning nozzles affect almost no change in the sound

Tanchjim Origin Review



TO

Full review can be found HERE
TO

Tanchjim Origin

Intro

Hello, today I am reviewing the latest mid-tier flagship single DD from Tanchjim Audio dubbed the Tanchjim Origin. I am happy to get my thoughts out about this set. For a few reasons actually and one which I’ll explain here. I am excited because I’m a huge fan of Tanchjim’s single dynamic driver expertise. I’ve really enjoyed Tanchjim’s ultra-budget single DD’s like the Tanchjim Zero, Tanchjim Tanya, and the Tanchjim One which all seem to punch above their price. I also frequently spend good and quality time with Tanchjim’s more expensive, but also very impressive single DD, the Tanchjim Hana 21’. What a good set the Hana is, truly a gem at its price. However, only one of their iems reached legend status and that iem is the Tanchjim Oxygen. For many years the Oxygen was regarded the best single dynamic driver iem under the price of $300. Over the course of the last year or so I do believe it (Oxygen) has been eclipsed by the likes of the Simgot EA1000. But that’s up for debate. Regardless, the Oxygen hailed supreme for many years at the lofty spot of best in class & best single DD under $300. Comfortably perched on its throne. Dynasties don’t last forever my friends. In comes the Tanchjim Origin.

Origin

First off, how cool of a name is “origin”? I love it! At any rate, Tanchjim went back to the drawing board to try to repeat former glory with this latest Origin by upgrading many key internal features but keeping the clean design aesthetic and solid build. It cannot be easy trying to replicate and advance past the special sauce that was, and still is, the Tanchjim Oxygen. Funny story, I actually owned the Oxygen at one point and sold it, why… Because I was dumb. That was years ago now. Guess what, the Oxygen is still very much relevant and I’m still kicking myself. Fast forward to this moment right now. I have a set in my ears (Origin) that quite honestly gives me all the vibes that the Oxygen once did. The point is… Tanchjim knows exactly what they are doing. The Origin is a certain step up from that set (if my memory serves me well) in an incremental but noticeable way. Cleaner, more balanced tonally, technically better and the fit is much much better. That’s just the noticeable stuff folks.

Lets get into it

Okay, no more mindless babble from me. Let’s get into this thing. I will do my best to explain the build, look (just look at my pictures), Internals, and set out to explain each 3rd of the mix. Also, I’ll try to compare the Origin to a few other single DD’s in the Simgot EA1000 (tough task for the Origin), and the Shanling MG600 (much more expensive). Of course, I don’t know how useful it is to compare against only single DD’s as I do think the Origin competes against any and all driver configurations within the price point. I will also try to answer the question if the Origin is even worth the asking price of $259. With all that said, I’m ready to jump into this review friends. The Tanchjim Origin everyone…

TO

Tanchjim Origin Review Pic (86).JPG

Simgot EA500LM Review Pic (6).jpg

Aful SnowyNight / EPZ TP50 / iBasso DX240 / Shanling M6 Ultra / Fiio Q15 / Ifi Go Blu

Gear used for testing

Ifi Go Blu
Aful SnowyNight
Hidizs S9 Pro Plus
EPZ TP50
Fiio Q15
iBasso DX240 with Amp8 MK2
Shanling M6 Ultra

Origin Packaging



Packaging / Accessories

Unboxing

One thing you can surely expect from a Tanchjim product is a great unboxing. I always enjoy the packaging, even if it’s a short term shot of serotonin. Tanchjim’s unboxing experiences feel clinically clean and minimalistic with a very whitewashed and Apple-esque aesthetic. The Origin comes packaged in an almost square white/gray box. There’s a clean shot of the Origin on the front of the outer sleeve which covers the actual box. On the back of the sleeve is a Tanchjim frequency response as well as some other specs. Slip off the sleeve and you are met with a simple gray box featuring the company logo on the front-center. Open the box and you’ll see a cardboard envelope which holds the manual as well as some quick tips. Under the envelope is the gorgeous Origin sitting pretty in foam cutouts and in between them sits a steel slab which houses the tuning nozzles. Next to the earphones is a white partition, pull that away and you’ll see the awesome carrying case. Inside the case is the cable. Lift off the earphone foam piece and you are met with two cardboard trays which carry the eartips. I realize I go through this pretty quick, but I am impressed with the overall feel of the unboxing. It feels premium, luxury and a step up from the norm.

Tanchjim Origin Review Pic (39).jpgTanchjim Origin Review Pic (42).jpgTanchjim Origin Review Pic (43).jpg


Eartips

TO Eartips

I adore the eartips which come with the Origin. I really do. They provide six sets of T-APB tips in total. Known for their pressure relief properties. The first type are very soft and pliable white silicone tips (S, M, L) with plenty of ear hugging cushion. These are very nice feeling tips. Very comfortable from usual silicone tips. Anyways, they have a narrower bore and do well to add some warmth to the sound. Maybe a slight boost in bass quantity and a taming of the upper midrange energy. Again, to a slight degree. The next type is also a soft and cushioned white silicone tip (S, M, L) but with a wide-bore. They have the same super comfortable feel and pliable softness. I really like these APB tips. For my listening I went between the narrow bore set provided as well as my go-to KBear 07 tips at times. However, I feel the included tips are really great and nice to have on hand. I’d actually like to purchase more of them.


Carrying case

TO Case

Tanchjim also provides a very elegant carrying case that looks more premium than almost all cases I’ve ever received. It is a very good-sized white fabric covered case that is solid in its structure. It opens from the top with a strong magnetic flap. Inside it has a soft lining to keep your iems safe and more adept to “not” get all scratched up. Which by the way is something that the Origin is prone to have… Scratches. So, anything which helps fight against that is a bonus. I used the word “elegant” to describe this case and I’m not sure there is a better word for it. It is very nice looking. I have found that it is also large enough to hold your earphones, cable, extra tips, tuning nozzles too. However, this is not a case to put into your pocket, it’s simply too big in my opinion. Unless you like huge bulges in your pants. We won’t talk about that though. The point is the case provided is perfect to throw into a bag or backpack. It’s a very nice addition.



Cable

TO Cable

The cable that Tanchjim added in is not my favorite. It simply doesn’t add a visual appeal to the overall aesthetic in my opinion. It is a thin cable, very lightweight and not microphonic. So, in those terms, it’s great. The included cable is a 2-pin, 3.5 single ended high-purity OFC copper cable with silver plating. Great for stage use as it isn’t burdened by weight or pulling on your ears. Very comfortable too. However, it just doesn’t cut it when paired with the Origin. Not even slightly. The Origin deserves something at least mildly thick, with some beef to it. The Origin needs a dope looking cable. This is too beautiful an iem for a thin little thing. This is one reason why I instead chose to use the ultra-elegant, beautiful and very nice white FSIjiangyi 4.4 mm balanced SPC cable. I feel the look is awesome with this set and the sound pairs nicely as well. I thought about using a pure copper cable too but feel the FSIjiangyi SPC cable is such a nice pairing. I’m sure there are a hundred other cables on the market which would also pair well. At the end of the day, if all you have is the included cable, it’s fine. It sounds nice and is comfortable. Not a bad addition but in my opinion simply doesn’t boost the overall appeal.

Tanchjim Origin Review Pic (53).jpg


TO



Build / Design / Internals / Fit

Build Quality

This is a very nice build. I mean, extremely nice. Both in physical build and durability. Like all of Tanchjim’s iems, the Origin is crafted with structural integrity in mind. The Origin is an all-metal build, from the shells to the faceplates. Tanchjim added a high polished shell (fingerprint magnet) that is small in stature but also very durable in hand & in the ears. The build is definitely top notch on this set. The faceplates are also metal, but they have more of a matte, brushed steel look & feel to them. The finish has a slightly rougher feel. However, because of this texture, I found that they smudge very easily. Anytime the oil on your hands touches them you’ll get a dark gray smudge. Which by the way is not easy to wipe off. I have gotten to the point that I try to never touch the faceplates. Anyways, the build is better than solid, it’s almost perfect. The size is nice, good for smaller ears, not bulky. Very similar in shape and size to the Tanchjim Oxygen and Tanchjim Hana. The nozzles aren’t too long nor too short, just above medium length I’d say. Surely a departure from the ultra-short Oxygen nozzles. I find it is a much better fitment. My opinion of course. This is a body style which has worked for generations now, and I don’t see Tanchjim giving up on it anytime soon. I’m okay with that. You’ll also notice a recessed female 2-pin socket so be aware of this if you are choosing a replacement cable.

Internal cavity

For the internal cavity design, Tanchjim used a wave guide FEA “simulation optimized geometry” which enhances the treble as well as overall sound quality. They also went with a dual cavity design. The back cavity has a larger back vent that you’ll notice is next to the 2-pin sockets. Also, there is small front vent next to the nozzle in the front cavity. Folks, this is about as premium build as it gets. Seriously giving the Simgot EA1000 a run for its money as far as the quality of the build is concerned.

TO Build
TO Build Quality
TO Build Quality



Tuning Nozzles

TO Tuning Nozzles

Friends, I am going to be brief with my explanation of the tuning nozzles. The reason being is that I don’t see the validity in adding tuning nozzles which basically do nothing. Or almost nothing. I honestly cannot hear a difference which is entirely confounding. They even graph identical. I have a hard time calling it a gimmick just because this is a Tanchjim product, but it is a strange thing. It is said that Tanchjim actually added different internal density and materials inside each nozzle which slightly alters the sound. I still don’t hear much of a difference, if any. Very strange that they went this route. One positive is that you can use the nozzles to do your own modding by swapping the mesh filters, altering the sound yourself. I don’t know friends, just giving them the benefit of the doubt. Who knows, maybe some of you can hear a difference. Of course, if I’m being honest, I haven’t exactly listened for hours trying to distinguish any changes either.

Tell me about em’

You’ll notice a printed letter on the nozzle itself distinguishing what type of tuning you will receive with each respective nozzle. That is an “S” for standard tuning, a “L” for light tuning, and a “D” for dynamic. I don’t have any idea what “light” is. Maybe they mean treble boosted or brighter? Also, “dynamic” is a hair ridiculous since they don’t actually add any dynamism. I don’t know, I’m not at all complaining as it is better to have extra nozzles than it isn’t, but saying you are getting three different renditions of the sound signature is a bit of a farce. It is what it is friends. Maybe Tanchjim just wanted to jump on the tuning nozzle train. No problem, no harm… just don’t expect some huge changes. One solid thing is that Tanchjim advertised the nozzle mesh to actually help with any condensation as each has a waterproof layer on it. On top of that is the actual steel mesh. For the record, I used the standard nozzle for review purposes. Please comment if you’ve had a different experience than I have concerning the nozzles. Maybe I’m missing something.

Internals

Tanchjim set out to provide very low distortion levels with their newly adopted and newly crafted dynamic driver. It had to be an upgrade from the Oxygen. Which isn’t the easiest task. So, Tanchjim went with a 10 mm 5th gen. composite Diaphragm, DMT dynamic driver with dual magnets and sits in a dual cavity. The Origin’s driver is said to have a high magnetic flux and the levels of distortion are very low. This provides a THD+N of less than 0.056%, which of you pay attention is a pretty low level. You can tell when listening too. This is a very nice driver.

Fit / Isolation

The Origin is extremely comfortable for me. If any of you have used the Hana or Oxygen, then you’ll know how the Origin fits. For me it’s like a perfect glove. They slide right in, seat nicely in my ears and seal very well. Just make sure to get tips which work for your own ear anatomy. I find isolation is average. There is that larger back vent which lets in some outside noise. However, once you have music playing that all goes away. At any rate, the comfort is top notch and wonderful for long sessions. I honestly have zero issues with the fit. Now, I don’t know how that translates for you, but I assume that most ears will find the Origin pretty comfortable.

TO



Drivability

Sensitivity & Scalability

The Tanchjim Origin is rated with an impedance of 16 ohms and a sensitivity of 126 db’s. Basically, this is an easy set to drive from most any source. You should have zero problems bringing the Origin to volume off of a simple phone jack. That said, the Origin does seem to desire some juice. No doubt it helps to have a good amp adding some extra output.

Source tonality


On top of that, the Origin is also a sort of chameleon (to a degree), in that it mimics the source tonality and changes slightly with your source tonality. This is nothing new. However, I do feel most people would enjoy a warmer source as the Origin does have an energetic upper midrange which can offer some fatigue over time and on the right tracks. Of course, I don’t feel that it is necessary. Just something to keep in mind when choosing a source. This isn’t a requirement either. Just because your source is a hint cooler in tonal color doesn’t mean the Origin won’t sound nice. It comes down to what you enjoy.

What I used

Now, the Fiio Q15 is a neutral dac/amp that truly sounds amazing with the Origin attached. Of course that is also a very talented dac/amp too. I also enjoyed the iBasso DX240 (more analytical / neutral) just as much as the warm and velvet Shanling M6 Ultra. It’s a chameleon folks. In truth, I would say that the Origin certainly scales with power (as most sets do), but it also really scales to the quality of source you have. So, the better source… the better listening experience. Yes, I know, you’d think this would be common knowledge and common sense. I actually listened with a number of source devices during my critical and casual listening. I realize I only list a handful for review purposes but that is only because these are the devices I used the most. For more mobile situations I actually spent an entire day with the Origin and the IFi Go Blu and boy is it a nice pairing using the 4.4 balanced output. I found that a wired connection using the Aful SnowyNight and the Hidizs S9 Pro Plus were both nice sources to use with the Origin as they both lean a hint warm against the neutrality of the Origin. However, like I said this isn’t always true because the neutral Fiio Q15 really brought the Origin to a new level. It’s resolute, powerful, and really drives the Origin to audio nirvana.

What do you need

I would have at least a nice dongle dac that has some healthy output though the Origin can be driven easily with even a 3.5 phone jack. That doesn’t mean you should. The Aful SnowyNight I mentioned is only a $69 device, the Moondrop Dawn 4.4 is also a great pairing with the Origin and that you can find pretty cheap anymore. You may prefer a warmer source to offset the sound of the Origin, but this isn’t necessary. Obviously the better the source then the better experience so keep that in mind.

TO



Condensed Sound Impressions

The Tanchjim Origin comes across as neutral, but with the slightest additional warmth. Perhaps, neutral with a bass slightly north of neutral. It has a nicely balanced sound as well without any one area of the mix claiming a huge amount of dominance. Possibly the upper midrange/lower treble area has a slight claim towards my focus when listening, but for the most part I hear very good balance. As a whole the Origin comes across pretty clean as resolution is very nice. The sound is airy and very well controlled. The timbre is absolutely lovely leaning more towards what natural sounds like to my ears. For the most part, this is an uncolored and unsullied sound and I really enjoy it. The transient attack through sustain comes and goes in a tight and rapid way without any real lingering decay to any notes between the 20’s.

Condensed Sound Between The 20’s

This portion of my review features a simplified and smaller version of some of the highlights of the Tanchjim Origin’s sound quality. Beginning with the bass, this is not a bulbous and very heavy bass. The Origin’s low-end comes and goes quick, it’s impactful, never one-noted and very well defined. Just not emphasized with “fun” in mind. I hear a mature low-end that honors quality over quantity. The midrange is not very recessed but actually it is nicely forward making vocals stand-out for both male and females. In fact, I’d say the midrange is probably the crown jewel of the Tanchjim Origin. Of course, the timbre has something to say about that. Never muddy, well detailed, airy, well separated with nice lean-lush note density and always musical. The treble is well extended, it’s also detailed nicely, there’s some treble bite & body and I love the way the treble fits into the rest of the mix. Just a very concise, precise, and mildly brilliant sounding treble. The stage is above average with that feeling of air in my music. I also hear some good depth too. Separation is generally very good for a single DD and imaging is as well. The name of the game is control and charisma here folks. This is a talented set. Obviously, there are subjective gripes that I could see some folks having but for the most part… the Origin is legit.

Graph courtesy of SuperReviews, thank you!

TO



Bass Region

The low-end of the Tanchjim Origin can be characterized as tight and punchy with pretty nice extension in the sub levels of the bass. This is a low-end with nice definition for a single dynamic driver and nice speed for a single dynamic driver. Not to the point of BA or Planar speed, but deft, agile, dexterous, and ductile. There is good texture throughout the bass region, it’s palpable, tactile and substantive. Certainly, this is a “quality-trumps-quantity” type of low-end tuning. It’s tough to hear exactly where the greatest emphasis is down low, but I would probably say that the mid-bass is the dominant region here. Boy is it hard to tell too. I hear a bass that hovers right around moderate in quantity and so this will not be a bass that brings the bassheads out of the woodwork. I do find that the low-end is just enough to play well with most genres except those hard gangster rap bass drops, EDM, and really anything that requires some thicker, heavier and more robust bass.

Natural

If anything, the best way for me to describe the quantity is… natural. It’s a natural level. It won’t color the rest of the mix to an extent which comes across muddy or intrusive. The bass hits quickly, it’s concise, hard edged and distinctly separated while being well able to keep up with most complicated bass tracks. Within reason. You cannot have this type of undulating and malleable tightly wound bass if the quantity is of the heavier variety. Unless maybe you spend a whole lot more. That’s just me speculating though. This also means that the Origin doesn’t have a lagging decay. Which also means that it isn’t the most atmospheric of all low-end replays… which some may not enjoy. However, when I pan-out and look at the bass as a whole, it’s clear that this is a special low-end.

Sub-bass

The sub-bass has a slightly less dominance of the low-end, but it still comes across as well extended and pretty deep. However, just because extension is good doesn’t mean that your eyeballs are rattling in the back of your head. That said, I do “feel” most sub-bass notes, as I get good haptic vibratory feedback. Such as in the track “Mancey” by Andrew Bird. I can feel as well as hear the full and droning bass guitar notes which reach pretty deep in pitch. The positive thing is that the bass doesn’t drown out the finger snaps & guitar which jam right alongside the bass. Very nicely separated and the placement of the instruments is layered and compartmentalized. That’s the beauty of this region on the Origin. It’s a skilled sub-bass that doesn’t muddy the range and isn’t so emphasized that you lose leading edge impact or definition in the mid-bass, all the while still providing a visceral experience. Again, bass-bois won’t drool over this as it is a mature sound. I think I’m drooling.

Mid-bass

The mid-bass has some impact. It has a stealthy, tight, and localized slam that makes a hard impact, resonates quickly and dissipates. This is a mid-bass with phenomenal control and pretty nice speed. Again, for a single DD. Nothing really seems to trip it up. Now, there is some bleed into the midrange, but in the most tasteful way as it isn’t so elevated that you’re hearing anything muddy, bloated, or veiled. I’m telling you; this is a full-sized bass that simply isn’t so convex and meaty that it claims any dominance. It’s a snappy type of full-sized bass and certainly not fun-sized. Kick drums have that hollow boom and tacky leading edge at the crest of the note, but the boom comes across as moderate rather than booming per se. “Move Along” by the All American Rejects begins with some seriously thundering kick drums. I really like the density I’m hearing. A very compacted density that stays in its own lane. They simply aren’t gargantuan in their note body. It’s mature, clean and precise. Very well defined. Nothing fuzzy, soft or hollow about it. “Stereo Colour Sound” by Sampha is another track which shows off the Origin’s ability to create a round and controlled bass note that has clean edges leaving room for other instruments to be heard and understood.

Downsides to the Bass Region

Obviously, the biggest drawback is that the Origin simply doesn’t have the most bulbous and big bass region. Of course, that is only a downside for those who yearn for a bigger bass section. I get it too. I could maybe use a hair more in low-end thump myself. However, I’m more apt to not change anything. I’d hate to screw up the very nice sound of this set over a couple db’s. Also, there are certainly those folks who desire a more atmospheric bass that has slightly more lag in decay. Without question there are plenty of hobbyists who want that strung out reverb. Perhaps, some notes can feel a hint cut-off. Granted this is rarely an issue. Definitely isn’t an issue for me. For the most part the transient attack through sustain is natural sounding in my opinion.

TO



Midrange

The midrange is the Tanchjim Origin’s bread and butter. This is a good one folks. There is this refined musicality that edges on analytical yet all I can think of is how musical it sounds. The midrange is also very well detailed folks. To a degree that I’ve only heard a few times with dynamic drivers. Note weight is semi lush, lean-lush, or richly condensed, whatever makes the most sense to you. Yet it always keeps its composure which translates into a nicely natural sound to my ears. For the most part anyways. There are moments in the upper midrange that are a hair more edgy. But by-and-large the timbre is wonderful.

Vocalists thrive with the Origin in my ears. The midrange is positioned very nicely against the rest of the mix as it politely emphasizes vocals and instruments. I also hear a well textured midrange which can run either crisp or smooth depending on the track. You have slightly more girth and warmth in the low-mids and slightly more shimmer and an elevated upper midrange which all comes together very cohesive and entirely nice to the ear. Truly a very nice sound. Possibly a hint to bright in the upper midrange for some but not for me. Let’s put it this way, if you can handle the Simgot EA1000, then you certainly handle the Origin.

Lower-midrange

I hear a nicely done low-mids region with a slight bit of carry-over from the bass region bringing subtle warmth to male vocals and instruments. That said, it isn’t the type of warmth which veils, or flattens out the sound, or softens the sound. Instead, the Origin keeps that defined note edge with fantastic clarity and resolution. I love the dirty, gritty and sensational vocals of Chris Cornell as lead vocalist for Audioslave in the track “I Am the Highway”. So often his voice can derail into an edgy and fuzzy mess. It’s hard to spot at times though, because his voice is naturally so gritty and so abrasive. The Origin has an uncanny ability to come across very naturally. I don’t just mean natural in timbre either, but in the structure of a note as well. Also, in “Pain, Sweet, Pain” by Zach Bryan the Origin places Zach’s vocals nicely forward, but not so spotlit and accentuated that he sounds overbearing. The lower midrange is generally slightly forward, propping up male vocals with good note weight, good timbre, and great for distinguishing instruments.

Upper-Midrange

Females come across slightly more shimmery due to the pinna rise in this region which is great for those who enjoy a female who sounds, feminine. They’re more uplifted and slightly more energetic from the rest of the midrange. Grace Potter sings “Little Hitchhiker” and she has the air of being very melodic and harmonious as the acoustic guitars delicately strum behind her vocals. Everything is separated with fantastic instrument placement in the sound field. The Origin really does well with female voices. The tuning has that sweet sound to it that just resonates with females. Olivia Rodrigo‘s voice in “Lacy” sounds whispery sweet with a natural body to her voice and also very nice as she uses her head voice. The tonality of the Origin just fits proving that it truly excels in vocal centric tracks. Especially female voices. Now, this is not a warmly weighted and milky female vocal delivery, and it is likely to be a bit much for warm/dark lovers. I know there will be those in the community who will veiw the Origin as shouty. I don’t feel this way but I’m sure some will complain about that. Which is understandable. However, if you have a lot of female vocal tracks then you should like what the Origin can provide.

Instrumentation

The bonus is that all instruments come across very organic. They sound real to me. Nothing sounds as though it’s too colored or off in any way. Piano in this region comes across tuneful and resounding. Strings have that pointed energy that is satisfying. At the same time the origin picks up every last detail with ease. Finger slides, plucks, harmonics, it all comes through clearly and cleanly. Violin has that controlled edginess and they can be silvery too. Woodwinds sound wonderful, for the most part. Again, I could repeat this for almost all instruments in this region. I obviously won’t go into detail on every instrument but just know that nothing sounds out of tune or oversaturated. Instruments are a tough thing to describe because they can vary so much, and each track can present them differently. So, in general I am quite pleased.

Downsides to the Midrange

The biggest drawback of the midrange would be for those types who truly enjoy a warmer and thicker sound. I know plenty of people who won’t jive with the Origin. They won’t desire the pinna rise, they’ll feel it’s too sharp at times and not emotional enough. We are all so different and some will find the Origin shouty. I would disagree but of course we would both be correct. Honestly the midrange is very well done on this set. It’s very detailed, resolute, note body is dense enough, timbre is authentically organic, notes are well separated, it’s open sounding, airy, and for all of its analytical tendancies… It still comes across with very nice musicality for me. Of course, musicality is in the ear of the beholder so take that with a grain of salt. In fact, take it for a grain of salt when anyone says anything is musical. There is no quantifiable way to gage such a thing. However, in the case of the Origin I think most will agree. Not all… but most.

TO



Treble Region

The treble region of the Tanchjim Origin can be described as smooth-over-crisp, energetic enough but never over-saturated or too much for my ears. Enough smoothness to not come across metallic, knife-edged or too crisp. Yet, it’s also crisp enough to sound defined at the note edges. The Origin isn’t so smoothened that I’m lacking some of the more subtle micro-details in the region. It also isn’t so smooth that elements of the stage sound blended or flattened. There is some roundness there, some distinctive qualities and even some bite to treble notes. Once again, this is another area that features very nice control for a single dynamic driver. Obviously, this is not to the level of a good and well-tuned balanced armature, and definitely not to the level of some well-tuned EST drivers, among others of course. Single dynamic drivers certainly have their strengths but sometimes the treble can slightly lack compared to those other drivers or driver configurations. That said, the Origin has proven to be very solid in the treble region and really does a nice job of fitting the overall tuning while not causing any offense to my ears.

Smoothly defined

One thing which is nice to hear is the micro-detail retrieval in this range. I can hear the subtle tonality swings and even low volume micro-dynamic shifts as the Origin is very capable and very agile for the price and for what it is. Not saying it’s some treble master either but it does come across nicely detailed, very lithesome and pretty graceful. The Origin’s treble also has nice resolution along with a great balance across the mix and tighter treble transients with good separation as well. It just makes for a nicely studious note presence that isn’t just a flat plane of sound. Treble notes have some body. Nothing sounds washed out in treble sheen, nothing sounds metallic, and nothing sounds too dull either. I suppose treble heads will have a thing or two to say about that, but I feel the Origin does a nice job of tackling those details, doing so cleanly, with good definition and flexibility while not sounding over energetic, like forced details. You won’t hear that crunchy and too energetically abrasive sound. This is where the slight smoothness kind of rubs those edges down. Most would assume that you’d have a less defined sound being that it does have that smoother nature, but nothing could be further from the truth.

Well done

Extension into the upper treble is well done too. I hear plenty of info past 8k, and that info doesn’t sound at all splashy or glazed over with over ambitious luminous luster. Again, the timbre holds up. The tonality stays the course. Secondary harmonics of cymbal strikes feel complete and sound like what I would consider natural to be. I don’t have cymbals in front of me to compare against in real life, but I cannot imagine the Origin is very far off. I think it’s fair to say that none of you should expect EST type ultra defined treble notes that keep that glass lined edge. The Origin isn’t perfect in that regard as they still come across with that layering of smoothness. However, as far as single dynamic drivers go, you’d be hard pressed to find much better treble in light of how the rest of the mix plays out. In my opinion the treble simply completes this set and rounds them out beautifully.

Examples

Listening to Billy Strings in his track “Secrets” shows that the Origin can fairly easily take on some complicated notes as the banjo, guitar, violin, and mandolin all come together very cleanly. The Origin doesn’t have the issue of notes blending together. There is some snap to treble notes and very nice presence up top on this track. Another track which I regularly describe in my reviews is a track I don’t listen to for the joy of it but for the treble activity. That track is “Bishop School” by Yusef Lateef. There is a cacophony of different instruments with main verse changes and undulating mixtures of different treble instruments. I like how the Origin never feels tripped up while holding that natural hue the entire time. Nothing sounds off on this set and the timbre is simply wonderful.

Downsides to the Treble Region

When trying to come up with actual issues up top, I am having a hard time coming up with legitimate subjective gripes that some may have. To be honest I think most issues relating to the treble revolve around the fact that the Origin doesn’t have multiple drivers with dedicated treble sections. I think it sounds great though. You have that soft brilliance up top with just enough air, openness and overall treble energy to add some levity to the rest of the frequency. Again, it completes the sound in my opinion. Other than that, I suppose that the treble could be even more emphasized for folks who desire that ultra bright take on the treble region. That is a preferential issue though. Also preferential is anyone who desires much less treble energy. Without question there are those who want that warm, dark, rolled-off treble. We are so very different in what we prefer and so there will always be those who simply don’t enjoy what the Origin has to offer. I’m not one of those people.

TO



Technicalities

Soundstage

The soundstage is quite nice. The Origin has good width that hangs past my ears. I think we have to remember that the Origin is an in-ear monitor and so you can only get so wide, so tall, and so deep. With that said, some iems are better than others. There’s certain psycho-acoustic magic which happens at times, and it seems that the Tanchjim Origin has a little bit of that magic involved with its makeup. Without question the Origin is better than the average in ear within the Audioverse. Of course, “average” is a loose term folks. All in the ear of the beholder. In my opinion I feel that the Origin has an airy, open and well extended sound which plays into the sound seeming grander in all directions. There are a bunch of variables, but I don’t want to waste the digital ink explaining them. The best part in my opinion is that I don’t hear a flat plane of sound, or a flat wall of sound in front of me. There’s depth, there’s layering of sounds, there’s a nicely holographic stage that really does add to my music. Is it tops in class? Probably not, but it’s above average.

Separation / Imaging

Separation is another area where the Tanchjim Origin has found some success. Again, we have great control over the spectrum. Notes are lean but dense, clean, and transients are tight while the spectrum as a whole has a great balance. This helps in the Origin’s pursuit to separate different elements of an imaginary soundstage. It is hard not to be impressed as the sound is simply very resolute which almost brings each note into focus a bit better than other sets. Imaging is outstanding which is pretty much par for the course with the Origin. No doubt you will be able to perfectly position all instruments and voices with precision. The only hang up is in extremely complicated tracks or horribly recorded tracks. Both separation and imaging are fantastic.

Detail Retrieval

Detail retrieval is another area that seems to go against the thinking that single DD’s aren’t the most detail friendly driver types. The Origin is very detailed. It has so much going for it. Again, clean sound, well separated, balanced sound across the mix, no one area masking another, good resolution, tight transient behavior. Each of these attributes helps the Origin to illuminate even very fine details. I will say this though, the Origin is not going to compete favorably in this area against some very good hybrids or planars. It will do much better than most but will certainly not beat the best. If that makes sense. We cannot forget that the Origin is a single dynamic driver iem. However, the beauty is that the Origin does so well in every technical aspect that it can do well in. At the exact same time it has a musical sound and extremely organic timbre (my version of organic). That’s the area that those other driver types can generally lack. This is obviously not always the case, generally. Hence, why I feel the Origin is so well tuned. Let’s put it this way, for a single DD the Origin is flat out special.

TO Comparisons
Shanling MG600 / Tanchjim Origin / Simgot EA1000


Comparisons

Note: These comparisons will be very generalized as I won’t go into crazy depth. I already write too long of reviews… Lol. Just simple comparisons from my perspective over many hours of gladly going back and forth between them. These comparisons are also “not” a duel to the death. I’m not trying to crown one set better than the other. I do this to hopefully better explain the set I’m reviewing. Now, I’m not always successful at this, but I try.

Simgot EA1000 “Fermat” ($219)

EA1000

Okay, folks the Simgot EA1000 is one of those sets which seems to come around every five years and simply own its price point. That makes this a bit awkward because less than a year after the EA1000’s release we get the Tanchjim Origin. Anyways, I have yet to review the EA1000 but have spent so many hours with them in my ears and cannot say enough wonderful things about them. The Simgot EA1000 is a single DD with an extra passive radiator (PR). To be exact that is a 10mm with a 2nd gen. DMDC architecture as well as a 6mm composite passive radiator. I don’t really consider the PR a working driver, but it does help with the tuning. I still consider the EA1000 a single DD. Others may disagree. Whatever. Anyways, the EA1000 is a true contender and a tough set to put the Origin against. That said, I honestly love them both. They are different in how they approach their respective tunings and I’ll do my best to explain the differences. Many would probably consider both to be side grades to each other, but I do think that they are different enough to warrant preferences being the deciding factor.

Differences

Looking at the build, the EA1000 and the Origin are absolutely built exceptionally. Both sets are as premium as it gets. The Origin is all metal (as you know) and the Simgot EA1000 has a stainless-steel shell and a gorgeous glass faceplate. As far as design, again, how could I choose which is better? Truly they are both as handsome as they come at the price. The EA1000 is a bit more elegant, and the Origin is bolder. Both fantastic. The EA1000 has the better cable, the Origin has a much better case, both sets have decent tips (Origin edges it out), and both have tuning nozzles. Granted, the EA1000’s tuning nozzles actually work. I would say the EA1000 is slightly easier to drive.

Sound Differences

These sets are tuned a slight bit differently from each other. The EA1000 is more of a Harman tuned V-shape to U-shape with a neutral sound, more energetic, more dynamic. The Origin is neutral with the slightest spritzes of warmth and a slightly more poised sound with better note control and more of a balance across the mix. The EA1000 reminds me of a downed electric line sputtering and zapping everywhere, just energy everywhere. The Origin is a hint more organized, streamlined, with more structure to notes. This takes nothing away from the EA1000 because it is more dynamic, more energetic, while the Origin is a hint blander in comparison. Actually “bland” is an awful word. I think “poised” and “structured” says it better. The Origin has less vibrance then the EA1000 but also has cleaner note edges than the EA1000 too. Pick your poison although you cannot lose either way. Both are truly special sets.

Between the 20’s

The bass in the EA1000 is deeper by the slightest margin but both have good control and a tighter sound. Neither are soft at all. The Origin has slightly less impact as well, but I find the Origin also has a slight better bass definition, it’s faster to my ears, naturally weighted while the EA1000 sounds a hint boosted. The midrange of the Origin is closer, more melodic and better for vocals in my opinion. I also would say that details are better on the Origin in this region. The EA1000 simply has more dynamism and is slightly more colored in the upper midrange that can get shouty at times whereas the Origin usually keeps a tighter rein on shoutiness. Timbre wins on the Origin sounding more lifelike to me. The Origin alos has thicker note weight by a tiny margin and comes across more organic. The treble of the EA1000 is a hint more boosted and vivacious to the less energetic but also more refined Origin. The EA1000 has a better chance of treble sharpness and fatigue whereas the Origin is bright but never really crosses that line. Both have fantastic treble regions for single DD’s and both are extended well with good detail retrieval. Remember these are the slightest differences, I cannot stress this enough. This is hours of going back and forth.

Technicalities

I feel that the two of these sets are both technically astute and very clean across the mix. However, the Origin does detail retrieval a bit better due to the clarity, transient swiftness and better balance. Again, take nothing away from the EA1000 because it illuminates the minutiae very well too. Imaging is great on both sets though separation is a hair easier to delineate on the Origin. Also, the Origin has a larger stage with depth that is easier to hear for me.

Final thoughts

I hate these comparisons. Mostly because I forget to actually critically listen as I get lost in the joy at times. I truly love both iems. I feel both have their reasons to be thought of as the “better” set. Personally, I enjoy the Origin’s display a bit better but that is probably the honeymoon talking. Also, the 2nd I put the EA1000 in my ears that thought shifts to its favor so… This probably didn’t help you at all and for that I apologize. Maybe the EA1000 was the wrong set to compare for me. Anyways, the deciding factor for you may be the more dynamic sound of the EA1000 or the more balanced and kempt sound of the Origin. The Origin simply feels less cluttered, less sprightly energy particles floating around the sound field at the edge of notes. The Origin is a hint more glass lined at the contour of its notes. Listening over long periods will likely be a bit more fatiguing on the EA1000 as well. However, the EA1000 seems a bit more fun. I love em’ both.


Shanling MG600 ($599)

MG600

The Shanling MG600 is one of those sleeper sets from late 2022 that simply blew me away for a time being (MG600 Review). The MG600 is a single 10mm dynamic driver with an aluminum-magnesium diaphragm and is one of Shanling series where they practice using more unique driver materials. A cool concept and a cool set. Yes, the MG600 is quite a bit more in price than the Origin, however this doesn’t mean it’s better. Also, I don’t know if this is the best comparison, but it’s a good yard stick tool for the Origin.

Differences

First off, $600 against $260…that’s a difference. Past the price I am considering these the same price for this comparison. As far as the build, the MG600 has one of the most gorgeous and premium builds ever. The Shells are crafted from stabilized maple wood with a semi-open back faceplate. The Origin is just as I’ve stated all review, it’s built like an absolute tank. However, the MG600 is simply prettier. Nuff said. I love both designs and both builds but the MG600 looks like it costs a lot more, which should be expected. The MG600 has a much better modular cable, and the packaging is much more elaborate. Again, this should be expected.

Sound Differences

To begin the MG600 comes across warmer and definitely more V-shaped with brighter treble and more authoritative bass. Certainly a more fun V-shaped sound if V-shaped energetic big bass is what you consider fun. The Origin has a much better balance across the mix, better detailed and better control over the mix. The MG600 is only slightly easier to drive and both sets will pay off beautifully with a more powerful and more talented source.

Between the 20’s

The MG600 simply has that meaty bass but it is kept within tight reigns for its size. A very clean bass. The Origin has better bass definition and is better contoured. The Origin midrange is more forward, better for vocals of both males and females. However, the MG600 has the richer note weight of the two. MG600 has a more forward upper midrange which can get shouty. The MG600 has the better extended and more brilliant treble which can offer some fatigue for some folks. The Origin is all control and so it’s treble simply follows suit of the rest of the mix. Clean, defined, structured, while never losing control. The MG600 has very nice details in this region though the treble is also more brightly colored which focuses on more forced details rather than the natural sound and detail retrieval of the Origin.

Technicalities

Technically speaking the Origin wins out almost across the board. That balance and cleanliness does so much for technicalities. Detail retrieval is better, separation is slightly better as the MG600 can mask a bit with the bass emphasis as well as upper mid emphasis. The imaging on the Origin and the MG600 is very good. The stage is slightly wider in the Origin. Now, depth probably goes to the MG600 but that is up for debate. The MG600 is very clean for what it is but the Origin is tuned better for them.

Final thoughts

Guys, this is an easy one if you are looking at which one is better for the price. I would say that if you have the money and want the most gorgeous iem out there (debatable) with a fun sounding V-shape and pretty clean for what it is than the MG600 may be the way to go. Believe me it has its redeeming qualities that doesn’t show up in a comparison. You’d have to actually listen to know. The Origin is much less expensive and out duels the MG600 in many key metrics. The Origin has a much more organic and natural tuning but the MG600 is probably a bit more fun. Again, I love both sets but if it was my money (which it is) than I’d choose the Origin every day of the week.


TO



Ratings (0-10)

Note: all ratings are based upon my subjective judgment. These ratings are garnered against either similarly priced sets or with similar driver implementations or styles with the unique parameters of my choosing. In the case of the Tanchjim Origin ratings below, that would be $200-$300 single dynamic driver earphones. Please remember that “ratings” don’t tell the whole story. This leaves out nuance and a number of other qualities which make an iem what it is. A “5-6” is roughly average and please take into consideration the “lot” of iems these ratings are gathered against. $200-$300 US single DD’s is a smaller scope of iems although it is extremely competitive, and so seeing a Rating above a “9.0” better mean something very special. My ratings are never the same and each set of ratings tells a different story. Each time you read one of my ratings will be unique to that review. Basically, I create a Rating that makes sense to me.

Aesthetic

Build Quality: 9.5 Built exceptionally well.

Look: 9.5 One of my favorite designs.

Fit/Comfort 9.4 Wonderful fit, time tested.

Accessories 8.4 Very nice unboxing.

Overall: 9.1🔥🔥


Sound Rating

Timbre: 9.7 Within the top class in timbre.

Bass: 9.2 Clean, defined, precise, impactful, tight.

Midrange: 9.6 The mids are great, vocals are nice.

Treble: 9.2 Treble is clean, precise, non-offensive.

Technicalities: 9.4 Technically a very fine set.

Musicality: 8.9 Nice musicality against the competition.
Overall: 9.3🔥🔥

Ratings Summary:

Not much to explain here folks. All of these ratings are completely subjective and only can be garnered against what I’ve spent a ton of time with. Sets like the EA1000, BQEYZ Wind, BQEYZ Winter (both BQEYZ sets are +BC Driver), Dunu Falcom Ultra, Tanchjim Oxygen, Fiio FD5, Penon Vortex, Aune Jasper etc. etc. There’s many more single DD’s not mentioned which compete in the $200 to $300 price point which I cannot drum up at this moment, but these are the heavier hitters in my mind. I haven’t heard the Orivetti OD200 and a few others. So, it’s a decent scope of sets but it is pretty small by the hobby’s standards. Obviously, there are sets that I haven’t heard as well, so try to understand that. At any rate, friends… I went conservative on these ratings. From my perspective remember. Timbre might as well be a “9.9”, stuff like that. I gave it a “9.7”. Is there another single DD between $200 to $300 that has better timbre? I gave the Origin a “9.2” in bass basically based on its quality and not its quantity. The midrange is another that might as well be a “9.9” in my opinion. I take away points for my own reasons but all in all the Origin is a fantastic set and I don’t think there is anything I’d change about these ratings. I feel a “9.3” overall sound rating is justified. Some sets are more musical, some are more fun, some more dynamic. However, I do feel that the Origin seems to bring it all together very nice.




Is it worth the asking price?

As much as I love the Origin (I feel I’ve established that in this review), when answering the question “Is it worth the asking price?”, it is always a nuanced answer, especially when the set is a single DD costing more than $200. We all know that there are many single DD’s that are really special for far cheaper. I suppose it all comes down to your budget and what you value as… “worth it”. I cannot answer that for you. I would say that in the realm of single dynamic driver earphones which cost above $200 that for sure the Origin is worth it. However, maybe you could be more than happy with a Tripowin Olina, Simgot EA500, Simgot EA500LM, EPZ Q5, and the list goes on. Each of those sets are under $100. So yes, this is a nuanced question. That all said, in light of the current landscape of plus $200 single DDs which have begun cropping up of late, I couldn’t with a right mind say that the Tanchjim Origin isn’t well worth the asking price. It is a very well-tuned iem. Nevertheless, it is your money and there are also some fantastic iems for much less with only incremental differences from this latest Tanchjim product. Still, folks pay a lot for incremental differences. This is the only hobby where an inch might as well be a mile.

The Why…

Because the Tanchjim Origin is an exceptionally built iem with one of the best designs I’ve seen. It is strikingly gorgeous, and if I may be frank… the Origin is flat-out dope! Let’s not get things twisted, this set looks as premium as premium gets apart from encasing it in diamonds and gold. It is very well done. That’s my opinion though, you may not agree. The sound is the best reason though. It’s the sound which brings us together. Coincidentally, it’s also the sound (the music) that any of us are here in the 1st place. You have a clean sounding low-end with tight transients, dense enough body, visceral and energetic impact as well as perfectly fitting against the rest of the mix. The midrange is wonderful for vocals of all kinds. Its timbre is natural throughout with speedy enough note decay, good separation and a very well laid out sound field with good imaging and layering. The treble is non-offensive but still luminous and somewhat brilliant too. The treble also has good body to notes as it doesn’t sound dry, papery or too analytical. All in all, the Tanchjim Origin is a very nice mix of technically proficient and musical. The stage is big for an in-ear (above average), and the sound is well detailed. However, the best part of the Origin’s sound is in how it all comes together. A very well-done single DD iem. If it fits your tuning preferences than you’ll probably agree that the Origin is worth the asking price.

Full review can be found HERE
TO



Conclusion

To conclude my full written review of the Tanchjim Origin I want to thank you for reading and I do hope it has helped you in making a purchasing decision. I waited to proclaim that in my opinion the Origin is certainly one of the best single DD’s that money can buy under $300. Depending on how it fits you, you might say it is the best. Personally, I haven’t heard one better. That’s with my love affair and affinity for the Simgot EA1000. This is certainly a rec from me. However, I can see how others may not enjoy it as much and that is the beauty of the hobby folks.

Other perspectives

Please do yourself a favor and read, listen to, or watch other reviews of the Tanchjim Origin. Don’t simply take my word for it. I can only represent my subjective opinion and others may not see things the way that I do. In fact, I know others don’t always agree with me. So, I hope you do your homework a bit and learn as much as you can. I’m not the last word on audio and simply a fan who likes to talk about it. Please take good care, stay as safe as you can and always… God Bless.

Tanchjim Origin Review Pic (10).JPG
Last edited:
zeissiez
zeissiez
What an exciting time for single DD fans. I had the EA1000 and the Falcon Ultra at one stage, I kept the EA1000 because it has more defined and textured bass. But now I miss the Falcon Ultra’s euphoric sound, better imaging and less cramped soundstage. I think it’s impossible to clearly say which is better, or to say which can replace the other. I think the same applies to the Origin.
Ceeluh7
Ceeluh7
@zeissiez that was perfectly put. I completely agree with you. The Falcon Ultra is a special iem with its own flavor to the sound and it's right up there with the rest of them. This hobby is RICH in great single DD's at the moment, that's for sure.
ernie633124
ernie633124
Another great review Mr. Chris, so I was wondering is the a replacement to the Oxygen? so how's upper/treble region forward/spicy/sparkle/airy/extended?, I was wondering if I should I get the Dunu Falcon Ultra the blue version or the Origin?

baskingshark

Headphoneus Supremus
Pros: Decently accessorized
Beautiful shells
Ergonomic fit
Moderately easy to drive
Clean and fast bass, good texturing
Excellent technicalities
Class-leading soundstage for a midFI single DD, from semi-open backed design
Natural timbre
Cons: Shells may be fingerprint or scratch magnets
Below average isolation
Tuning nozzles are gimmicky
Not for bassheads
Borderline upper mids shout at louder volumes
Overly safe Harmanish tone
DISCLAIMER

I would like to thank Sam Audio for this loaner unit of the Tanchjim Origin: https://samaudiosg.com/products/🎶sg-tanchjim-origin-1-dynamic-driver-iem

It will be returned after the review.


Origin 1.jpeg


INTRODUTION

The Tanchjim Oxygen is one of the legendary midFI single DDs that any CHIFI aficionado worth his or her salt would know. Indeed, in a sea of weekly sidegrade CHIFI releases, the Oxygen is still competitive, even though it was released 5 years ago; this is a testament to its longevity and tuning prowess!

The Origin we will be talking about today, is a sequel to the venerable Oxygen, and it surely has huge boots to fill, in following after the footsteps of the original Oxygen.

SPECIFICATIONS
  • Driver configuration: 1 x 10 mm DMT 5th generation dynamic driver
  • Impedance: 16 Ohms
  • Frequency response: 20 Hz - 48 kHz
  • Sensitivity: 126 dB/Vrms
  • Cable: 2-pin, 0.78 mm; 3.5 mm termination. 6N Litz oxygen-free copper silver-plated cable
  • Tested at: $259.99 USD

ACCESSORIES

Origin 8.jpg


Other than the IEM, these are included:
- T-APB pressure-relief wide-bore silicone eartips (S/M/L)
- T-APB pressure-relief narrow-bore silicone eartips (S/M/L)
- Cable
- Carrying case
- 3 pairs of tuning nozzles

Considering the Origin is a midFI single DD, the accessories are par for the course, perhaps other than the lack of a modular cable and foam tips.


Origin 4.jpg


We have 2 variants of T-APB pressure-relief silicone tips included. The wide bore ones boost treble and soundstage, whereas the narrow-bore ones increase bass, with some compromise in soundstage. They are quite comfortable, as per the "pressure relieving" properties.


Origin 9.jpg


Tanchjim has provided a 2-pin 6N Litz oxygen-free copper silver-plated cable. This is on the thinner side, though it has minimal microphonics, and has a chin cinch. It is tangly though, but is quite supple otherwise.


Origin 7.jpg


We have a white PVC leatherette case that is pretty spacious, with the innards lined by a velvety material. Certainly functional, with a button clasp.


Origin 5.jpg


Last but not least, we have 3 pairs of tuning nozzles, which come in their own metal tray. We will discuss in further detail below on what the nozzles do.

The rest of this review was done with the stock cable and stock wide-bore silicone tips. No aftermarket accessories were used, so as not to add any confounders to the sound.


BUILD/COMFORT

Tanchjim is renowned for their elegant and refined aesthetics, so it is no surprise that the Origin is a looker. It has a gorgeous mirror-like finish, and is fashioned from corrosion resistant stainless steel. The mirror-like finish may be prone to scratches and smudges, so the shells need to be babied.

Tanchjim markets that the housings have a FEA (finite element analysis) simulated acoustic structure, with a rear cavity air-pressure release vent (located next to the 2-pin connectors). This rear vent is very interesting - it aids in equalizing pressure - and hence there is no driver flex - plus it furnishes a semi-open backed design. Thus, it contributes to an expansive soundstage, though we do have some penalties in isolation.

Origin 10.jpg


Tanchjim has accumulated a myriad of ear samples in designing the Origin, and I'm glad to report that ergonomics are top-notch, with no weird protrusions or short nozzles - cough cough looking at you Tanchjim Oxygen. The Origin can be used for hours without discomfort.


TUNING NOZZLES/INTERNALS

The Origin's engine is a 10 mm DMT 5th generation dynamic driver. The wave guide cover of the housings have radian corrugations on the inner aspects to aid in resonance dispersal.

Tuning switches and nozzles are the flavour of the year, and the Origin comes with 3 pairs of tuning nozzles. Each nozzle comprises of an outer composite strainer covered by a steel mesh - this is supposedly condensation proof - and there is an inner finer strainer which is dust-proof.

Origin 12.jpg


These 3 sets of nozzles are labelled S, L and D, which refer to:
L - light
S - standard
D - dynamic

Sadly, the tonal changes are very subtle on graphing; we see some slight changes in the lower and upper treble mainly, but overall the tuning nozzles do border on gimmicky.

Tanchjim Origin.jpg

Graph of the Tanchjim Origin via IEC711 coupler. 8 kHz is a coupler artefact peak.


DRIVABILITY

I tested the Origin with the following sources:
- Apple dongle
- Cayin RU7
- Chord Mojo 2
- Fiio KA11 dongle
- Fiio KA17 dongle
- Khadas Tone Board -> Schiit Asgard 3 amp
- Questyle M15 DAC/AMP dongle
- Sony Walkman NW A-55 DAP (Walkman One WM1Z Plus v2 Mod)
- Sony Walkman NW A-55 DAP (Walkman One Neutral Mod)
- Sony Walkman NW WM1A DAP (Walkman One WM1Z Plus v2 Mod)
- Smartphone

This IEM is moderately easy to drive. While weak sources like a mere smartphone can drive it, sonics will be optimized with amplification.


SOUND & TECHNICALITIES

The following impressions were done with the S tuning nozzles installed.

Origin 6.jpg


The Origin sports a safe Harmanish profile. This is very consumer friendly, and perhaps only die-hard bassheads and the anti-Harman gang will find the tuning unpleasant.

The bass is mostly sub-bass focused. It is tight and fast, with no mid-bass bleed, but it isn't the deepest in quantity and rumble. Definitely a case of quality over quantity, with solid texturing on show.

With no big bass encroachment, the lower mids are clean and transparent. Upper mids hit nearly 10 dB ear gain, which is right at the edge between forwardness and shoutiness. Vocals have a tinge of nasalness, and at lower to moderate volumes, this region is quite acceptable, but perhaps the Origin is not best played at very loud volumes (Fletcher Munson curve).

Treble is quite extended and resolving, with just slight sibilance. It does not veer too much to harshness or fatigue, but keeps a decent sprinkling of clarity and micro-details.

Timbre is very organic; timbre freaks will have nothing to complain in this department.

Technicalities-wise, the Origin would be considered as very capable for a midFI single DD. Due to the aforementioned open-backed acoustic structure, soundstage is expansive in width, with good depth and height. Micro-detailing and clarity as previously mentioned, are also well done, with crisp transients. Imaging and instrument separation are also very solid.


COMPARISONS

The Origin will be compared against other midFI single DD. Pure BA, hybrids and planars are left out of the comparisons, as the different transducers have their pros and cons.


Tanchjim Oxygen

The Oxygen's Achilles' heel, is its super stubby nozzle, that gives fitting issues for consumers. I'm glad to report that the Origin fares much better in this aspect, with a longer profile.

Origin 13.jpg

Photo of the Oxygen (left) versus Origin (right).

The Oxygen is also tuned to the Harman curve, but it has a slightly thicker note weight, with more sub-bass. It comes across as a bit darker due to this.

In technicalities, the Oxygen has weaker instrument separation, micro-detailing and imaging. Soundstage is more compressed on the Oxygen too.


Oriveti OD200

The OD200 has 2 tuning nozzles - the black one is pretty shouty in the upper mids (though it is more resolving), and most listeners have to revert to the tamer silver nozzle, which we will use in the comparisons here.

With the silver nozzle installed, the OD200 has a thicker note weight, with more bass and less treble. The OD200 has a weaker soundstage, with inferior imaging, micro-details and layering.


DUNU Falcon Ultra

The Falcon Ultra is another single DD with tuning nozzles - 2 pairs in this case - and the gold one bestows a laid back darkish tone, whereas the blue nozzles provide a pleasant Harmanish fare. We will be comparing the Falcon Ultra with the blue nozzles in place.

On this setup, the Falcon Ultra has more sub-bass, with a tinge less treble extension. The Falcon Ultra has a smaller stage, but has better imaging, with the rest of the technical aspects about on par.

Of note, the Falcon Ultra is easier to drive, and it has a way better accessory spread.


Simgot EA1000

For the pedantic amongst us, the Simgot EA1000 contains a passive radiator and isn't a pure single DD, but it functions similarly to one, and is one of the benchmarks in the midFI region. Thus, no midFI single DD fight will be complete without mentioning the EA1000.

The EA1000 has 3 tuning nozzles, but all present a bright Harmanish soundscape, which is classical of Simgot's house sound.

The EA1000 has more heft to the bass - as a result of the passive radiator - and it is also brighter in the treble. The EA1000 may come across as more fatiguing as such, but it is more resolving, with better micro-detailing and imaging. The EA1000 has a smaller soundstage though, but is easier to drive.


CONCLUSIONS

Origin 15.jpg


The ultra-competitive midFi single DD arena is a cut-throat market to enter. The Origin has tough rivals to face, such as the Oriveti OD200, the Simgot EA1000, the DUNU Falcon Ultra, and of course, its own older sibling, the lionized Tanchjim Oxygen.

The Origin does hold its own in such esteemed company - and indeed, it surpasses these 4 challengers in soundstage - though perhaps these other midFI single DDs may do better in other departments (for example the EA1000 has superior resolution, and the Falcon Ultra has improved imaging).

When compared against the predecessor Oxygen, the Origin thankfully solves the fitting issues - and does provide better technical chops - though it is an incremental upgrade over the Oxygen, but coming in at a higher price point.

Soundstage aside, some other areas that the Origin performs well, are its classy exterior, comfortable shells and organic timbre. However, one can argue that the Origin is overly safe in following the tried-and-tested Harman curve, and that the tuning nozzles don't bring much to the table. It is also not for bassheads, as it pursues bass quality over quantity.

In the big scheme of things, the Origin is arguably a sidegrade to the acclaimed single DDs mentioned above. It should definitely be in the conversation for single DD lovers. It is not perfect, and there are areas for improvement, but think of it as a jack of all trades and master of soundstage? Personally though, I still prefer the EA1000's resolution and technicalities (with the added PR bass heft), so that's the gold standard to dethrone.
Last edited:
mars chan
mars chan
Very nice review and very informative.
WAON303
WAON303
Great review! These are in my list of wants.
S
sussybaka~twennywun
I like how your reviews are written! keep at it

SuperChonk

Member of the Trade: Project Perfection
Formerly known as captainmuffins
Tanchjim Origin, successor to the Oxygen.
Pros: Well executed natural-warm Signature.
Good Technical Chops
Airy Sounding
Cons: Can be a little bright for some folks.
Back in September I was in Shenzhen for the Shenzhen International Audio Show and Tanchjim was exhibiting there. I managed to listen to the then-named Oxygen Gen 2 and was very pleasantly surprised as they took a very different direction from the Kara which was released earlier in 2023.

Back in the wild days of 2024, the earphones known as Oxygen V2 decided it was time for a makeover and switched to the hipper name, Origin. Guess what's in our studio today? Yep, you got it the Origin.

Starting with an unboxing. If you have been following Tanchjim, they are one of the few chifi brands that have a cool cohesive theme. Always with the white, grey/silver colorway. The Box of the Origin is no different with the earphones plastered right in the center. This time round it clearly states that it has modular sound tuning through the form of different nozzles.

Behind the box is the curve that is was based on. Removing the sleeve. You then have a grey box with their angel logo in the center. Below that is a white cardboard thingy with literature.

You then see the earphones themselves as well as the previously mentioned nozzles. Below them are 2 sets of eartips. One set with a larger bore while the other features a smaller bore for folks who are more treble-sensitive.

Just below that is a white earphone case made of fake saffiano leather. Inside it is the cable.

Tanchjim did use heart to design this box and it is quite impressive. I love the presentation.

Build Quality.
Tanchjim again, knocked it out of the park with the build quality of the origin. These are premium feeling. The chassis I believe is made from stainless steel. I can’t seem to find any information on what material is used but judging from the heft, it should be steel.

That is a very beautiful mirror finish on the Origin. Polished to a beautiful luster. The faceplate has depth to the design. The name and the angel logo are embossed on the chassis and the workmanship is very clean.

When it comes to comfort as well. The chassis is impressive. They continued a trend that Simgot piloted earlier with the raised section of the nozzle. This allows IEMS to be more comfortable and the Origin to me is as you would have expected very comfortable.

Nozzles are interchangeable on the Origin but the effect of the different nozzles is really minimal.
The vent of the origin is quite large compared to the competition. This affects its overall tone somewhat. I would say that these are more liken a semi-open IEM rather than the traditional closed design. As such isolation is quite average. However, this also allows for pressure equalization in your ear canal and allows for more comfortable listen.

Origin has a 2-pin cable. Cable is of good quality and I rather like its simple and clean design language. It has a 3.5mm to 2-pin termination. Also, a chin stop is included for times you want the earphones to sit a little more sung.

The case provided is actually very usable which is very nice.

Sound
The Origin has the in-meta tuning of 2023/2024. It is another natural warm IEM that is all the rage these days but they did not blindly do this. Firstly. The Origin has a huge vent making it semi-open sounding. This adds a very different character that cannot be shown through a mere graph.



It has this wide airiness when it comes to the sound that makes them addictive and not common.

Secondly, the origin is a very forward-sounding IEM. I do rather like this as the singer sounds rather close to you while singing

There are different nozzles here but really they don’t make much of a difference.

Anyways, let's dive into the nitty gritty.

Bass.
As mentioned the Origin has a huge vent, effectively making this a semi-open IEM. But I am happy to say that it still maintains a rather traditional rendering of bass but with more airiness. I remember in my review of the Simgot EA1000 saying that there is added resonance and realistic decay. It is quite similar in the Origin as well with the exception that decay is actually a little faster.

Sub-bass extends very low and is actually surprisingly clean. The bass texture is true to life. It is also very fast with realistic decay. I do find that the resonance fades off quite quickly but does not sound like there is a dearth of resonance.

Midbass is very well controlled as well. I like the texture rendered by the origin, it is very believable.

Also to add, bass is also very dynamic on the Origin.

Midrange.
Vocals on the Origin is rather forward. I got the perception of the singer being rather close to me. And really this is quite nice as it allows you to listen to the tonal color of the voice in close proximity.

Origin has an upper mid-range focus which allows for vocals to sound focused and sweet. The resolution here again is great. Vocals also sound very nimble as fast.

The instruments here is also very crisp and articulate. If the track is recorded well, instruments sound clear without haze resulting in excellent positioning.

Treble.
The treble is smooth and airy on the origin. It is effortless and very well controlled. Shimmer on the cymbals is present but fades rather quickly never overstaying their welcome.

It again has a fast nature.

Soundstage
Width and Height.
The Origin does a fantastic job especially when it comes to the width of the music. It is just very wide-sounding. When it comes to height. It is vast as well but not to the same degree as width but still excellent.

Depth and Positioning
Depth is amazing how deep the instruments are in a track is very obvious. When it comes to positioning, because of the semi-open nature, positioning is every more obvious from the added air in the sound. Very good.

Comparisons

The Most Obvious Comparison against the Origin would be the Simgot EA1000

Now, both these IEMS are quite similar. The Simgot has a Passive Radiator while the Origin has a larger than normal vent.

I found that there is more bounce or radiance when it comes to the bass of the EA1000 compared to the Origin which is also airy but it diffuses faster.

When it comes to vocals, the Origin is slightly sweeter than the EA1000 . Both are airy but I just found the Simgot EA1000 to be a smidgen more so by comparison.

Technically both these IEMs are excellent and you will honestly not go wrong with either. Both are built to amazing specifications.

VS the Kiwiears Quintet.
The Quintet is again similar sounding but what they do to achieve this signature is vastly different. It uses 4 types of drivers that reward you with excellent resolution but the Origin is just more cohesive.

So what do I think about the Origin?
What do I like about it? I think that the tone on the origin is just glorious especially if you are a forward vocal lover. Also, these are a no-brainer for folks who want a more open and airy-sounding IEM.

In terms of build quality, it is also just sublime in line with the competition.

What I do not like about the Origin.
I think I can see that for folks who prefer a warmer-sounding IEM, the origin might not suit you.

So is this a blind buy, good buy, safe buy, or avoid IEM?
I would say that the Origin is a blind buy worth IEM. It has the makings of a great IEM with good design. Clearly, there was thought from the unboxing experience to the tuning of the IEM.

For what it is. I would say that it is simply amazing.

Last edited:
mars chan
mars chan
nice review
Back
Top
