32bit/768kHz DSD512 Asynchronous DAC Balanced Headphone Amplifier

  • SMSL M9 - 32bit/768kHz DSD512 Asynchronous DAC Balanced Headphone Amplifier

    THD + N: 0.0004%
    Output level: 2Vrms
    Dynamic range: 115dB
    SNR: 110dB
    Channel separation: 110dB
    USB support: Windows7/8/8.1/10; Mac OSX10.6 above
    Coaxial/Optical sampling rate: 44.1-192kHz
    USB PCM sampling rate: 44.1- 768kHz
    DAC Chip: AK4490 x 2
    Headphone AMP Power: 32ohm/108mW, 64ohm/104mW, 150ohm/86mW, 300ohm/57mW

    Design Architecture:
    USB XMOS x CORE200
    DAC AK4490 x 2
    EVOL PGA2311 x 2
    HPA TPA6120A2 x 2
    OPA OPA1612 x 5

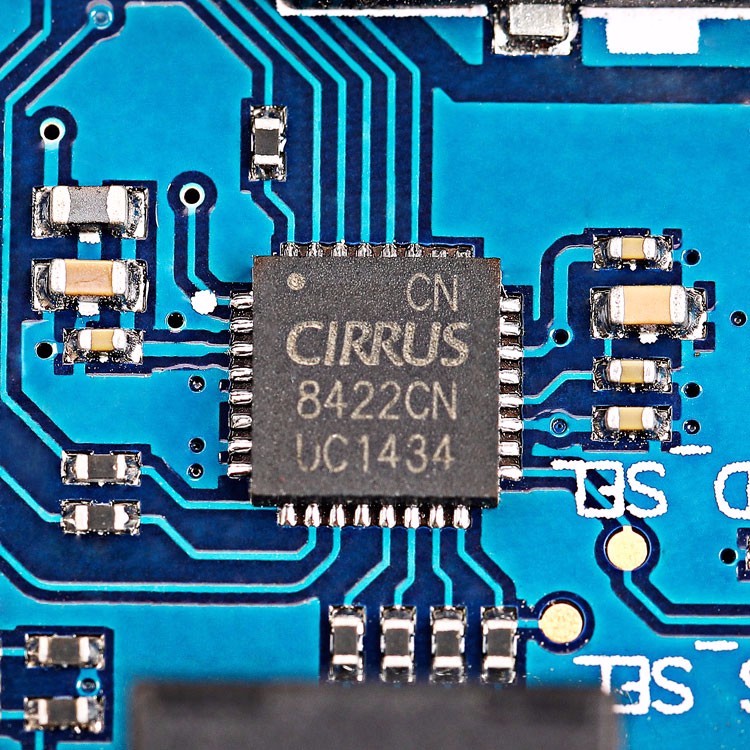

    DIR & ASRC CS8422

    Sampling rate PCM support to 768kHz, DSD512 hard solution;
    Support native DSD decoding; DAC uses two AK4490, HIFI fidelity plus full balance;
    The output section uses two Texas Instruments advanced headphone amplifier IC TPA6120A2;

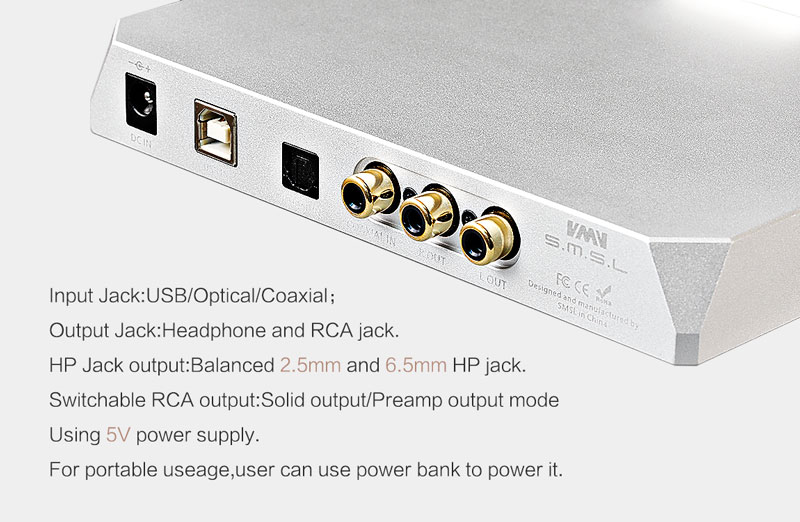

    Built-in asynchronous up-conversion function to eliminate clock jitter; designed with 2.5mm balanced output,
    easy access to balance earplugs, you can then take the cable to connect four-core XLR headphones;
    The audio part uses two ultra-low phase noise crystal; high-precision CNC aluminum alloy shell.

    SMSL M9 1.jpg SMSL M9 2.jpg SMSL M9 3.jpg SMSL M9 4.jpg SMSL M9 5.jpg SMSL M9 6.jpg SMSL M9 7.jpg SMSL M9 8.jpg SMSL M9 9.jpg SMSL M9 10.jpg SMSL M9 11.jpg SMSL M9 12.jpg SMSL M9 13.jpg
